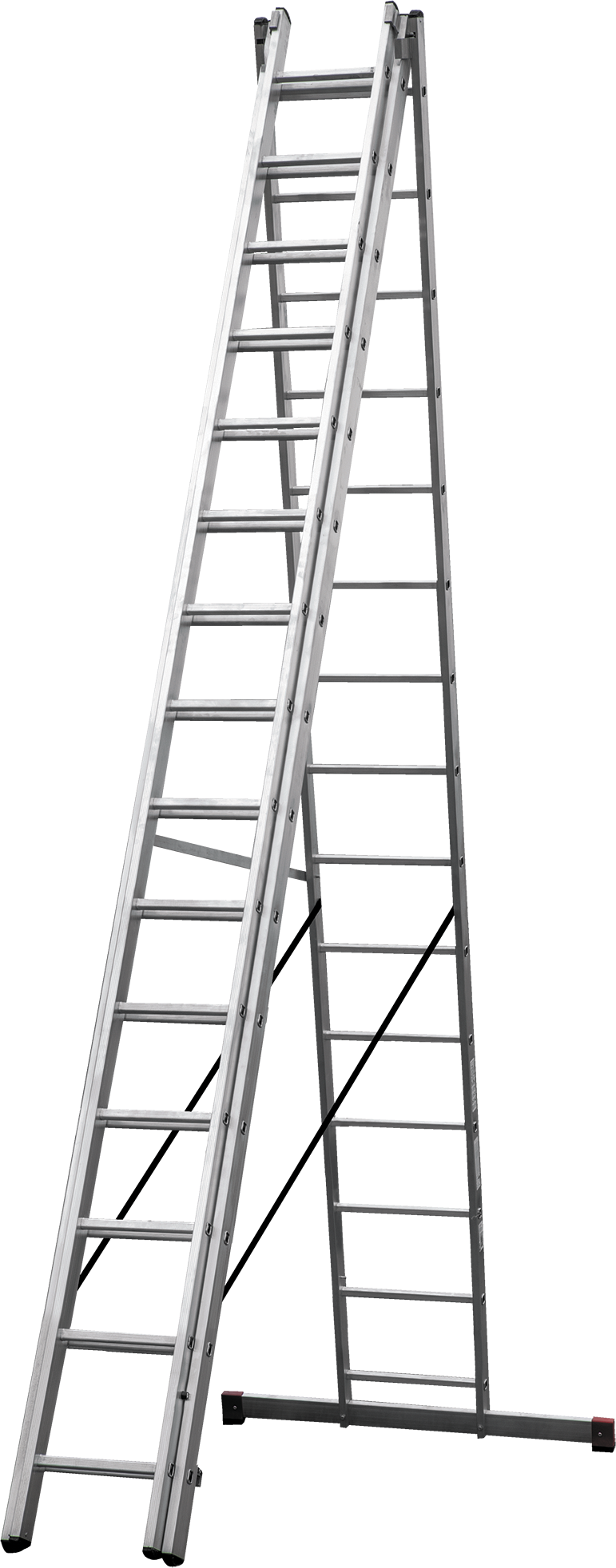

Three-section aluminium rung ladder NV 1230 sku 1230315

Rungs
3х15
Working height
463—1053 cm
Guarantee
1 year
Specification
Description

Positions of using:

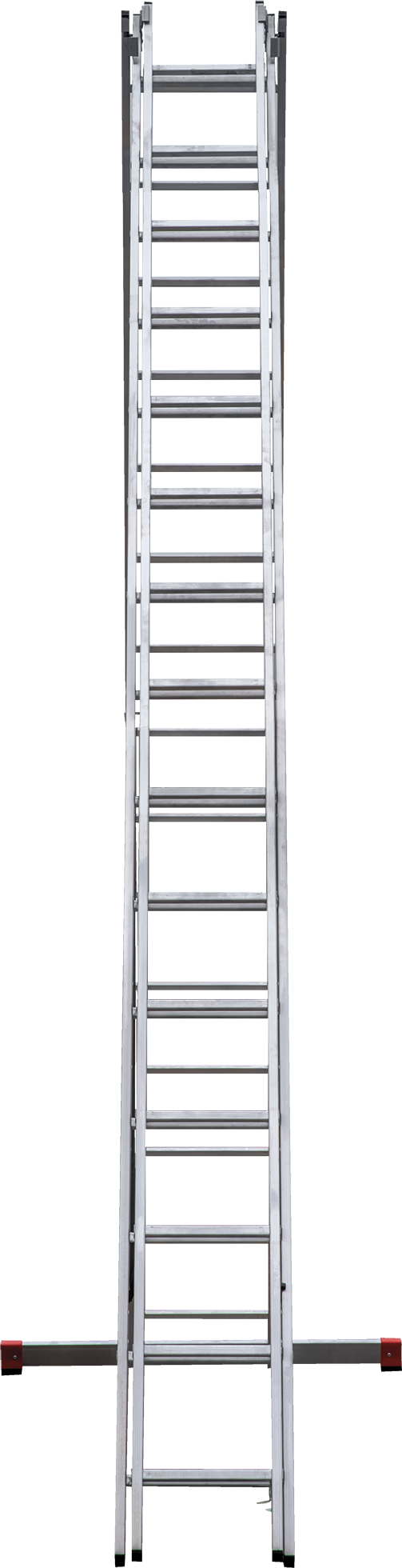

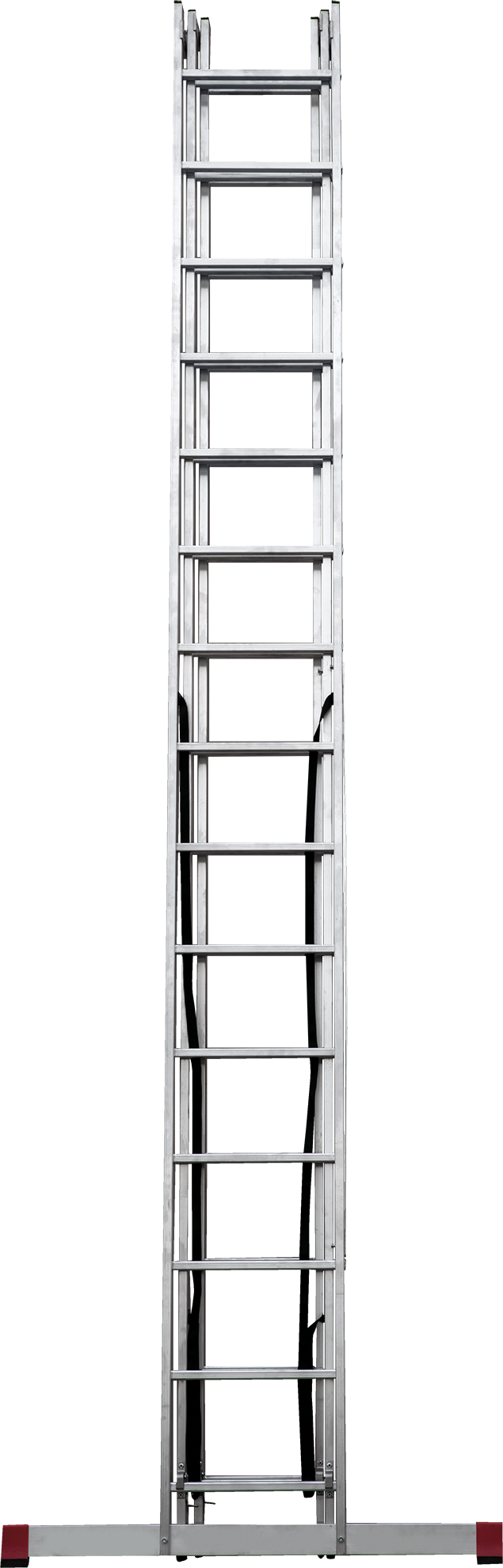

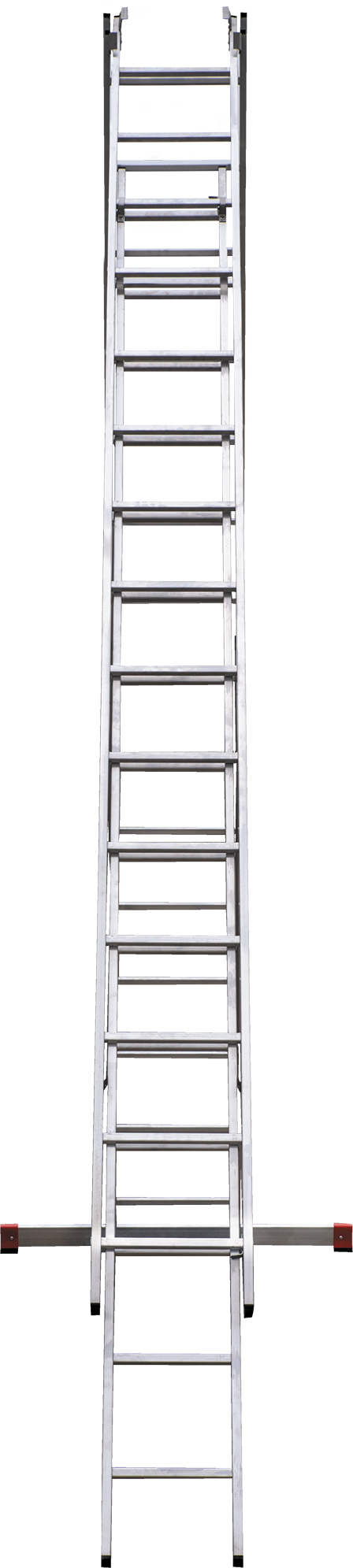

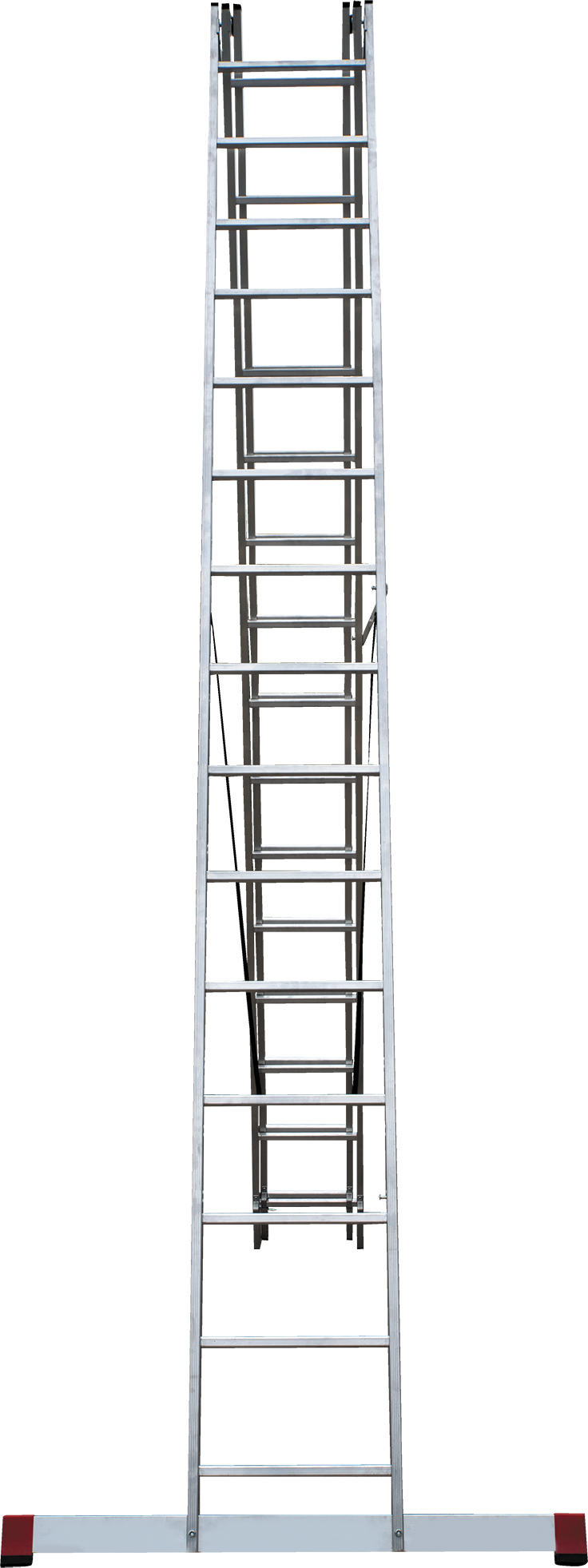

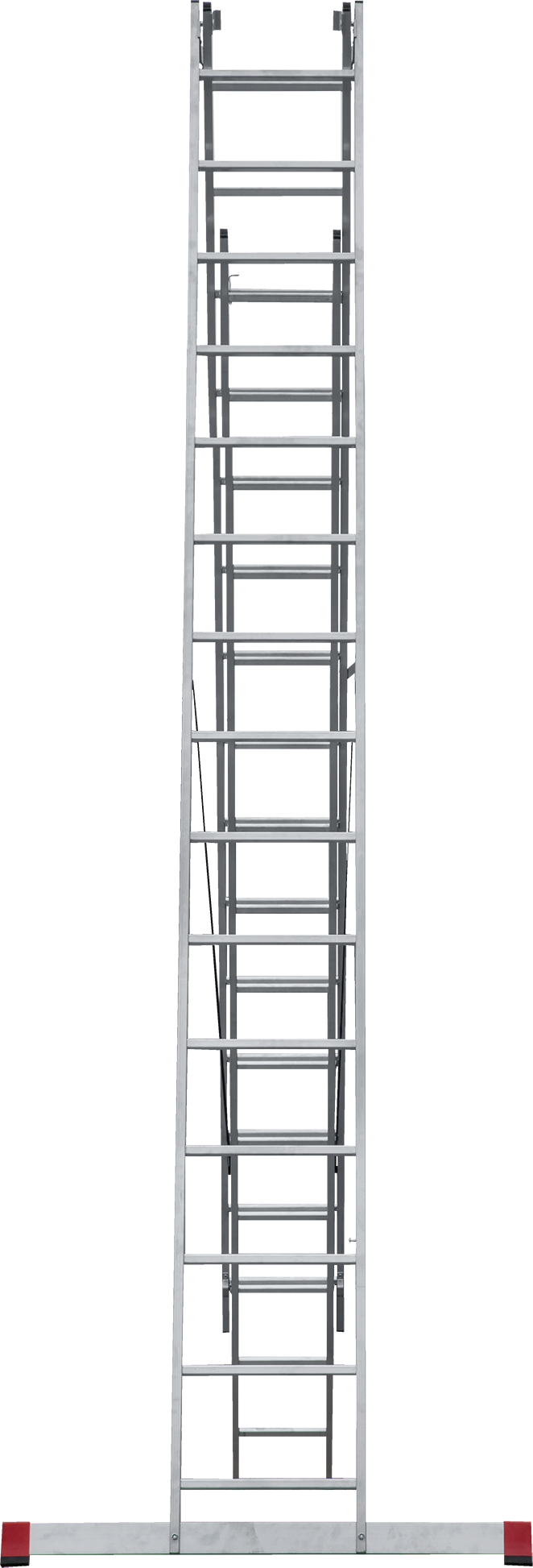

  • leaning rung ladder

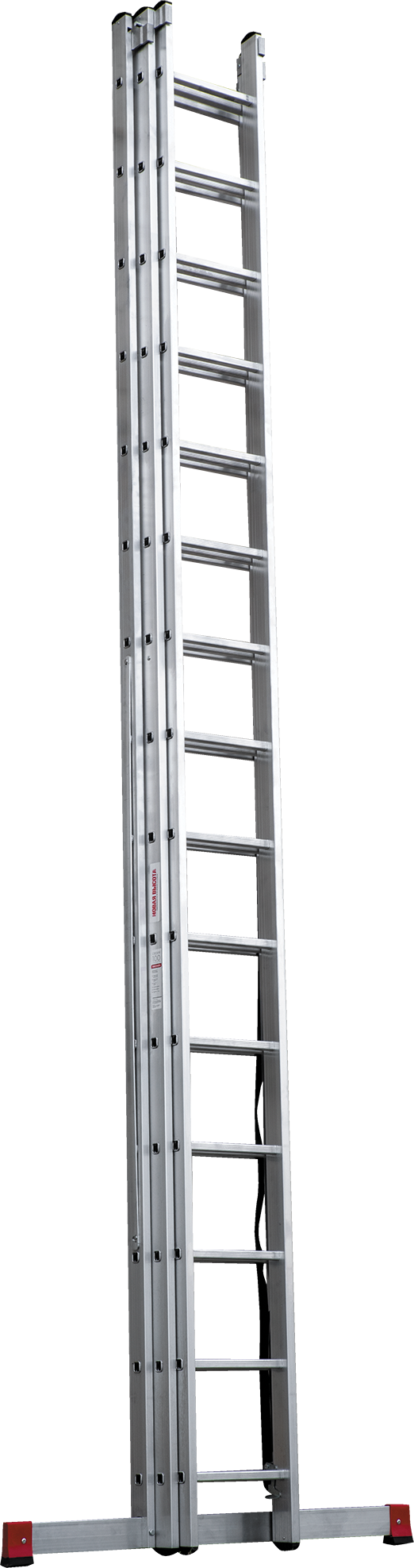

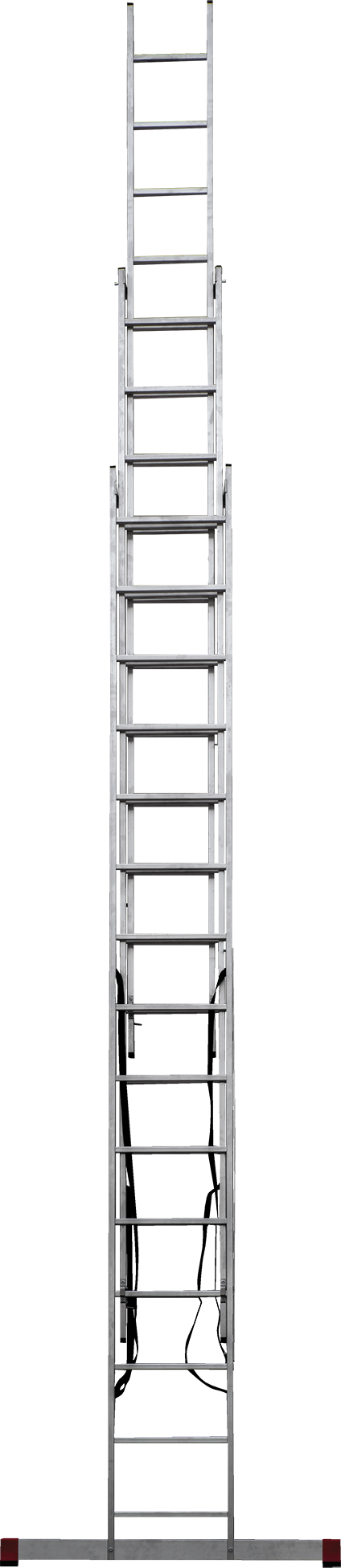

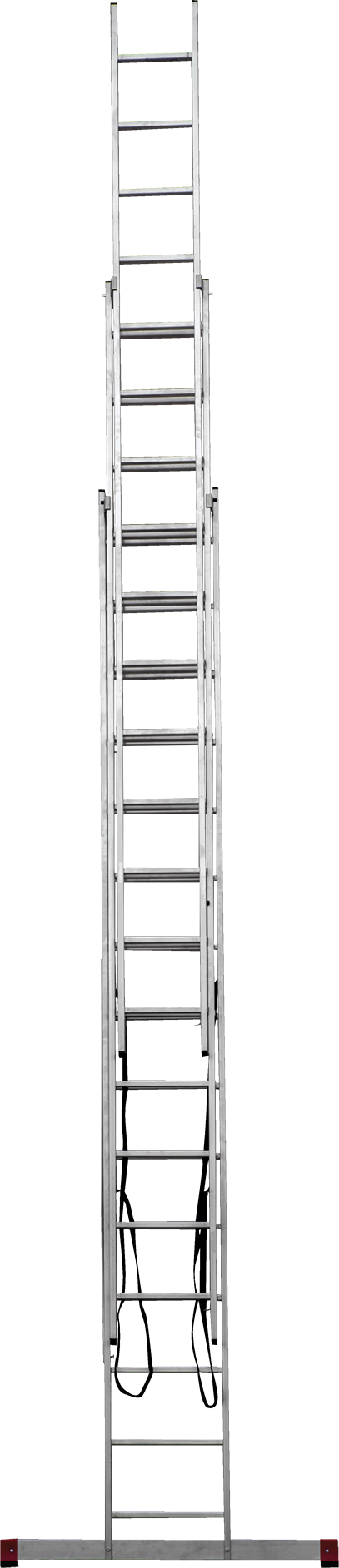

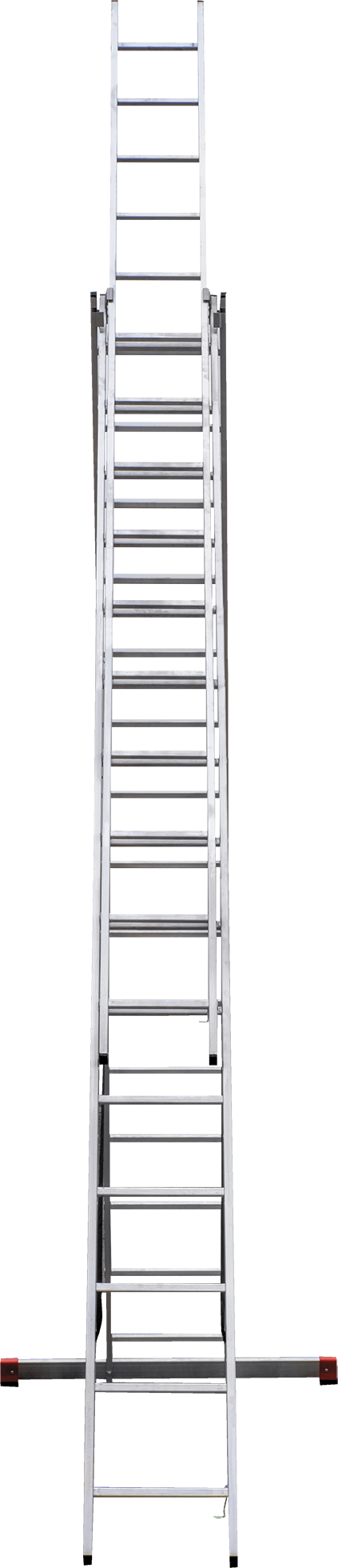

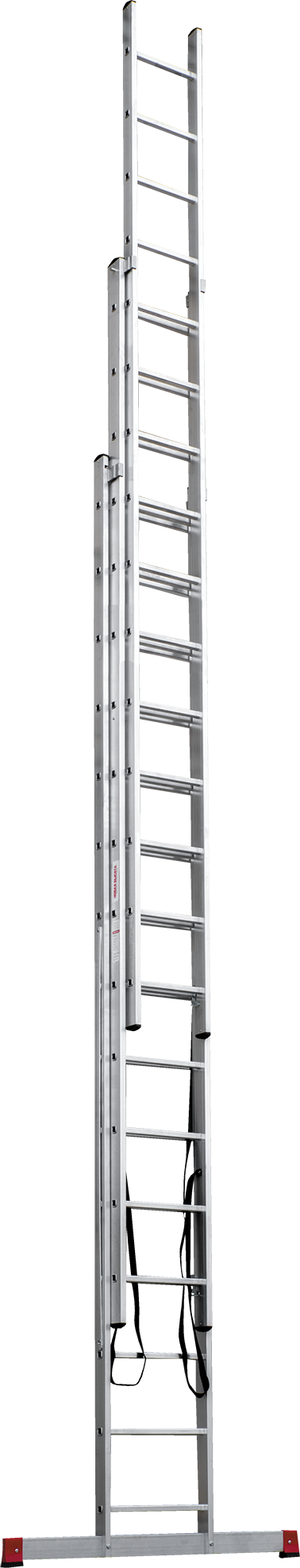

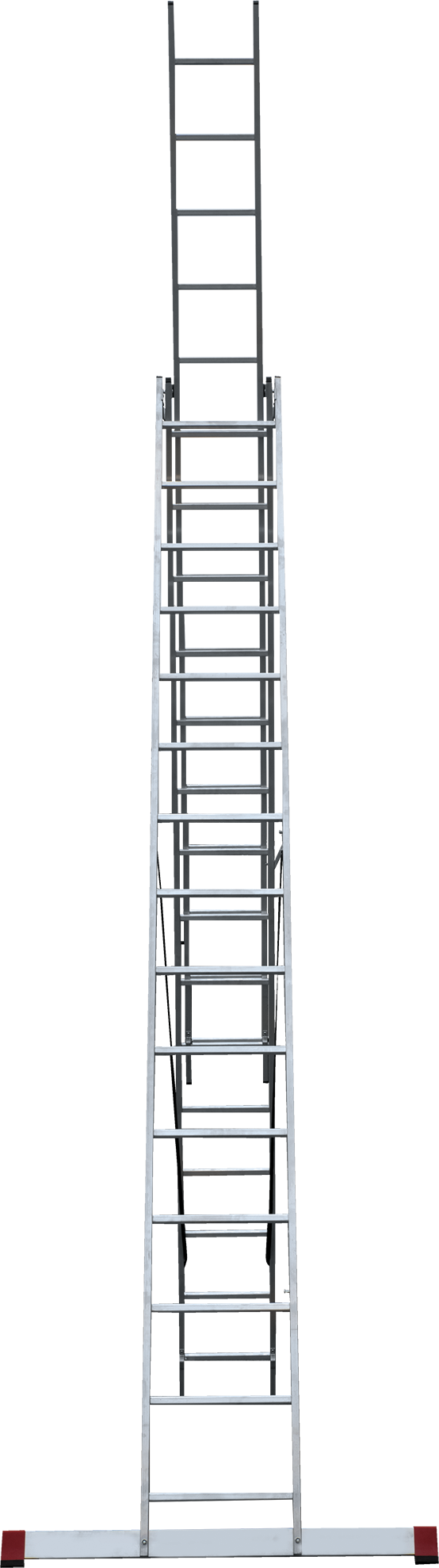

  • leaning extension rung ladder

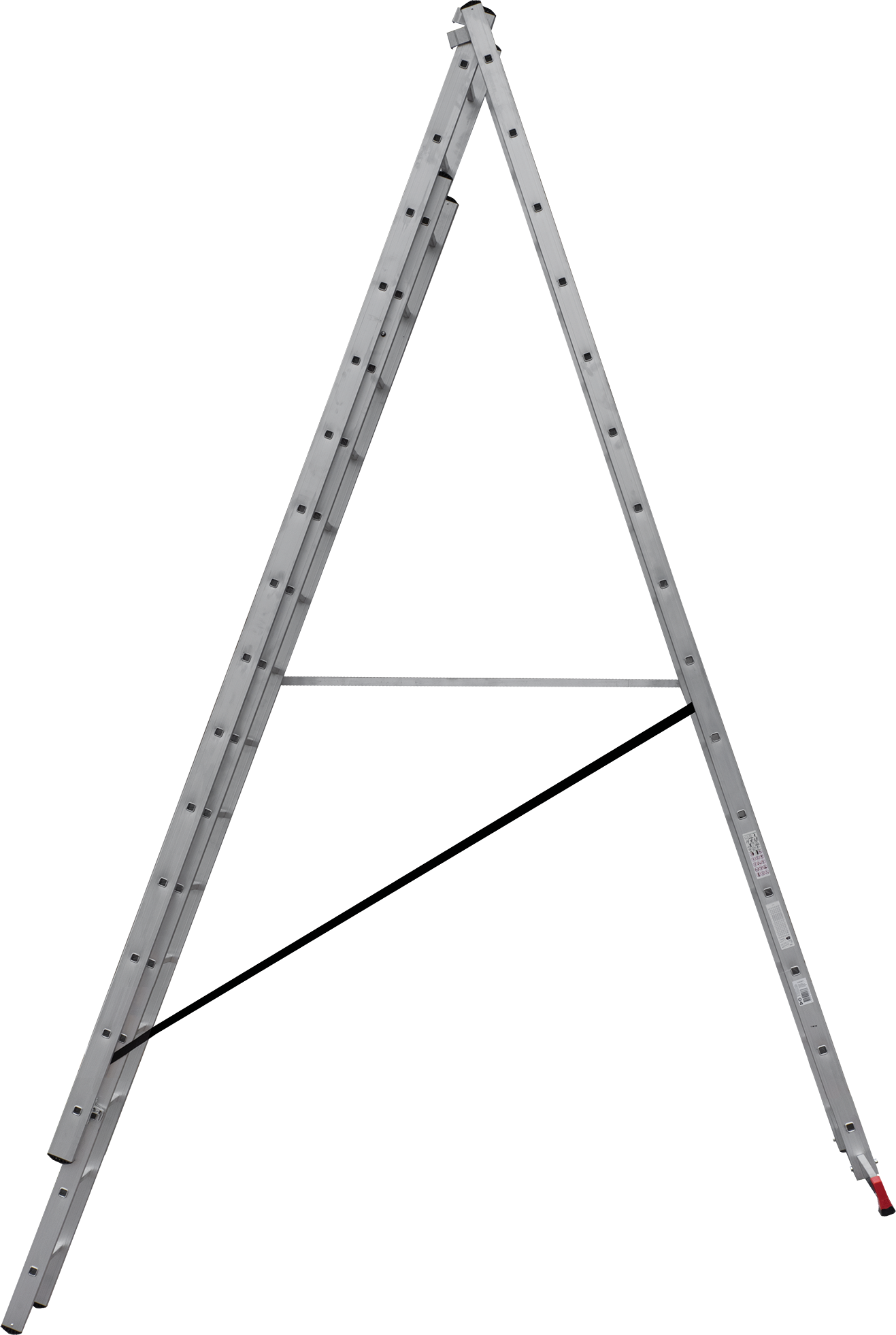

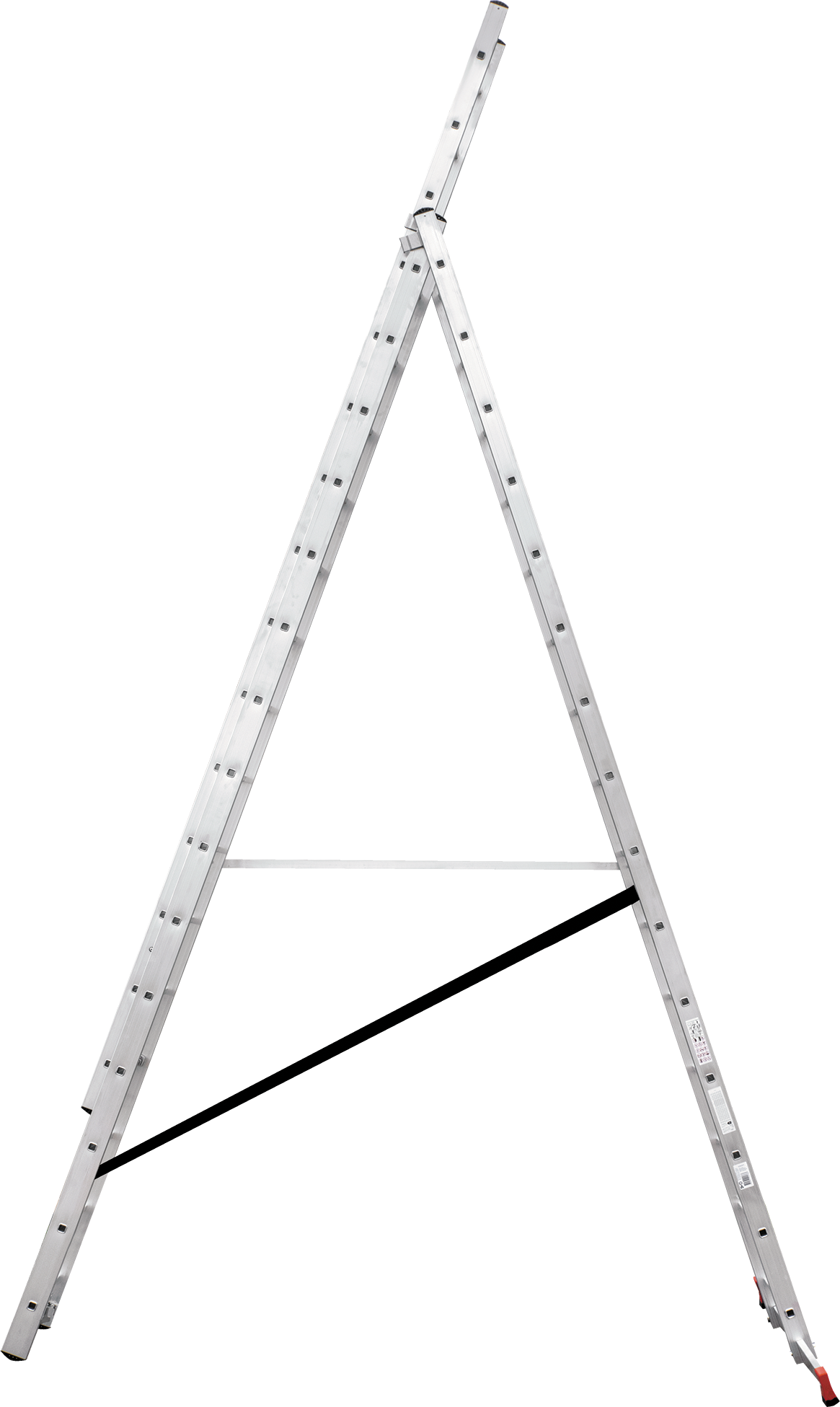

  • stepladder

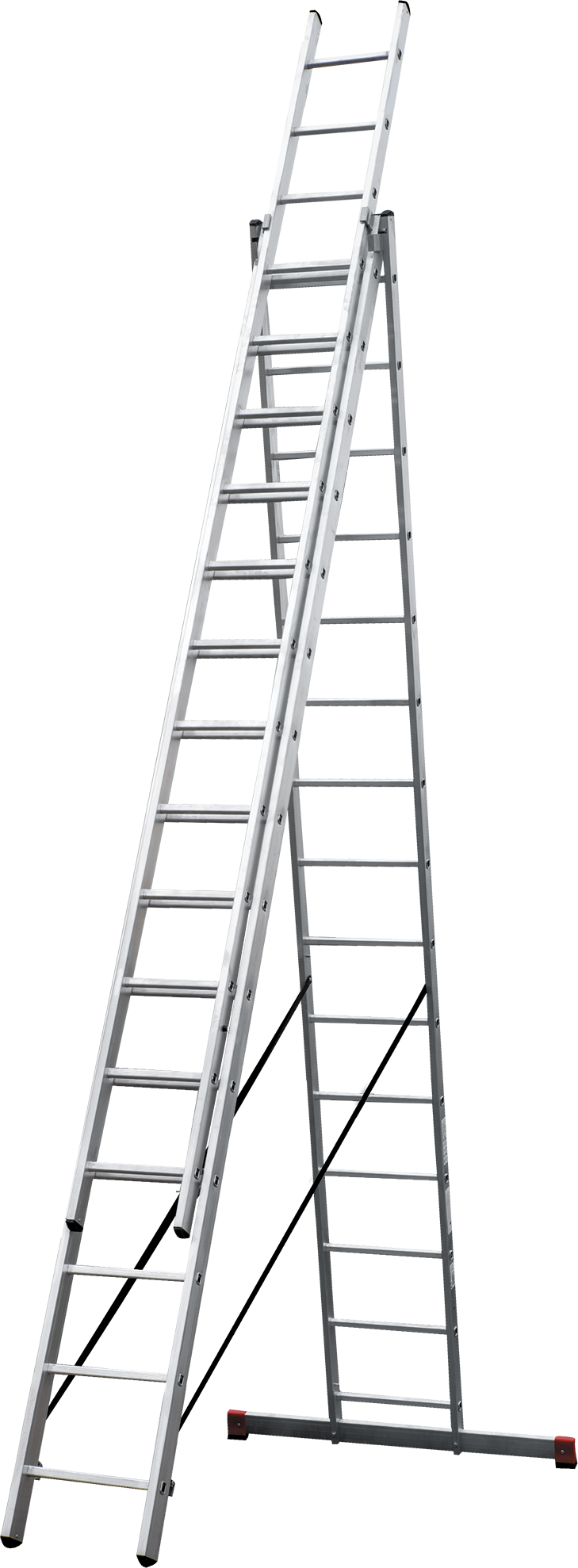

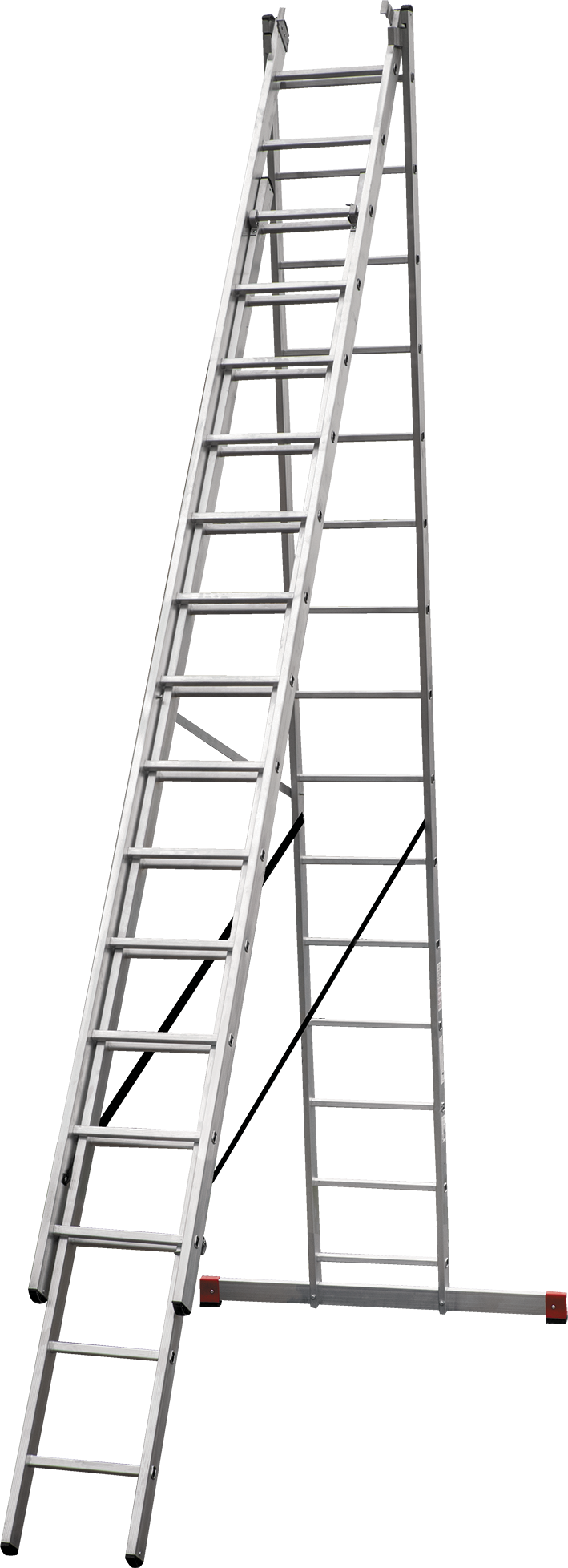

  • stepladder with an extendable section
  • can be used on stairs or steps

Technical advantages:

  • very lightweight but extremely durable and reliable
  • rungs and stiles are made from extruded aluminium profiles
  • strong riveting connects rungs and stiles, providing extra reliability and durability
  • rifled rung pitch of 260 mm for maximum safety when ascending the ladder
  • aluminium stile guides fix extendable ladder section reliably in its position for use
  • automatic locks for hooks
  • optimum stability thanks to wide cross bar
  • reliably fixed plastic end caps of stiles and cross-bar prevent risk of slipping
  • the upper section can be easilly pulled out and put up and be used separately as a single leaning rung ladder
  • can be used on steps or stairs by means of upper extendable section
Schema: Three-section aluminium rung ladder NV 1230 sku 1230315
Sku Steps A1, m A2, m A3, m B, m C, m C1, m C2, m D1, m D, m J, mm N, m M, m L, m Weight, kg
1230315 3×15 4.64 7.61 10.53 3.81 4.02 7.13 10.26 1.2 0.32 (23×72)X(23×85)X(23×72) 0.46 4.01 0.19 23.5
