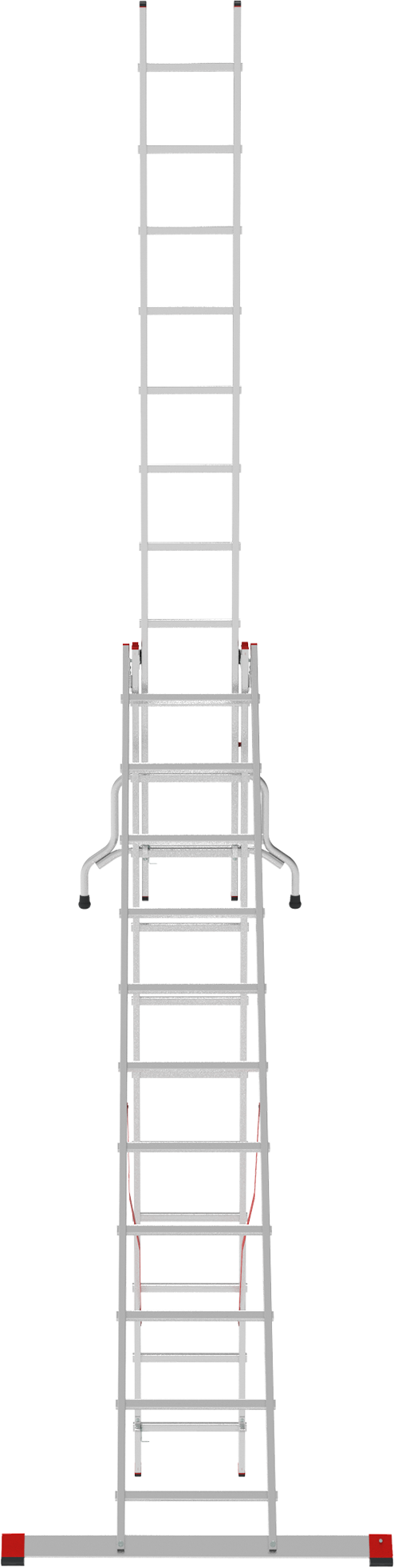

VIRA 4230

Rungs
3×7—3×14
Working height
16—377 cm
Specification
Description

Positions of using:

  • leaning rung ladder
  • leaning extension rung ladder
  • stepladder
  • stepladder with an extendable section
  • can be used on stairs or steps

Technical advantages:

  • very lightweight but extremely durable and reliable
  • rungs and stiles are made from extruded aluminium profiles
  • strong riveting connects rungs and stiles, providing extra reliability and durability
  • rifled rung pitch of 260 mm for maximum safety when ascending the ladder
  • aluminium stile guides fix extendable ladder section reliably in its position for use
  • automatic locks for hooks
  • optimum stability thanks to wide cross bar
  • reliably fixed plastic end caps of stiles and cross-bar prevent risk of slipping
  • the upper section can be easilly pulled out and put up and be used separately as a single leaning rung ladder
  • can be used on steps or stairs by means of upper extendable section

Please read this Instruction before use, pdf

Schema: VIRA 4230
Sku Steps A, m A1, m A2, m А3, m В, m С, m С1, m С2, m D1, m D, m E, m E1, m E2, m E3, m H, m G, m F, m J, mm K, mm Weight, kg
4230307 3×7 2.9 2.9 3.65 5.14 1.77 1.87 2.89 4.21 0.8 0.32 0.9 0.9 1.65 3.14 0.46 1.85 0.16 62 23 10.3
4230308 3×8 3.15 3.15 4.15 5.87 2.02 2.13 3.42 4.99 0.85 0.32 1.15 1.15 2.15 3.87 0.46 2.12 0.168 62 23 11.9
4230309 3×9 3.39 3.39 4.64 6.37 2.26 2.39 3.94 5.52 0.9 0.32 1.39 1.39 2.64 4.37 0.46 2.38 0.19 72 23 13.9
4230310 3×10 3.64 3.64 4.89 6.85 2.51 2.65 4.2 6.04 0.95 0.32 1.64 1.64 2.89 4.85 0.46 2.64 0.19 72 23 15.3
4230311 3×11 3.91 3.91 5.66 7.86 2.83 2.99 5.07 7.16 1.1 0.32 1.91 1.91 3.66 5.86 0.46 2.99 0.19 72 23 17.5
4230312 3×12 4.15 4.15 6.14 8.58 3.07 3.24 5.59 7.93 1.2 0.32 2.15 2.15 4.14 6.58 0.46 3.25 0.22 72 23 20.6
4230313 3×13 4.4 4.4 6.63 9.32 3.33 3.51 6.11 8.71 1.25 0.32 2.4 2.4 4.63 7.32 0.46 3.51 0.24 99 23 23.8
4230314 3×14 4.65 4.65 7.12 10.05 3.58 3.77 6.63 9.49 1.3 0.32 2.65 2.65 5.12 8.05 0.46 3.77 0.24 99 23 25.4
