Hinged scaffold-tower NV 3440

Rungs
2×2х4—2×2х8
Working height
338—546 cm
Price
from 19380—26670
Guarantee
3 years
Specification
Description

Technical advantages:

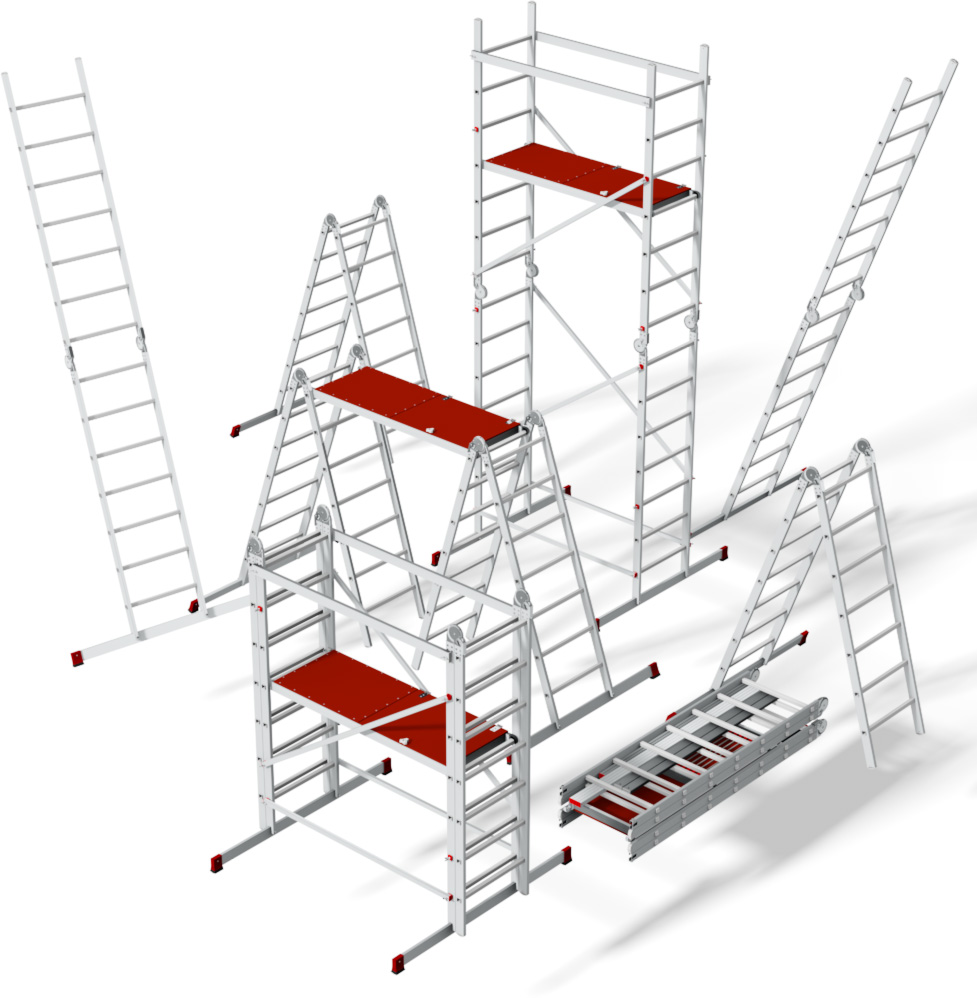

  • scaffold-tower, rung ladder, work platform and stepladder combined in one item
  • easy to assemble and provides high level of comfort
  • equipped with the hinge for easy transportation
  • fitted with the wheels for easy movement
  • platform from water-resistant plywood with the trapdoor can be adjusted at different levels
  • reinforced cross-bar
  • the cross-bar adjustment is for convinient work right against the wall
  • firm positioning thanks to steady end caps from two-component plastic
  • optimal dimensions for storage and transportation
  • practicallity and attention to every detail guarantee safety when working at any height

3440

Schema: Hinged scaffold-tower NV 3440
Sku Steps A, m B, m C, m D, m E, m F, m G, m H, m I, m J, m K, m Weight, kg Buy
3440224 2×2х4 0,77 1,38 3,38 2,36 1,0 0,5 1,38 1,55 0,2 2,35 0,60 29,5 19380
3440225 2×2х5 0,77 1,90 3,90 2,88 1,2 0,5 1,38 1,55 0,3 1,85 0,58 32 21130
3440226 2×2х6 0,77 2,42 4,42 3,40 1,2 0,5 1,38 1,55 0,3 1,85 0,58 36,3 23420
3440227 2×2х7 0,77 2,94 4,94 3,92 1,5 0,5 1,38 1,55 0,3 2,00 0,58 39 25320
3440228 2×2х8 0,77 3,46 5,46 4,44 1,5 0,5 1,38 1,55 0,3 2,26 0,58 41 26670

Положение 2

Положеине 2

Sku Steps A, m B, m C, m D, m E, m F, m G, m H, m I, m J, m Weight, kg Buy
3440224 2×2х4 1,03 3,03 1,17 1,00 0,5 1,38 2,54 0,2 2,35 0,60 29,5 19380
3440225 2×2х5 1,28 3,28 1,41 1,20 0,5 1,38 2,71 0,3 1,85 0,58 32 21130
3440226 2×2х6 1,53 3,53 1,66 1,20 0,5 1,38 2,89 0,3 1,85 0,58 36,3 23420
3440227 2×2х7 1,80 3,80 1,91 1,50 0,5 1,38 3,02 0,3 2,00 0,58 39 25320
3440228 2×2х8 2,02 4,02 2,15 1,50 0,5 1,38 3,19 0,3 2,26 0,58 41 26670

Положение 3

Положеине 3

Sku Steps A, m B, m C, m D, m E, m F, m G, m H, m I, m J, m Шт. Weight, kg Buy
3440224 2×2х4 1,17 2,53 1,01 3,52 2,36 1,25 0,14 0,2 2,35 0,60 2 29,5 19380
3440225 2×2х5 1,41 2,77 1,21 4,01 2,88 1,51 0,14 0,3 1,85 0,58 2 32 21130
3440226 2×2х6 1,66 3,02 1,21 4,50 3,40 1,77 0,14 0,3 1,85 0,58 2 36,3 23420
3440227 2×2х7 1,91 3,27 1,51 4,99 3,92 2,03 0,14 0,3 2,00 0,58 2 39 25320
3440228 2×2х8 2,15 3,51 1,51 5,48 4,44 2,29 0,14 0,3 2,26 0,58 2 41 26670

Положение 4

Положеине 4

Sku Steps A, m B, m C, m D, m E, m F, m G, m H, m I, m J, m K, m Weight, kg Buy
3440227 2×2х7 0,77 1,11 3,11 2,03 1,51 0,5 1,38 1,66 0,3 2,00 0,58 39 25320
3440228 2×2х8 0,77 1,37 3,37 2,29 1,51 0,5 1,38 1,66 0,3 2,26 0,58 41 26670
