Mobile folding ladder with platform for industrial use NV 554

Rungs
1×4—1×12
Guarantee
5 years
Specification
Description
  • Ergonomic stairs with platform for safe operation
  • Easy to work with, to move and storage due to the folding design and castors of 125 mm diameter
  • Steps with 100 mm depth from extruded aluminum profile for comfortable ascending platform is fenced from three sides for long and safe work
  • 1100 mm railing height
  • Max load 150 kg
  • Wide cross bar
  • Guardrail for safe and ergonomic working at heights

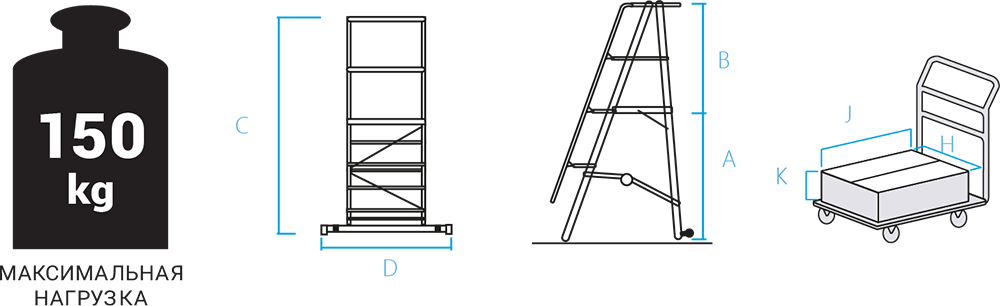

Schema: Mobile folding ladder with platform for industrial use NV 554
Sku Steps A, m B, m C, m D, m L, mm H, m J, m K, m Weight, kg
5540104 1×4 0.98 1.05 2.05 1.2 640×620 0.77 2.41 0.26 26
5540105 1×5 1.22 1.05 2.29 1.2 640×620 0.77 2.67 0.26 28
5540106 1×6 1.47 1.05 2.54 1.2 640×620 0.77 2.93 0.26 30
5540107 1×7 1.71 1.05 2.78 1.2 640×620 0.77 3.19 0.26 32
5540108 1×8 1.95 1.05 3.03 1.2 640×620 0.77 3.45 0.26 34
5540109 1×9 2.2 1.05 3.27 1.2 640×620 0.77 3.71 0.26 36
5540110 1×10 2.44 1.05 3.52 1.2 640×620 0.77 3.97 0.26 38
5540111 1×11 2.69 1.05 3.76 1.2 640×620 0.77 4.23 0.26 40
5540112 1×12 2.93 1.05 4.01 1.2 640×620 0.77 4.49 0.26 42
