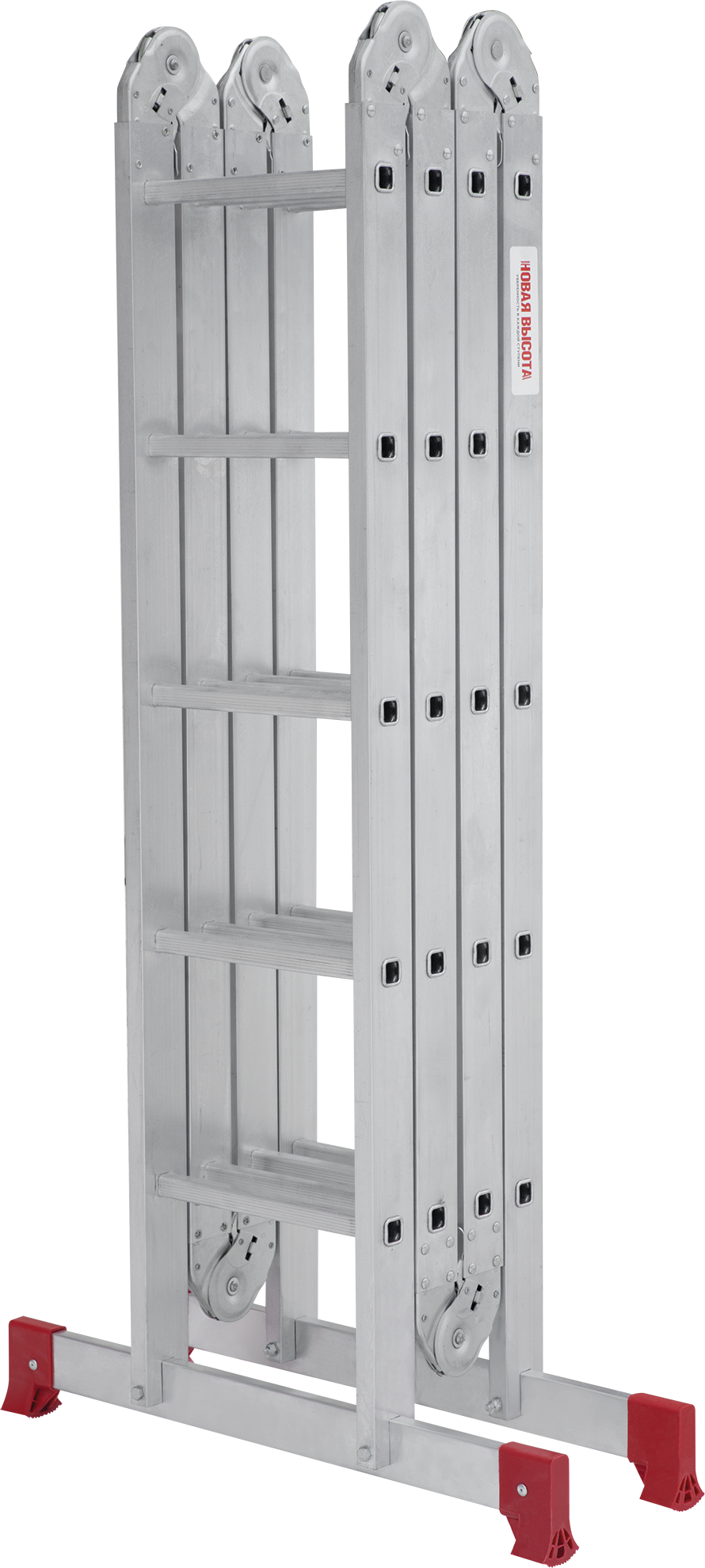

Multipurpose aluminium rung ladder NV 2320
Rungs
4×3—2×5+2×6
Working height
300 cm
Price
from 6970—10610
Guarantee
2 years
Specification
Description
Positions of using:

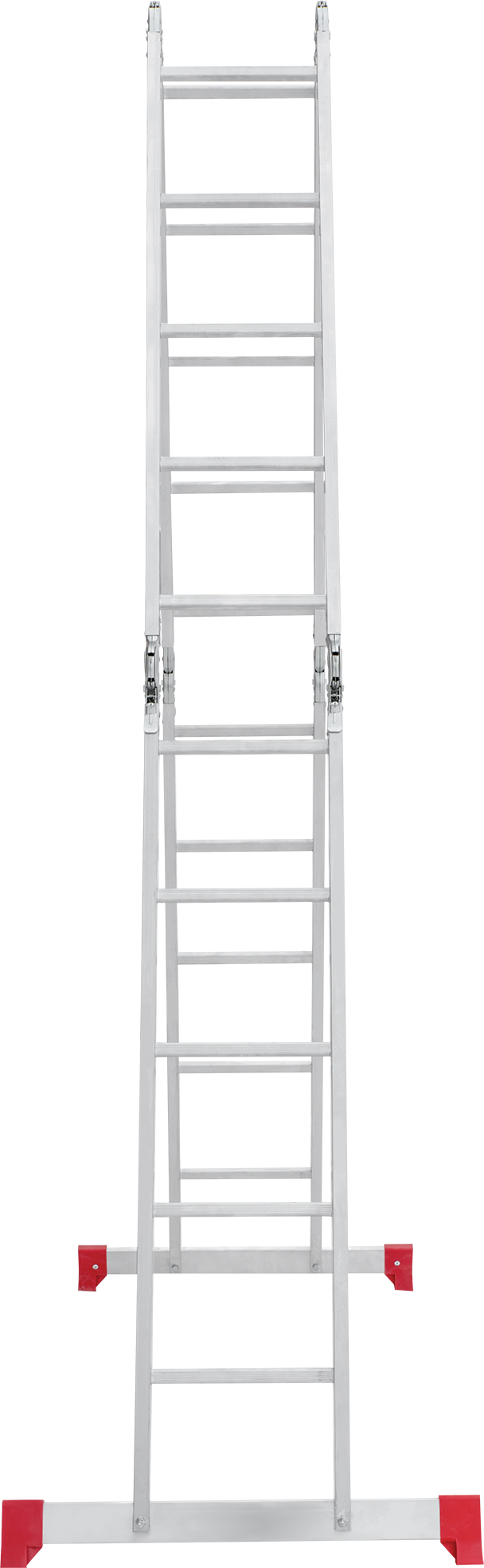

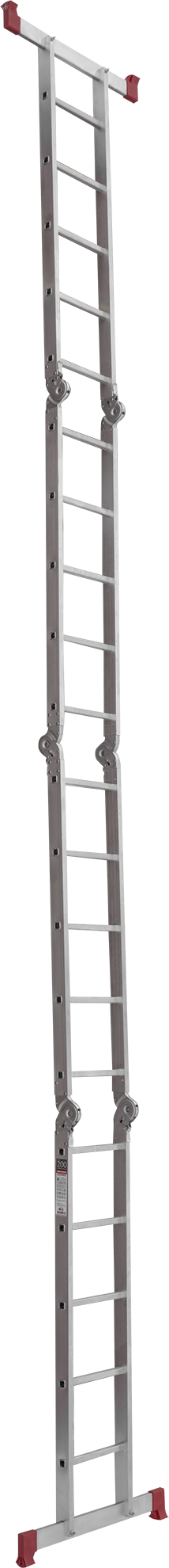

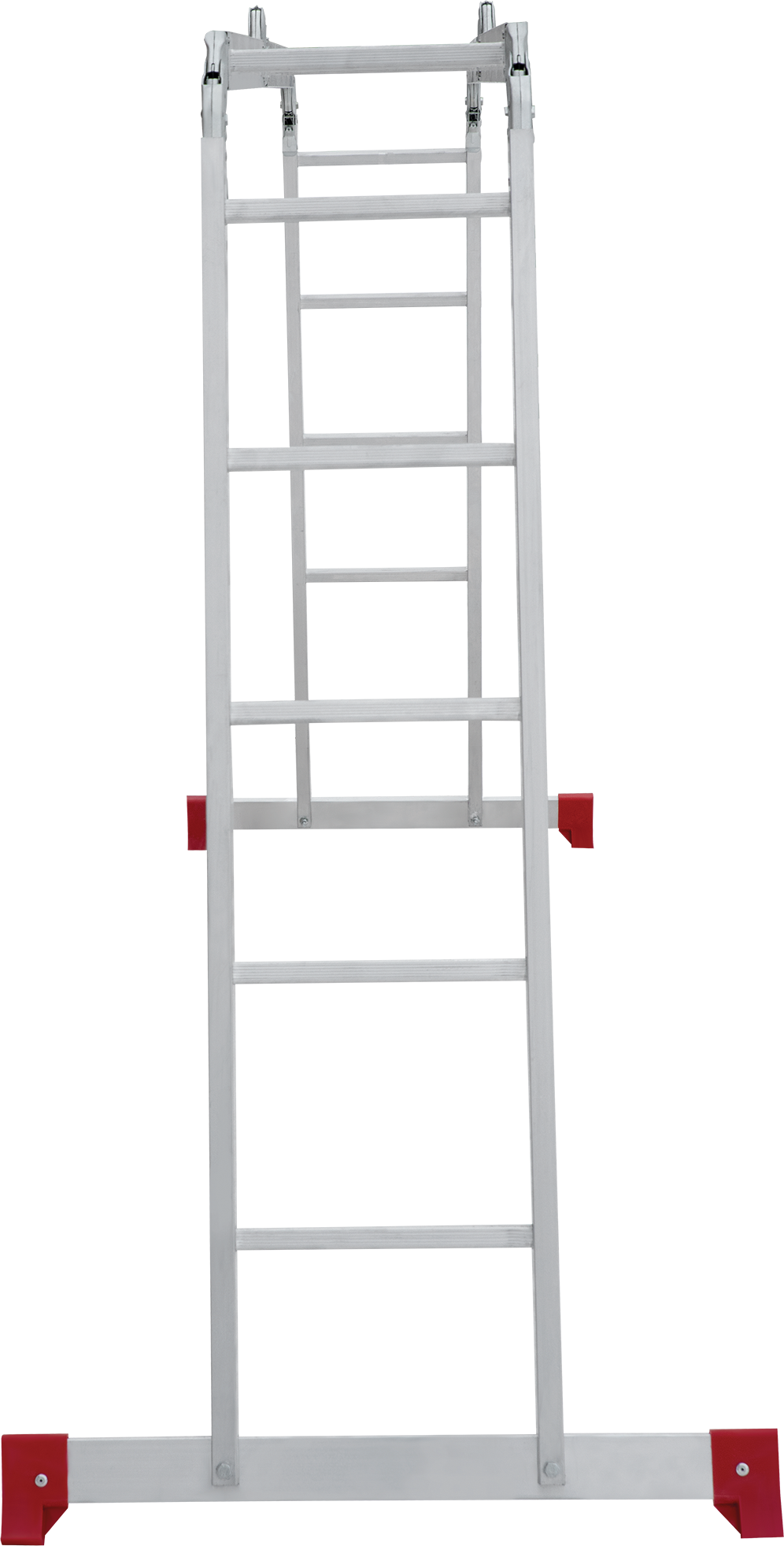

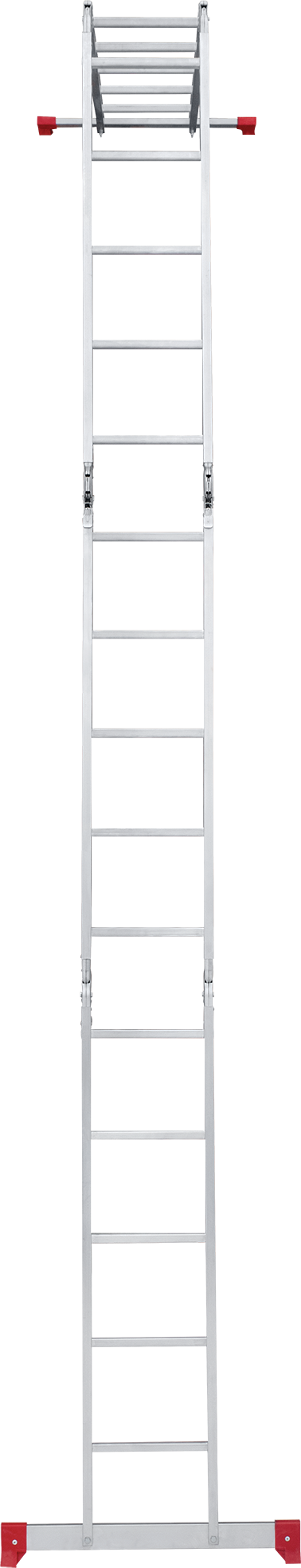

- leaning rung ladder

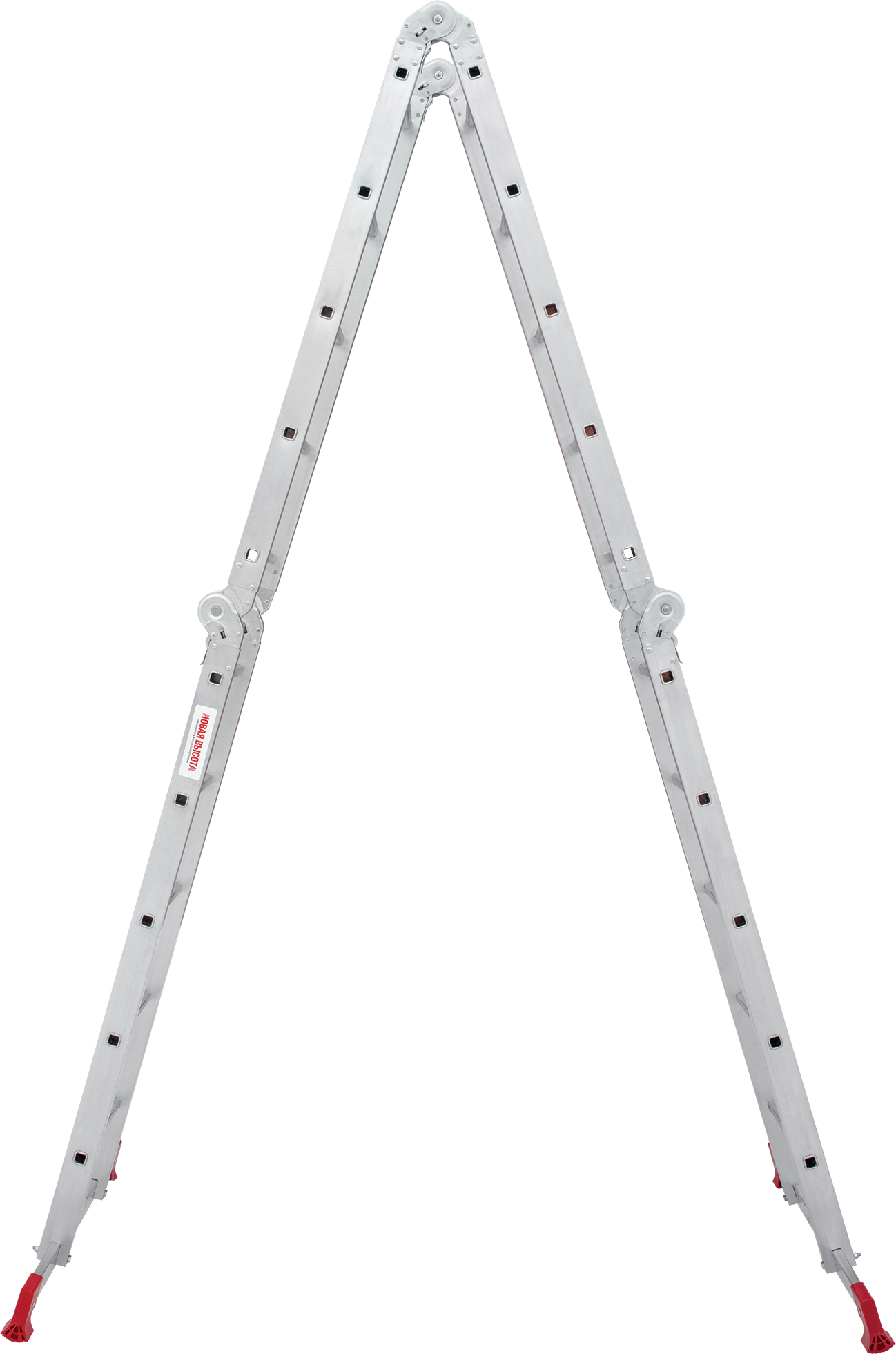

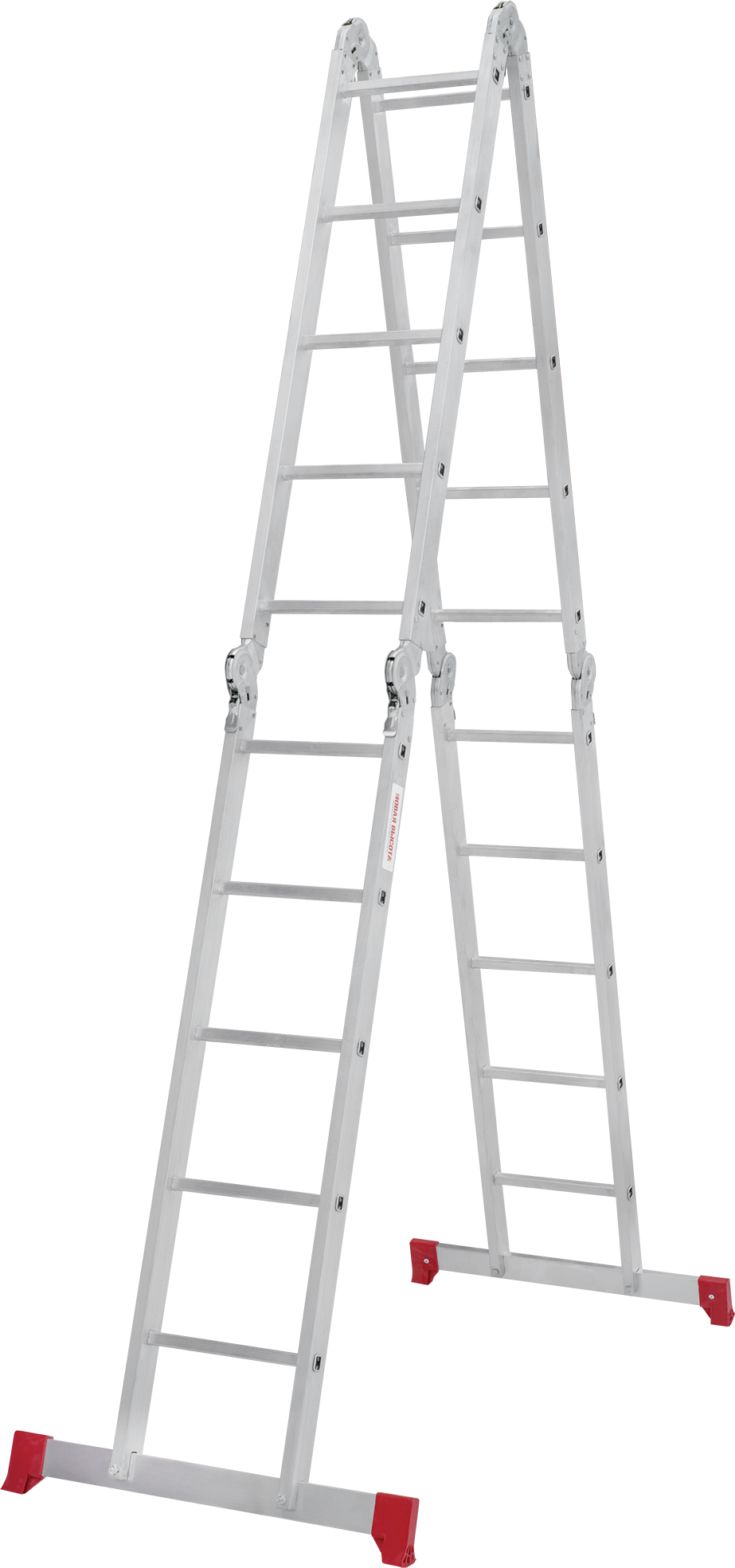

- stepladder
- leaning, L-shaped rung ladder
- work platform
Technical advantages:
- very lightweight but extremely durable and reliable

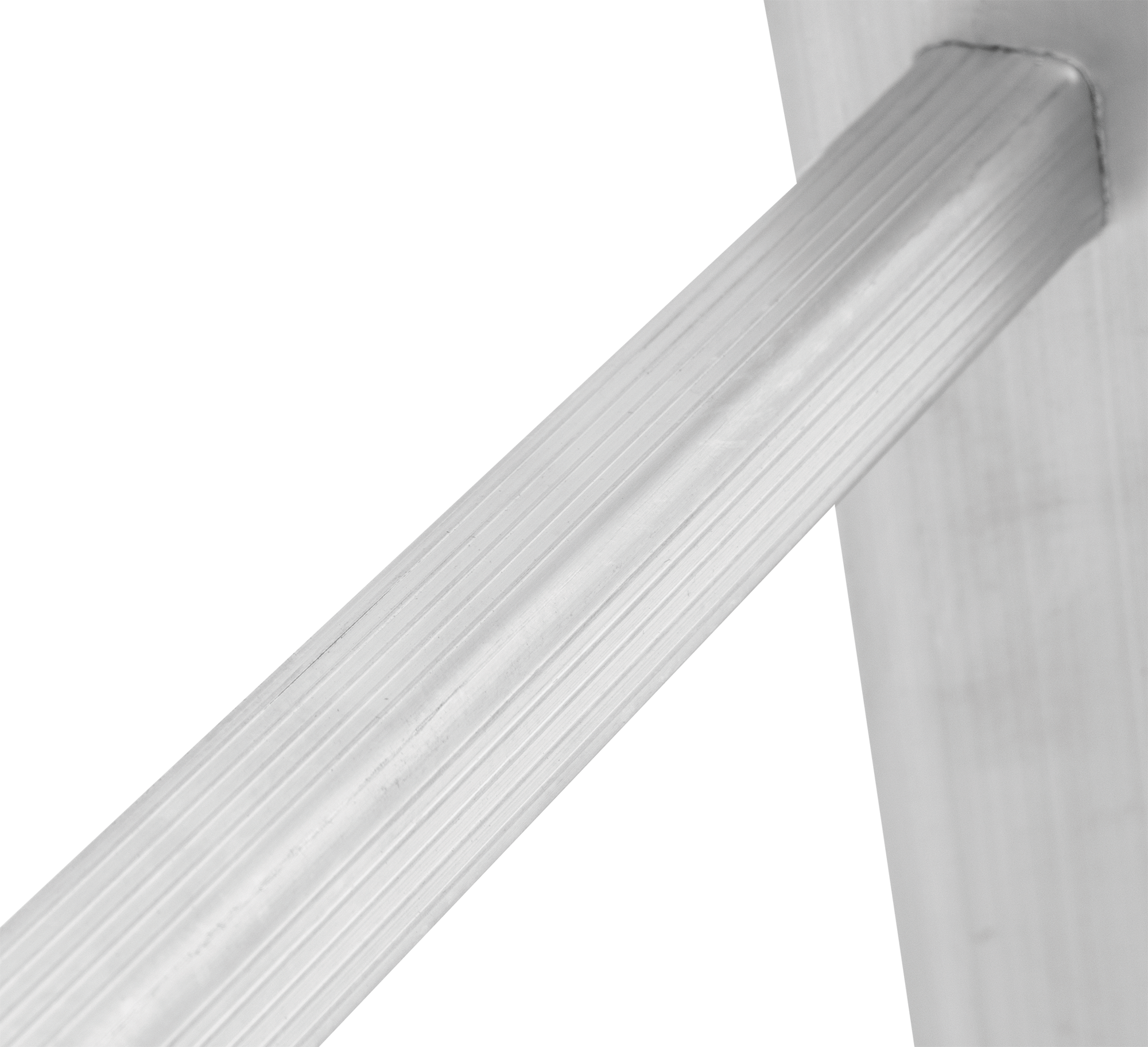

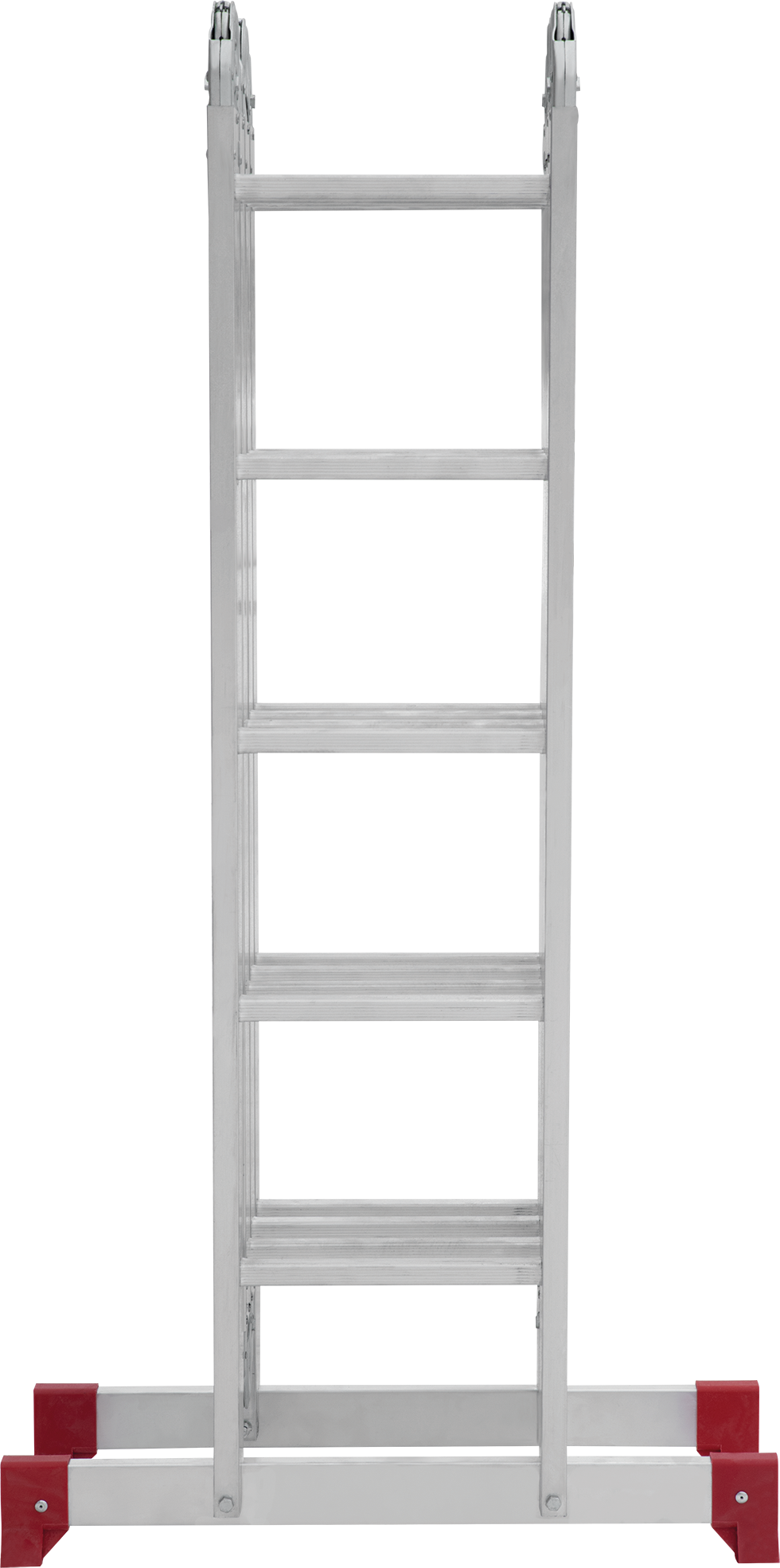

- rifled surface of rungs for maximum safety when ascending the rung ladder
- rungs and stiles are made from extruded aluminium profiles
- reinforced stiles in overloaded places for support

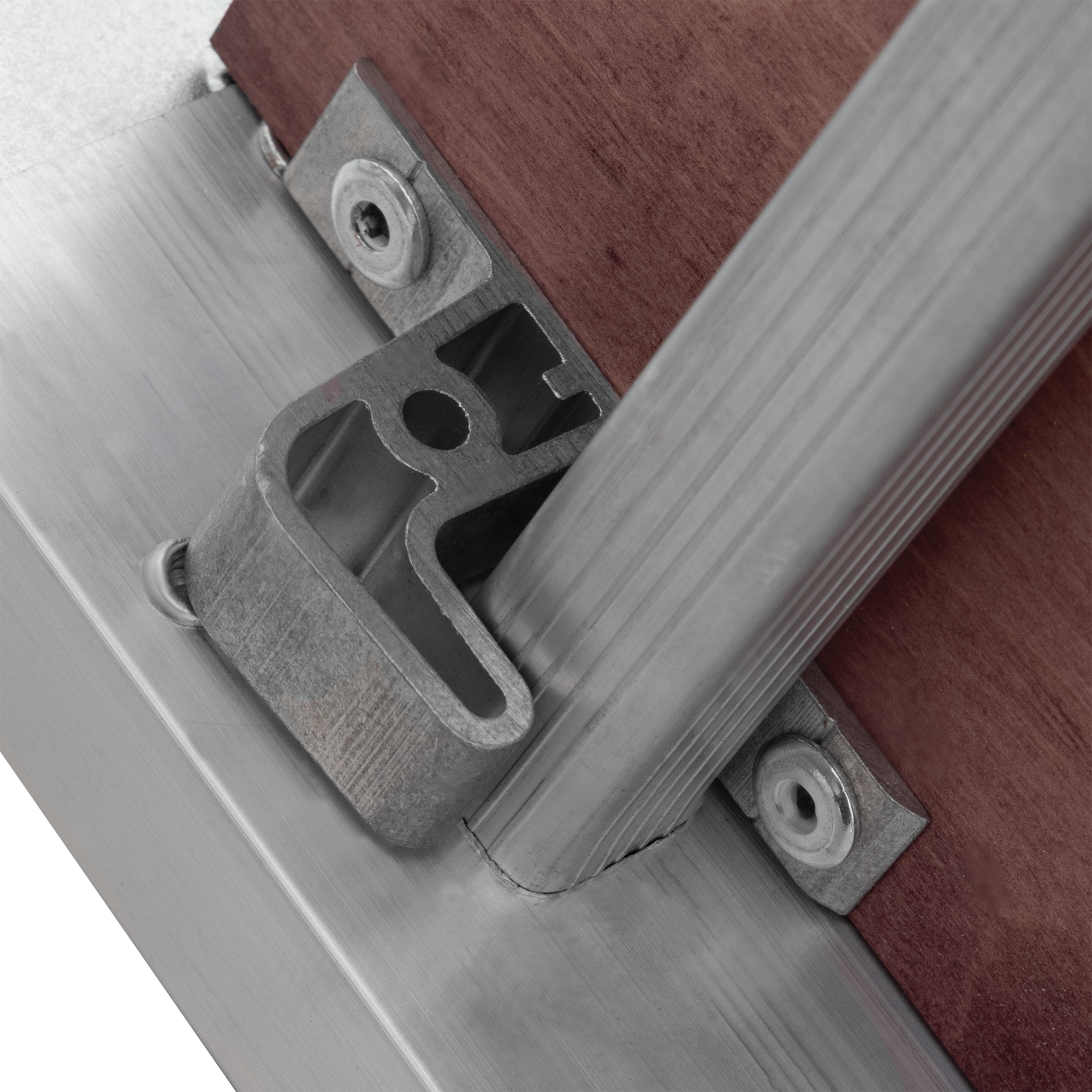

- strong riveting connects rungs and stiles providing extra reliability and lasting quality

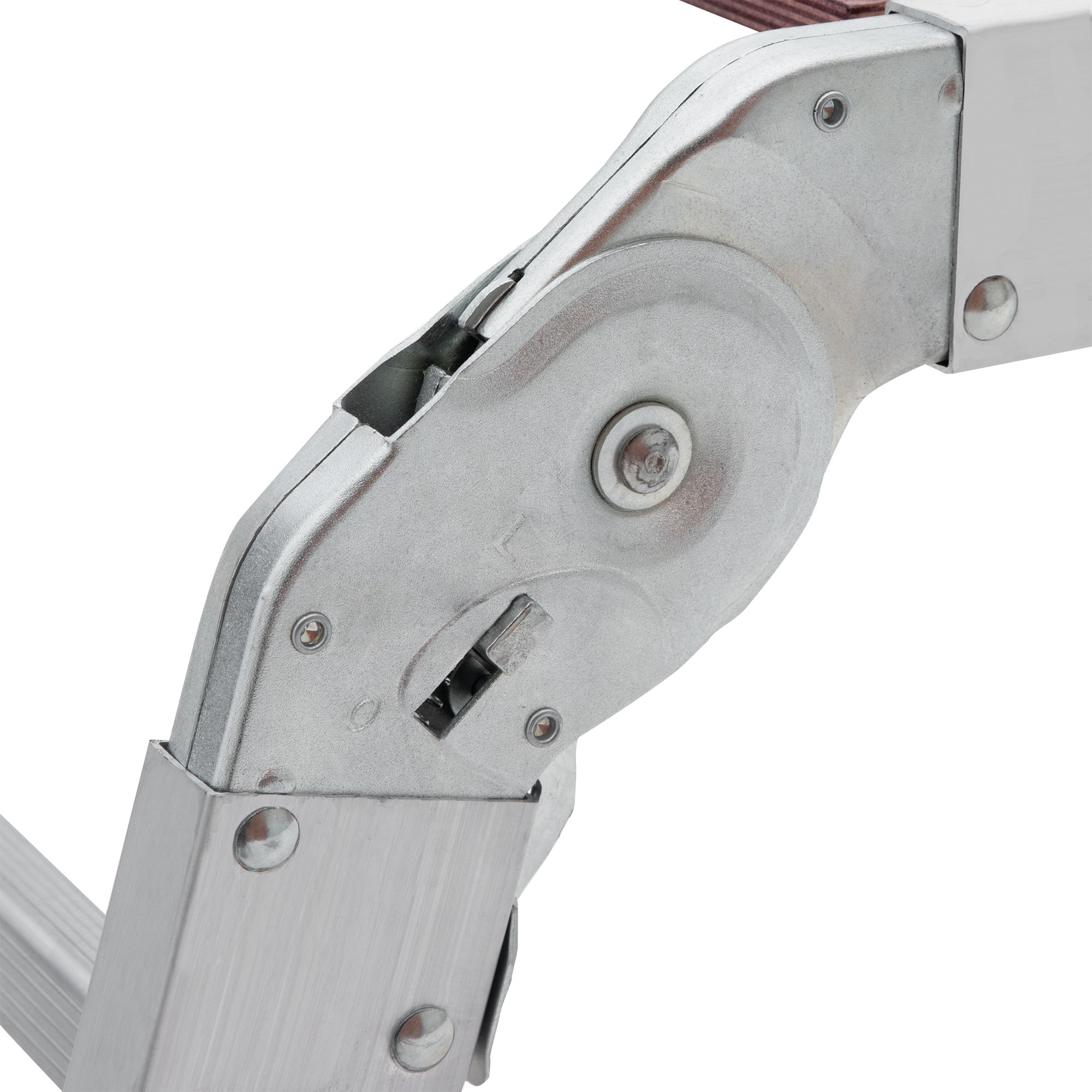

- locking hinge device is regulated by one hand

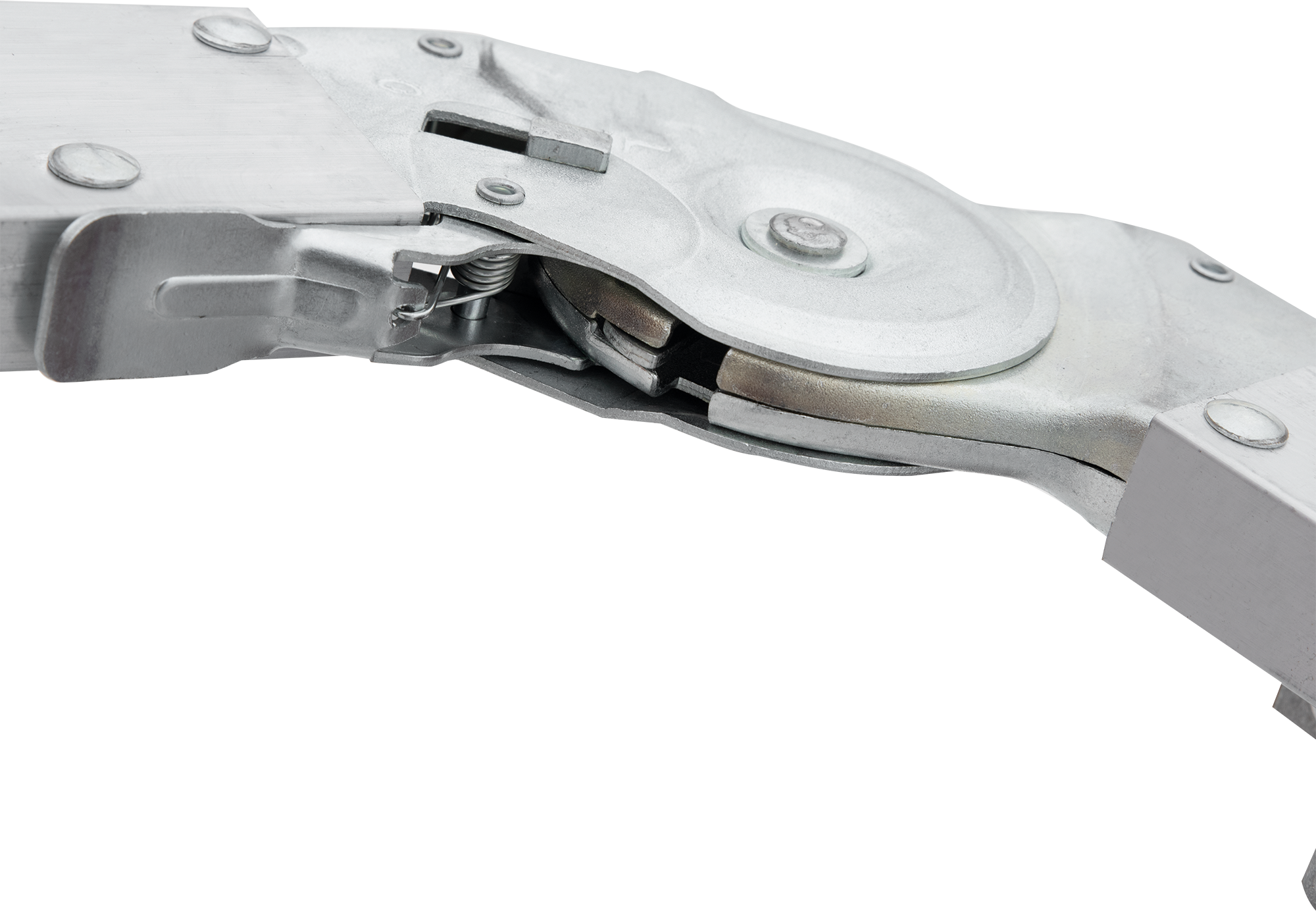

- reliable self-locking

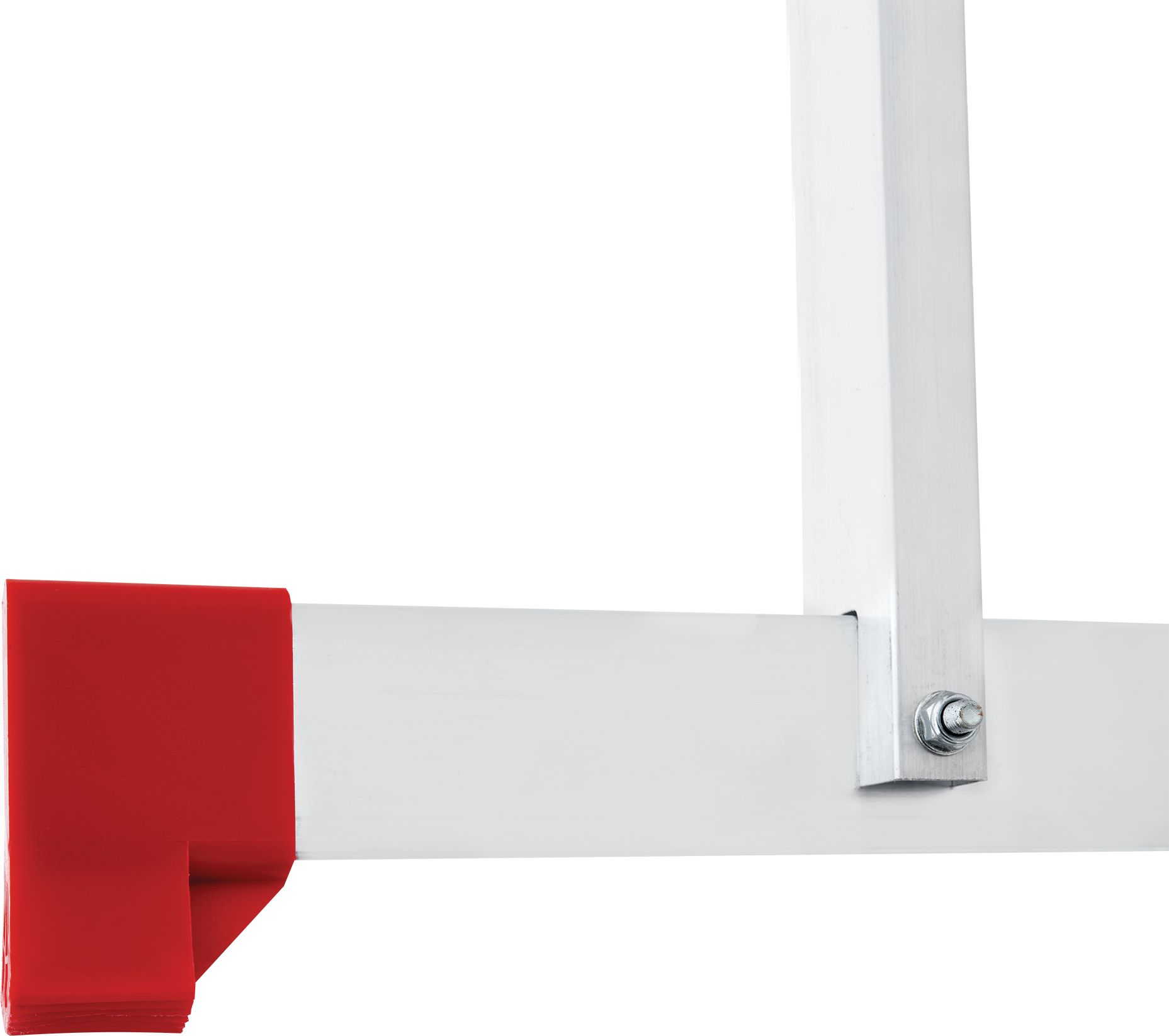

- optimum stability in any position for use thanks to wide cross bars

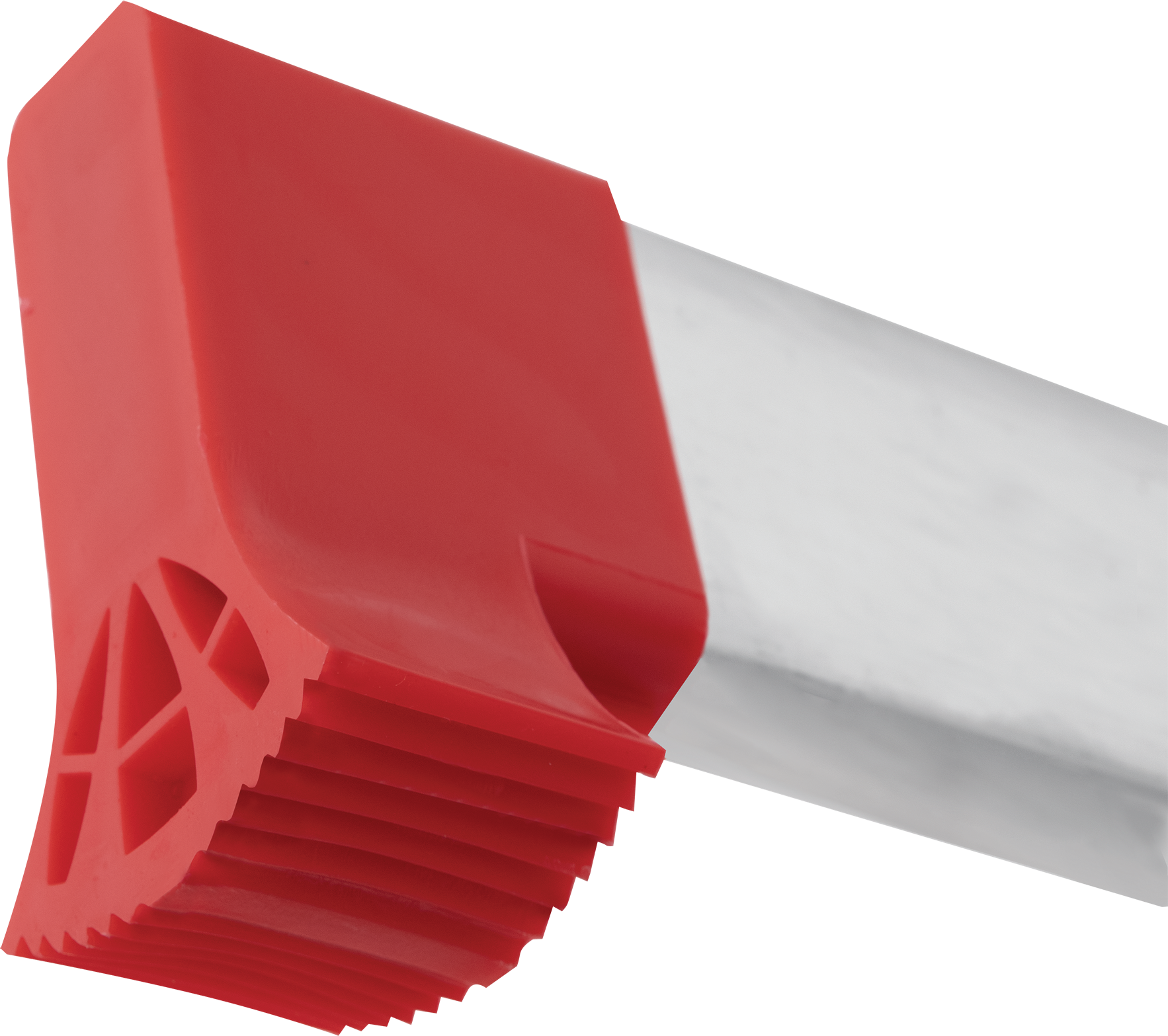

- feet for cross-bar prevent risk of slipping, they are reliably riveted

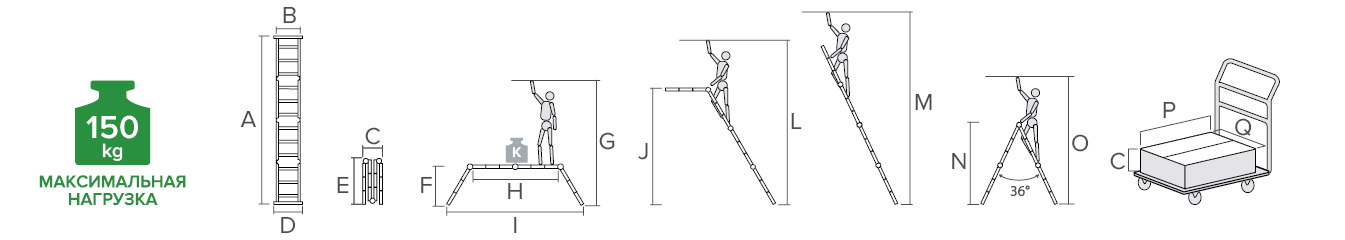

| Sku | Steps | A, m | B, m | C, m | D, m | E, m | F, m | G, m | H, m | I, m | J, m | Weight, kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2320403 | 4×3 | 3,43 | 0,34 | 0,30 | 0,92 | 1,66 | 0,97 | 2,48 | 0,3 | 0,92 | 0,35 | 11.6 | |
| 2320404 | 4×4 | 4,47 | 0,34 | 0,30 | 1,18 | 2,15 | 1,22 | 3,24 | 0,3 | 1,18 | 0,35 | 13.2 | |
| 2320405 | 4×5 | 5,51 | 0,34 | 0,30 | 1,44 | 2,65 | 1,47 | 3,99 | 0,3 | 1,44 | 0,35 | 14.8 | |
| 2320406 | 4×6 | 6,45 | 0,34 | 0,3 | 1,65 | 3,09 | 1,67 | 4,7 | 0,3 | 1,65 | 0,35 | 16,5 | |
| 2320234 | 2×3+2×4 | 3,95 | 0,34 | 0,30 | 1,18 | 1,91 | 1,22 | 2,73 | 0,3 | 1,18 | 0,35 | 12,3 | |
| 2320245 | 2×4+2×5 | 4,99 | 0,34 | 0,30 | 1,44 | 2,4 | 1,47 | 3,49 | 0,3 | 1,44 | 0,35 | 13,9 | |
| 2320256 | 2×5+2×6 | 5,93 | 0,34 | 2,85 | 1,67 | 2,85 | 1,67 | 4,42 | 0,3 | 1,65 | 0,35 | 15,3 |
