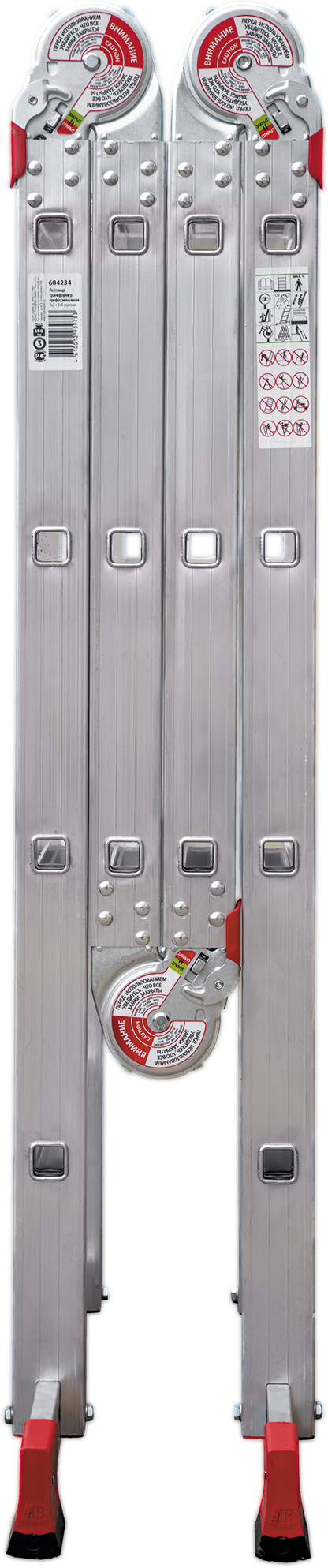

Multipurpose rung ladder NV 3320
Rungs
4×2—2×4+2×5
Working height
300 cm
Price
from 8010—10590
Guarantee
3 years
Specification
Description

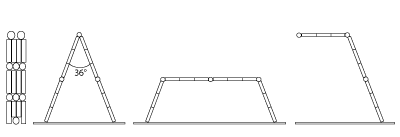

Positions of using:

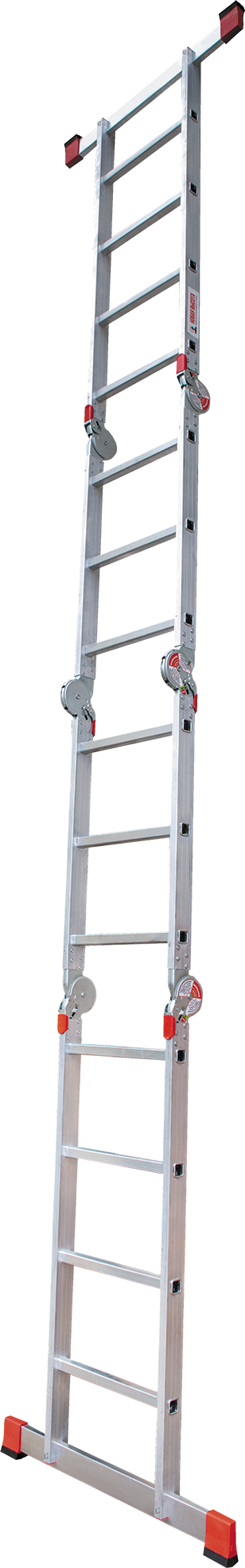

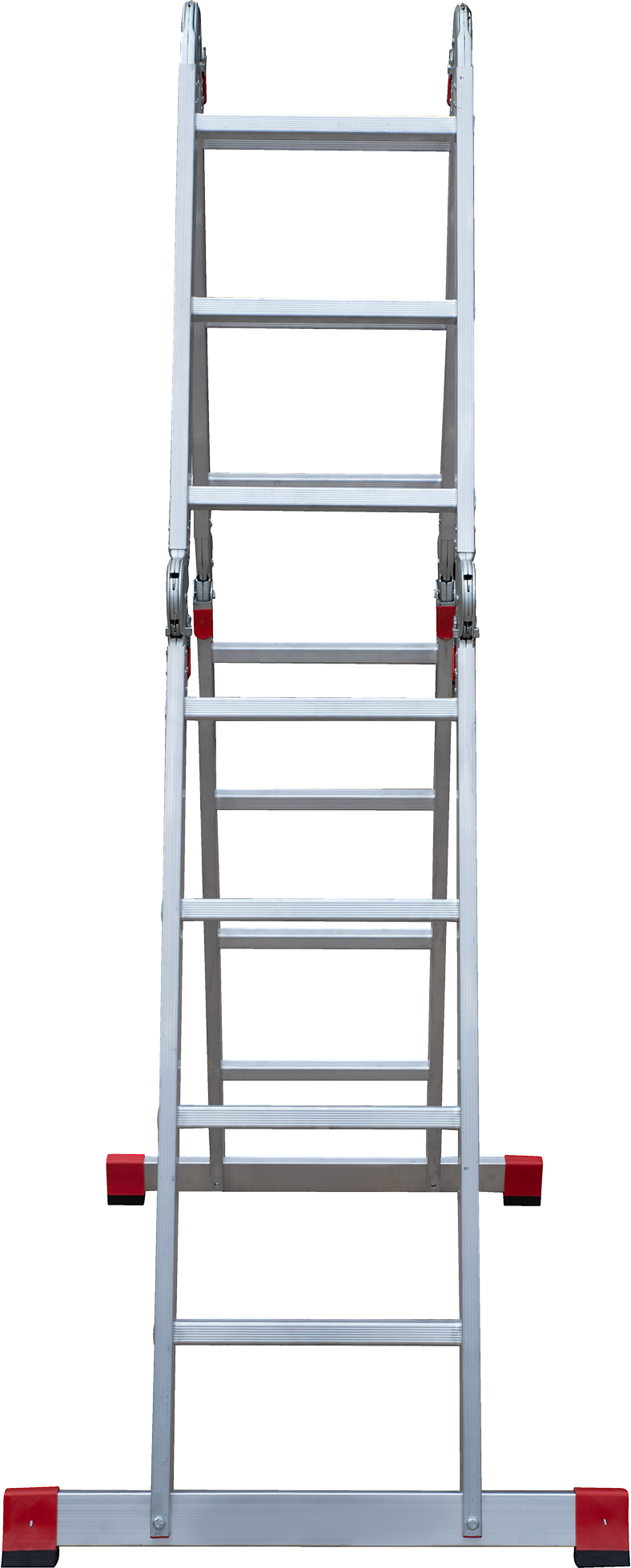

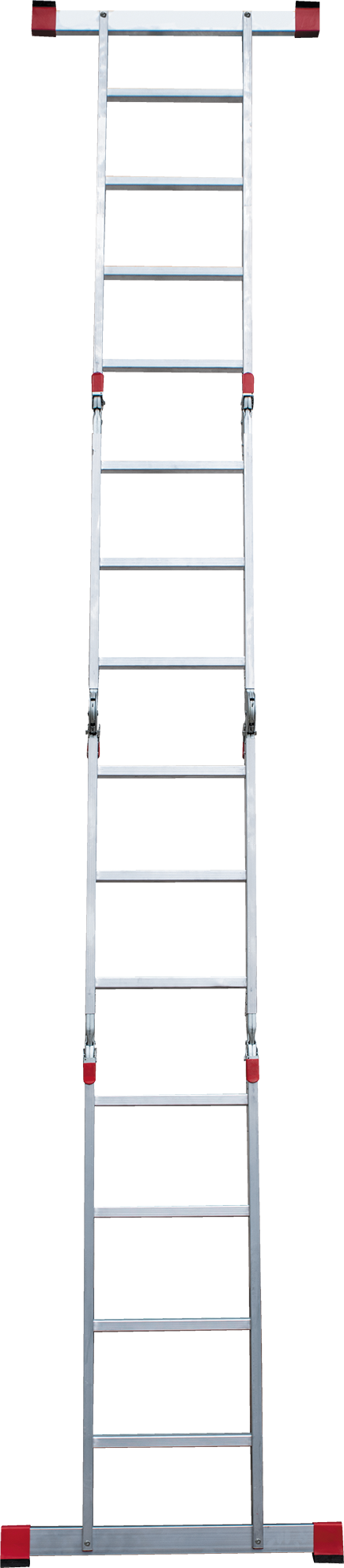

- leaning rung ladder

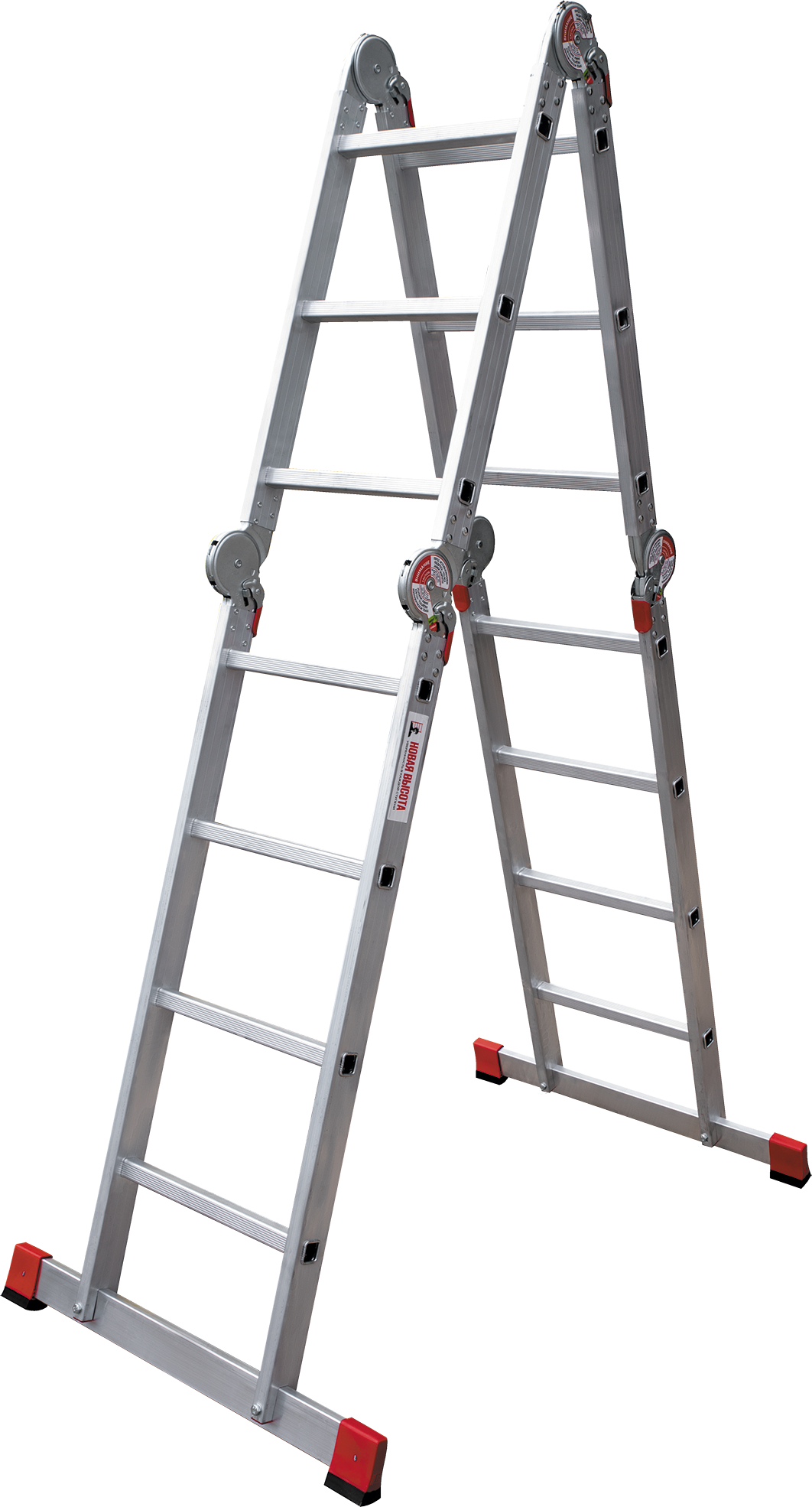

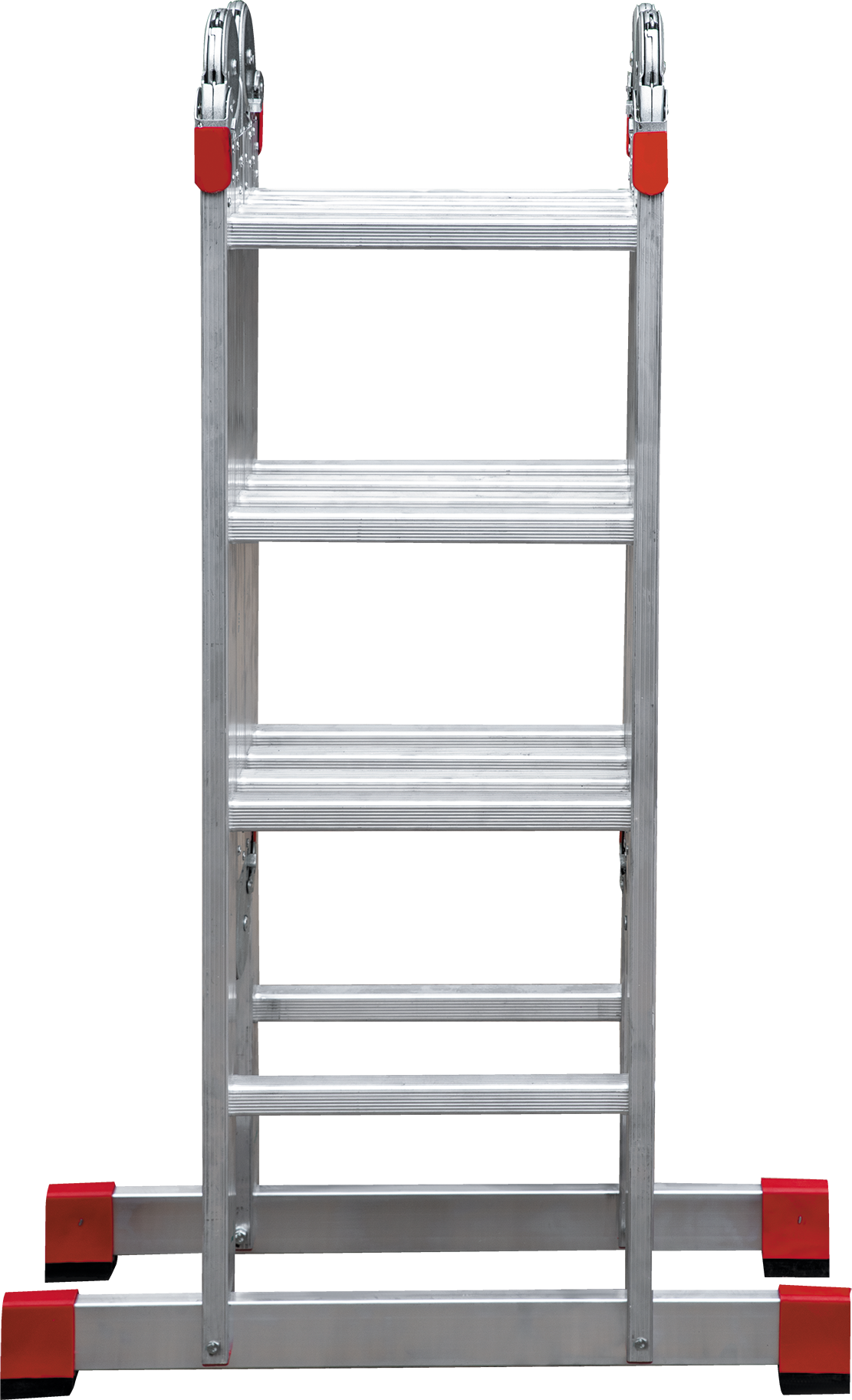

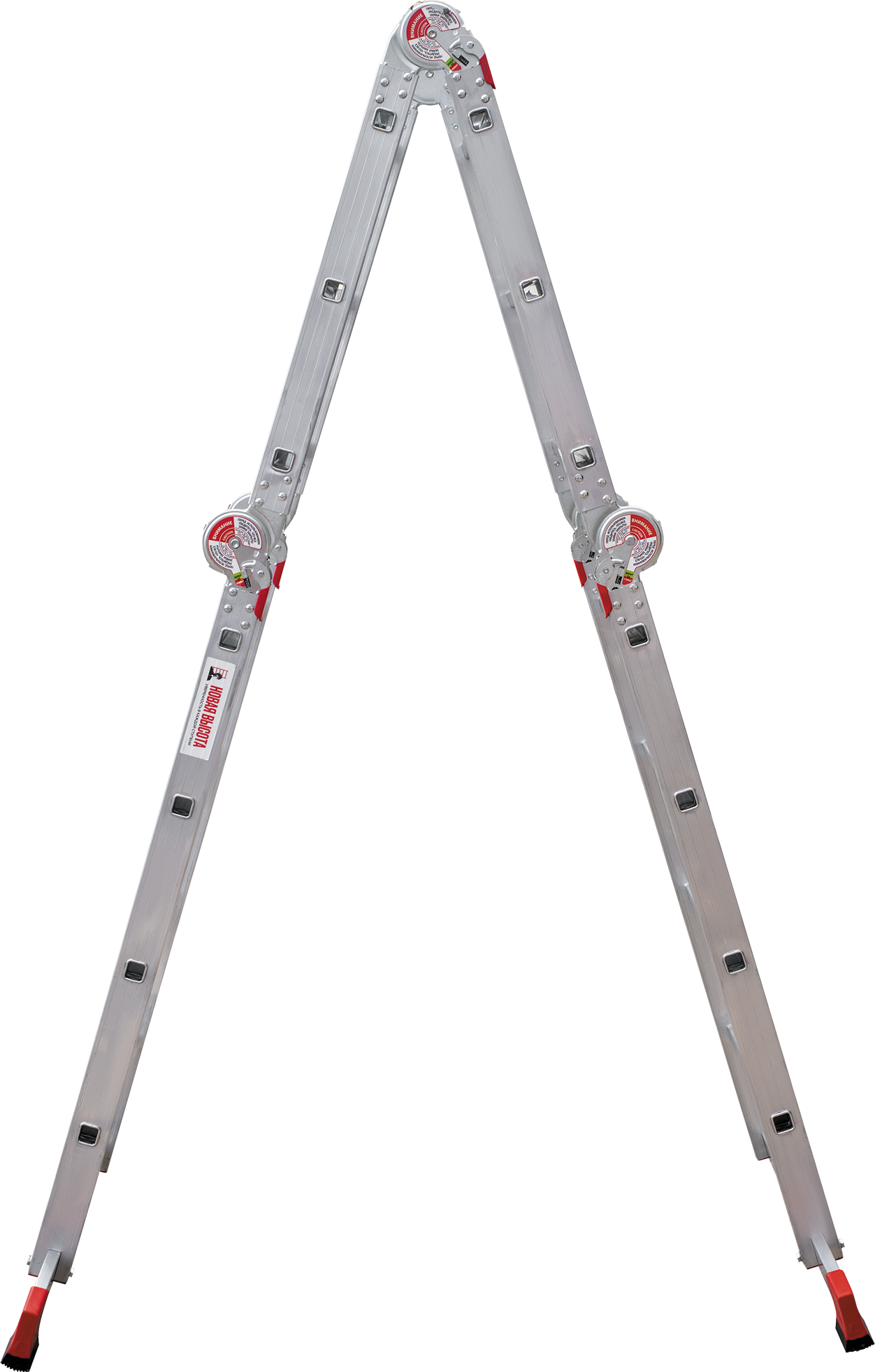

- stepladder

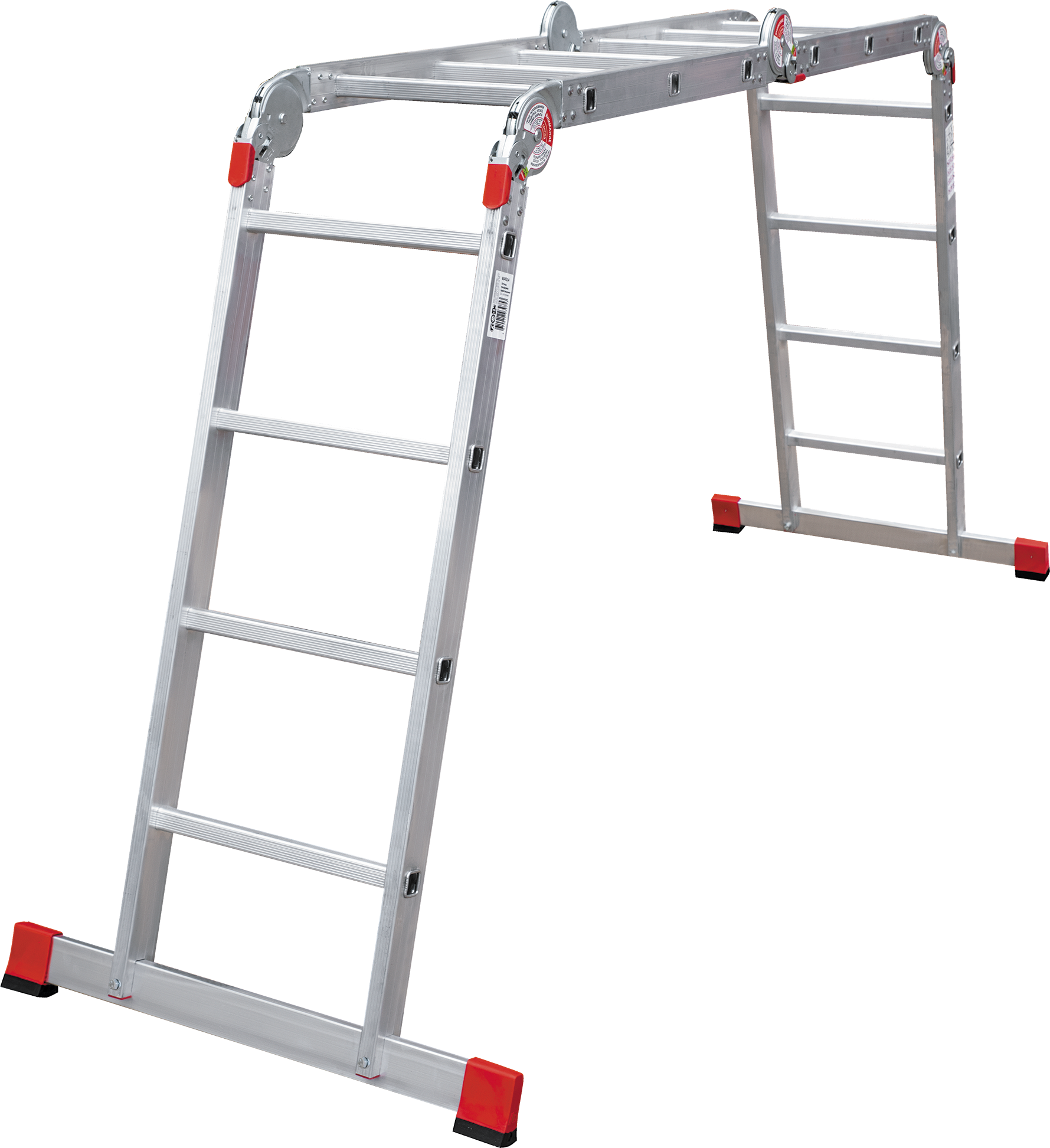

- leaning, L-shaped rung ladder

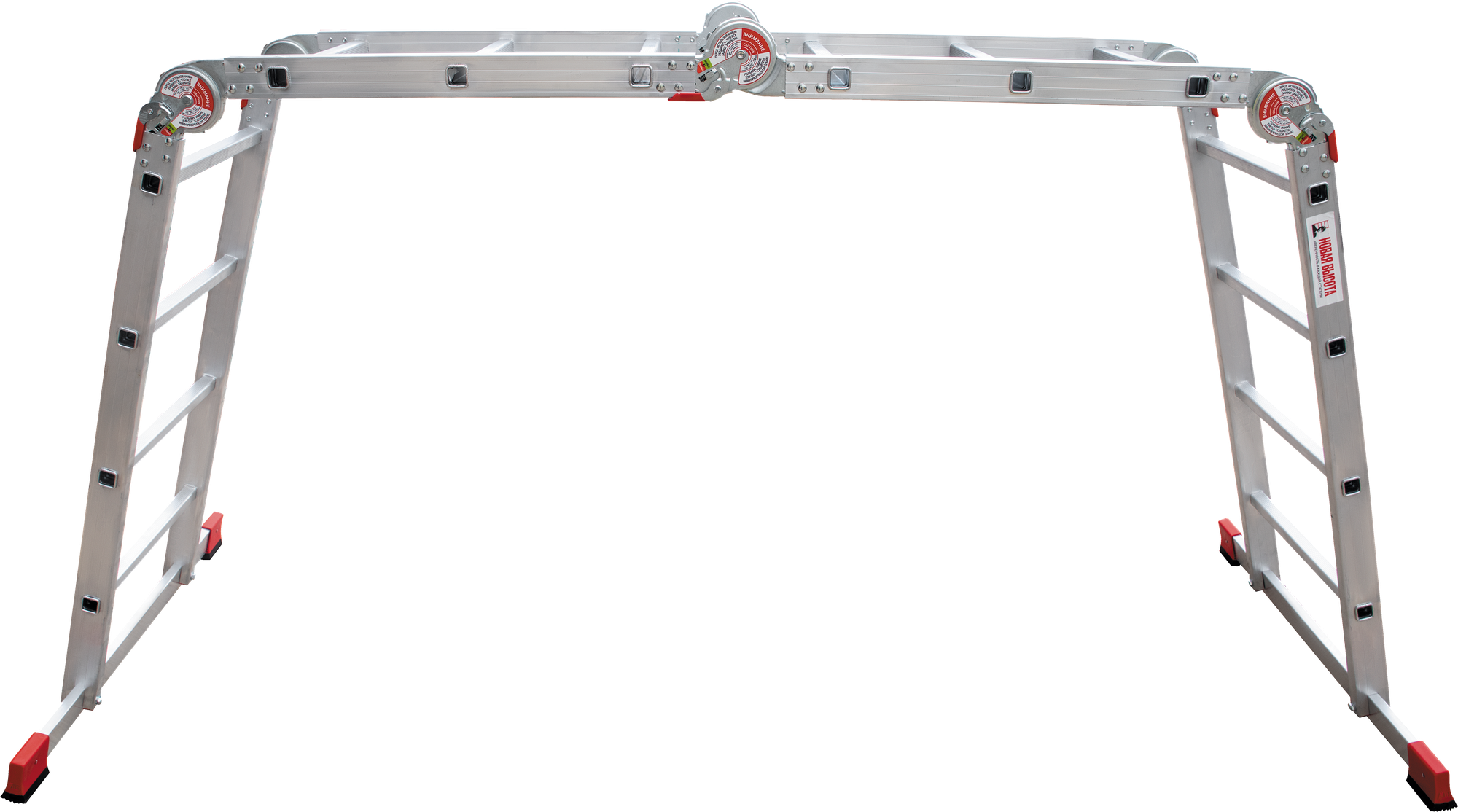

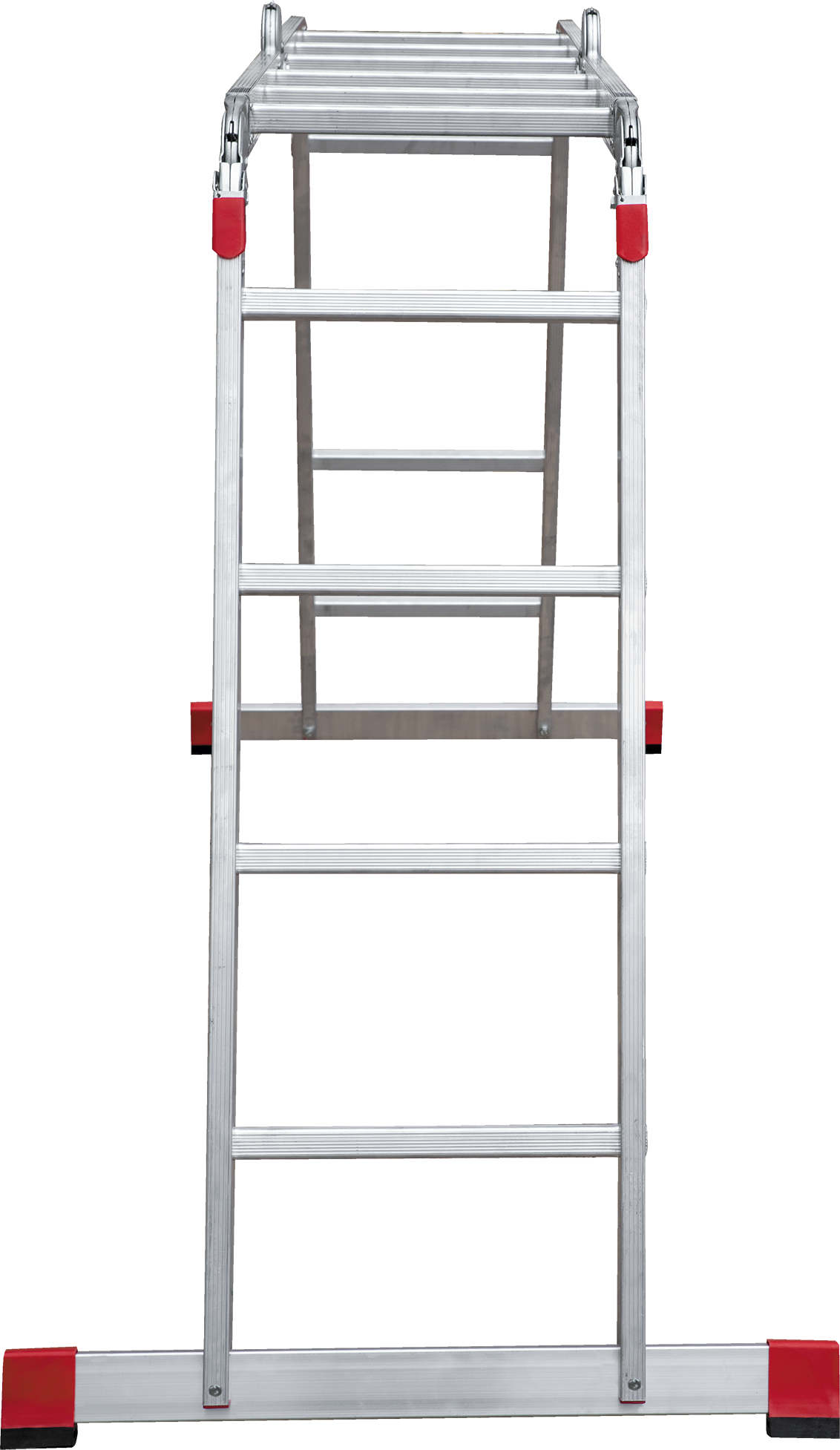

- standing platform
Technical advantages:
- very lightweight but extremely durable and reliable

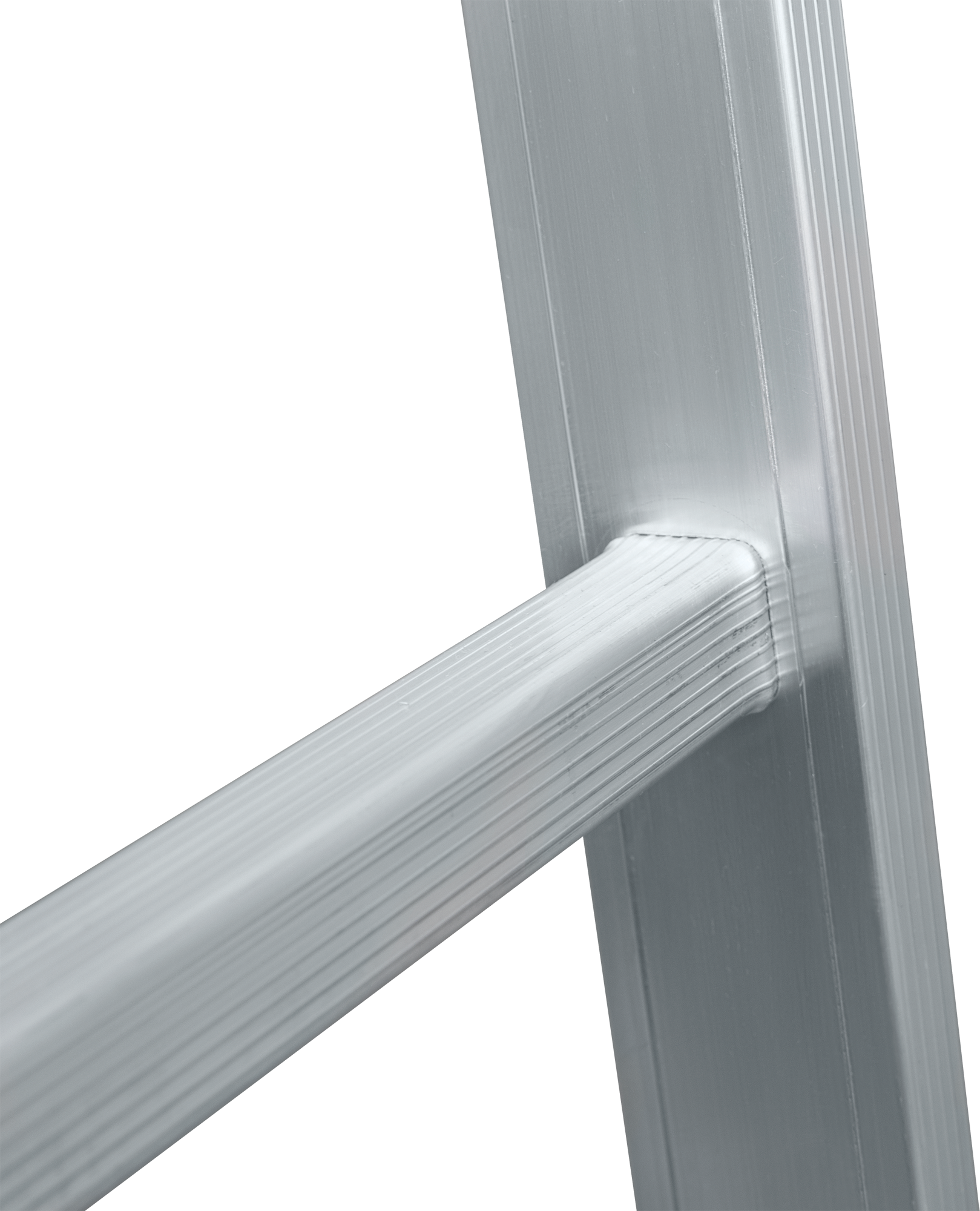

- rifled rungs for maximum safety when ascending the rung ladder
- rungs and stiles are made from extruded aluminium profiles
- reinforced stiles in overloaded places provide high stability
- strong riveting connects rungs and stiles, providing extra reliability and lasting quality

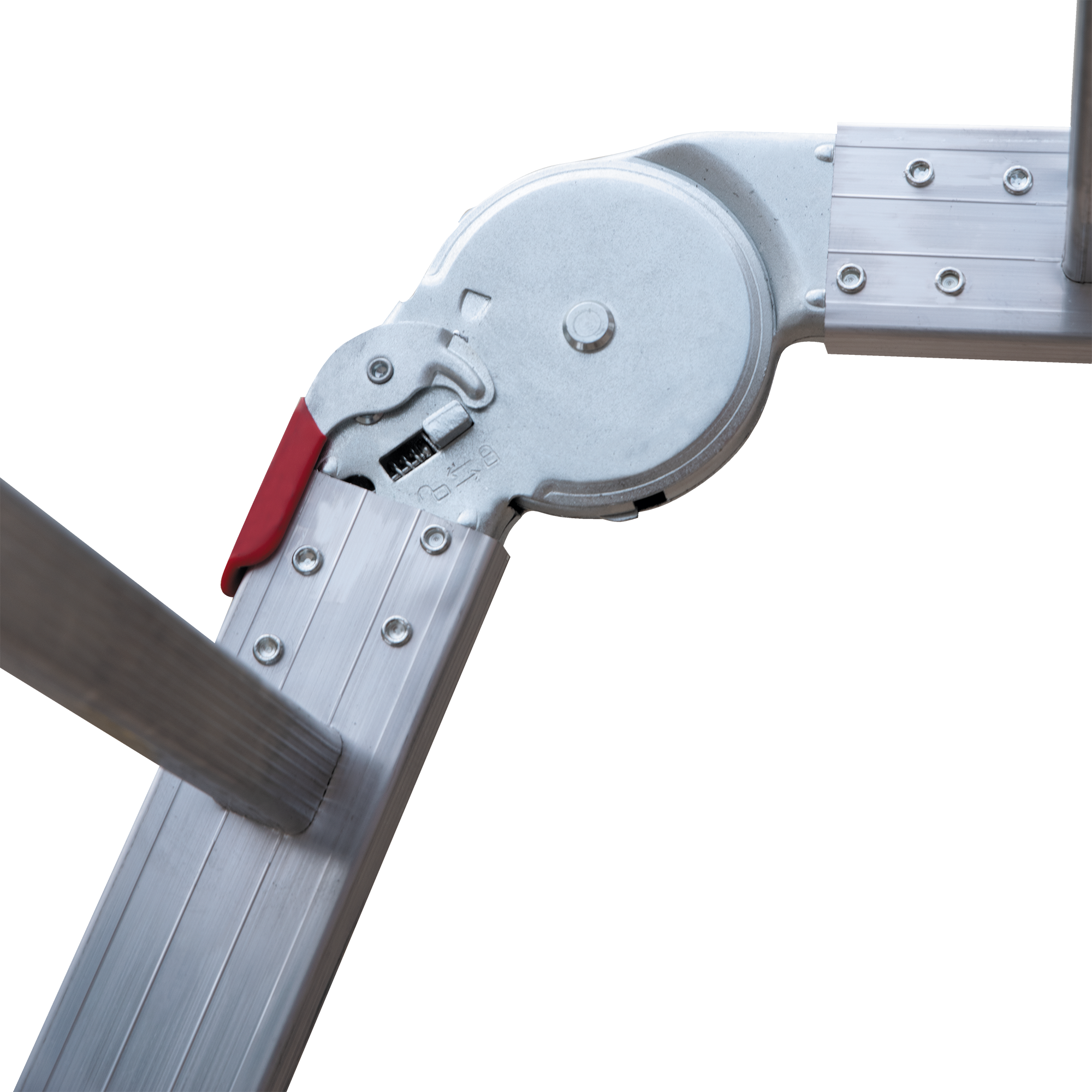

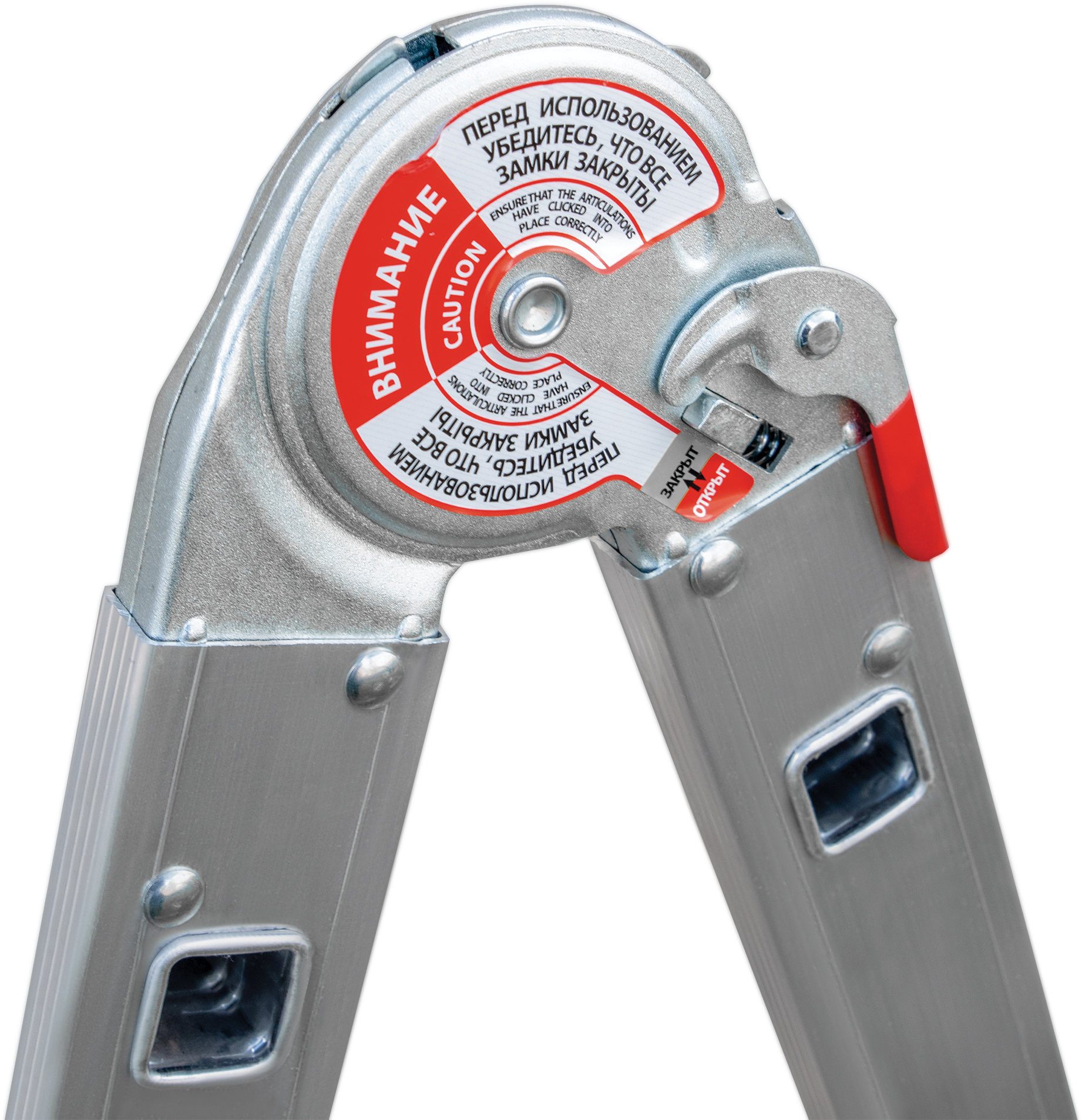

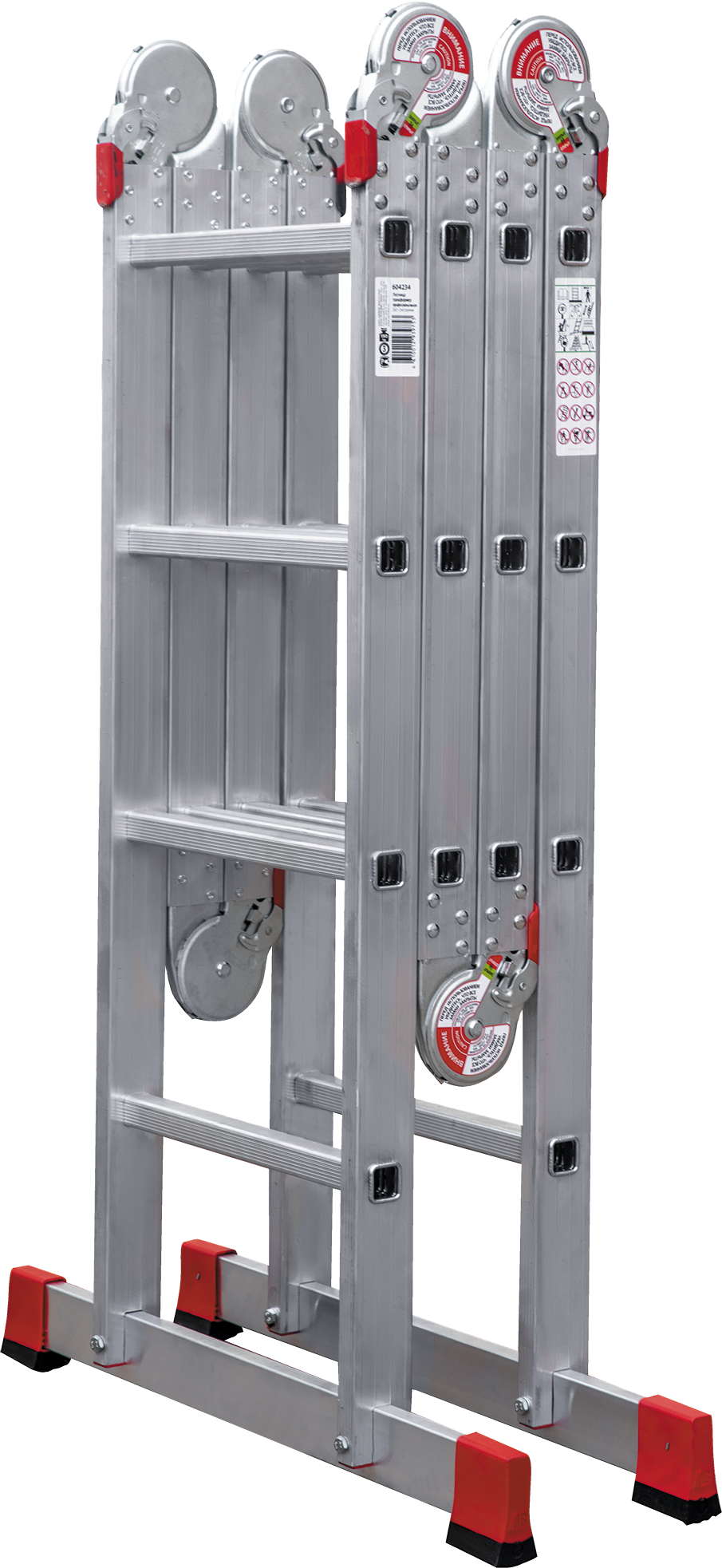

- locking hinge device is regulated by one hand
- reliable self-locking
- two wide cross-bars provide optimum stability during working in all positions
- cross-bar can be easily assemble and disassemble due to special fasteners
- fasteners is integrated into profile to prevent its loss
- plastic inserts for reliable cross-bar adjustment protect profile from deformation and surrounding objects from scratches during transportation

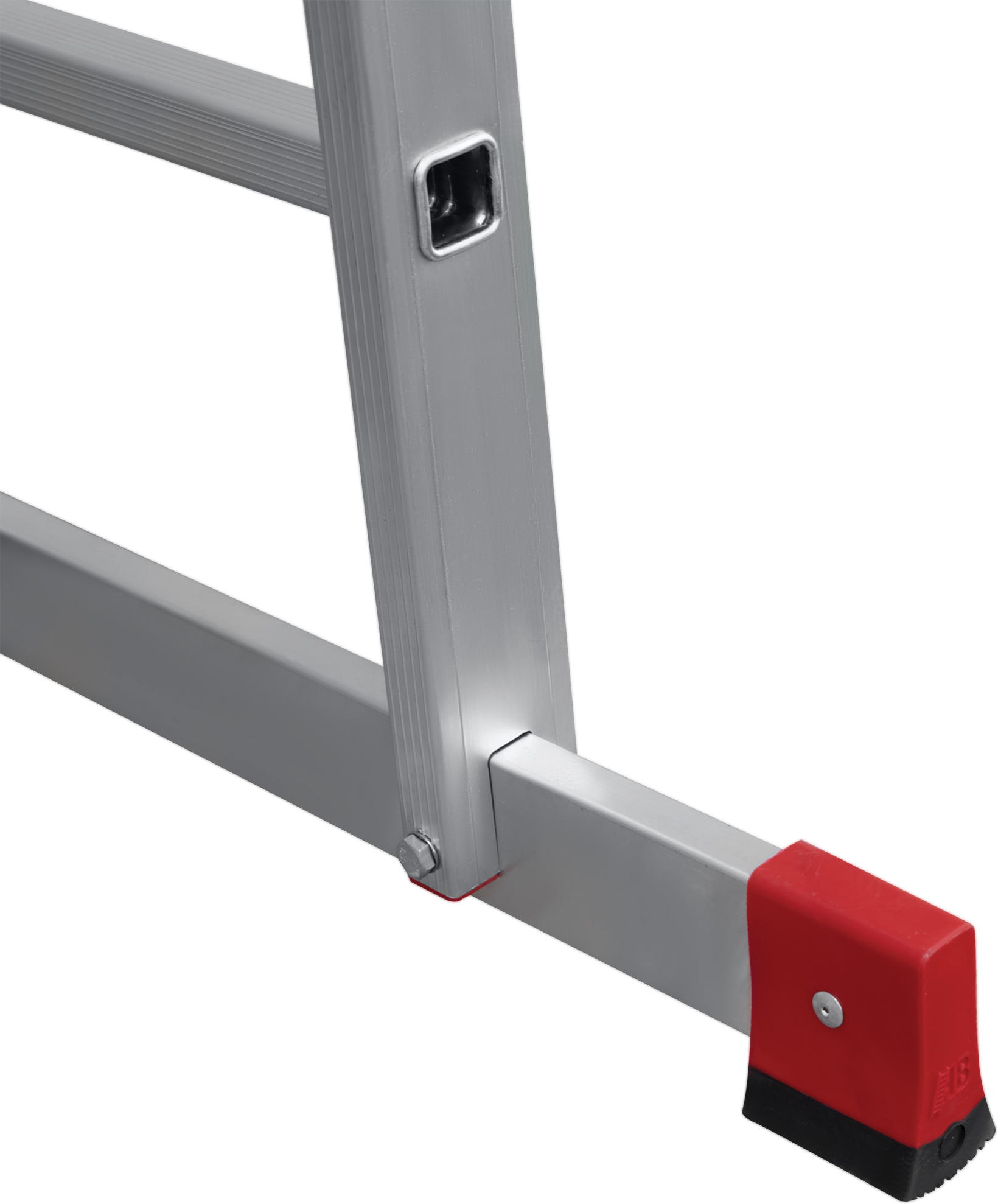

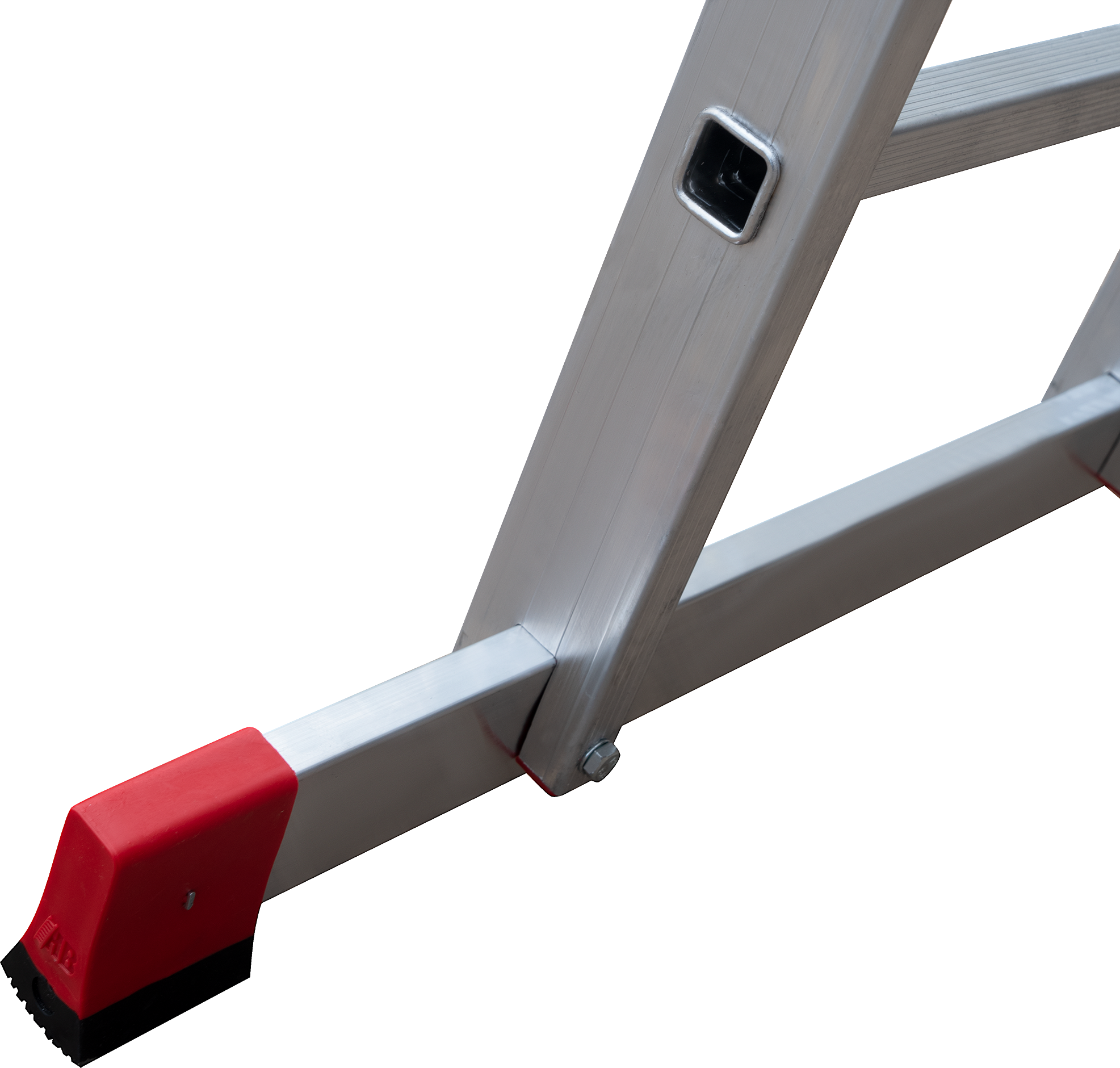

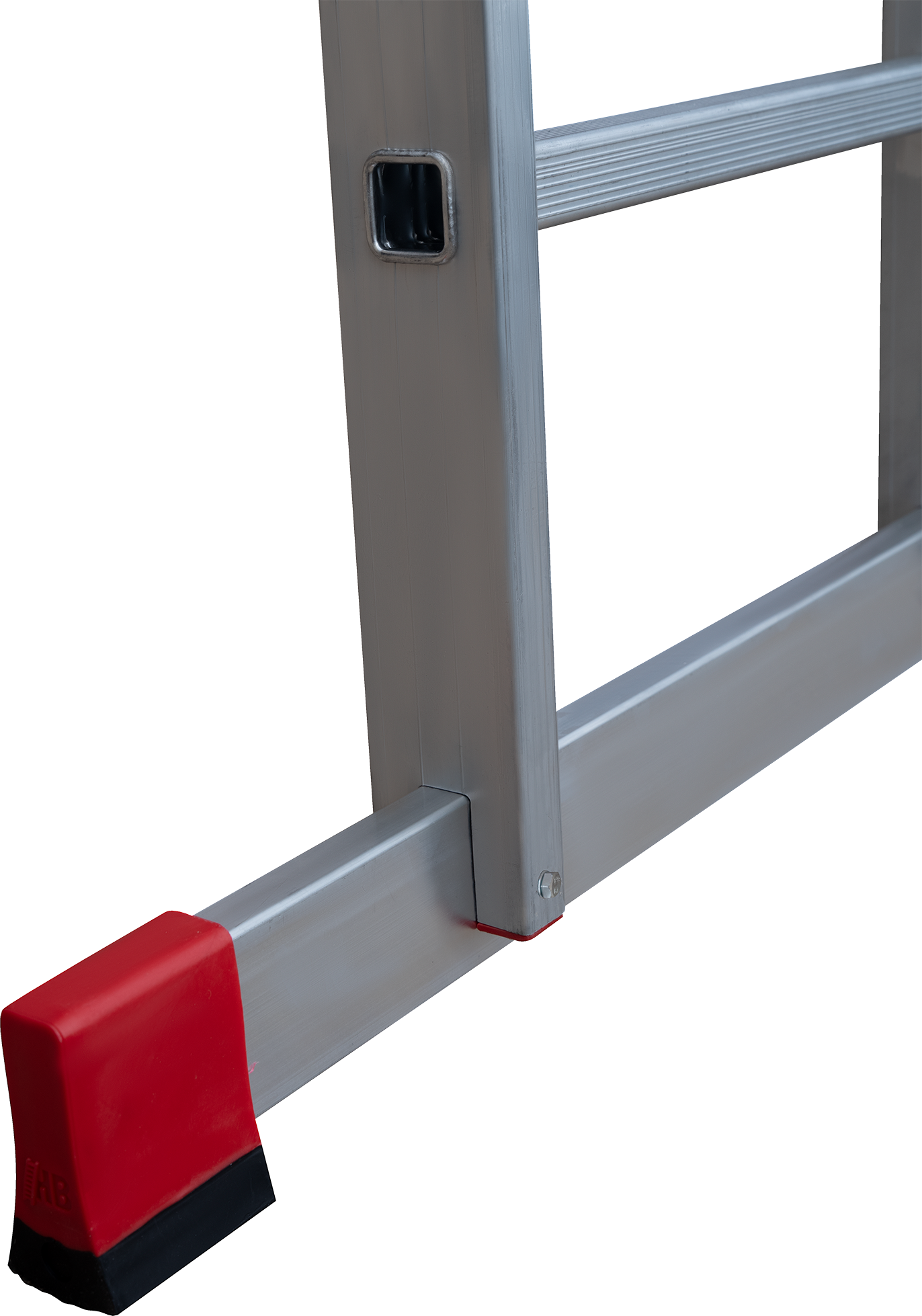

- two-component feet of cross-bar prevent risk of slipping, they are reliably riveted.

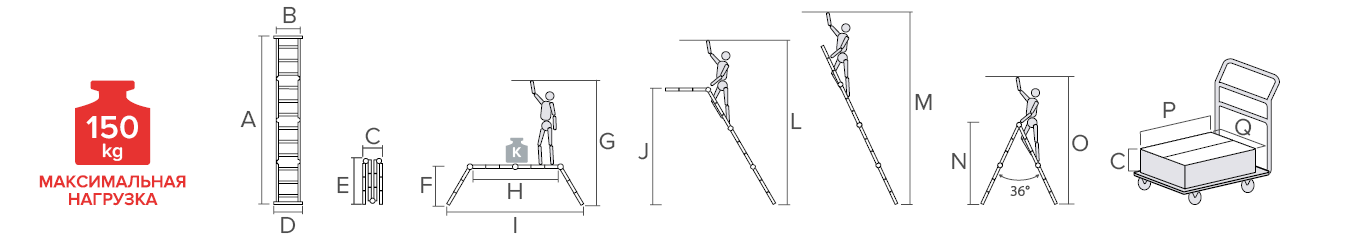

| Sku | Steps | А, m | B, m | C, m | D, m | Е, m | F, m | G, m | J, m | H, m | I, m | Объём, m3 | Weight, kg | Buy | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3320402 | 4×2 | 2,42 | 0,4 | 0.26 | 0.69 | 1,19 | 0,71 | 1,76 | 0.42 | 0.26 | 0.69 | 0.075 | 11.6 | — | |
| 3320403 | 4×3 | 3,46 | 0,4 | 0.26 | 0.95 | 1,69 | 0,96 | 2,52 | 0.42 | 0.26 | 0.95 | 0.104 | 13.6 | 8010 | |
| 3320234 | 2×3+2×4 | 3,98 | 0,4 | 0.26 | 1.21 | 1,94 | 1,21 | 2,78 | 0.42 | 0.26 | 1.21 | 0.132 | 14.4 | 8350 | |
| 3320404 | 4×4 | 4,50 | 0,4 | 0.26 | 1.21 | 2,18 | 1,21 | 3,28 | 0.42 | 0.26 | 1.21 | 0.132 | 15.3 | 9120 | |
| 3320245 | 2×4+2×5 | 5,02 | 0,4 | 0.26 | 1.47 | 2,43 | 1,47 | 3,54 | 0.42 | 0.26 | 1.47 | 0.161 | 16.2 | 9930 | |
| 3320405 | 4×5 | 5,54 | 0,4 | 0.26 | 1.47 | 2,68 | 1,47 | 4,04 | 0.42 | 0.26 | 1.47 | 0.161 | 17 | 10590 | |
| 3320406 | 4×6 | 6.42 | 0.4 | 0.3 | 1.65 | 3.08 | 1.66 | 4.69 | 0.42 | 0.3 | 1.65 | 0.2 | 17.5 | — |
