Multipurpose aluminum professional hinged rung ladder 500 mm width with platform NV3331
Max load
150 kg
Guarantee
3 years
Specification
Description
Positions of using
- Leaning rung ladder
- Stepladder
- Leaning, L-shaped rung ladder

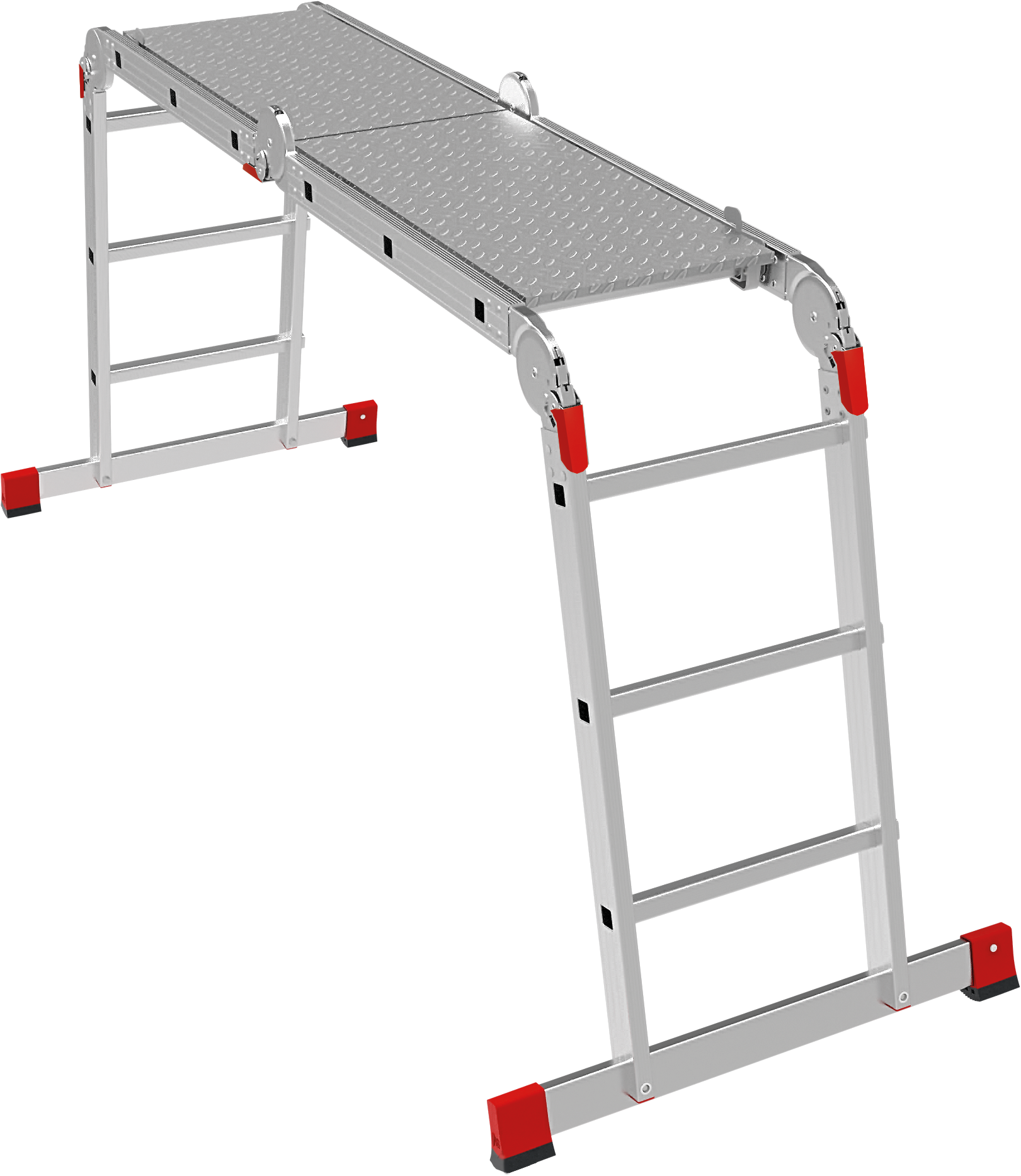

- Standing platform
Features
- The ladder is intended for regular professional use. Optimal for construction, installation, repair and maintenance work at a height of up to 5.5 m. Complies with GOST (Russian standard) R58752−2019.
- The increased width of 500 mm provides additional comfort during long working hours.
- Equipped with a removable board made of durable moisture-resistant laminated plywood for the “Platform” position.
- The board can be easily removed and installed, providing safe and comfortable work for a long time.
- Self-locking hinge device is regulated by one hand.
- Steps 28×28 mm with a step of 260 mm are firmly connected to the posts by a 32-fold rolling connection. The surface of the steps is corrugated to eliminate slipping when climbing.
- The profile of the ladder stiles is additionally reinforced in the most loaded places.
- Two rigid 906 mm crossbars provide a wide support area. The traverses are quickly removed and installed using special fasteners built into the profile to avoid loss.
- For reliable fastening of the traverse and protection of the staircase profile, surrounding surfaces and objects from damage, special plastic inserts are provided.
- Two-component feet of cross-bar prevent risk of slipping, they are reliably riveted. The hard component provides secure fastening, the soft one prevents the ladder from slipping.
- The use of the ladder in the “Platform” position is allowed only with the standard removable deck included in the delivery board.
- Practicality and attention to each component guarantee safe work at any required height.
| Sku | Ступ. | A, m | B, m | D, m | E, m | F, m | G, m | L, m | M, m | O, m | N, m | I, m | J, m | H, m | C, m | P, m | Q, m | К, kg | Weight, kg | Цена | Buy | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3331403 | 4×3 | 3,47 | 0,50 | 0,91 | 0,98 | 0,96 | 2,96 | 3,57 | 4,27 | 2,77 | 1,69 | 2,13 | 2,53 | 1,45 | 0,26 | 0,95 | 0,51 | 150 | 17,6 | по запросу | ||
| 3331234 | 2×3+2×4 | 3,99 | 0,50 | 0,91 | 1,24 | 1,22 | 3,22 | 3,82 | 4,78 | 3,02 | 1,94 | 2,24 | 2,78 | 1,45 | 0,26 | 1,21 | 0,51 | 150 | 18,5 | по запросу | ||
| 3331404 | 4×4 | 4,51 | 0,50 | 0,91 | 1,24 | 1,22 | 3,22 | 4,35 | 5,27 | 3,29 | 2,19 | 2,76 | 3,29 | 1,97 | 0,26 | 1,21 | 0,51 | 150 | 20,6 | по запросу | ||
| 3331245 | 2×4+2×5 | 5,03 | 0,50 | 0,91 | 1,50 | 1,47 | 3,47 | 4,60 | 5,76 | 3,53 | 2,44 | 2,88 | 3,54 | 1,97 | 0,26 | 1,47 | 0,51 | 150 | 21,5 | по запросу | ||
| 3331405 | 4×5 | 5,55 | 0,50 | 0,91 | 1,50 | 1,47 | 3,47 | 5,11 | 6,25 | 3,78 | 2,68 | 3,40 | 4,05 | 2,49 | 0,26 | 1,47 | 0,51 | 150 | 23,5 | по запросу |
