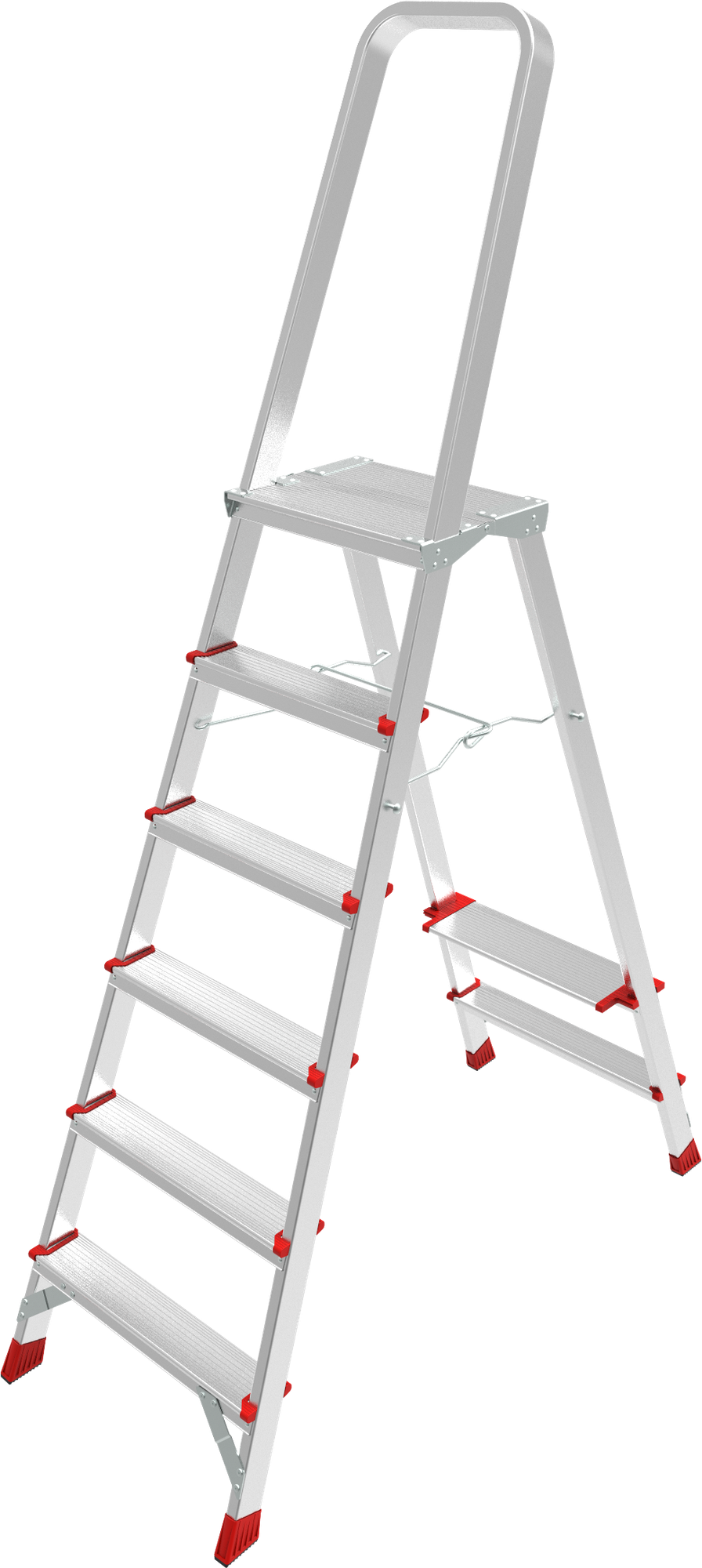

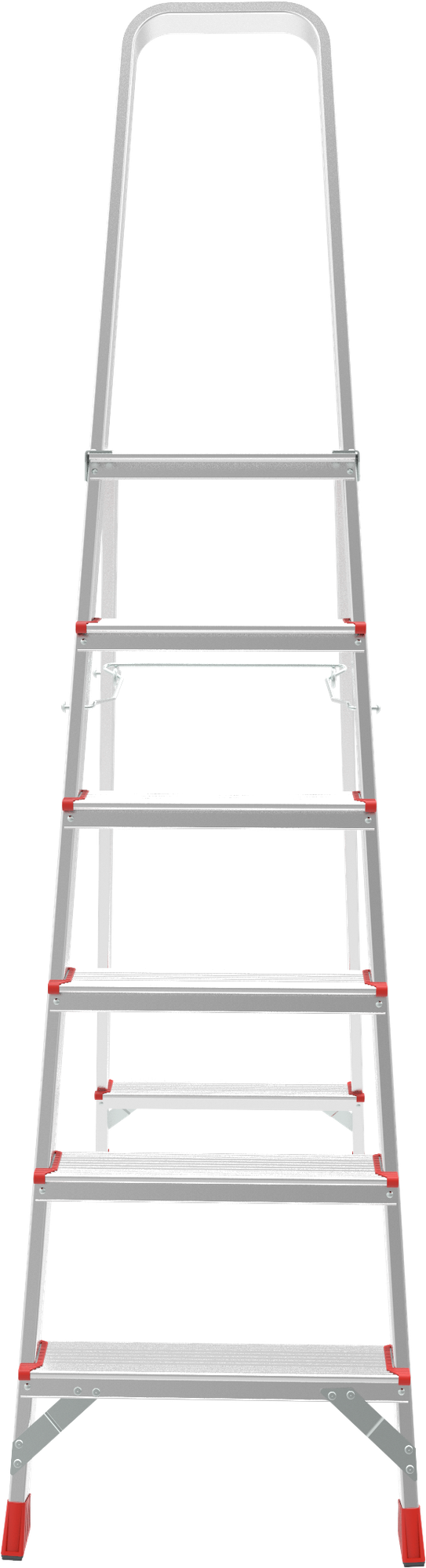

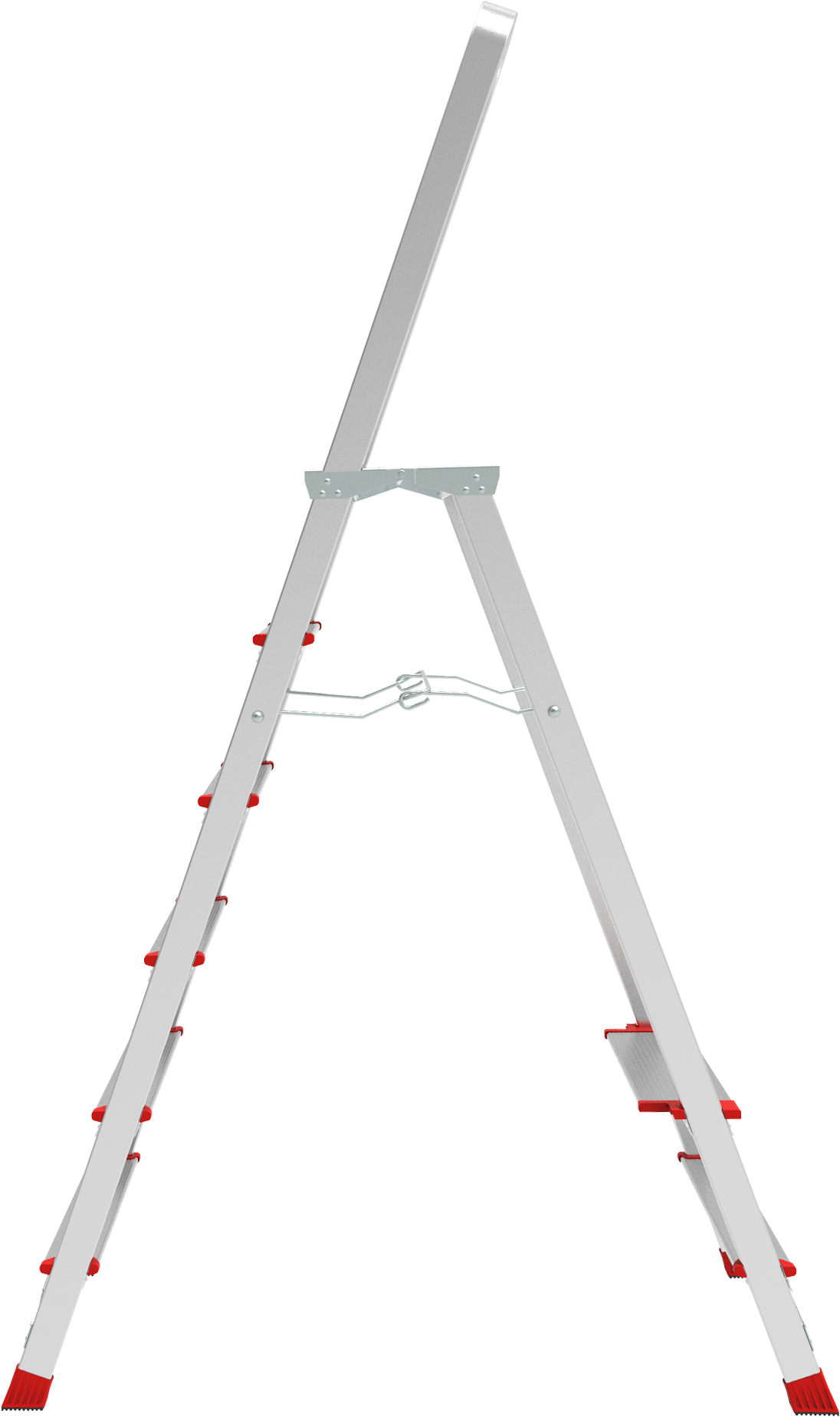

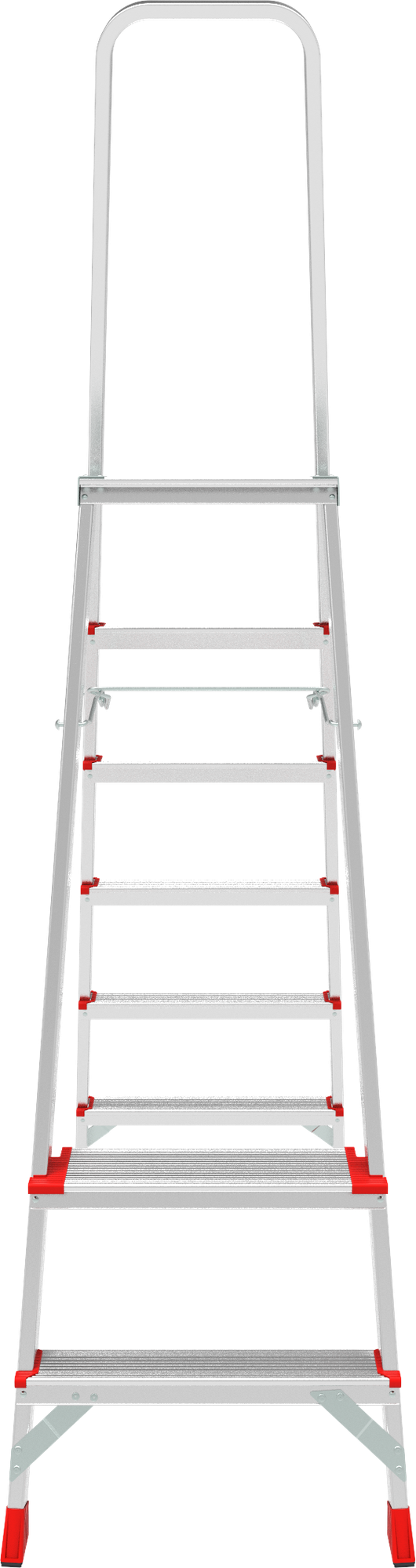

Professional aluminum stepladder with large top platform NV 3130

Rungs
1×3—1×10
Working height
266—420 cm
Guarantee
3 years
Specification
Description
  • very lightweight but extremely durable and reliable
  • easy to adjust and provides high level of comfort
  • unilaterally ascendable
  • steps and stiles are made from reinforced extruded aluminium profiles

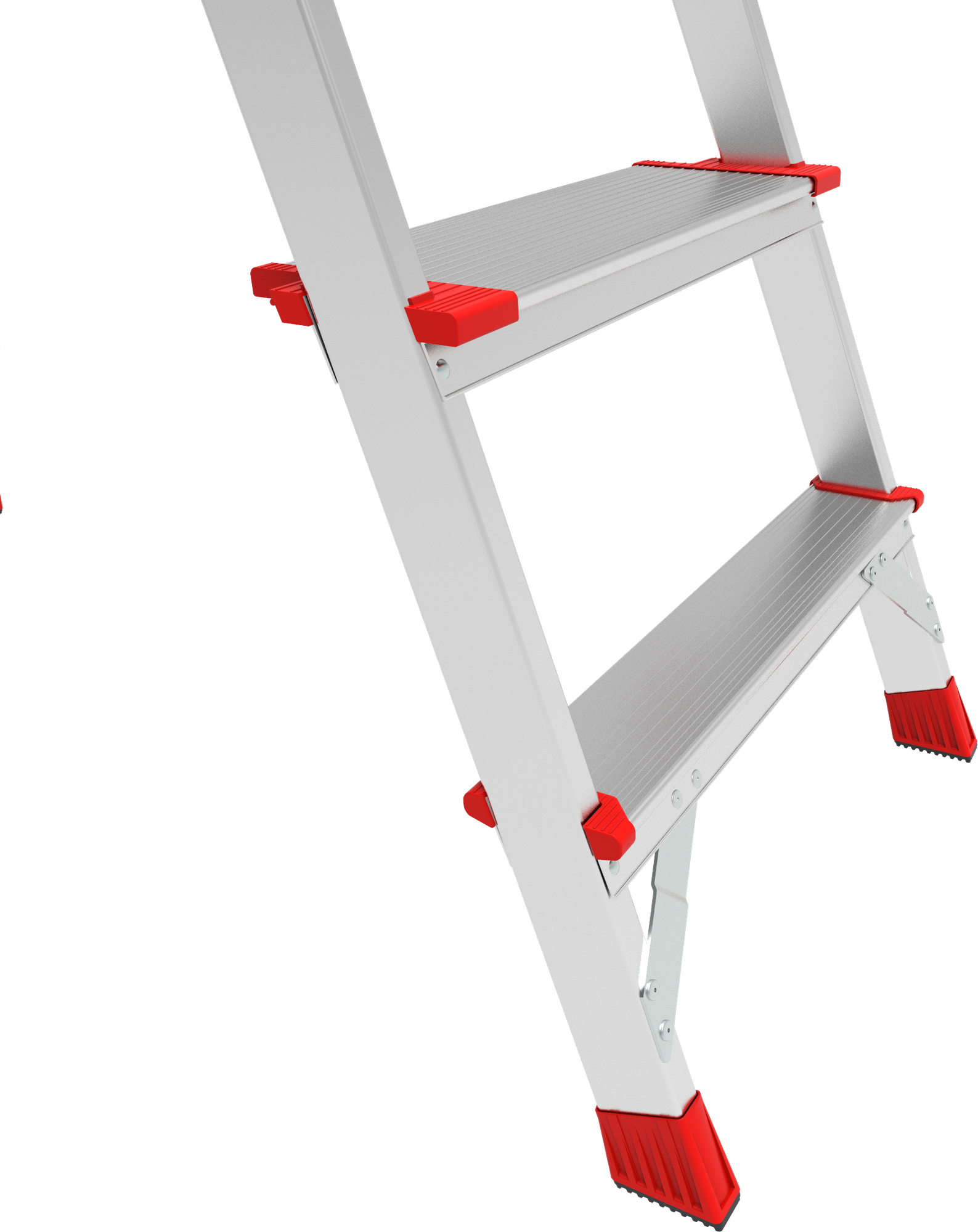

  • wide steps with a depth of 80 mm
  • rifled surface of steps for maximum safety when ascending the ladder

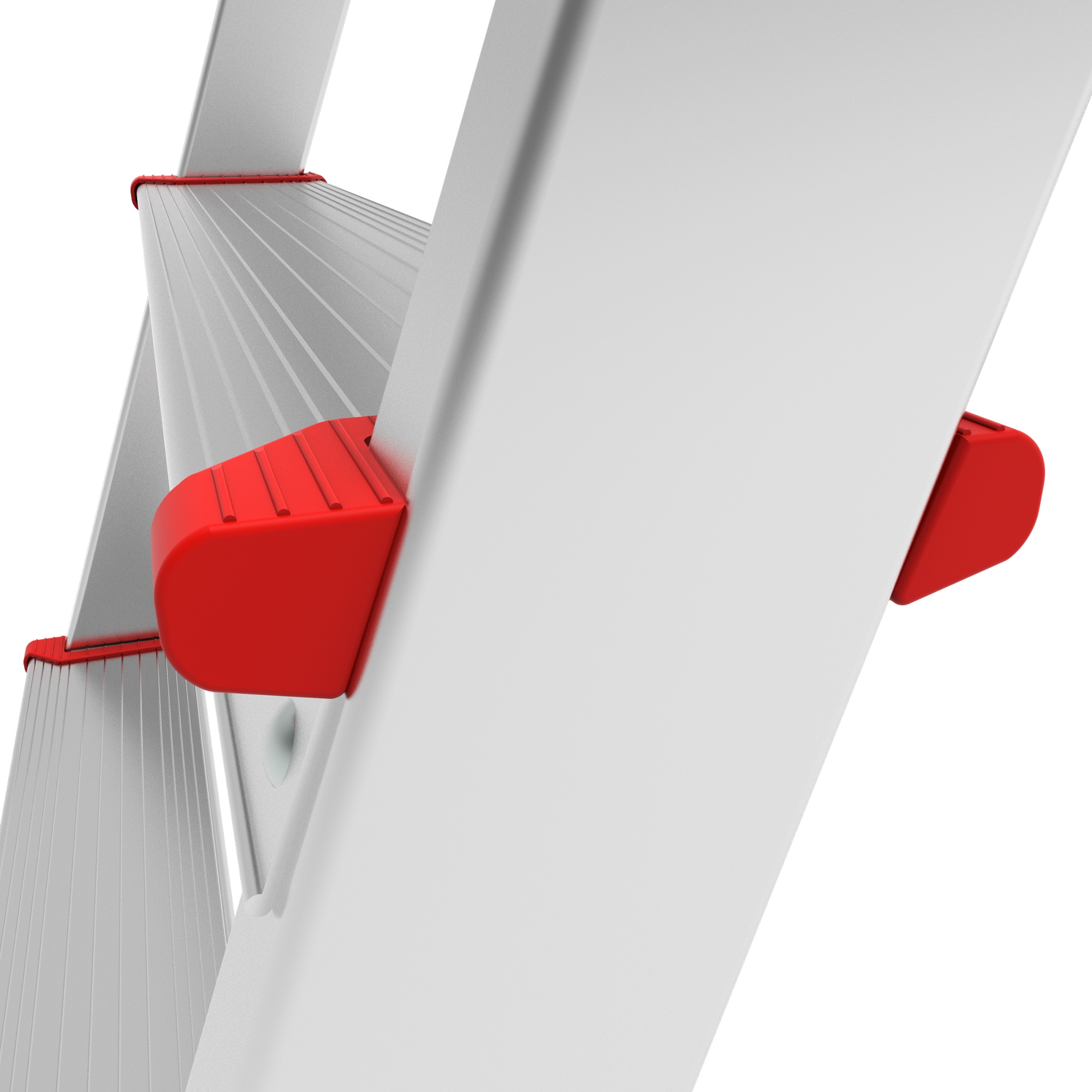

  • sturdy six-times riveted step/side rail connection for more stability

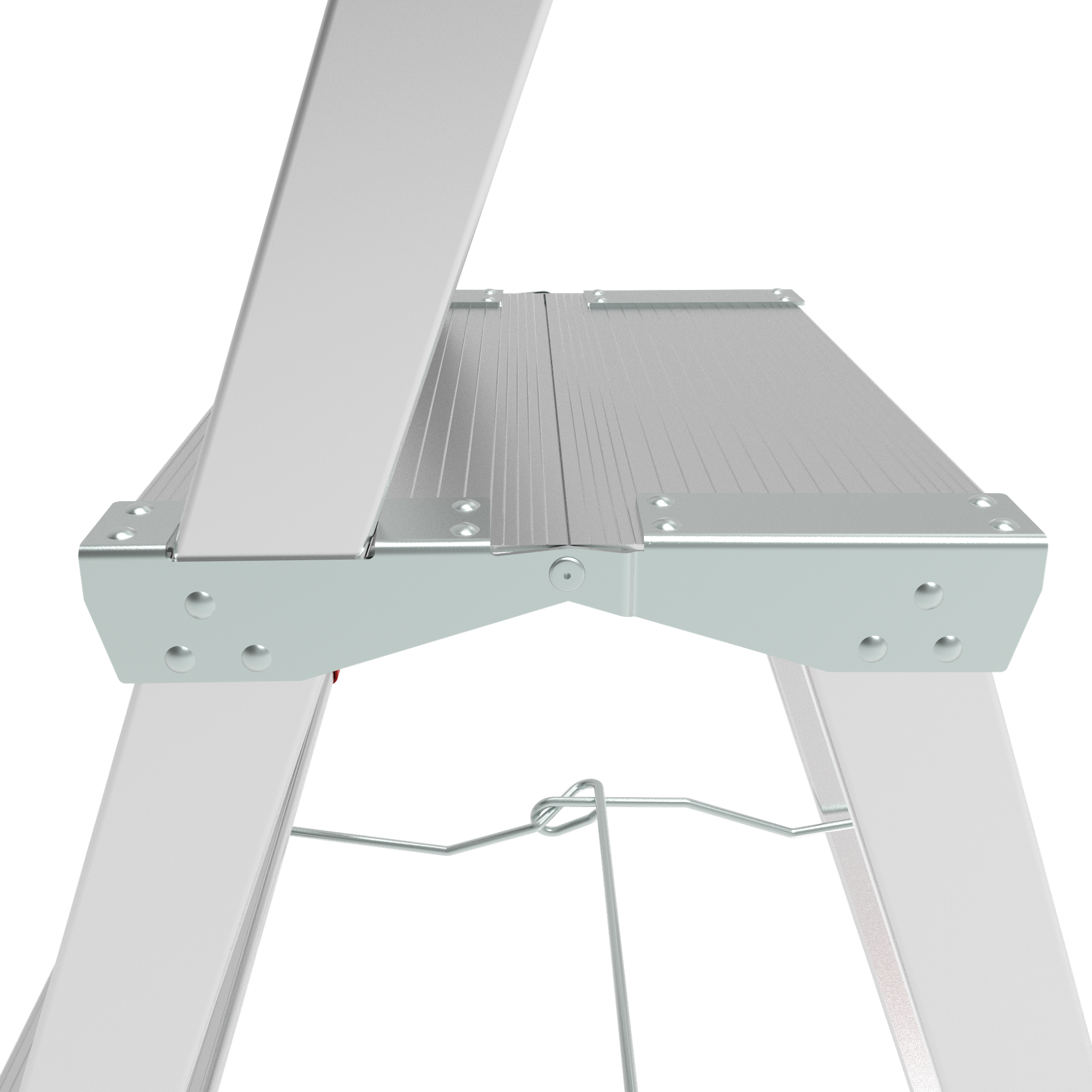

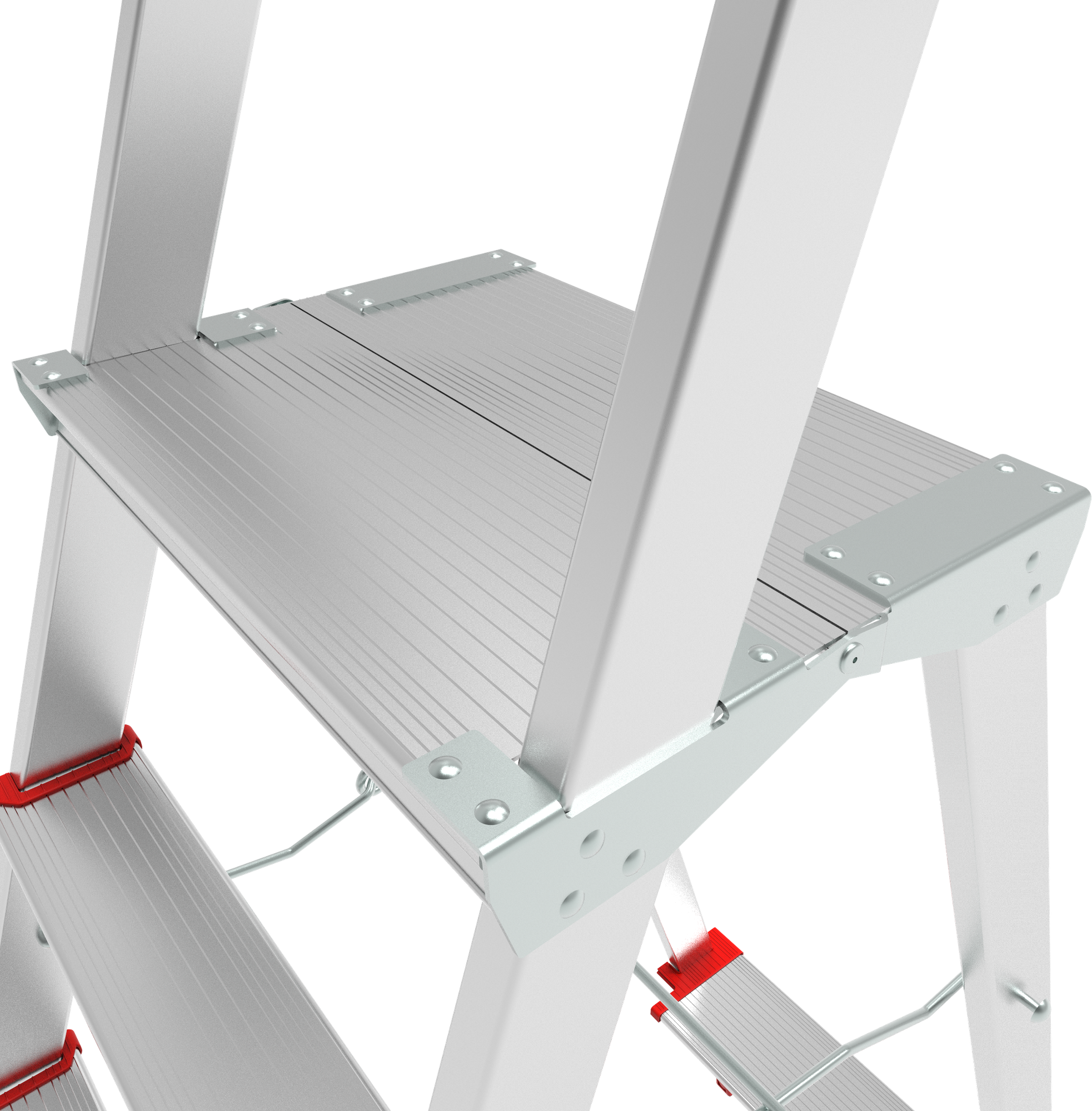

  • safe rifled standing platform

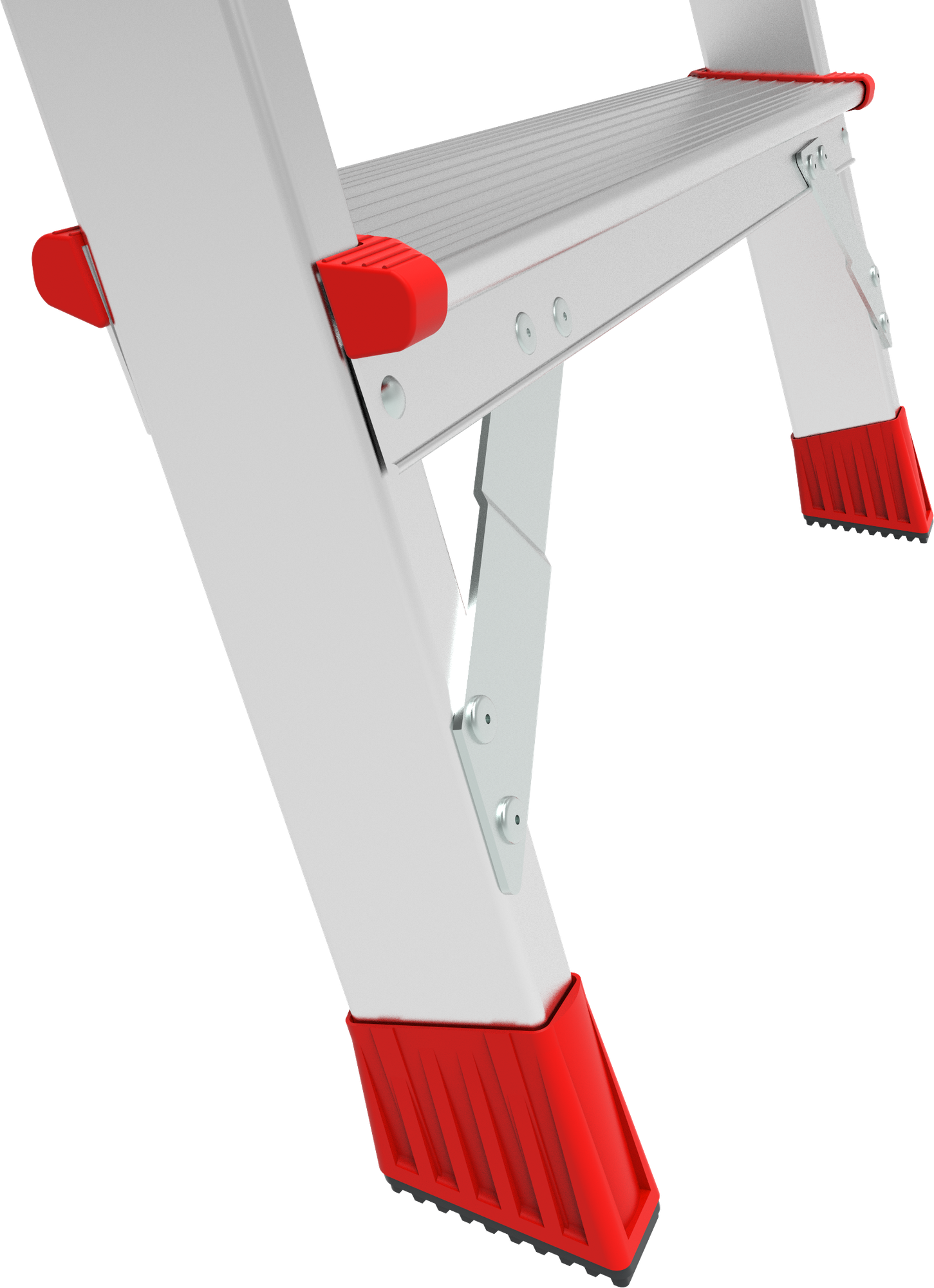

  • there is a seat place on the supporting leg
  • 600 mm safety barier

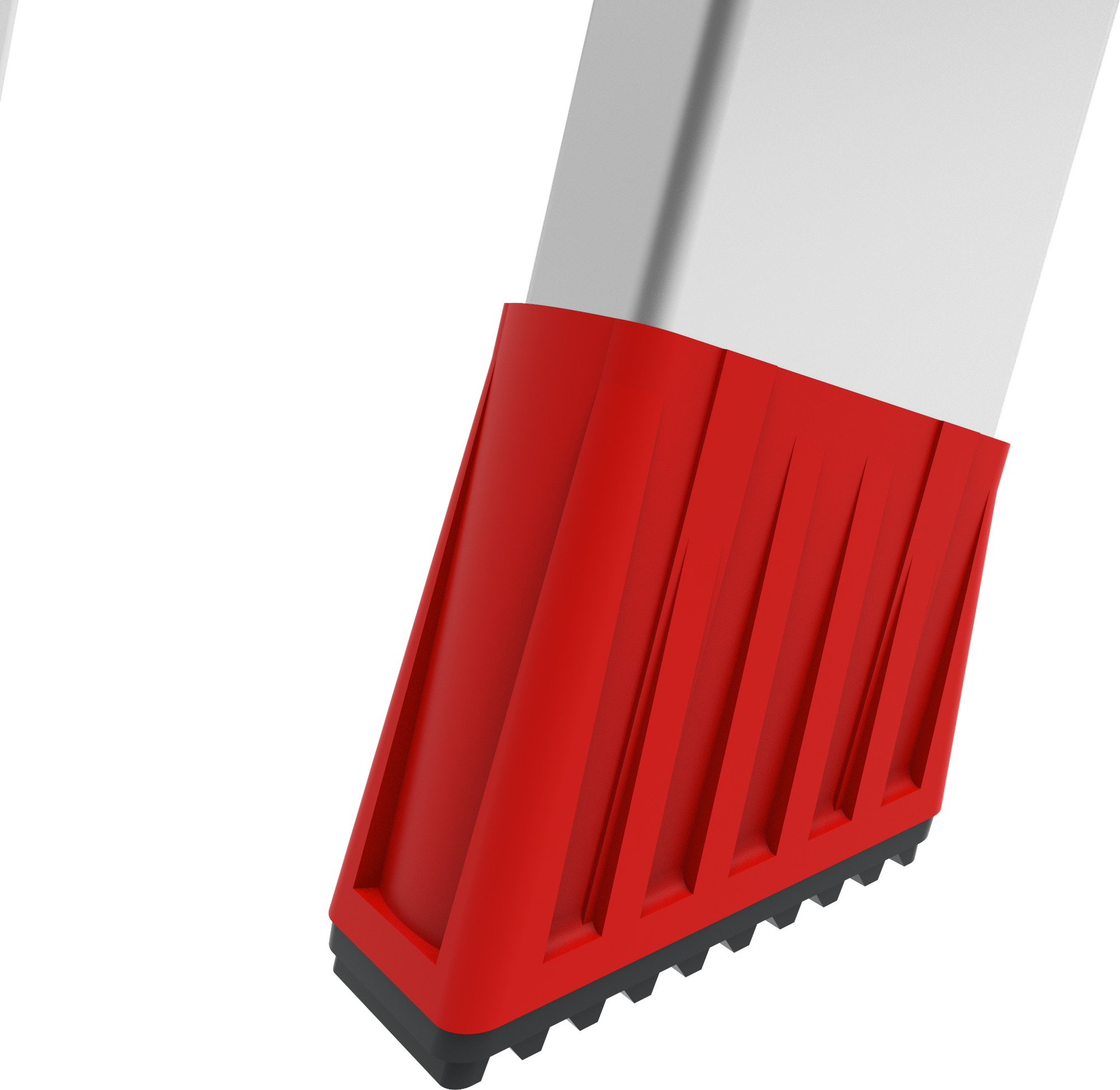

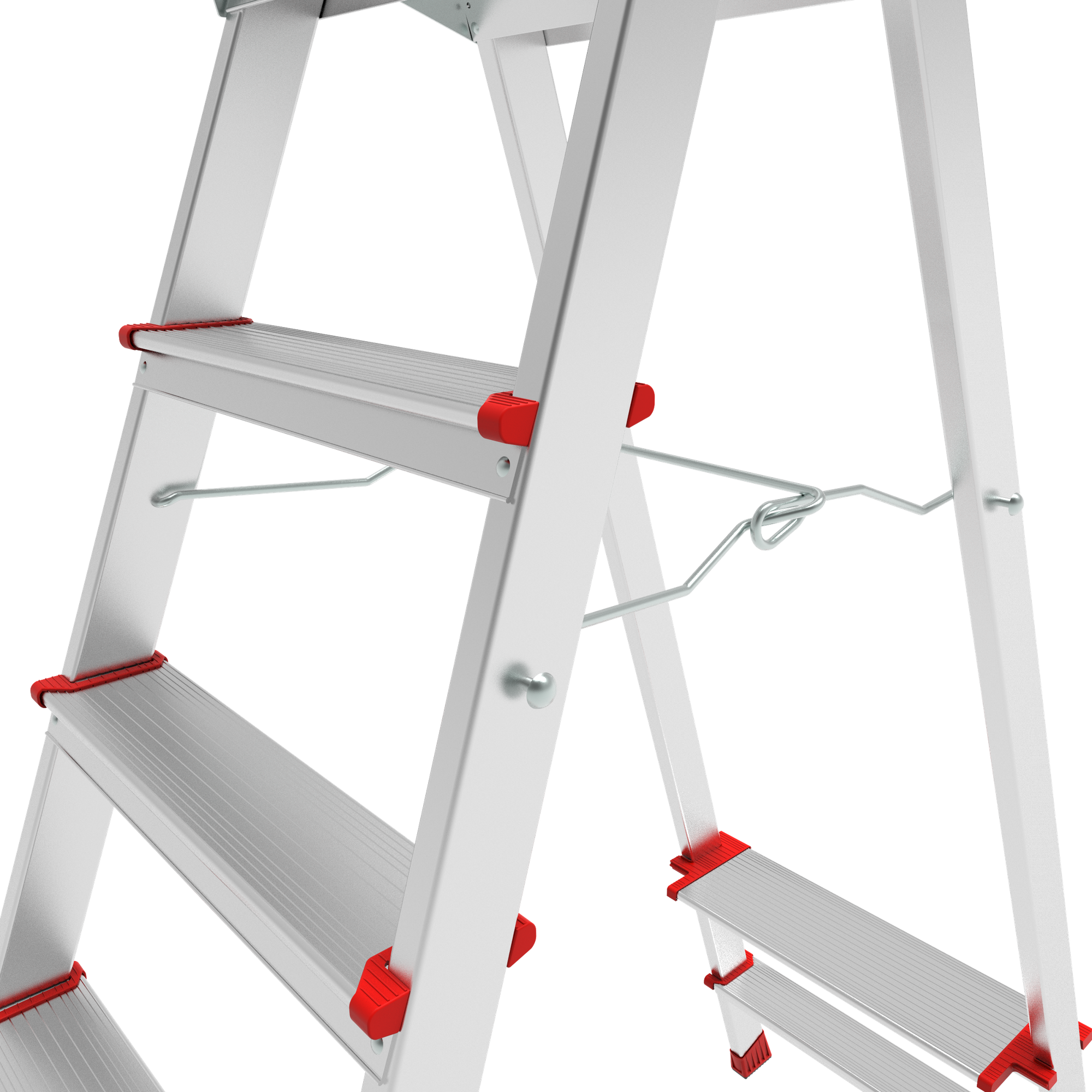

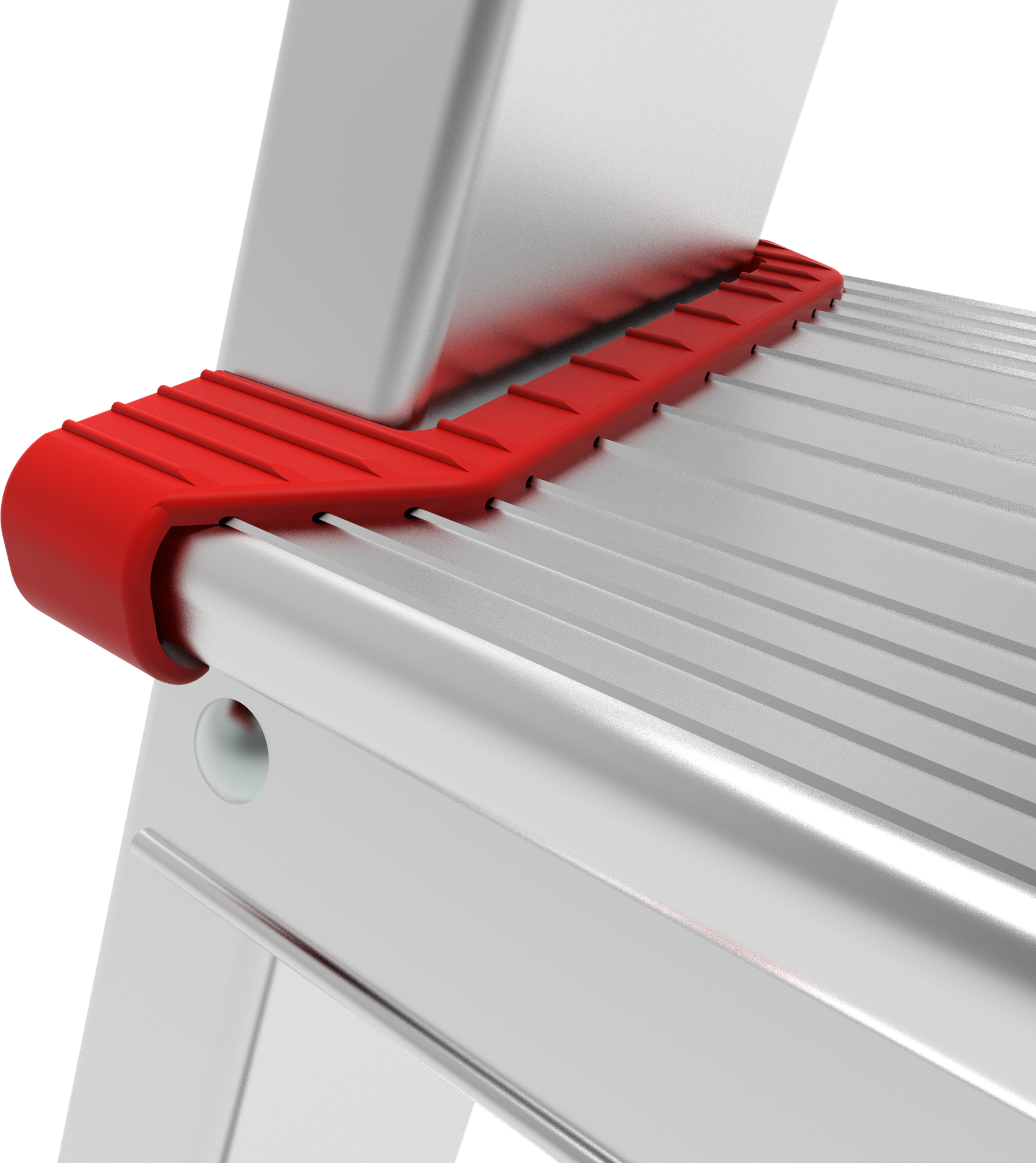

  • rigid metal ties provide a secure fixation in the working position — firm positioning thanks to steady plastic end caps
  • optimised transport dimensions for storage and transportation
  • practicality and attention to each component guarantee safe work at any required height

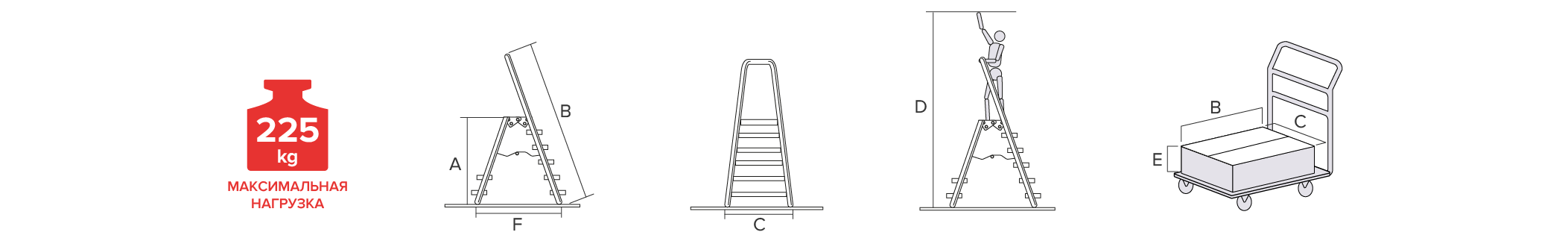

Schema: Professional aluminum stepladder with large top platform NV 3130
Sku Steps A, m B, m C, m D, m E, m F, m Weight, kg
3130103 1×3 0,66 1,33 0,43 0,68 2,66 0,25 4,8
3130104 1×4 0,88 1,56 0,45 0,84 2,88 0,25 5,9
3130105 1×5 1,1 1,79 0,47 1,0 3,1 0,25 6,6
3130106 1×6 1,32 2,03 0,5 1,16 3,32 0,25 7,3
3130107 1×7 1,54 2,26 0,52 1,32 3,54 0,25 8,3
3130108 1×8 1,76 2,5 0,55 1,48 3,76 0,25 9,1
3130109 1×9 1,98 2,73 0,57 1,64 3,98 0,25 9,9
3130110 1×10 2,2 2,96 0,6 1,8 4,2 0,25 10,7
