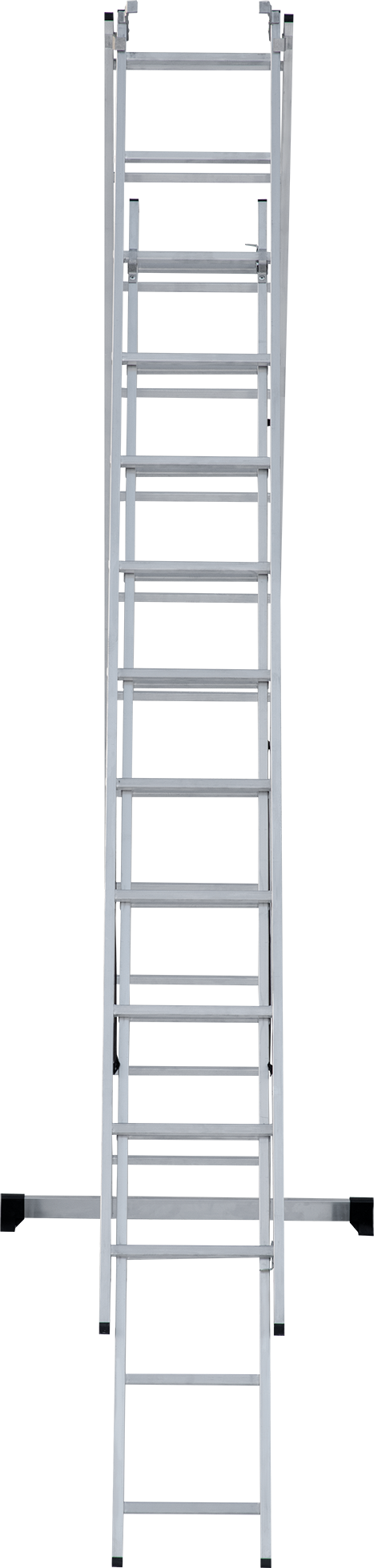

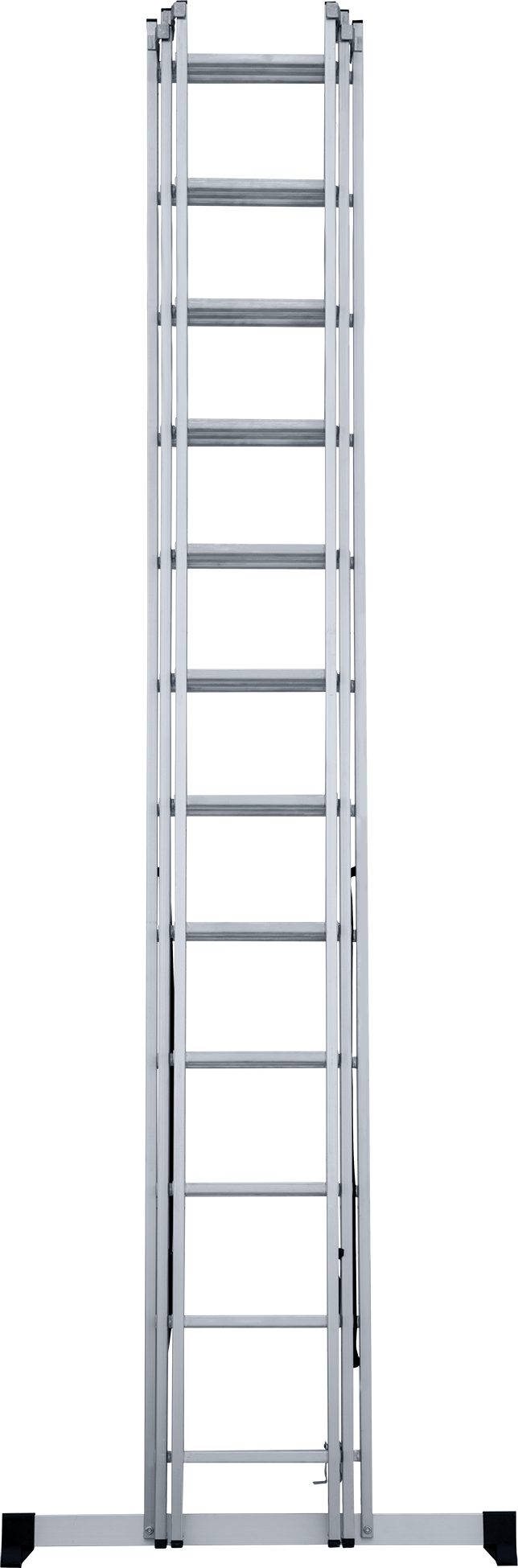

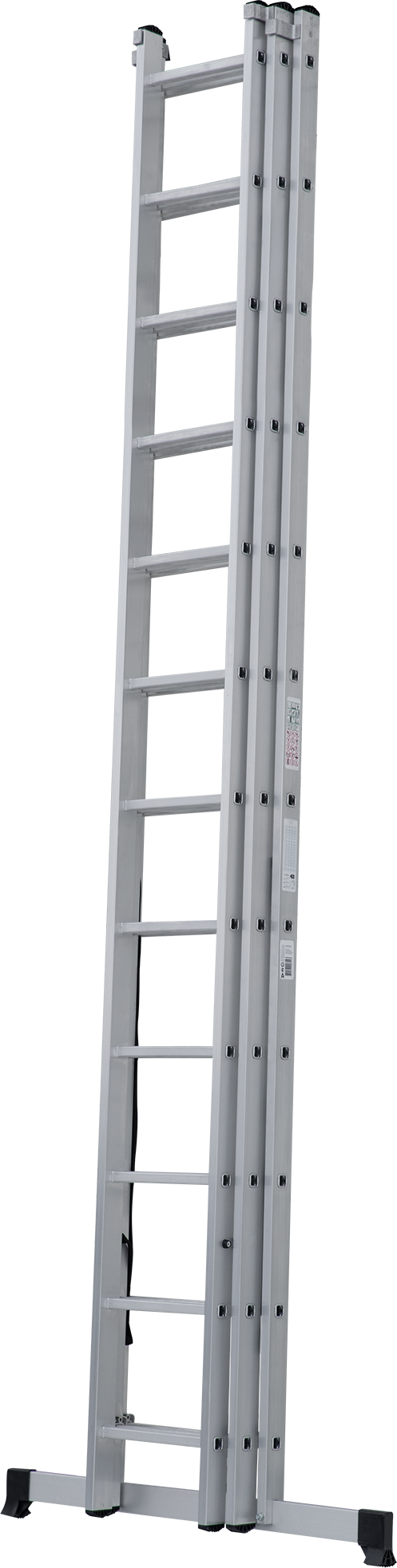

Three-section aluminium rung ladder NV 1230
Rungs
3×5—3×17
Max load
150 kg
Guarantee
1 year
Specification
Description
Positions of using:

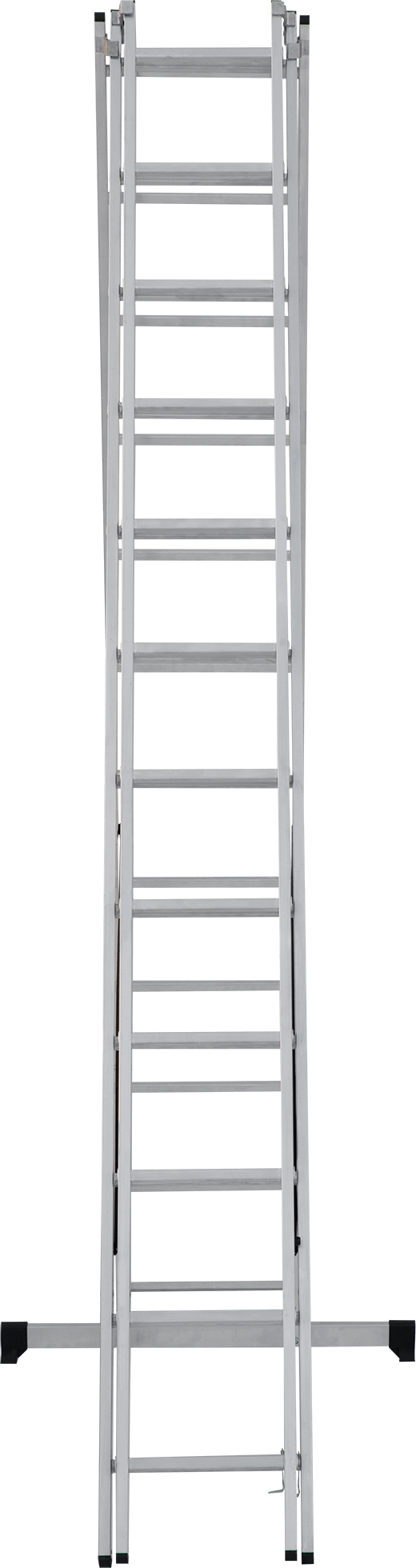

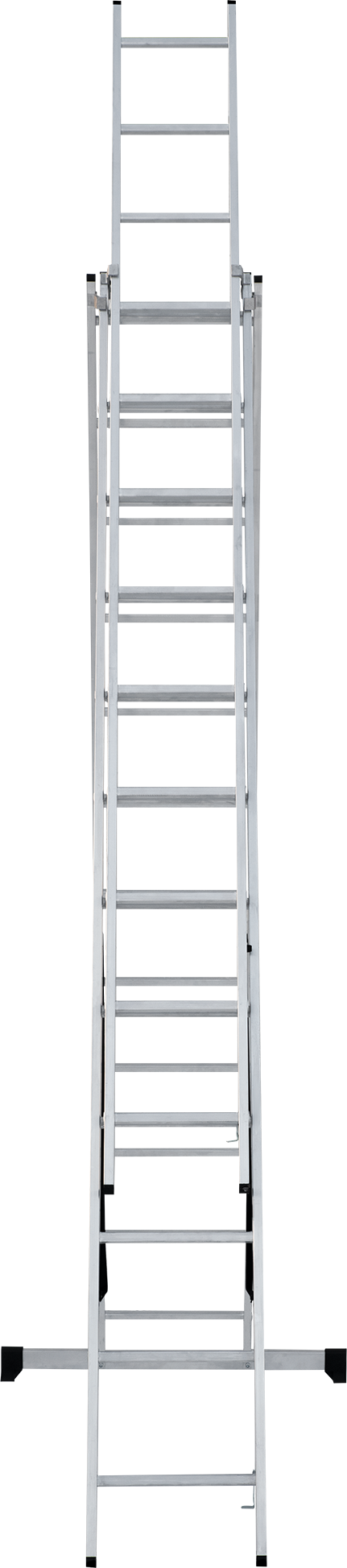

- leaning rung ladder

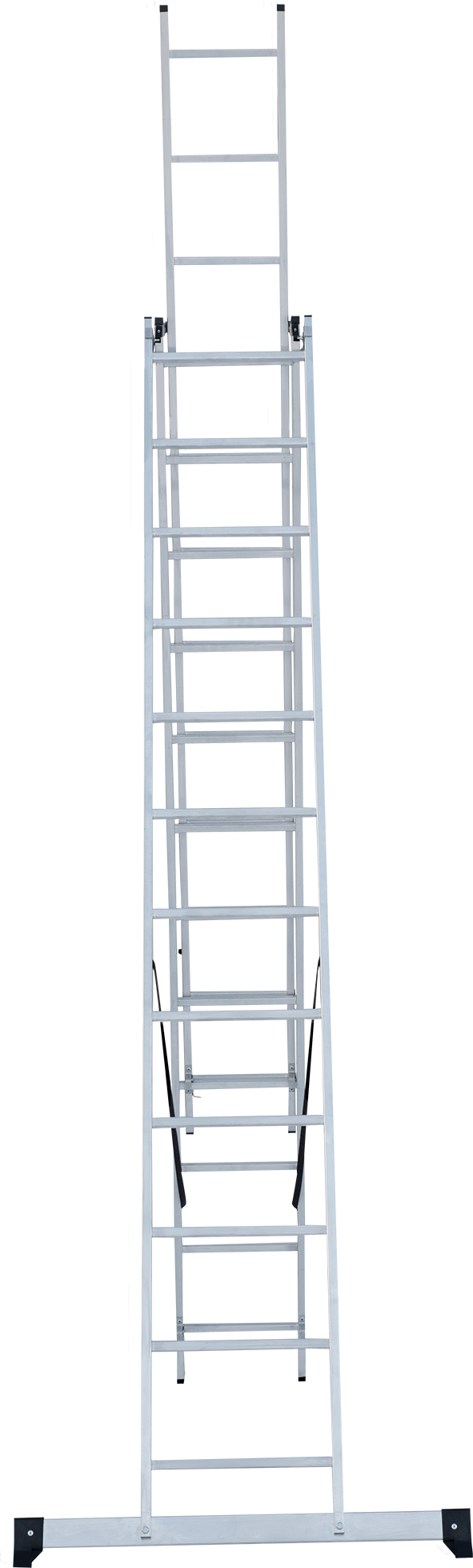

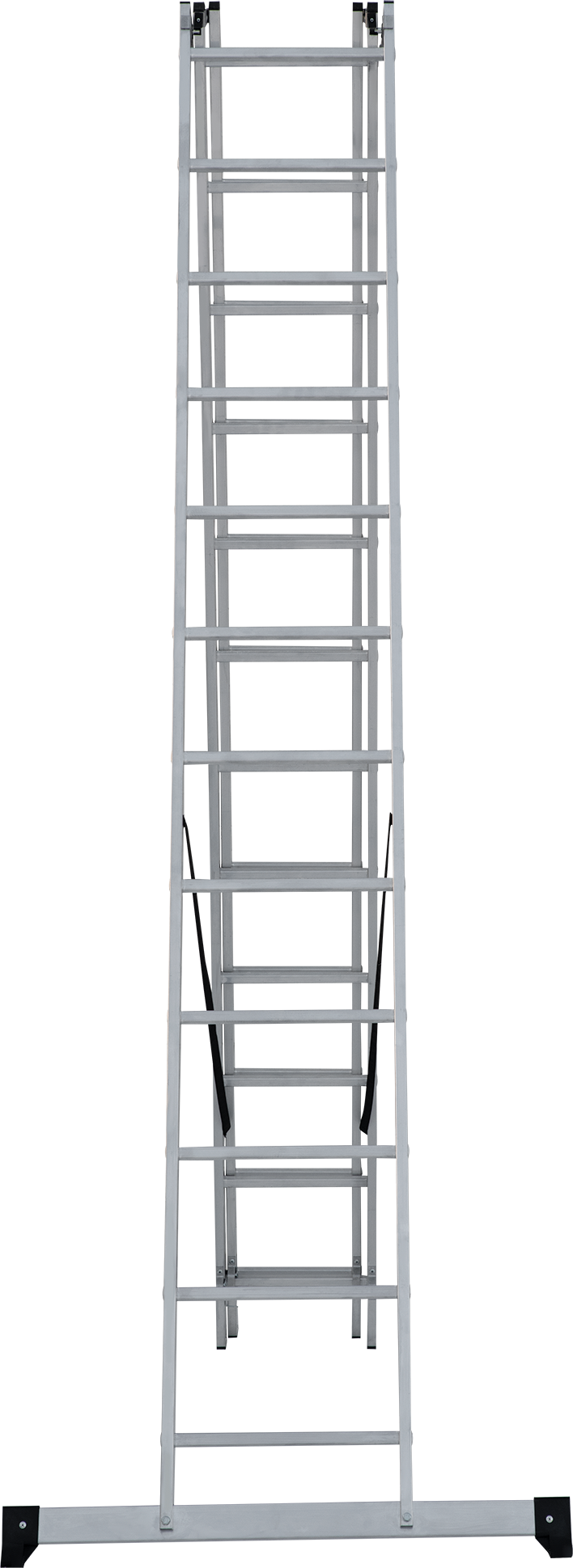

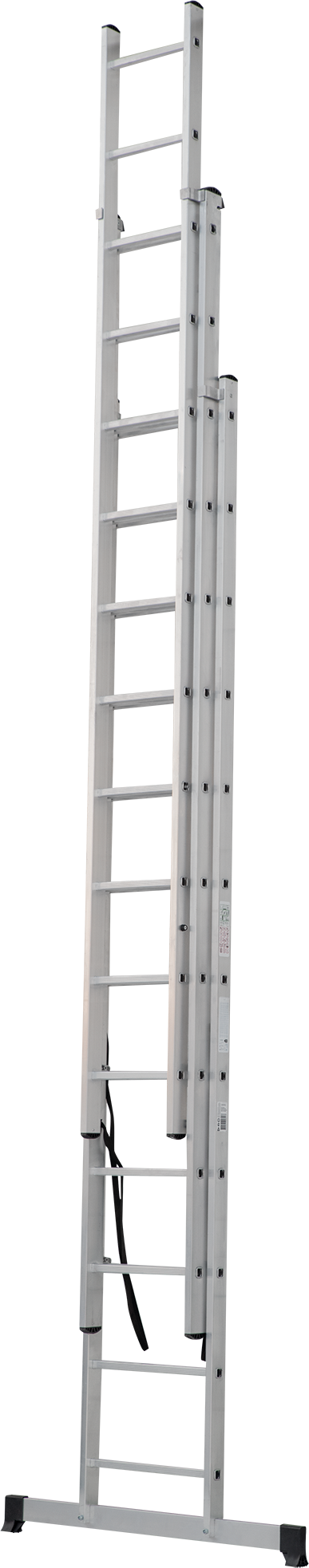

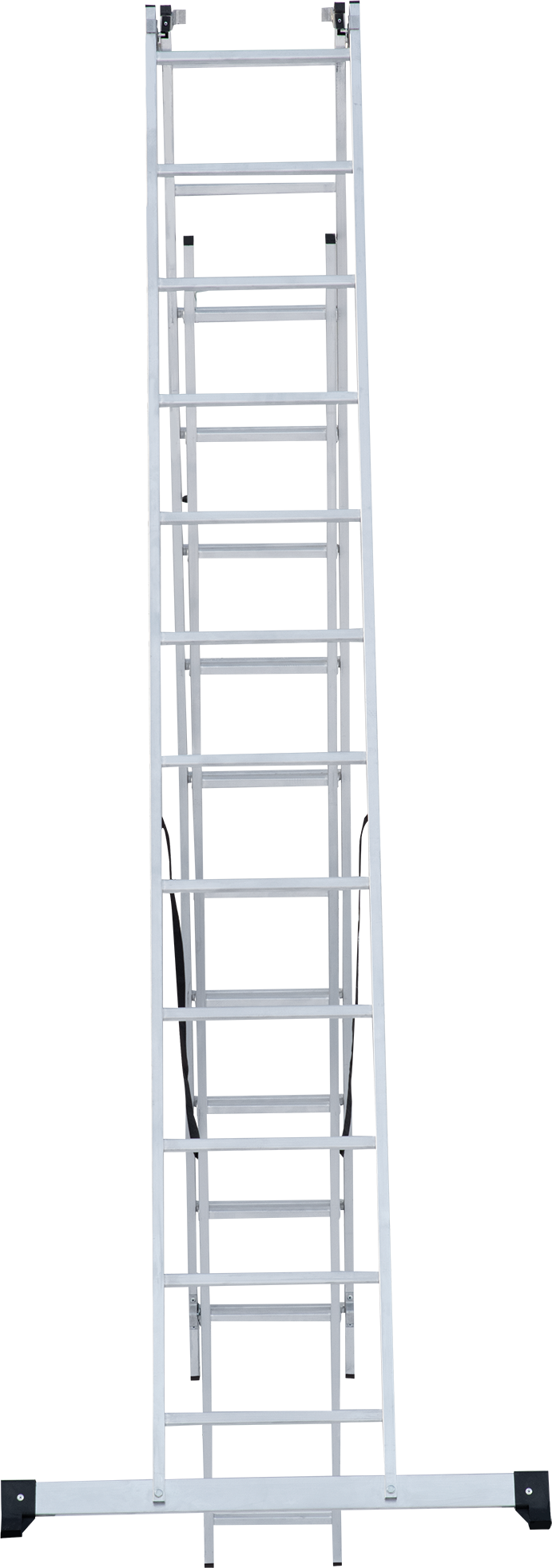

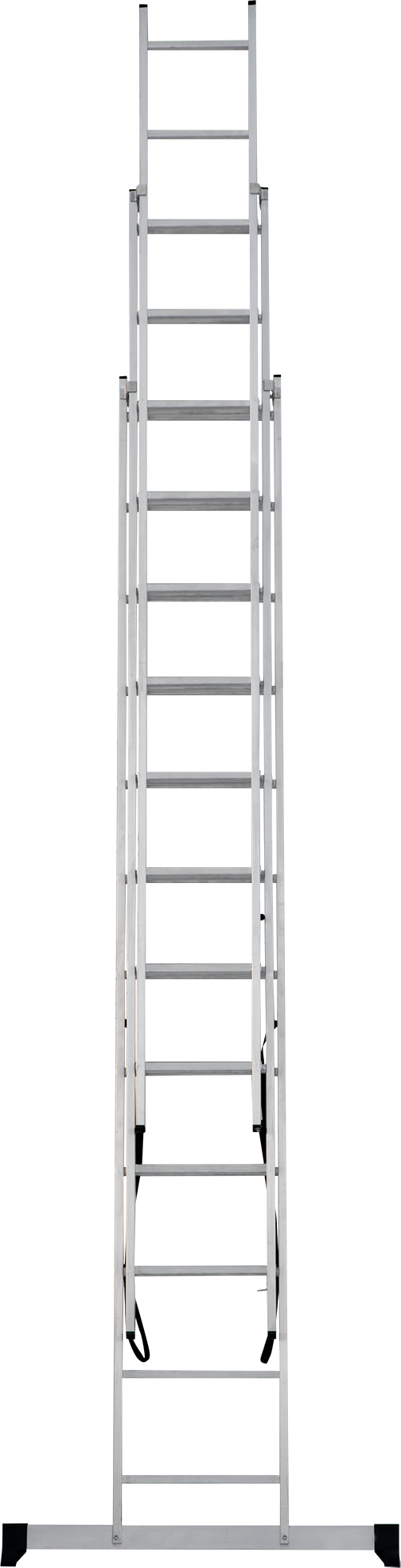

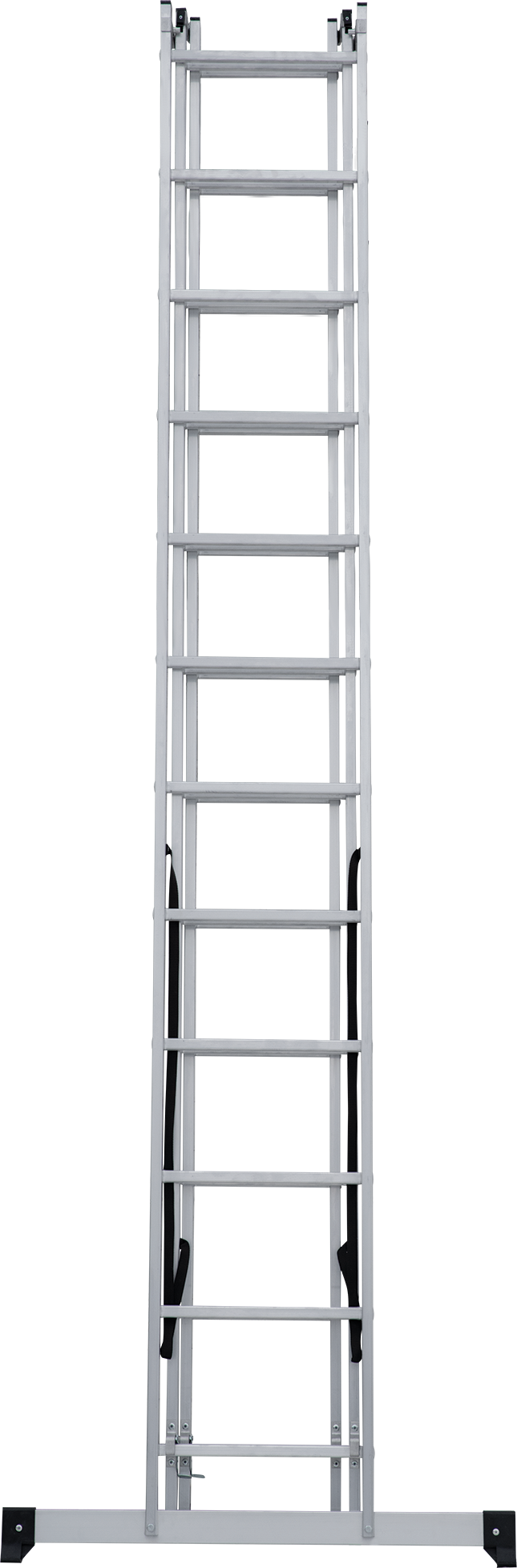

- leaning extension rung ladder

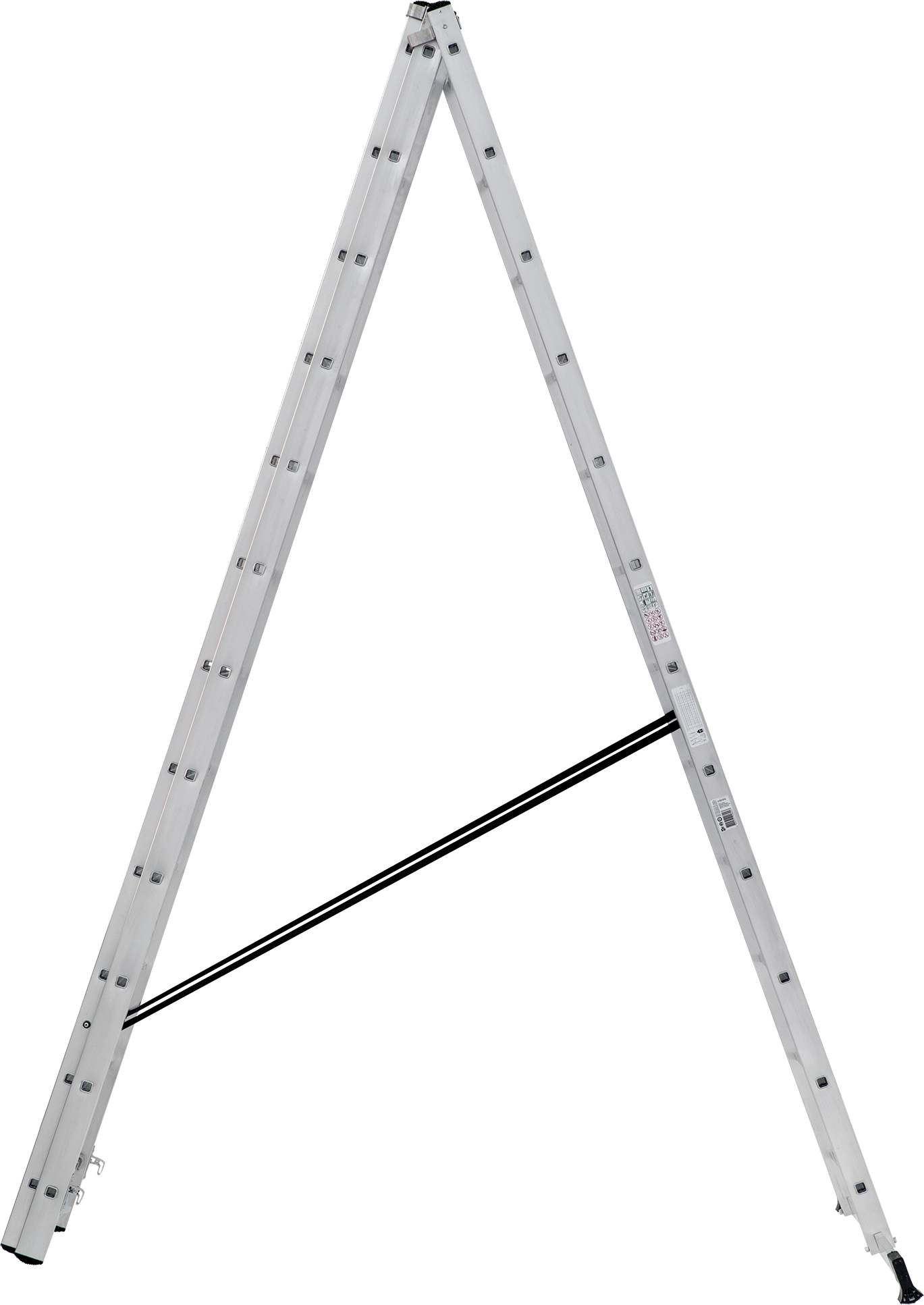

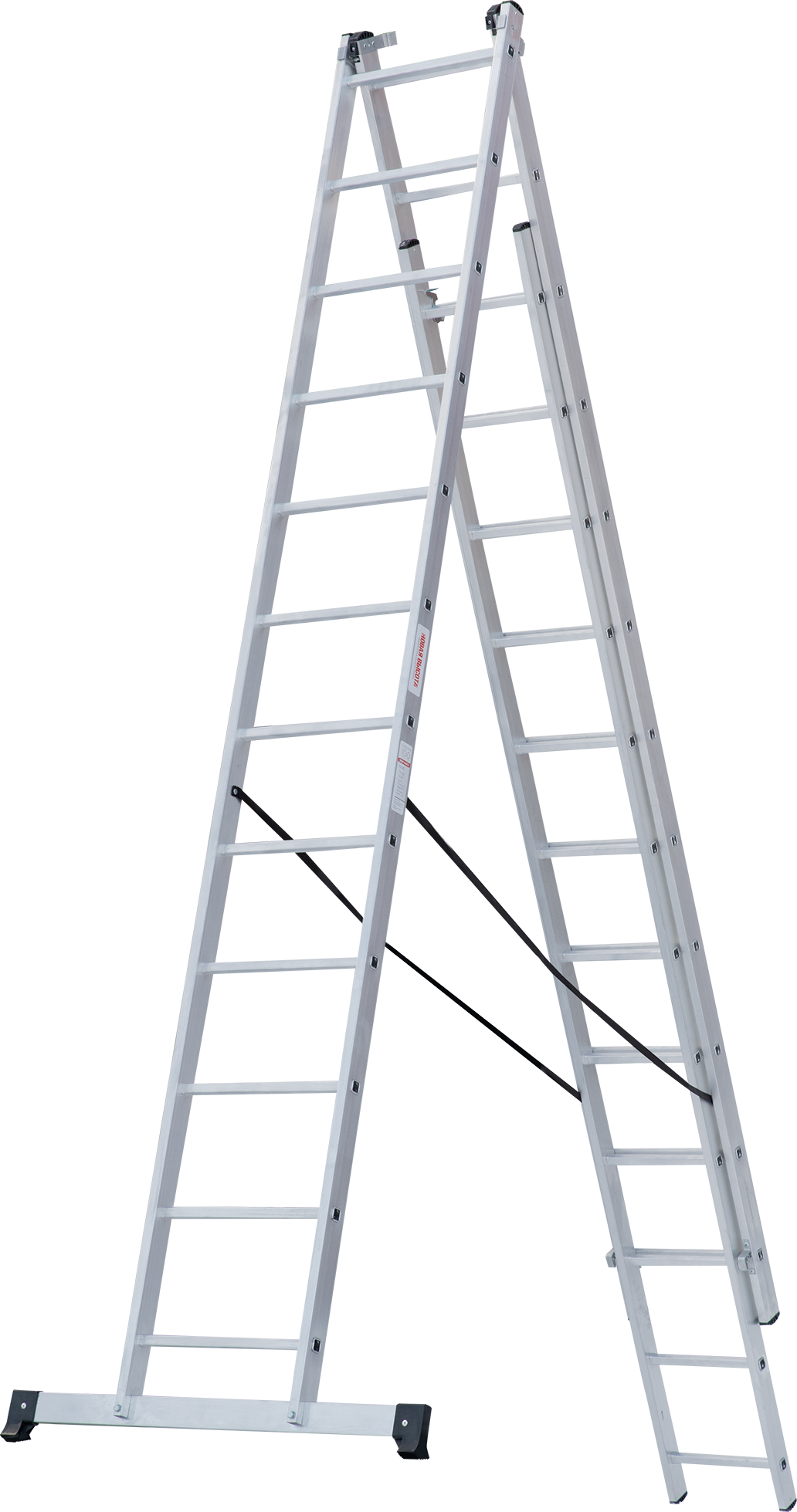

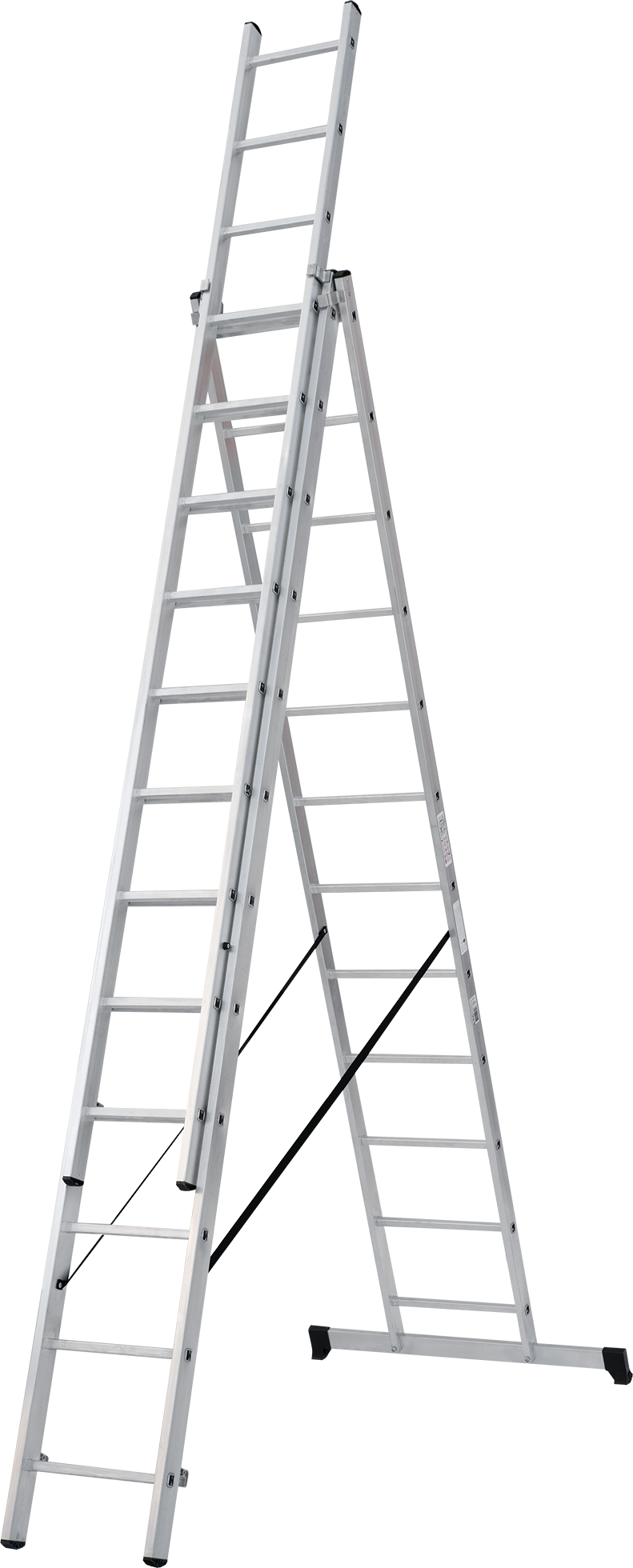

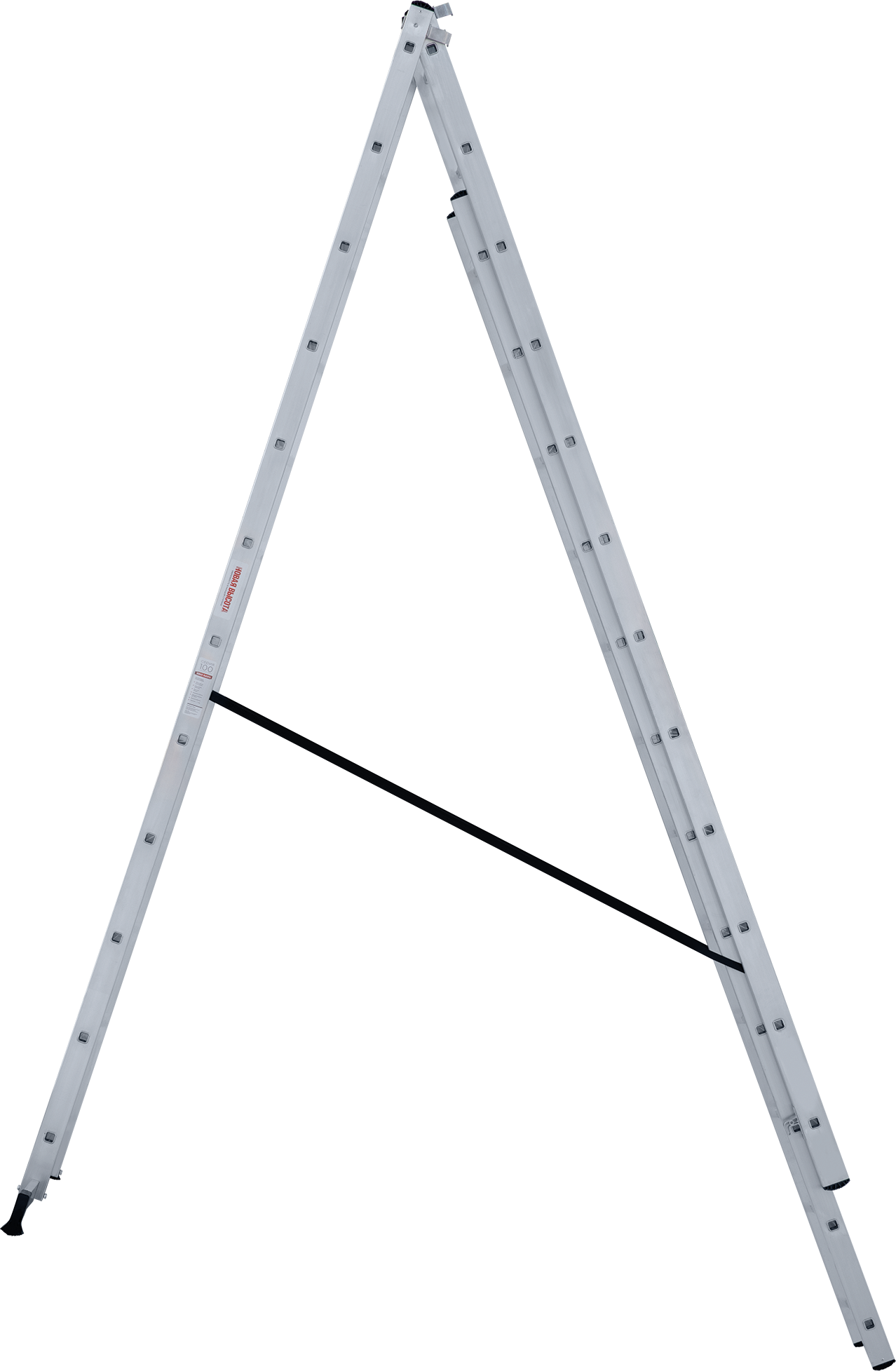

- stepladder

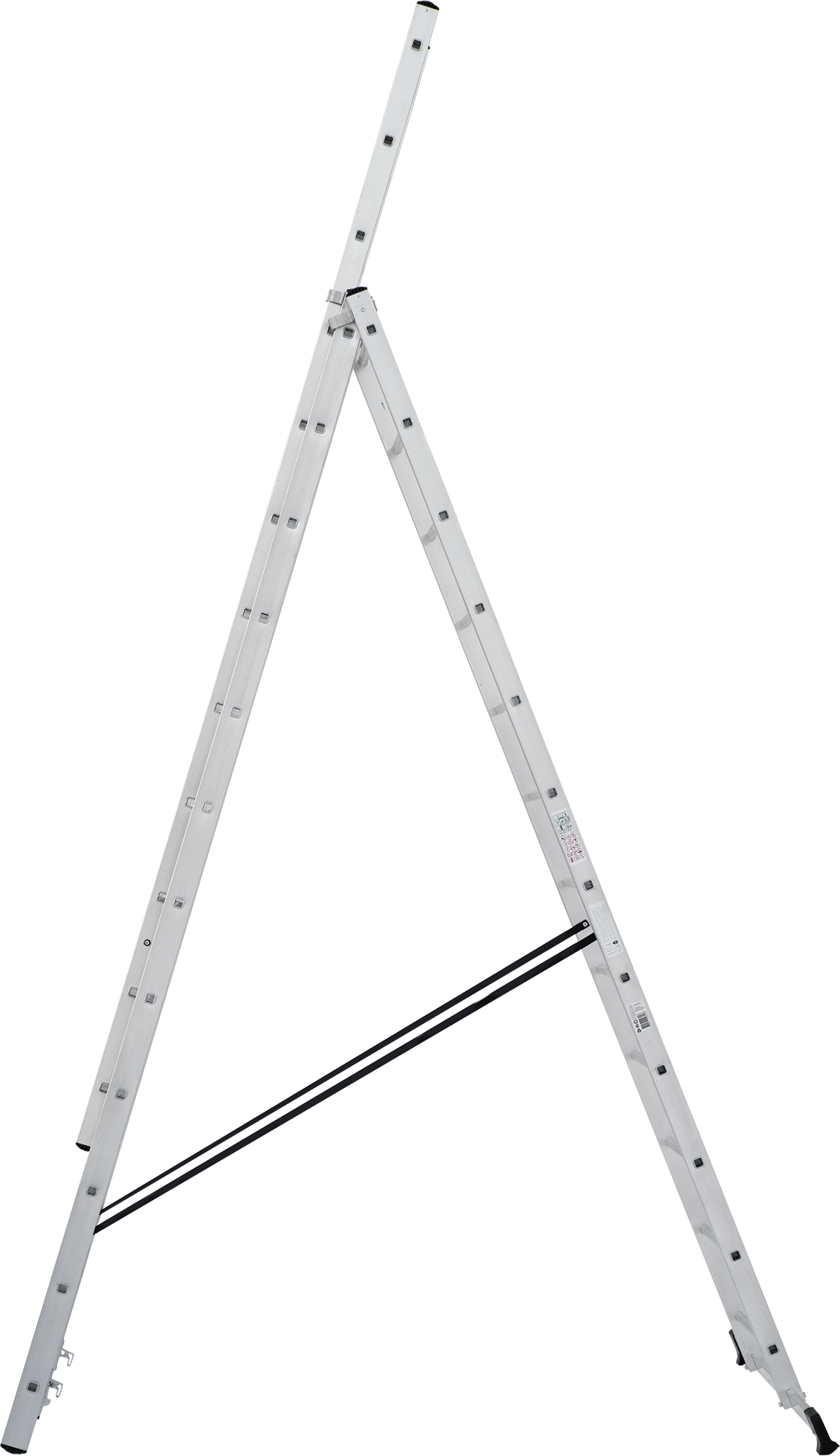

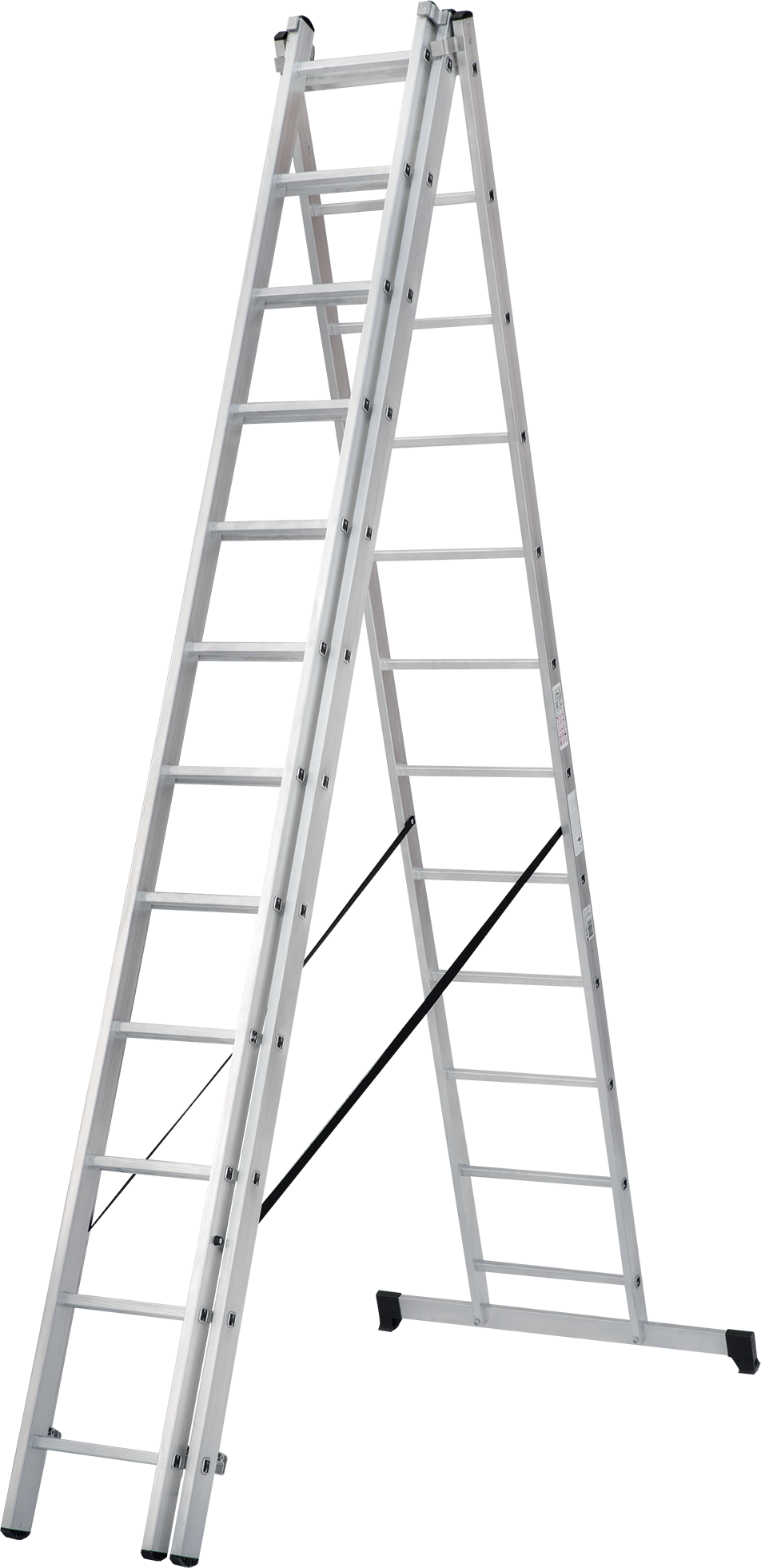

- stepladder with an extendable section
- can be used on stairs or steps
Technical advantages:
- very lightweight but extremely durable and reliable
- rungs and stiles are made from extruded aluminium profiles
- strong riveting connects rungs and stiles, providing extra reliability and durability
- rifled rung pitch of 260 mm for maximum safety when ascending the ladder

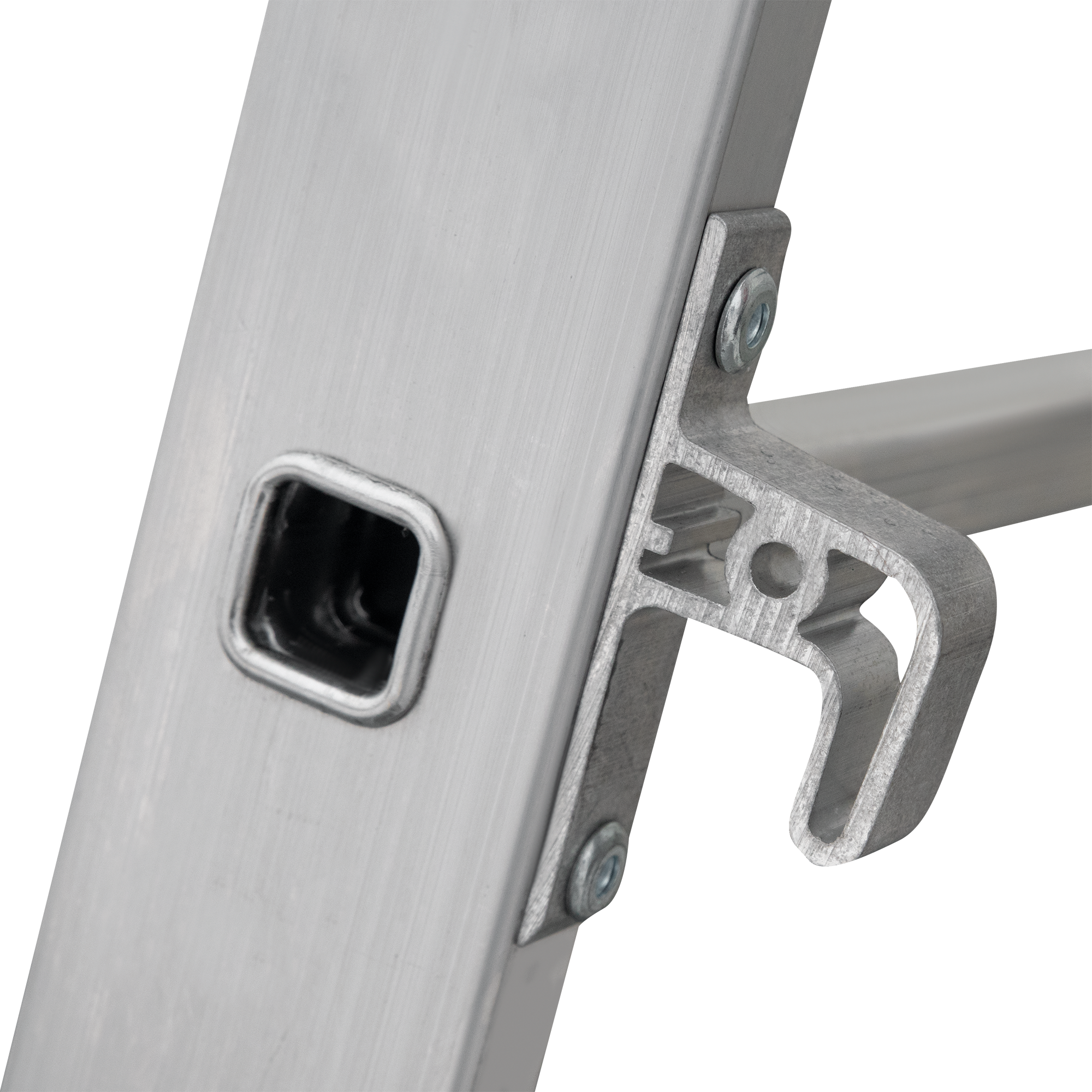

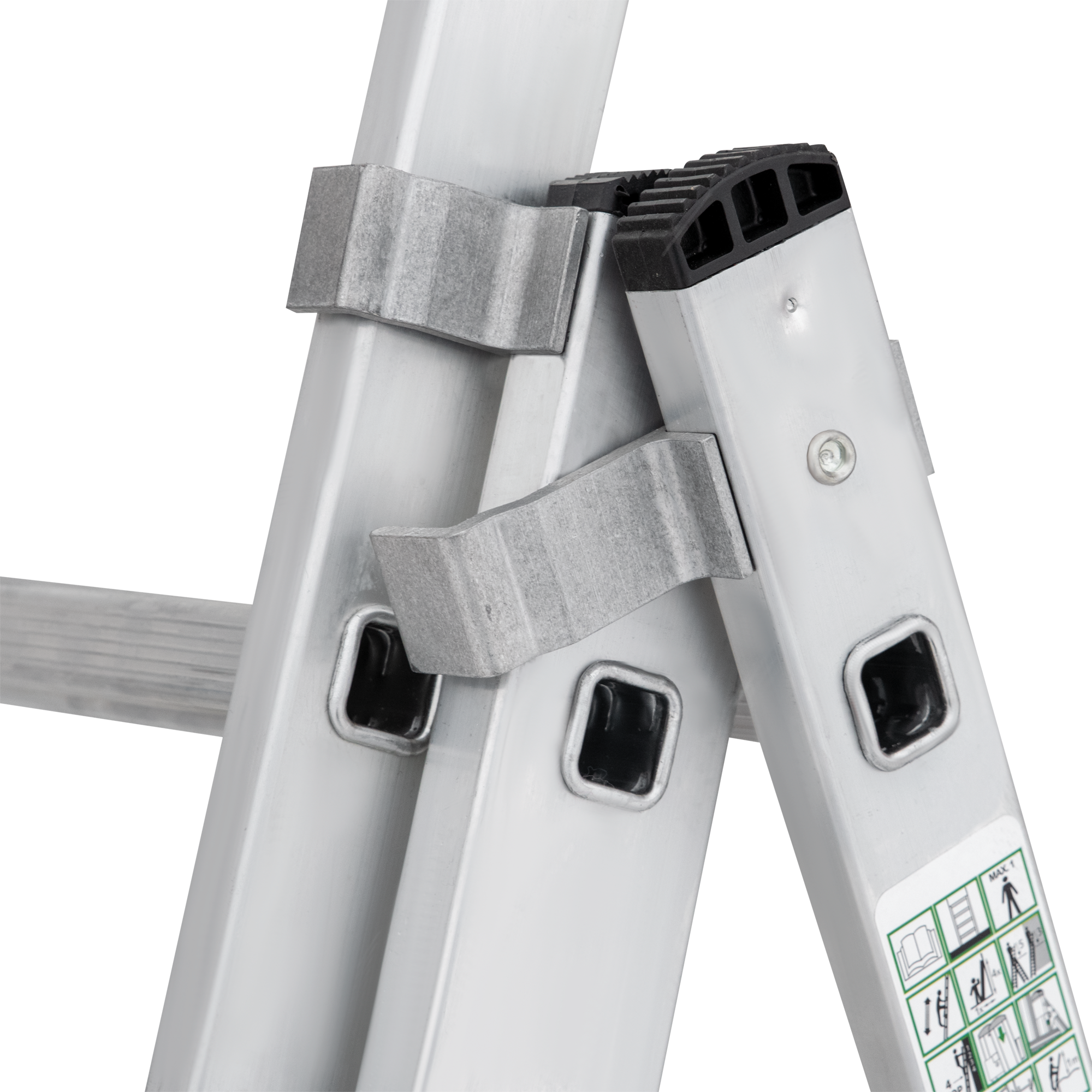

- aluminium stile guides fix extendable ladder section reliably in its position for use

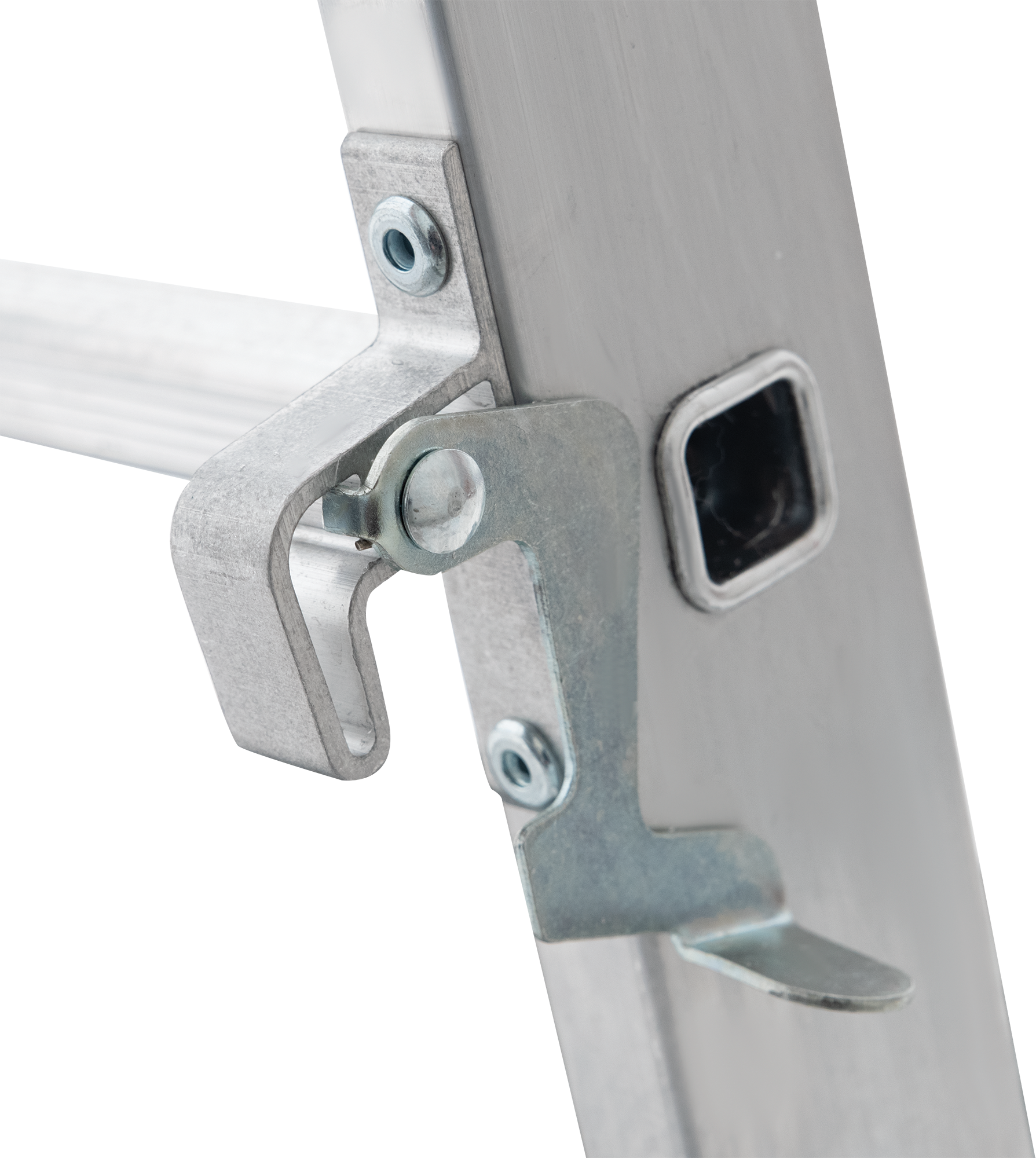

- automatic locks for hooks
- optimum stability thanks to wide cross bar

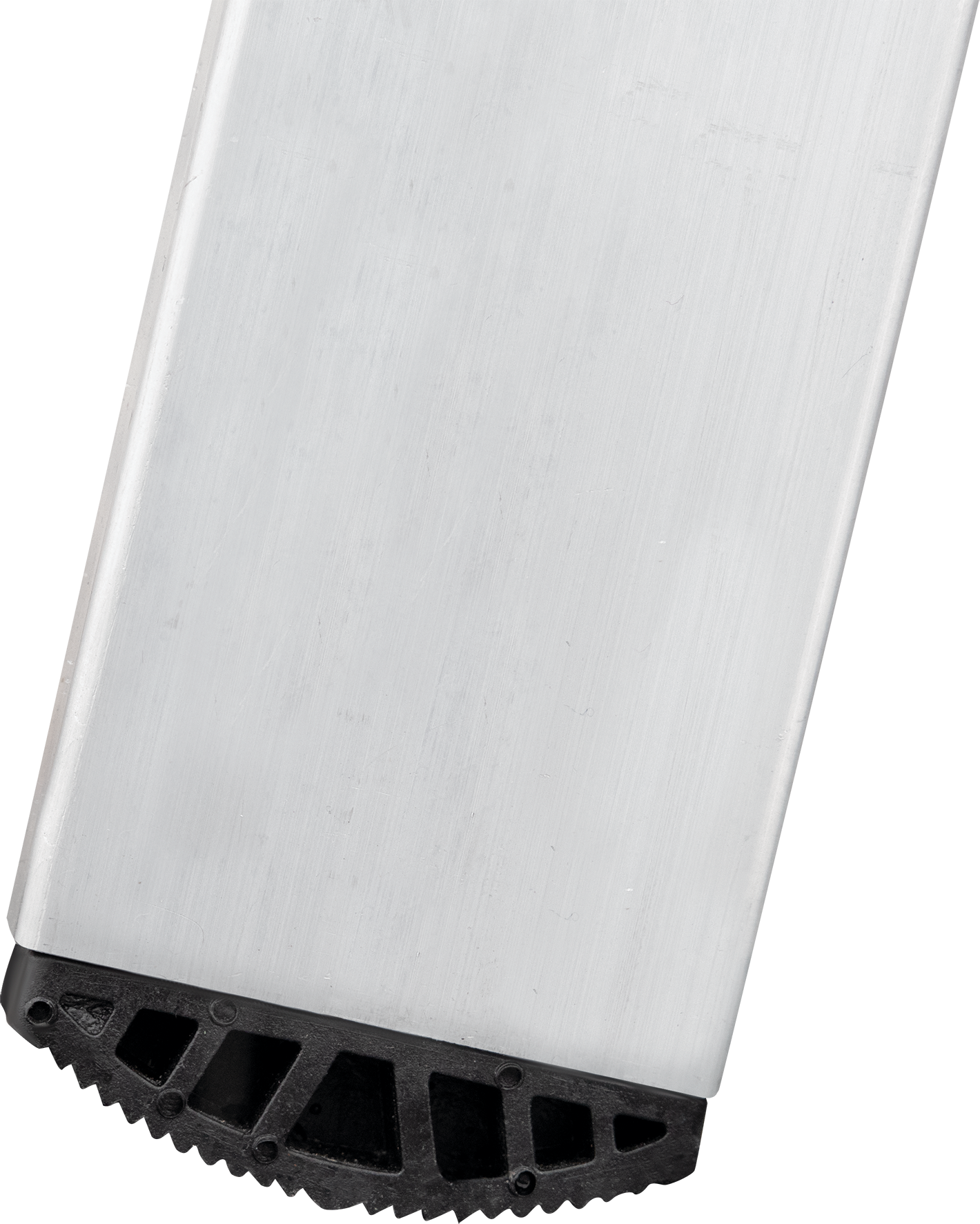

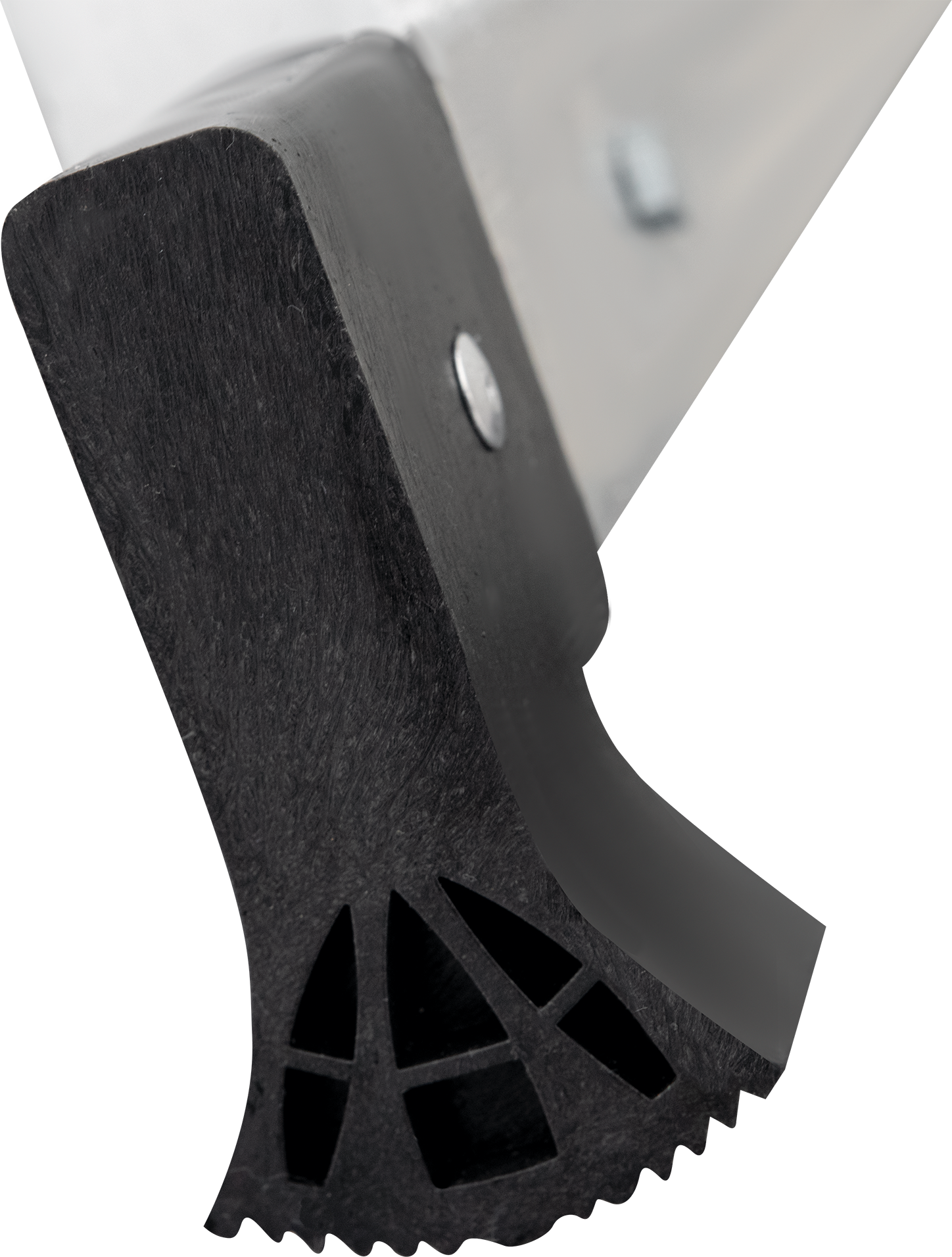

- reliably fixed plastic end caps of stiles and cross-bar prevent risk of slipping
- the upper section can be easilly pulled out and put up and be used separately as a single leaning rung ladder
- can be used on steps or stairs by means of upper extendable section

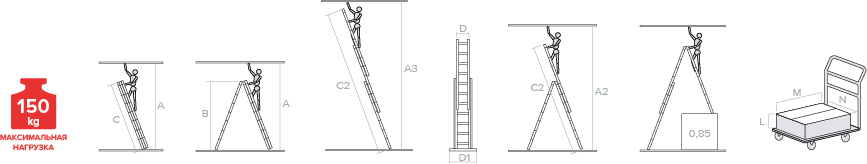

| Sku | Steps | А, m | А1, m | А2, m | А3, m | В, m | С, m | С1, m | С2, m | D1, m | D, m | Размер профиля, mm | L, m | M, m | N, m | Weight, kg | Цена | Buy | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1230305 | 3×5 | 2.17 | 2.17 | 2.93 | 3.62 | 1.27 | 1.36 | 2.11 | 2.92 | 0.75 | 0.32 | (20×50)X(23×62)X(20×50) | 0.45 | 1.33 | 0.14 | 6.3 | по запросу | ||
| 1230306 | 3×6 | 2.42 | 2.42 | 3.42 | 4.36 | 1.52 | 1.62 | 2.63 | 3.7 | 0.75 | 0.32 | (20×50)X(23×62)X(20×50) | 0.45 | 1.59 | 0.14 | 7.3 | по запросу | ||
| 1230307 | 3×7 | 2.67 | 2.67 | 3.92 | 5.09 | 1.76 | 1.88 | 3.15 | 4.48 | 0.75 | 0.32 | (20×50)X(23×62)X(20×50) | 0.45 | 1.85 | 0.14 | 8.3 | по запросу | ||
| 1230308 | 3×8 | 2.92 | 2.92 | 4.17 | 5.33 | 2.01 | 2.14 | 3.41 | 4.74 | 0.75 | 0.32 | (20×50)X(23×62)X(20×50) | 0.45 | 2.11 | 0.14 | 9.3 | по запросу | ||
| 1230309 | 3×9 | 3.16 | 3.16 | 4.66 | 6.07 | 2.26 | 2.4 | 3.93 | 5.52 | 0.75 | 0.32 | (20×50)X(23×62)X(20×50) | 0.45 | 2.37 | 0.14 | 10.3 | по запросу | ||
| 1230310 | 3×10 | 3.41 | 3.41 | 5.15 | 6.82 | 2.51 | 2.67 | 4.45 | 6.31 | 1 | 0.32 | (23×62)X(23×72)X(23×62) | 0.46 | 2.63 | 0.17 | 12.6 | по запросу | ||
| 1230311 | 3×11 | 3.66 | 3.66 | 5.66 | 7.55 | 2.76 | 2.93 | 4.97 | 7.09 | 1 | 0.32 | (23×62)X(23×72)X(23×62) | 0.46 | 2.89 | 0.17 | 13.7 | по запросу | ||
| 1230312 | 3×12 | 3.91 | 3.91 | 6.15 | 8.29 | 3 | 3.19 | 5.49 | 7.87 | 1 | 0.32 | (23×62)X(23×72)X(23×62) | 0.46 | 3.15 | 0.17 | 14.8 | по запросу | ||
| 1230313 | 3×13 | 4.16 | 4.16 | 6.64 | 9.02 | 3.27 | 3.47 | 6.03 | 8.67 | 1 | 0.32 | (23×72)X(23×72)X(23×72) | 0.46 | 3.43 | 0.18 | 17.3 | по запросу | ||
| 1230314 | 3×14 | 4.4 | 4.4 | 7.14 | 9.75 | 3.52 | 3.73 | 6.55 | 9.45 | 1.2 | 0.32 | (23×72)X(23×72)X(23×72) | 0.46 | 3.69 | 0.18 | 18.9 | по запросу | ||
| 1230315 | 3×15 | 4.64 | 4.64 | 7.61 | 10.53 | 3.81 | 4.02 | 7.13 | 10.26 | 1.2 | 0.32 | (23×72)X(23×85)X(23×72) | 0.46 | 4.01 | 0.19 | 23.5 | по запросу | ||
| 1230316 | 3×16 | 4.88 | 4.88 | 7.85 | 11.26 | 4.05 | 4.28 | 7.65 | 11.04 | 1.2 | 0.32 | (23×72)X(23×85)X(23×72) | 0.46 | 4.27 | 0.19 | 24.9 | по запросу | ||
| 1230317 | 3×17 | 5.13 | 5.13 | 8.1 | 11.99 | 4.3 | 4.54 | 8.18 | 11.82 | 1.2 | 0.32 | (23×72)X(23×85)X(23×72) | 0.46 | 4.53 | 0.19 | 26.3 | по запросу |
