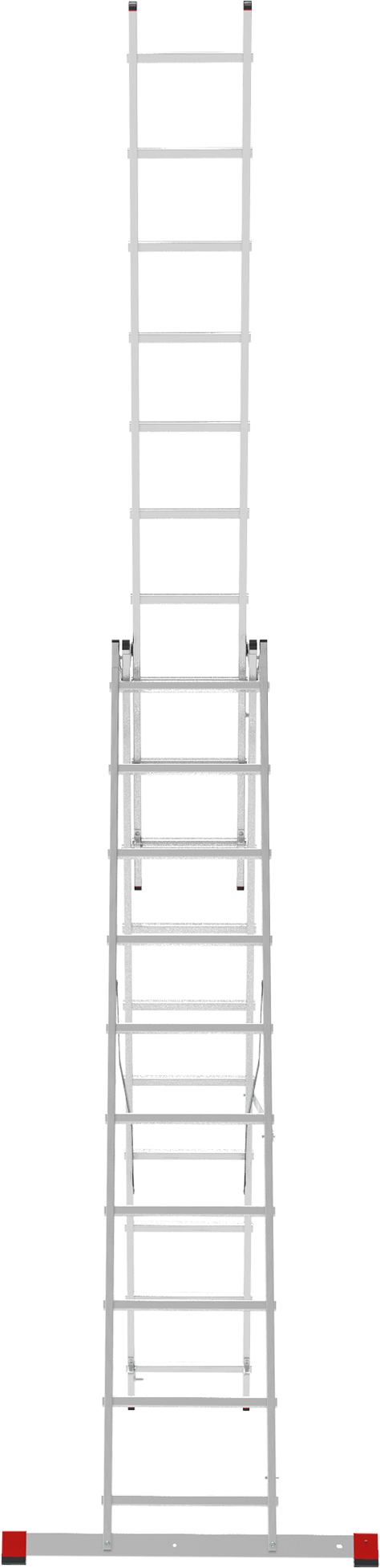

Three-section aluminum multipurpose ladder NV2230
Max load
150 kg
Guarantee
2 years
Specification
Description
Positions of using:

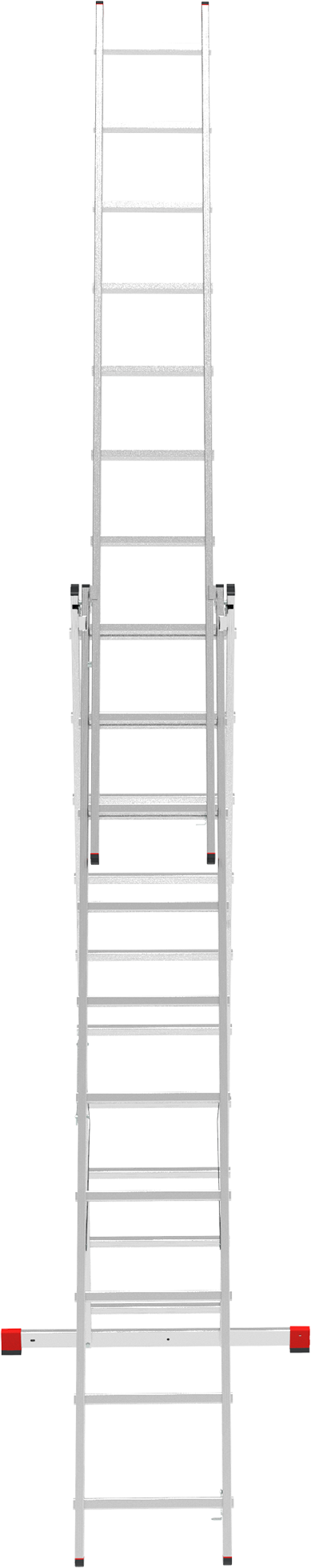

- leaning rung ladder
- leaning extensoion rung ladder
- stepladder

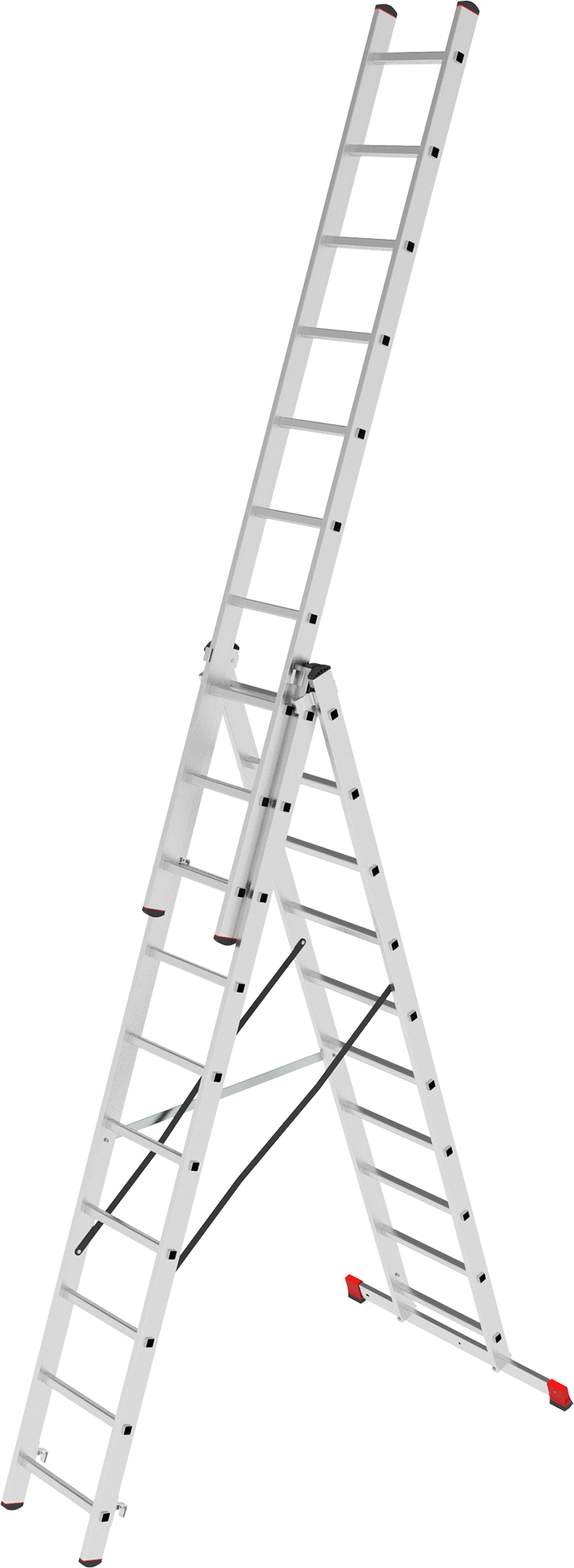

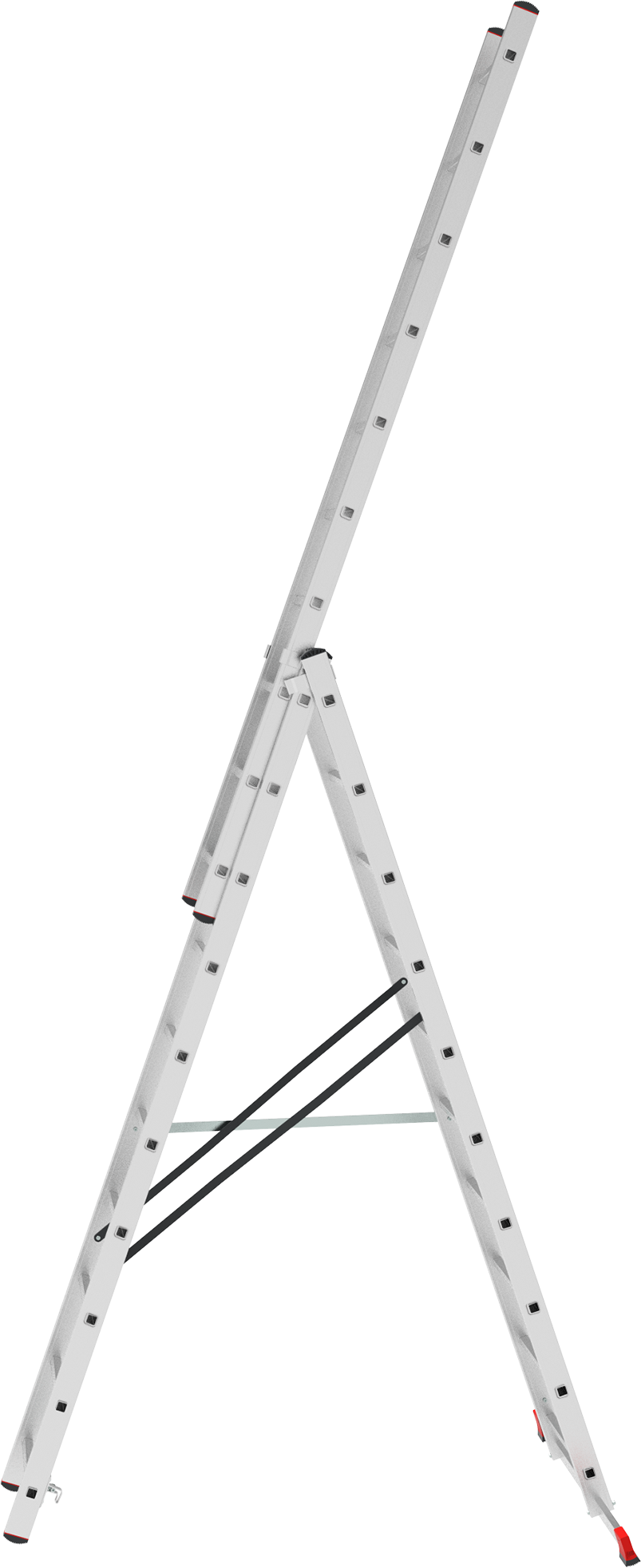

- stepladder with an extendable section
- function of using on steps or stairs
Technical advantages:
- very lightweight but extremely durable and reliable
- rungs and stiles are made from extruded profiles

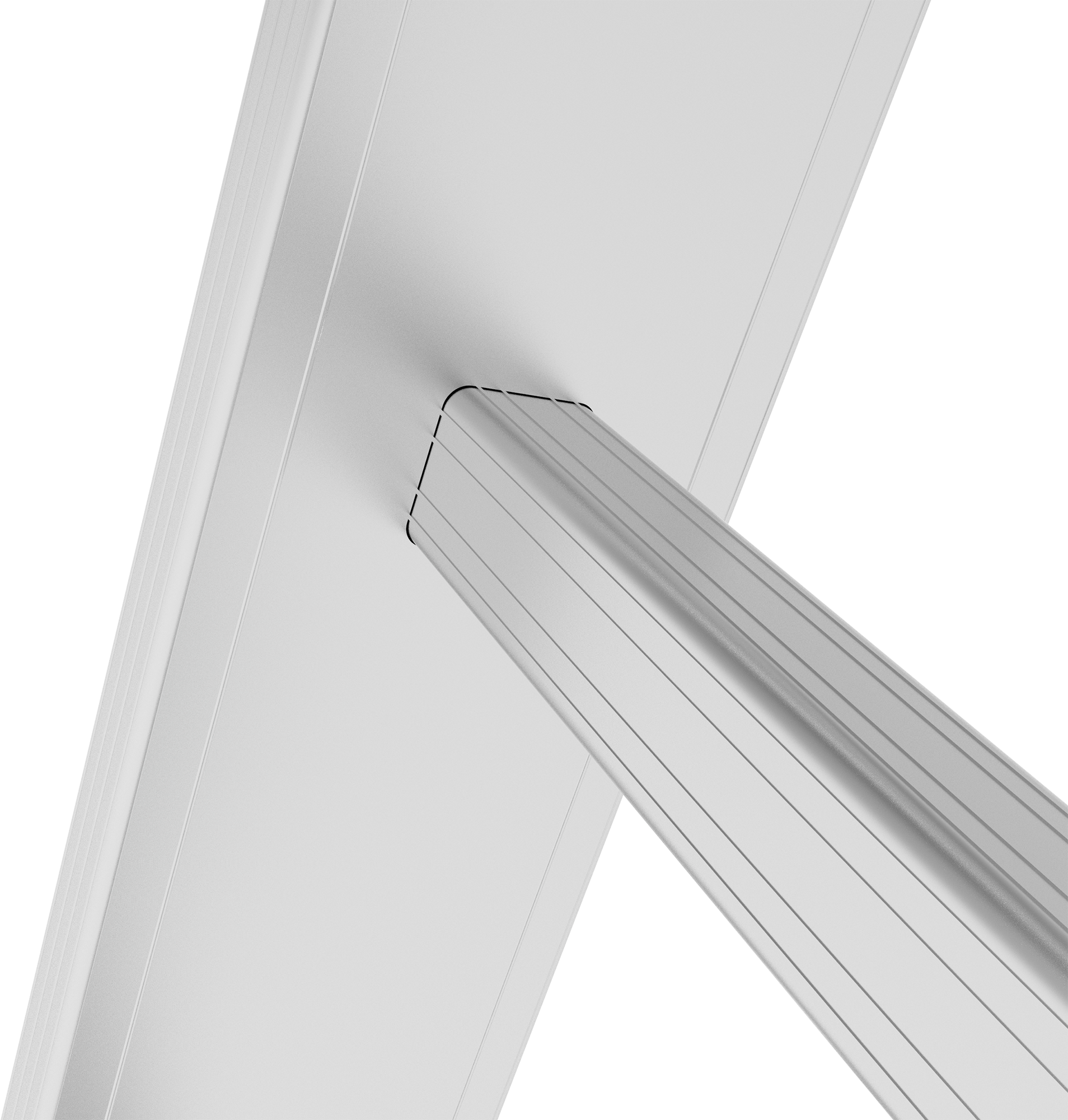

- strong riveting connects rung and stiles, providing extra reliability and lasting quality
- rifled rung pitch of 260 mm for maximum safety when ascending the ladder

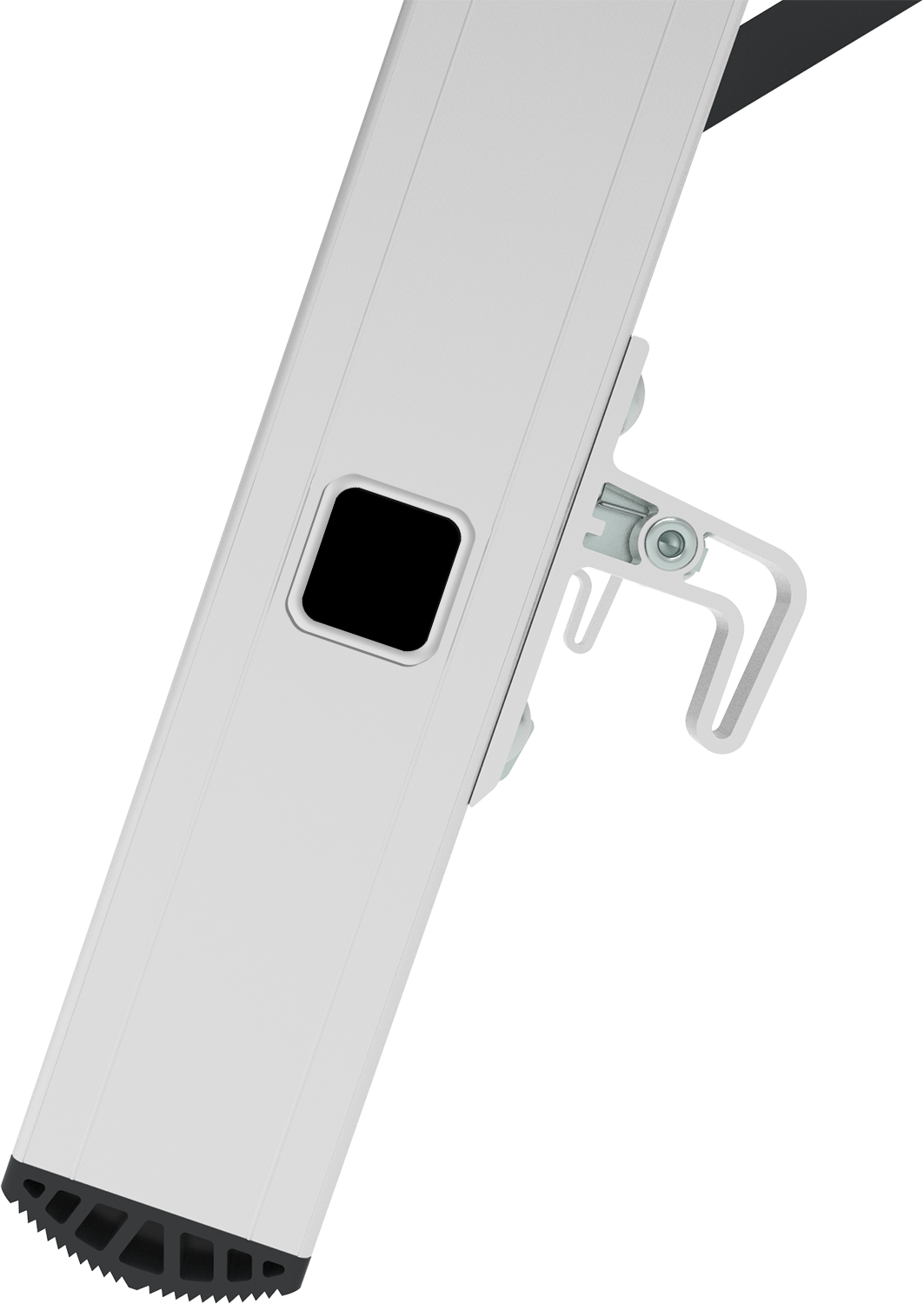

- aluminium stile guides fix extendable ladder section reliably in its position for use

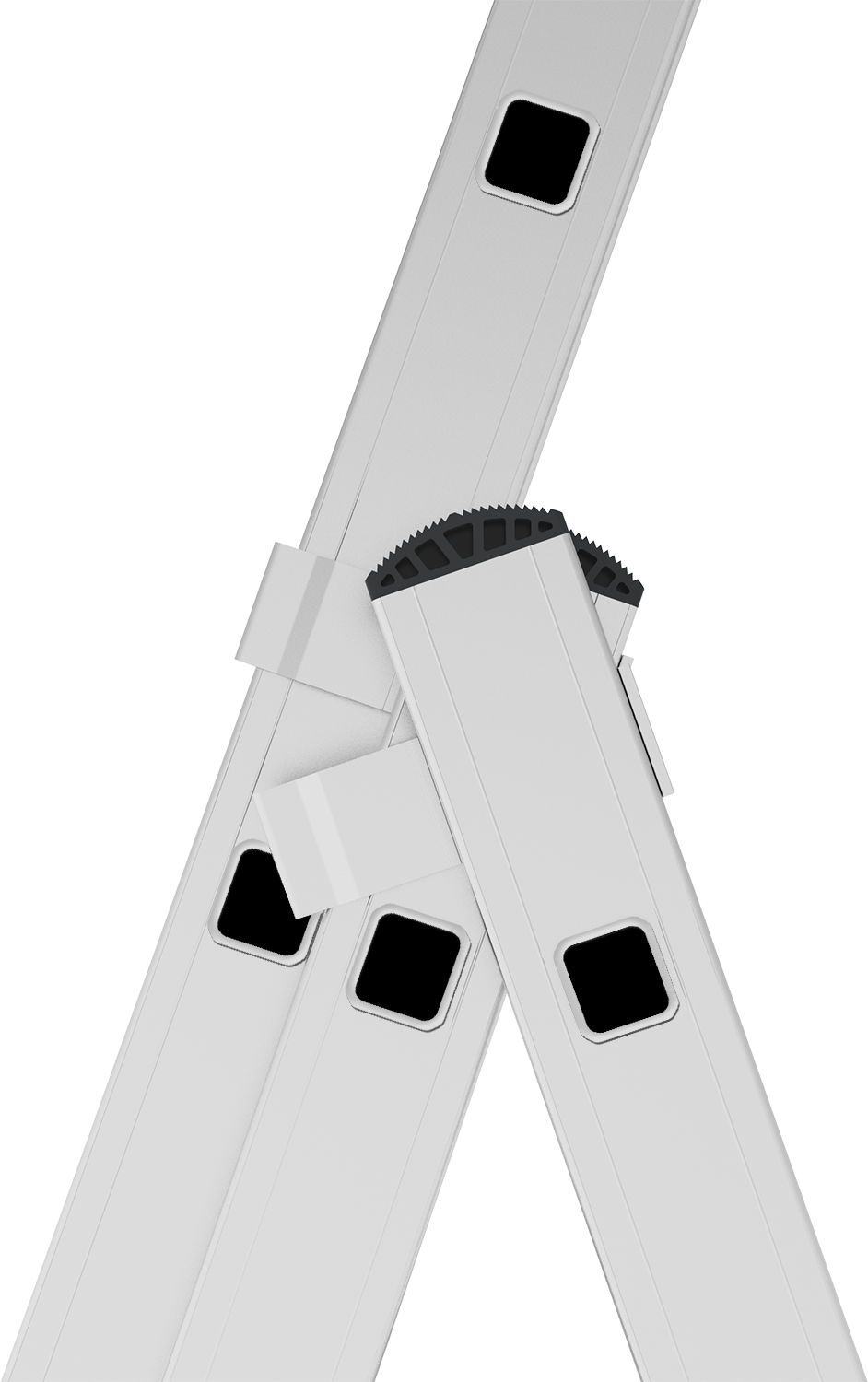

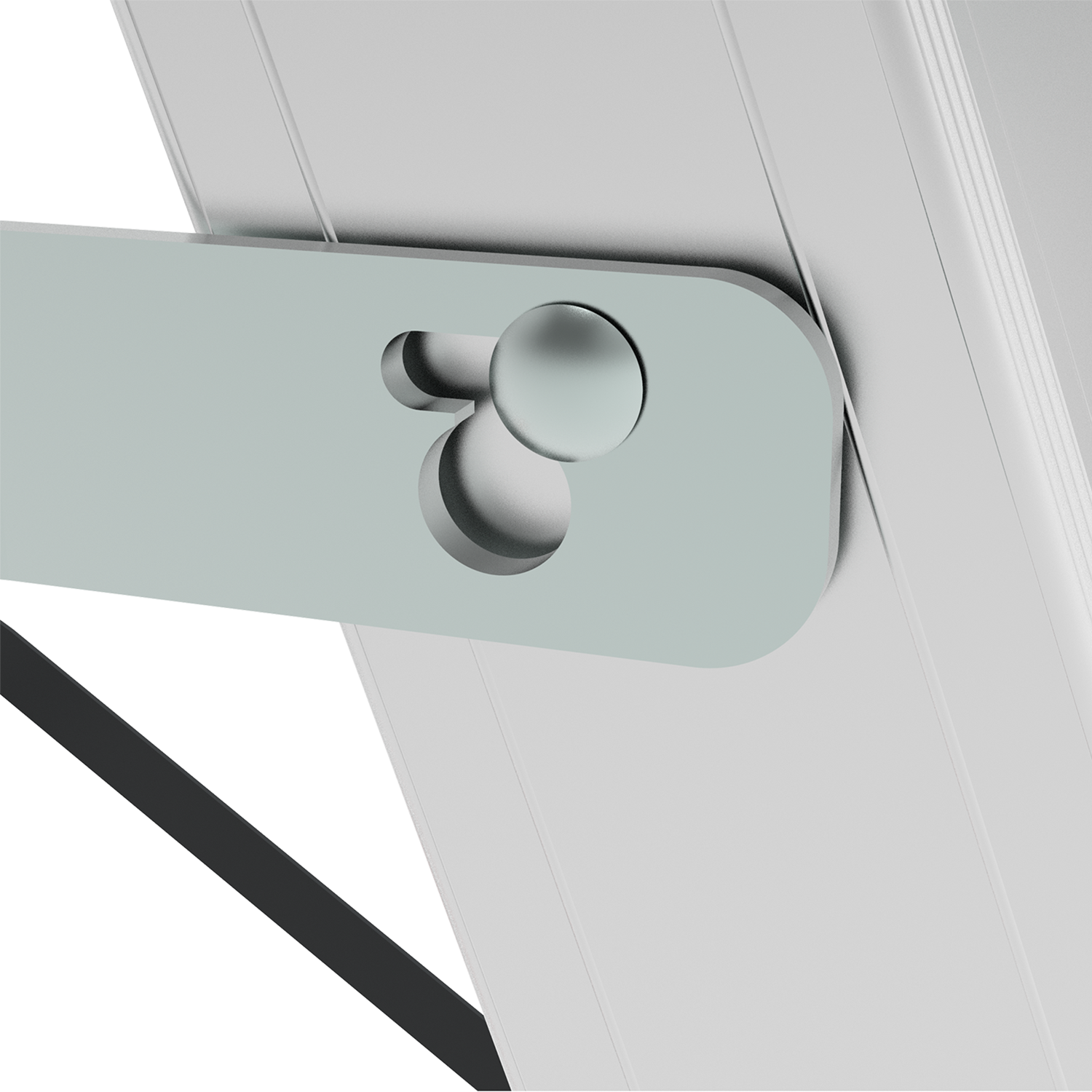

- automatic locks for hooks
- optimum stability thanks to wide cross bar

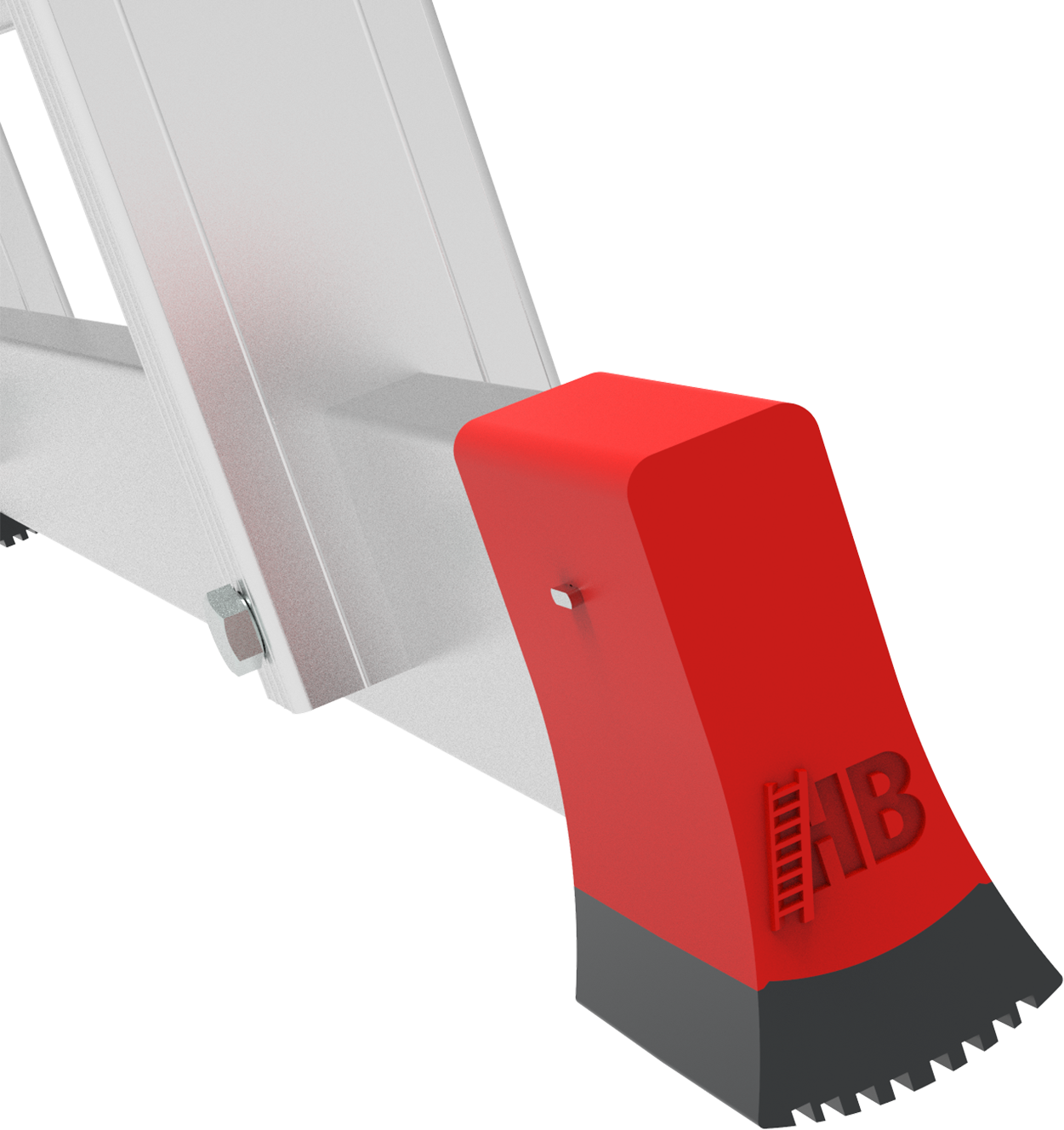

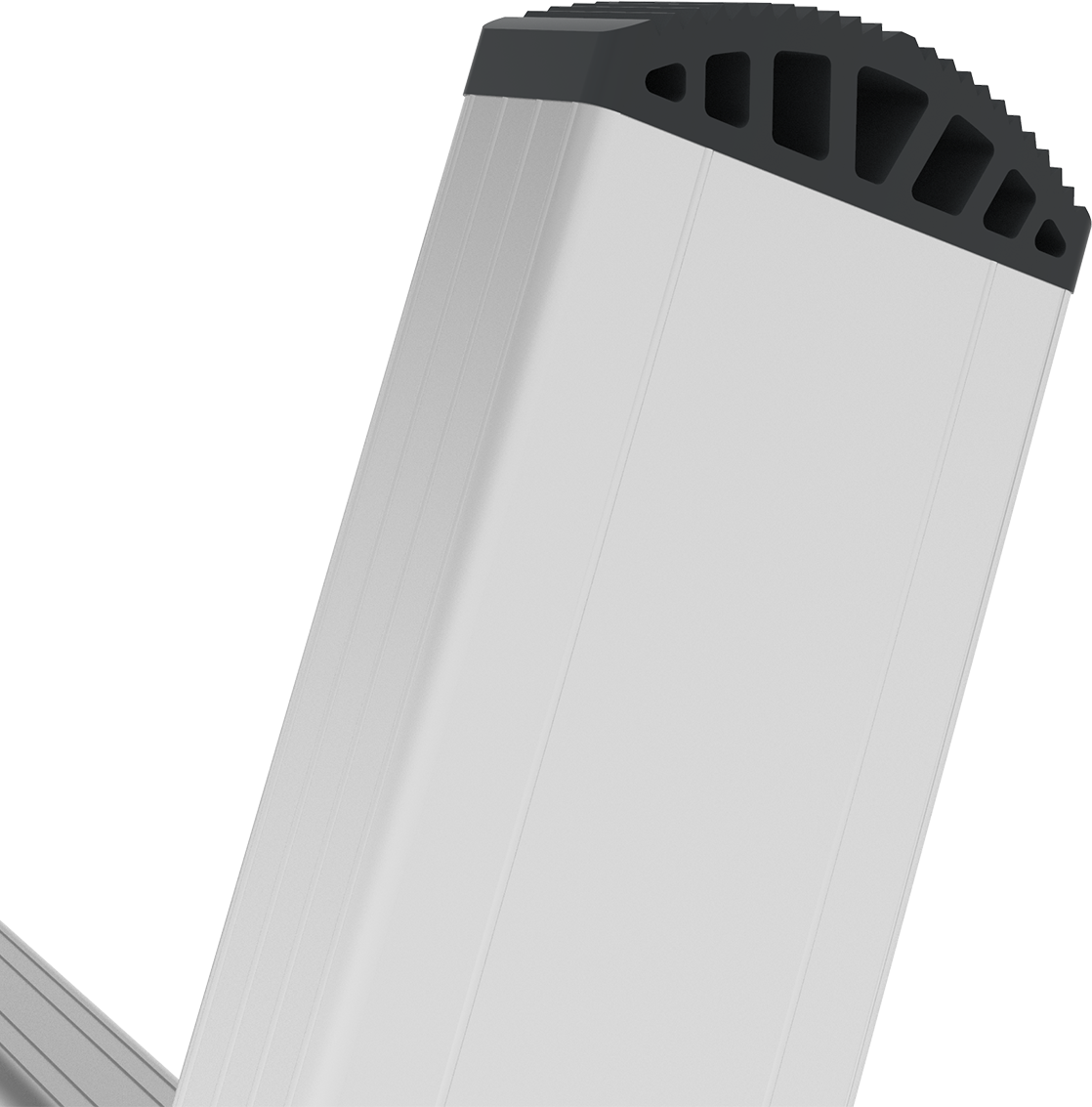

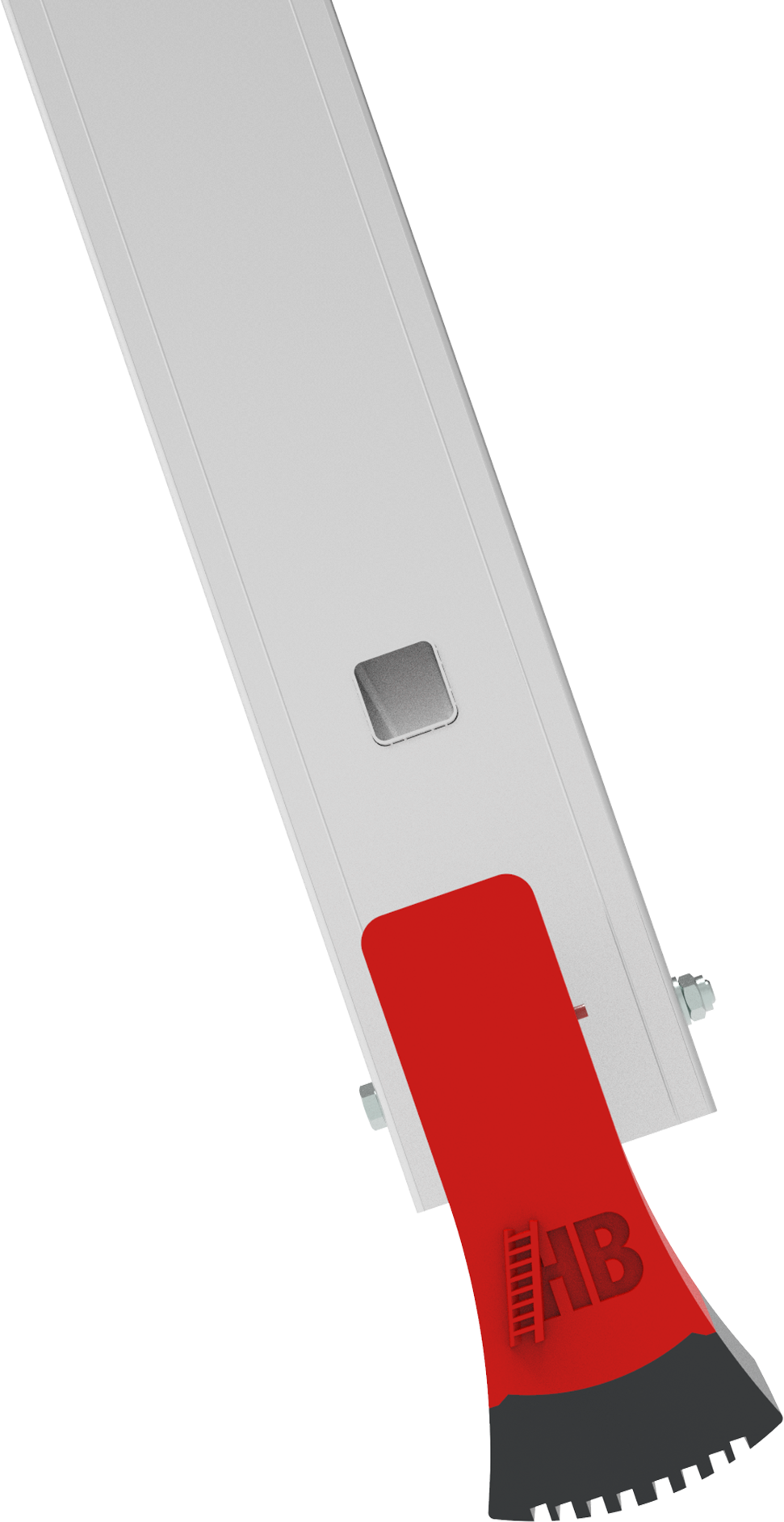

- firmly seated in stiles and cross bar plastic end caps prevent risk of slipping
- the upper section can be easilly pulled out and put up and be used separately as a single leaning rung ladder
- function of using on steps or stairs by means of upper extendable ladder section

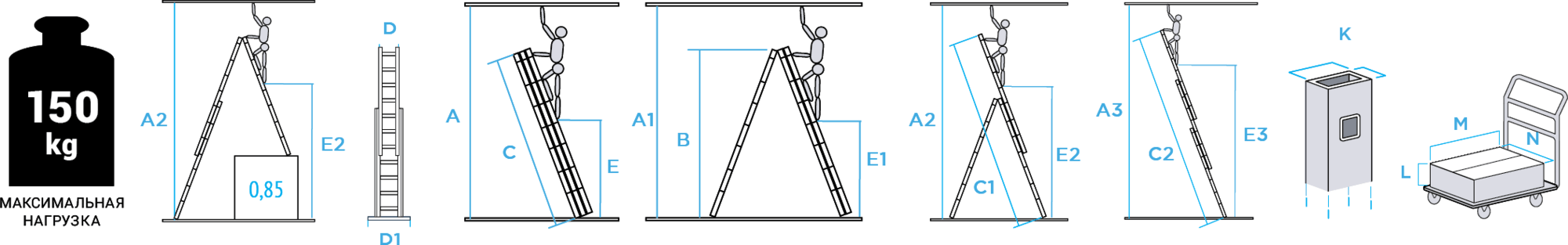

| Sku | А, m | А1, m | А2, m | А3, m | В, m | С, m | С1, m | С2, m | D1, m | D, m | E, m | E, m | E2, m | E3, m | K, mm | N, m | M, m | L, m | Weight, kg | Цена | Buy | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2230306 | 2.65 | 2.65 | 3.41 | 4.65 | 1.52 | 1.61 | 2.63 | 3.69 | 0.75 | 0.33 | 0.65 | 0.65 | 1.41 | 2.65 | 23×62 | 0.47 | 1.59 | 0.17 | 8.5 | по запросу | ||
| 2230307 | 2.9 | 2.9 | 3.9 | 5.38 | 1.76 | 1.87 | 3.15 | 4.47 | 0.75 | 0.33 | 0.9 | 0.9 | 1.9 | 3.38 | 23×62 | 0.47 | 1.85 | 0.17 | 9.7 | по запросу | ||
| 2230308 | 3.14 | 3.14 | 4.15 | 5.63 | 2.01 | 2.13 | 3.41 | 4.73 | 0.75 | 0.33 | 1.14 | 1.14 | 2.15 | 3.63 | 23×62 | 0.47 | 2.11 | 0.17 | 10.9 | по запросу | ||
| 2230309 | 3.39 | 3.39 | 4.64 | 6.36 | 2.25 | 2.39 | 3.93 | 5.51 | 0.75 | 0.33 | 1.39 | 1.39 | 2.64 | 4.36 | 23×62 | 0.47 | 2.37 | 0.17 | 12 | по запросу | ||
| 2230310 | 3.64 | 3.64 | 5.14 | 7.1 | 2.51 | 2.65 | 4.46 | 6.3 | 1 | 0.33 | 1.64 | 1.64 | 3.14 | 5.1 | 23×72 | 0.47 | 2.64 | 0.19 | 14.4 | по запросу | ||
| 2230311 | 3.89 | 3.89 | 5.63 | 7.83 | 2.75 | 2.91 | 4.98 | 7.08 | 1 | 0.33 | 1.89 | 1.89 | 3.63 | 5.83 | 23×72 | 0.47 | 2.9 | 0.19 | 15.7 | по запросу | ||
| 2230312 | 4.13 | 4.13 | 6.12 | 8.56 | 3 | 3.17 | 5.5 | 7.86 | 1 | 0.33 | 2.13 | 2.13 | 4.12 | 6.56 | 23×72 | 0.47 | 3.16 | 0.19 | 16.9 | по запросу | ||
| 2230313 | 4.4 | 4.4 | 6.63 | 9.31 | 3.32 | 3.5 | 6.11 | 8.71 | 1 | 0.33 | 2.4 | 2.4 | 4.61 | 7.31 | 23×85 | 0.47 | 3.51 | 0.22 | 20.1 | по запросу | ||
| 2230314 | 4.65 | 4.65 | 7.12 | 10.04 | 3.56 | 3.76 | 6.63 | 9.49 | 1.2 | 0.33 | 2.65 | 2.65 | 5.12 | 8.04 | 23×85 | 0.47 | 3.77 | 0.22 | 21.5 | по запросу | ||
| 2230315 | 4.9 | 4.9 | 7.62 | 10.78 | 3.82 | 4.03 | 7.15 | 10.2 | 1.2 | 0.33 | 2.9 | 2.9 | 5.62 | 8.78 | 23×99 | 0.47 | 4.03 | 0.25 | 25.2 | по запросу | ||
| 2230316 | 5.14 | 5.14 | 8.11 | 11.52 | 4.07 | 4.29 | 7.67 | 11 | 1.35 | 0.33 | 3.14 | 3.14 | 6.11 | 9.52 | 23×99 | 0.47 | 4.29 | 0.25 | 26.7 | по запросу | ||
| 2230317 | 5.39 | 5.39 | 8.6 | 12.25 | 4.31 | 4.55 | 8.19 | 11.8 | 1.4 | 0.33 | 3.39 | 3.39 | 6.6 | 10.2 | 23×99 | 0.47 | 4.55 | 0.25 | 28.2 | по запросу |
