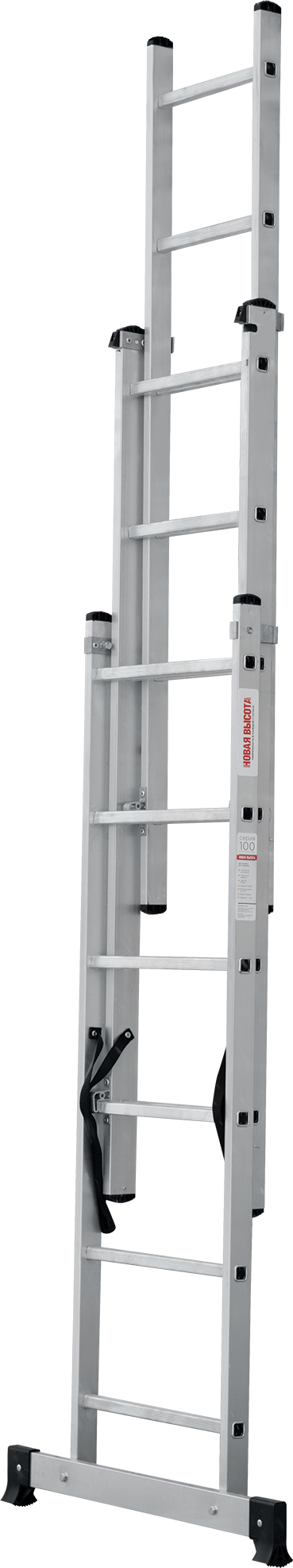

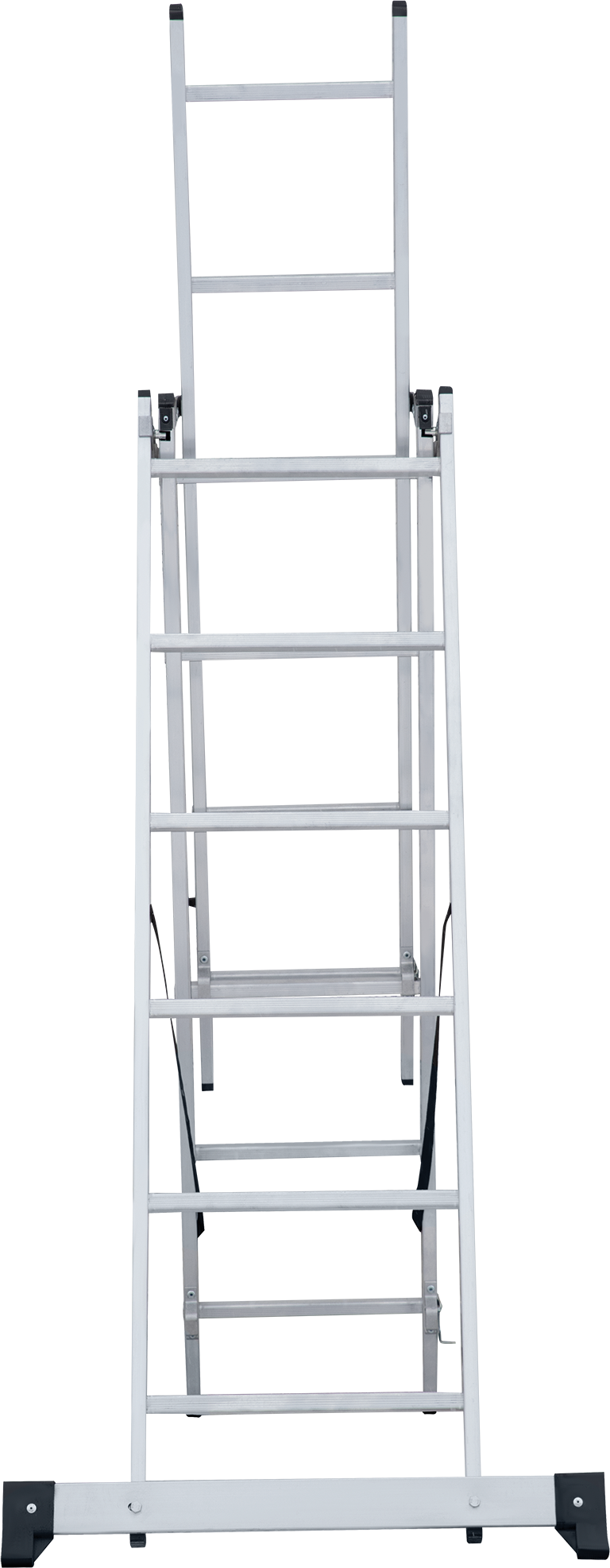

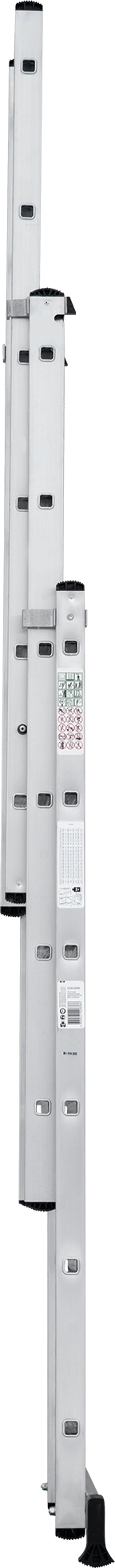

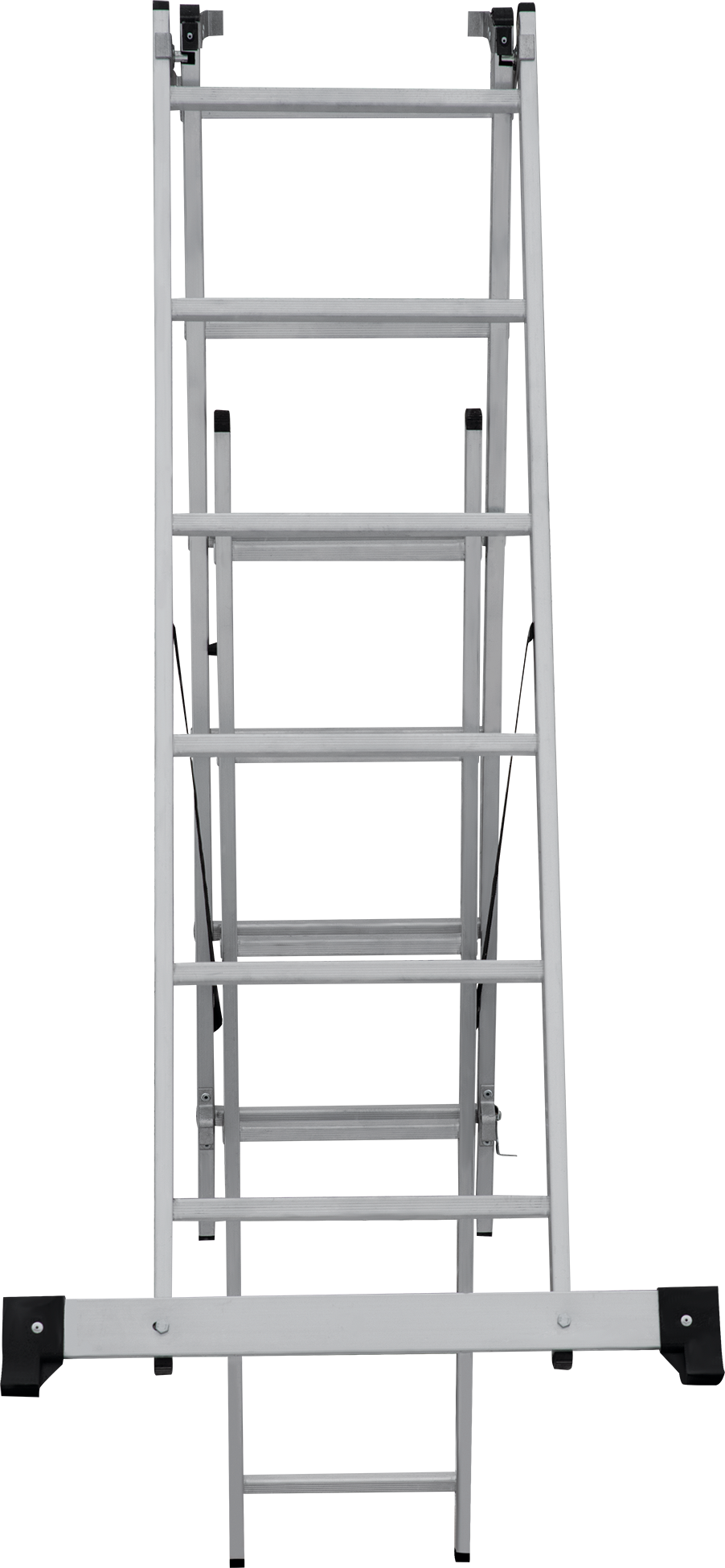

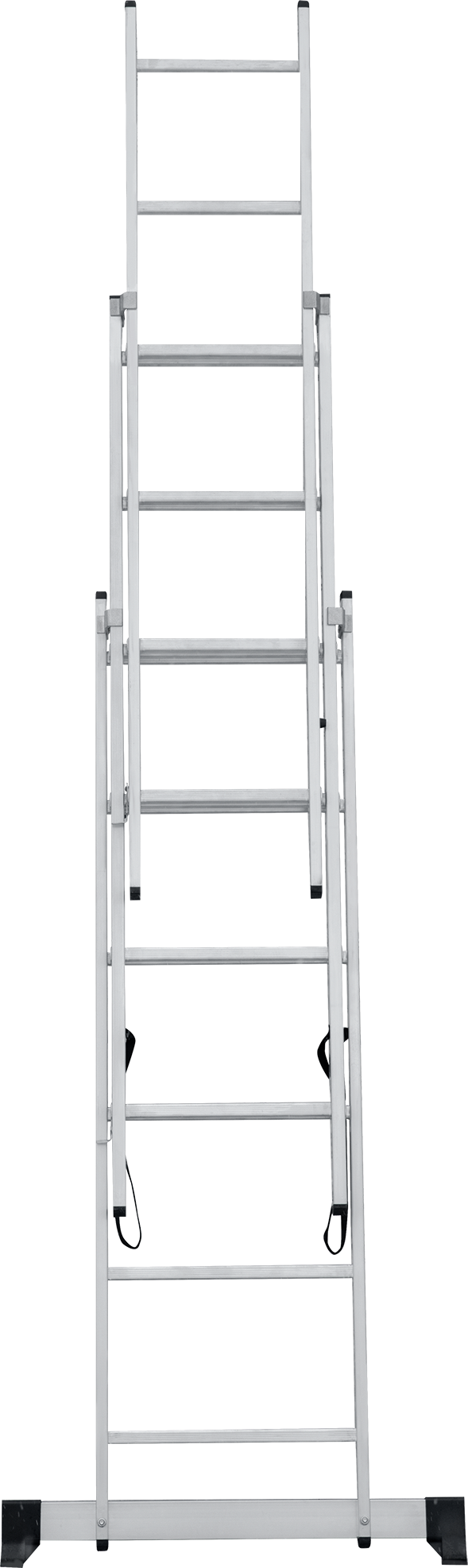

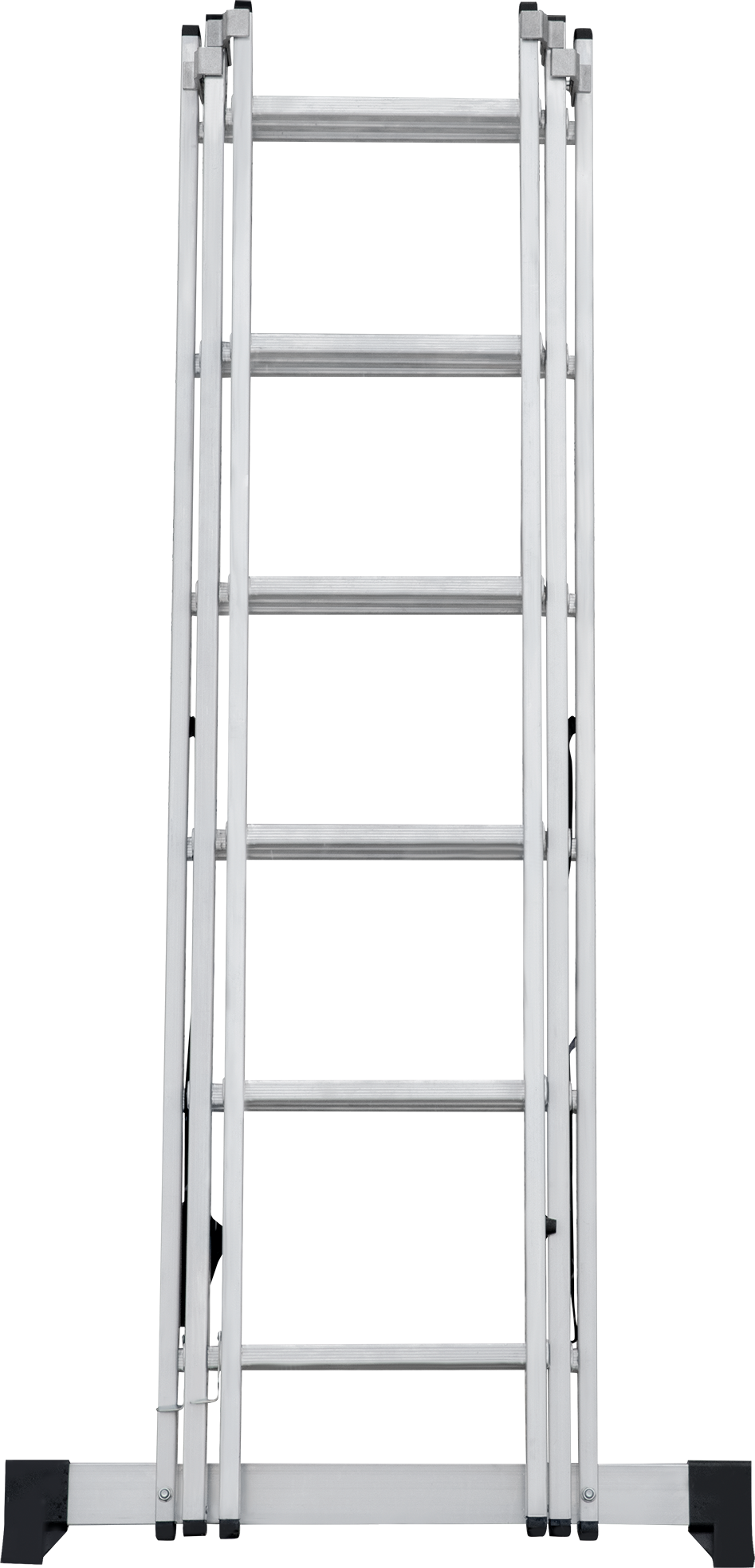

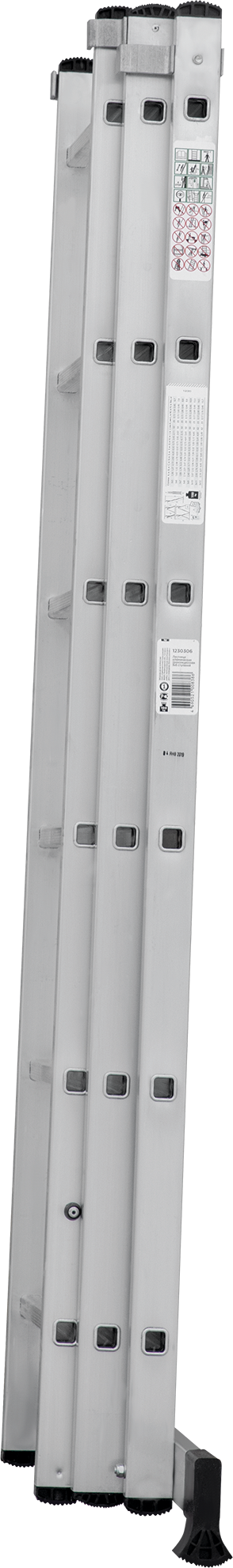

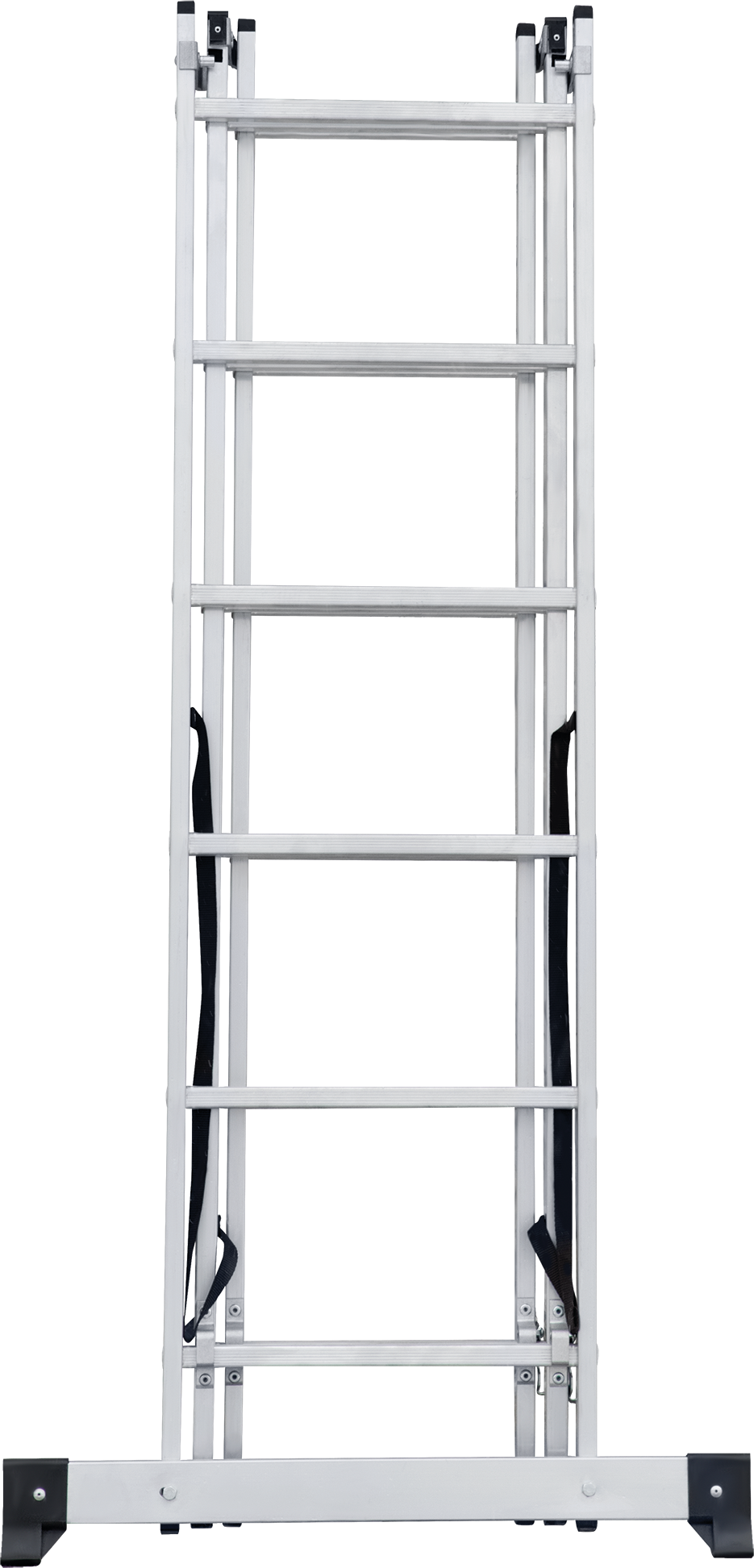

Three-section aluminium rung ladder NV 1230 sku 1230306

Rungs
3х6
Working height
242—436 cm
Guarantee
1 year
Specification
Description

Positions of using:

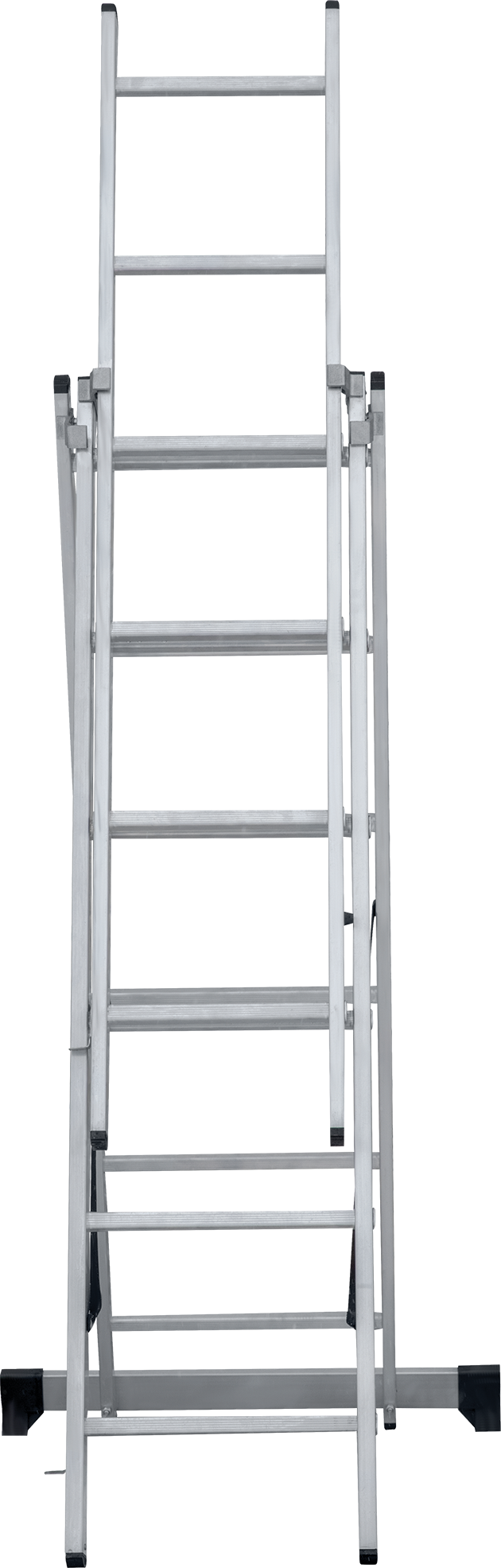

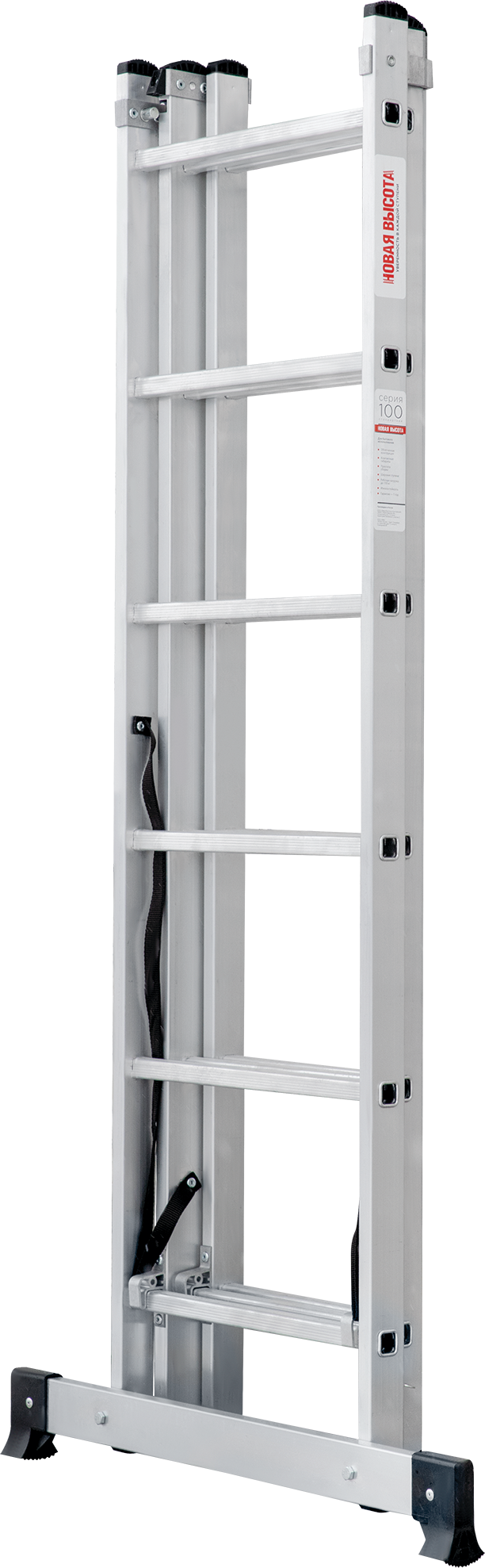

  • leaning rung ladder

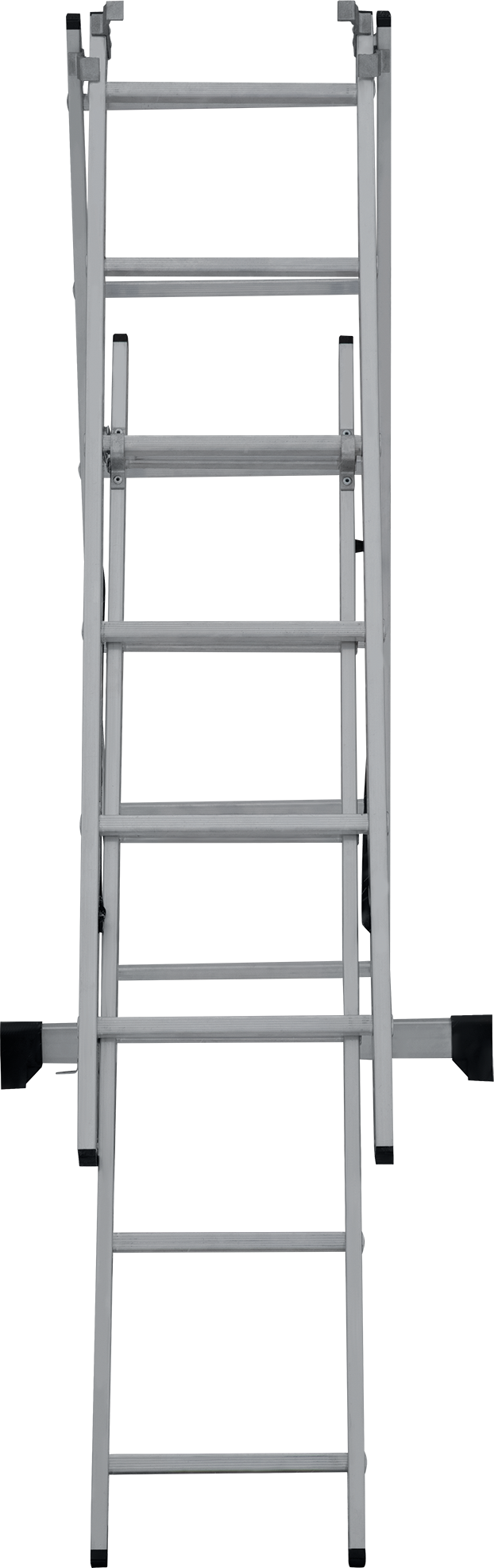

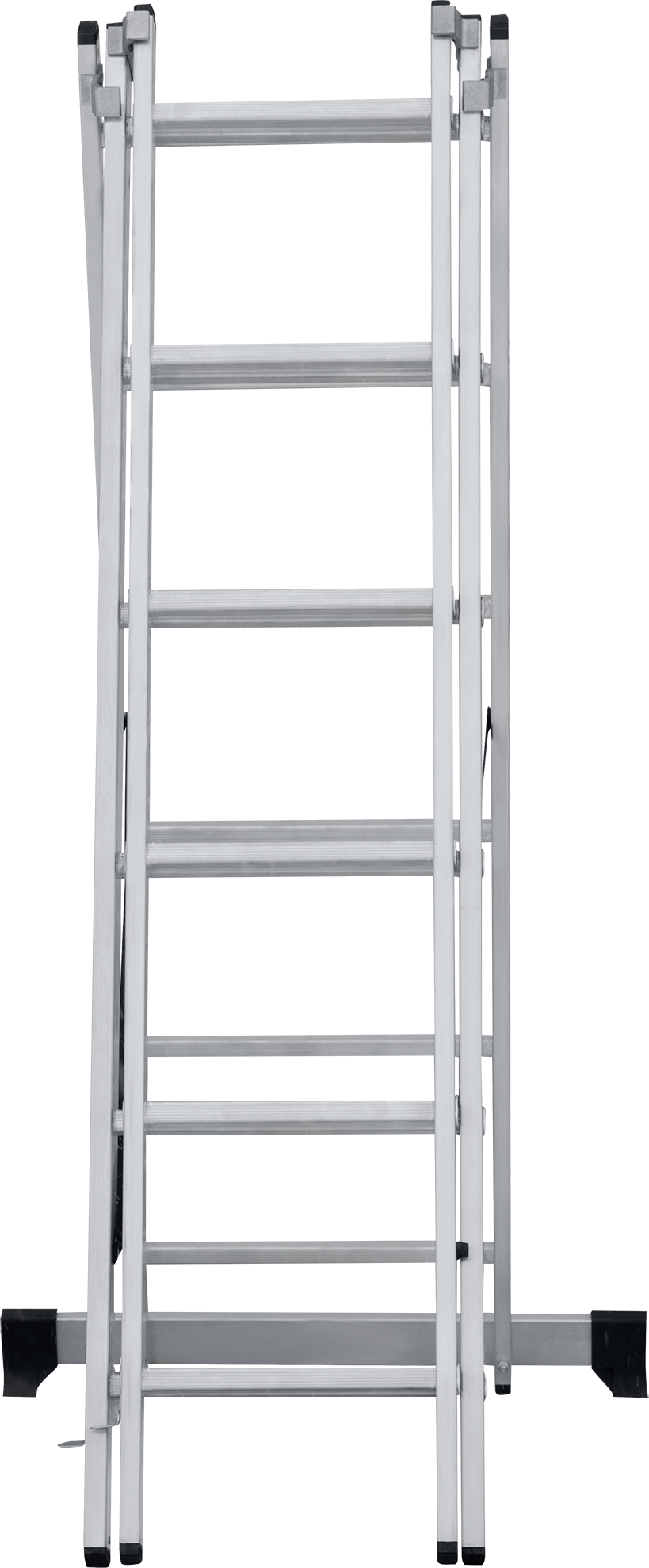

  • leaning extension rung ladder

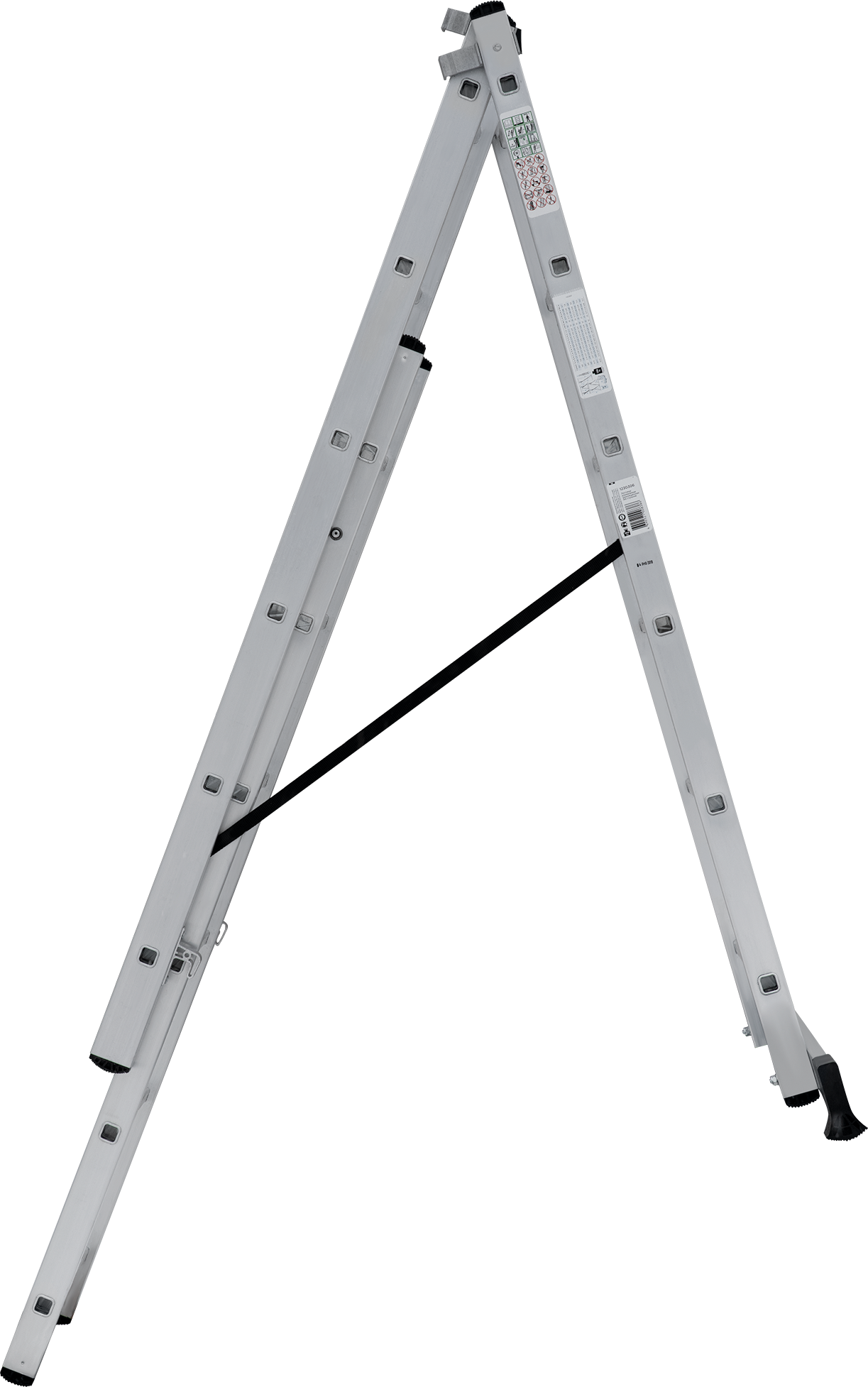

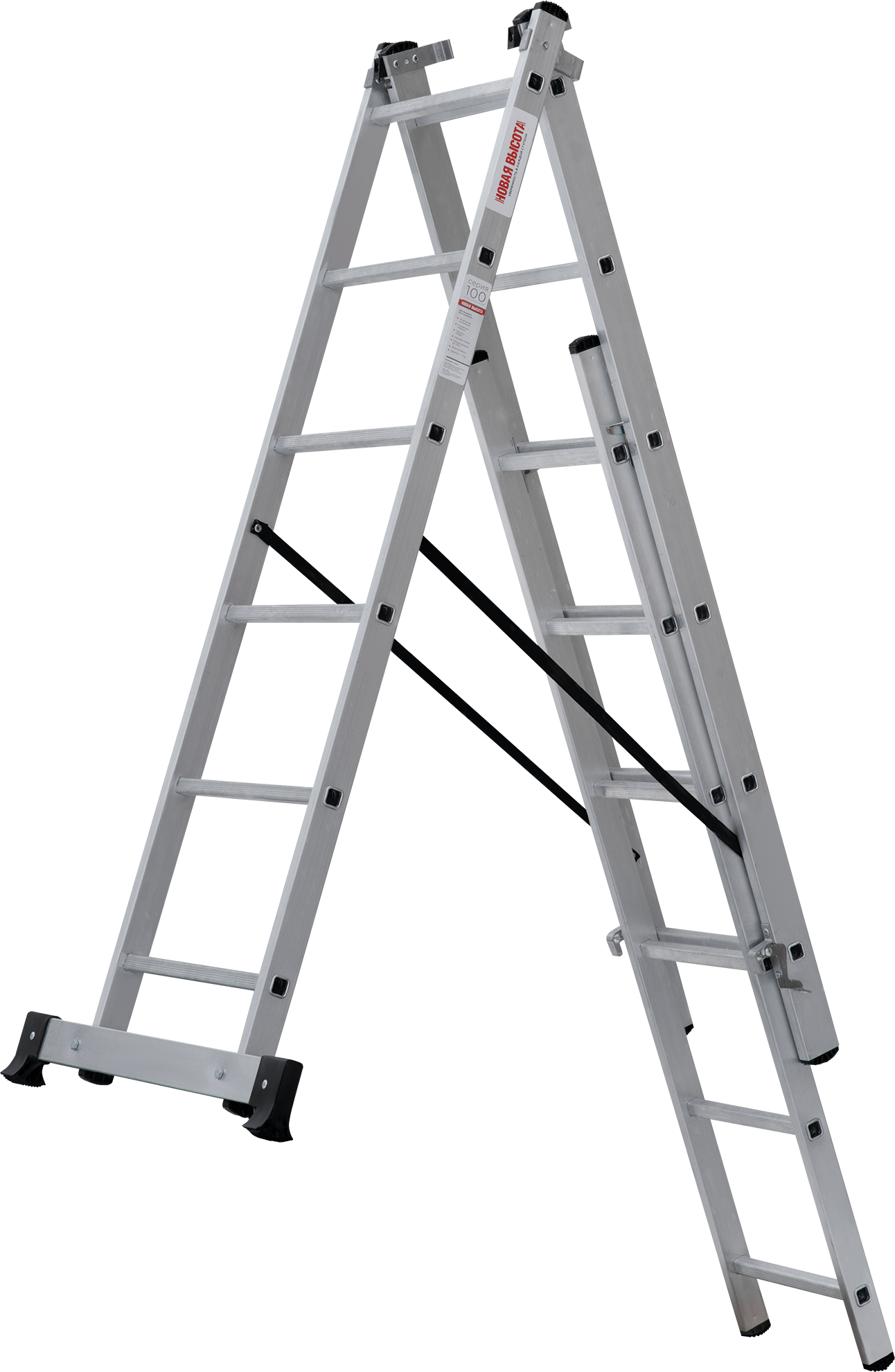

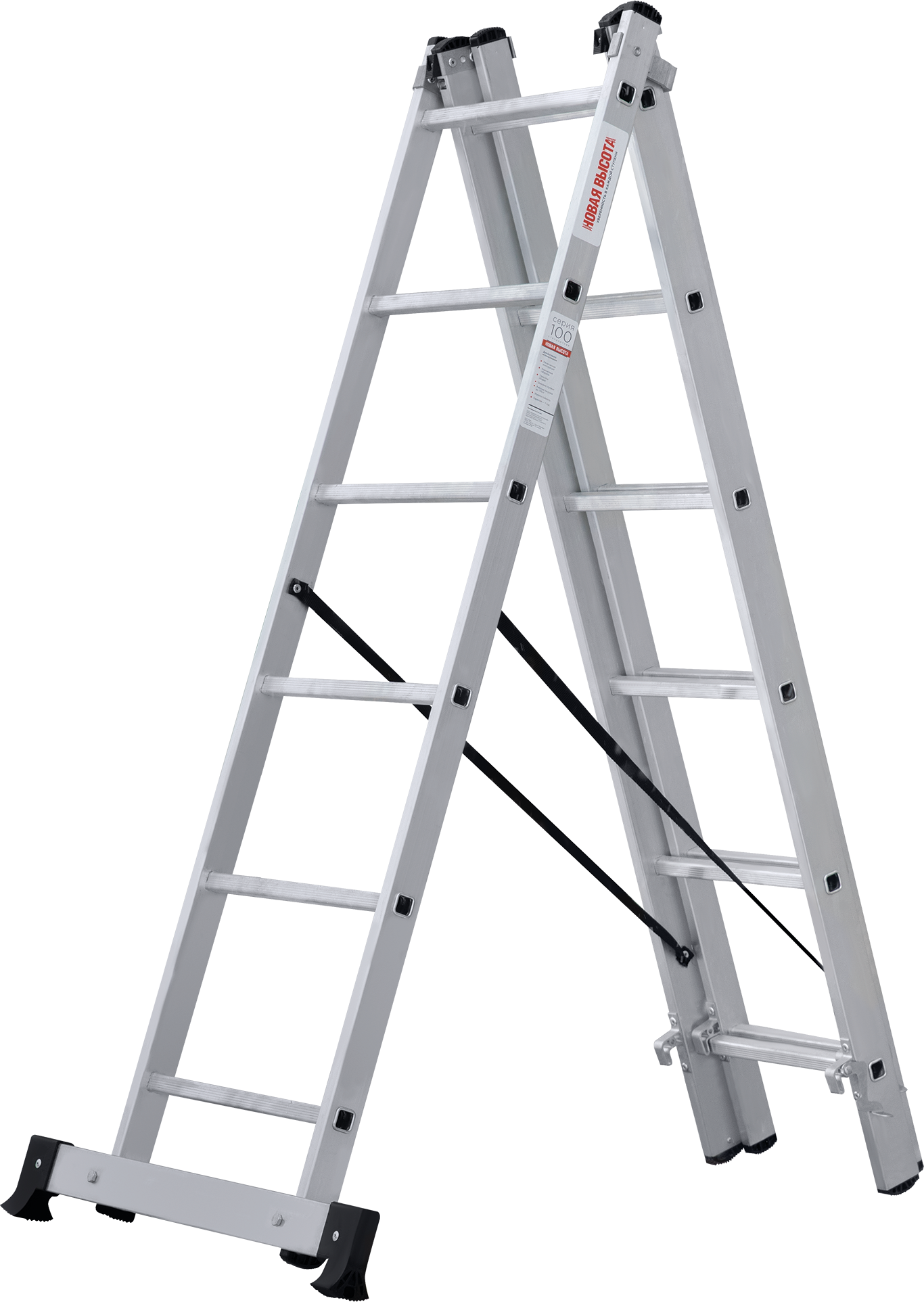

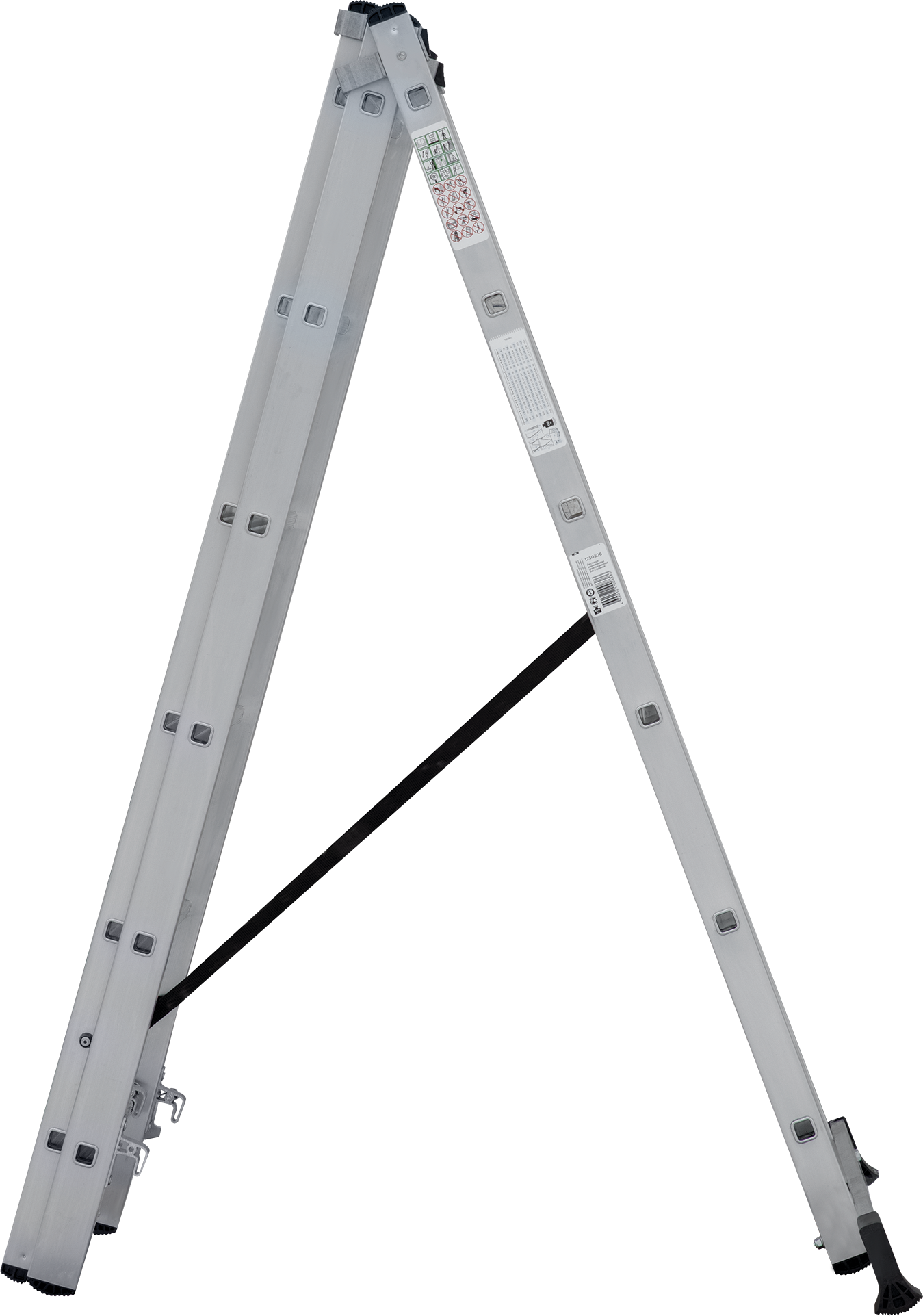

  • stepladder

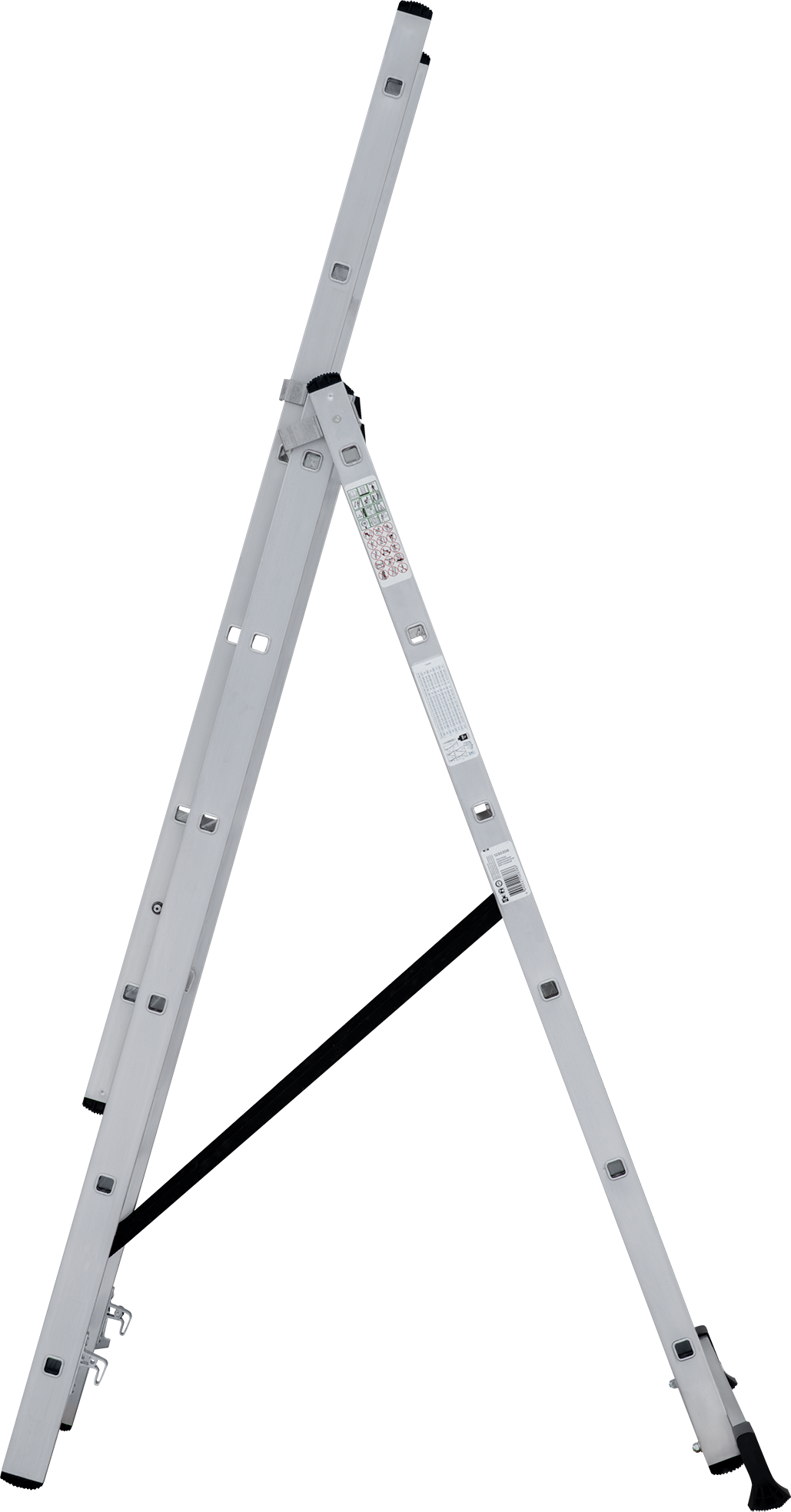

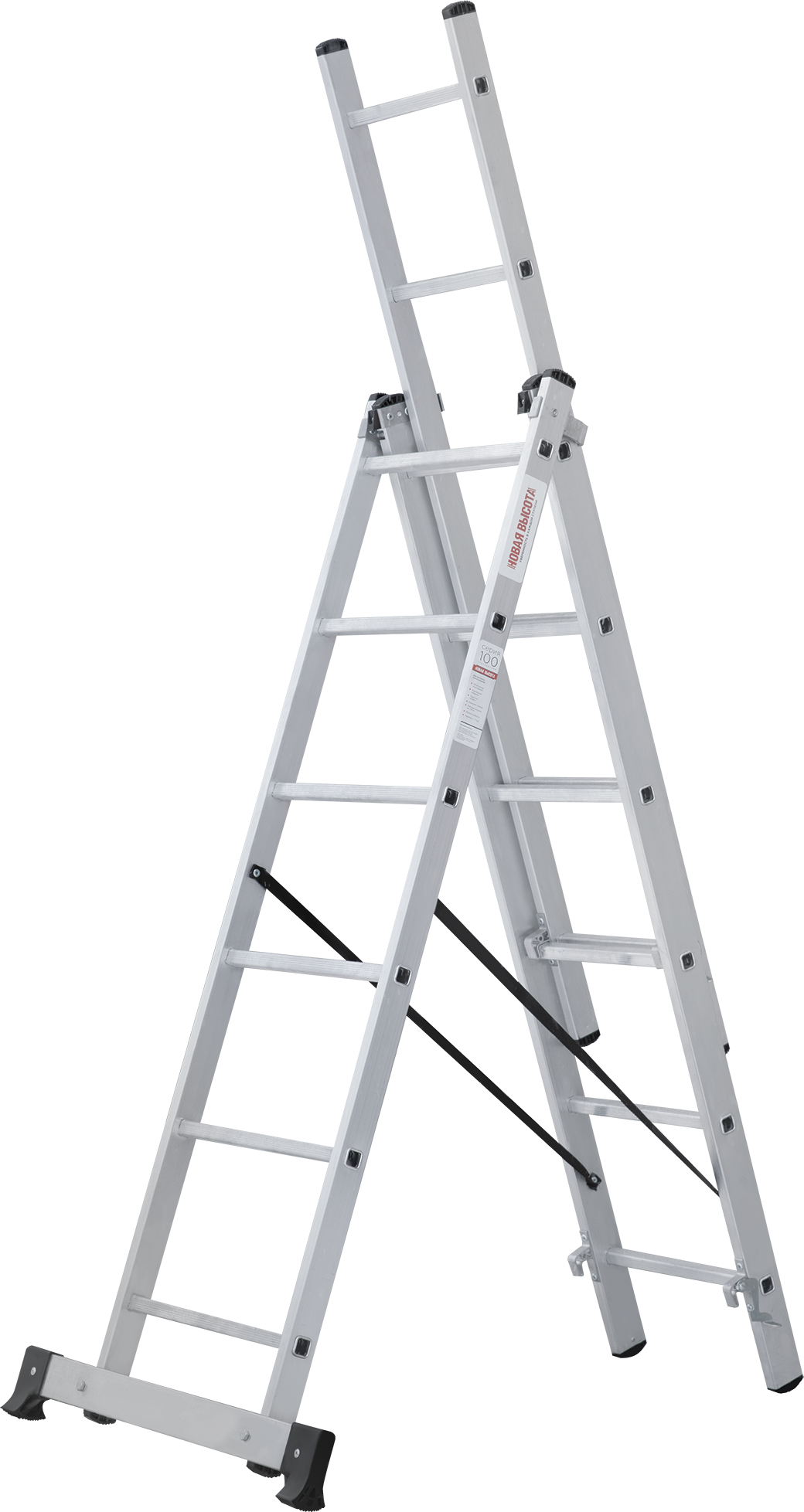

  • stepladder with an extendable section
  • can be used on stairs or steps

Technical advantages:

  • very lightweight but extremely durable and reliable
  • rungs and stiles are made from extruded aluminium profiles
  • strong riveting connects rungs and stiles, providing extra reliability and durability
  • rifled rung pitch of 260 mm for maximum safety when ascending the ladder
  • aluminium stile guides fix extendable ladder section reliably in its position for use
  • automatic locks for hooks
  • optimum stability thanks to wide cross bar
  • reliably fixed plastic end caps of stiles and cross-bar prevent risk of slipping
  • the upper section can be easilly pulled out and put up and be used separately as a single leaning rung ladder
  • can be used on steps or stairs by means of upper extendable section
Schema: Three-section aluminium rung ladder NV 1230 sku 1230306
Sku Steps A1, m A2, m A3, m B, m C, m C1, m C2, m D1, m D, m J, mm N, m M, m L, m Weight, kg
1230306 3×6 2.42 3.42 4.36 1.52 1.62 2.63 3.7 0.75 0.32 (20×50)X(23×62)X(20×50) 0.45 1.59 0.14 7.3
