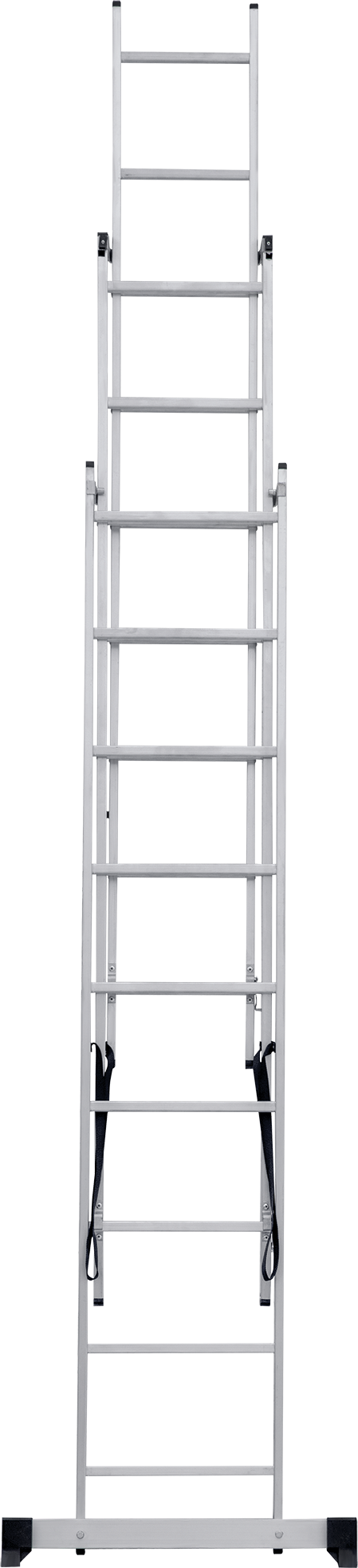

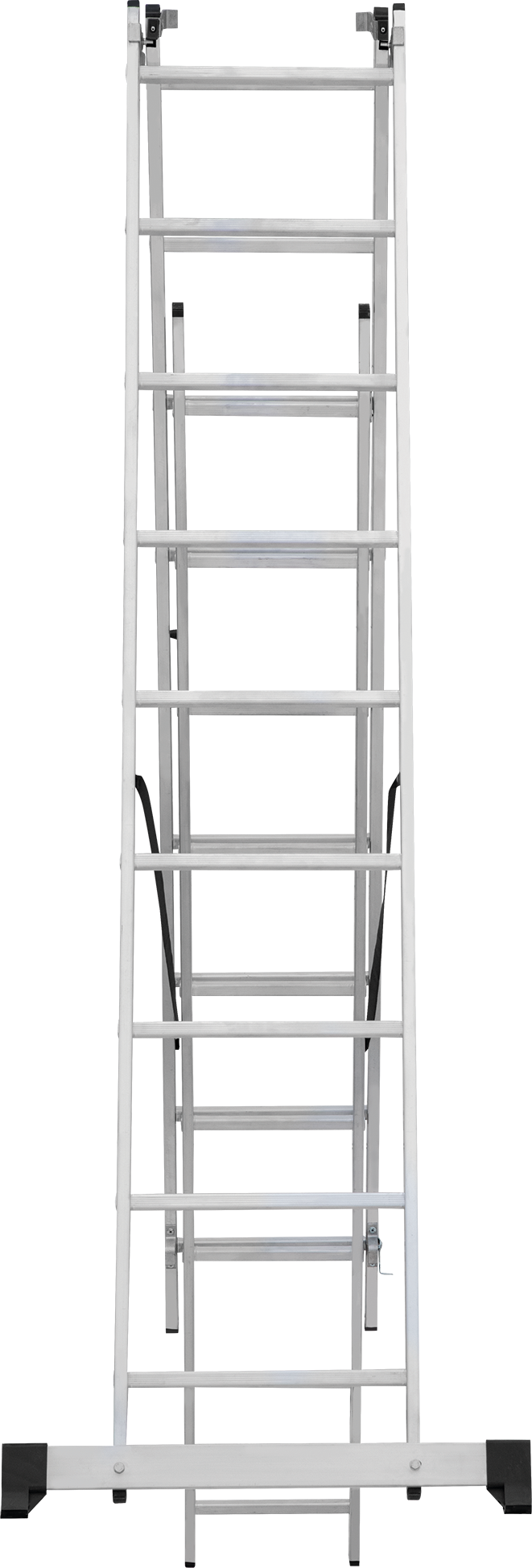

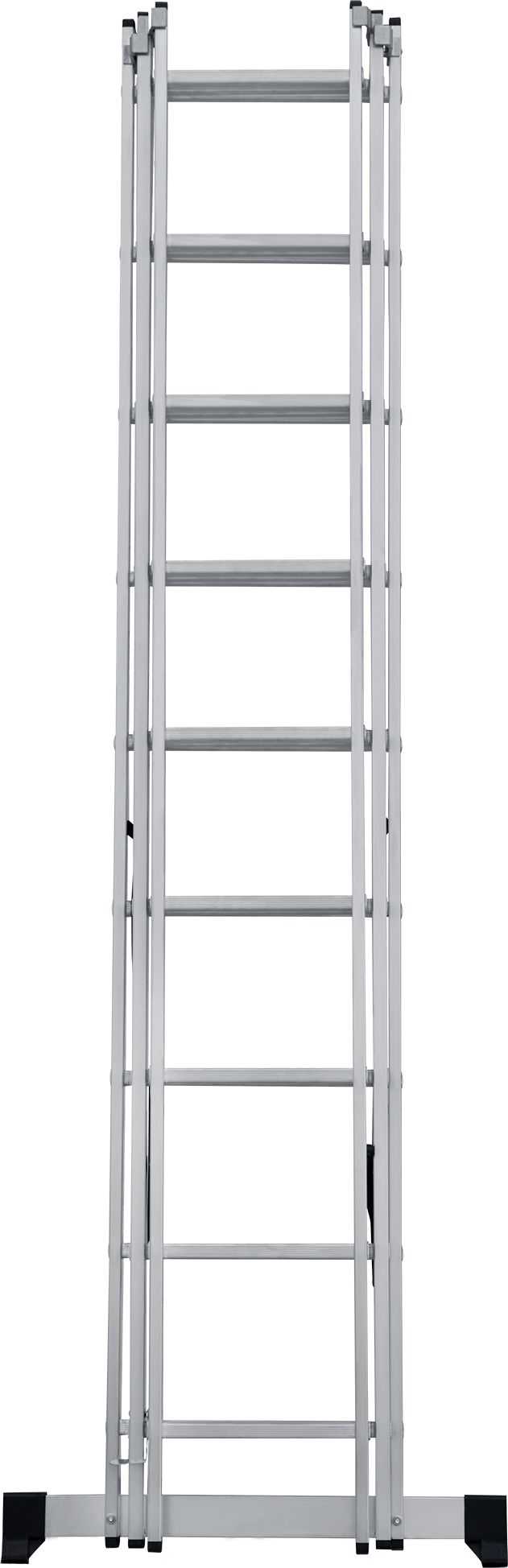

Three-section aluminium rung ladder NV 1230 sku 1230309

Working height
317—607 cm
1 year

Positions of using:

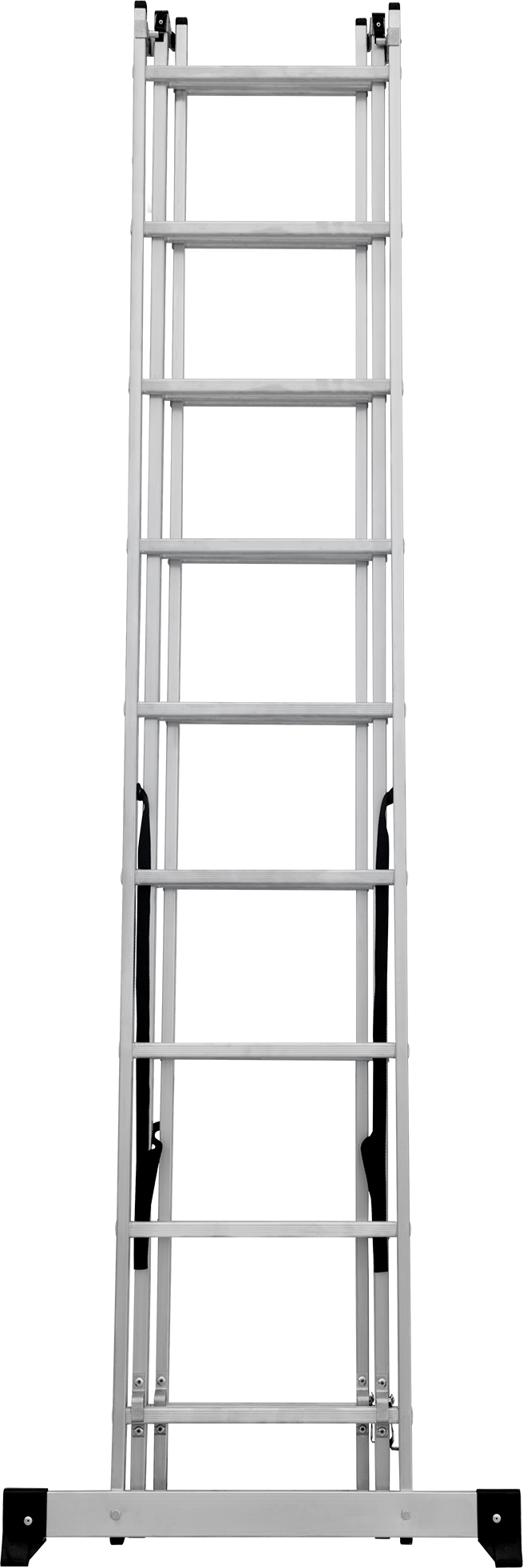

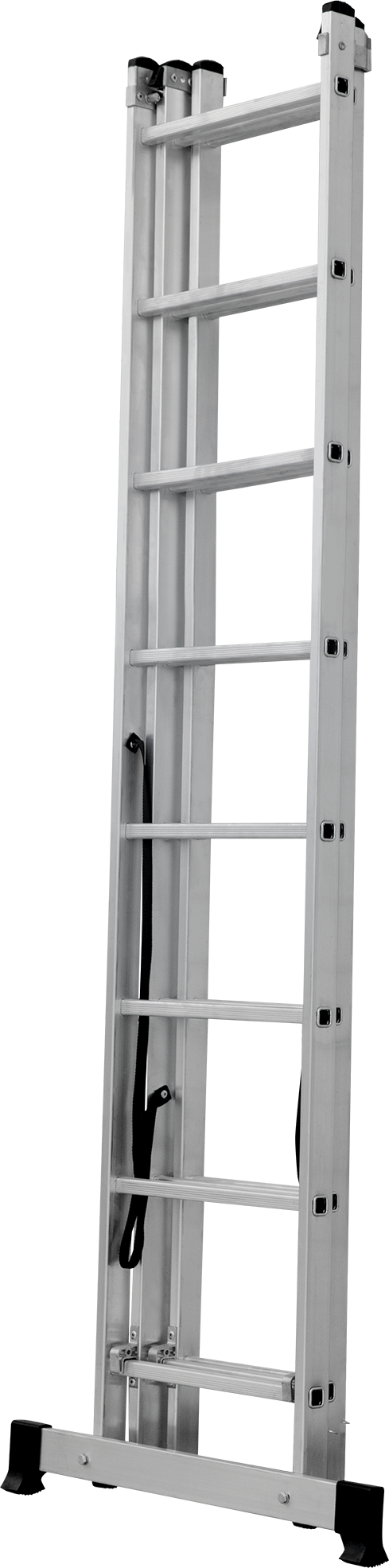

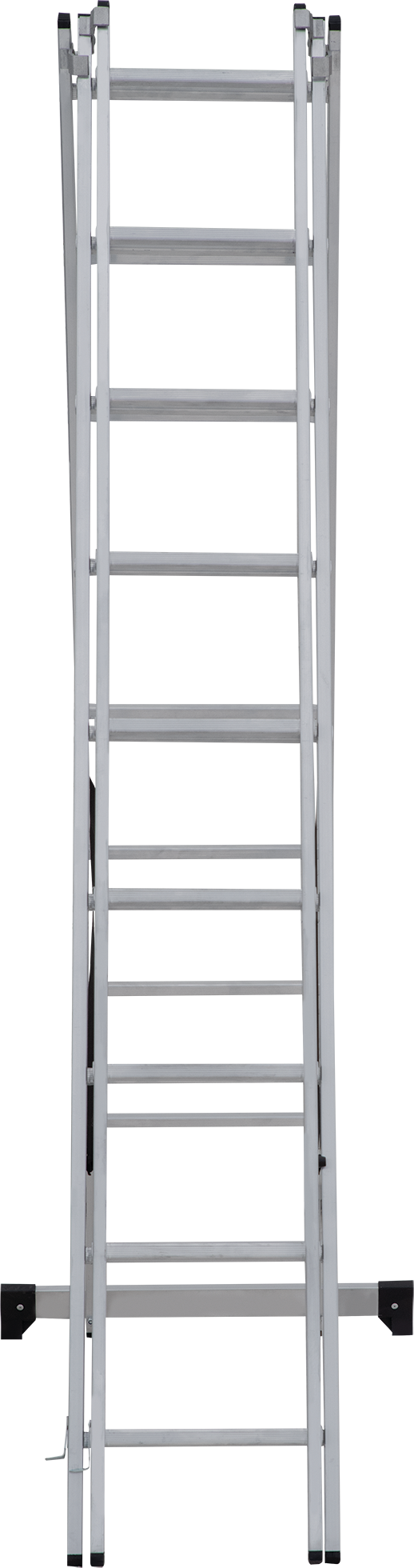

  • leaning rung ladder

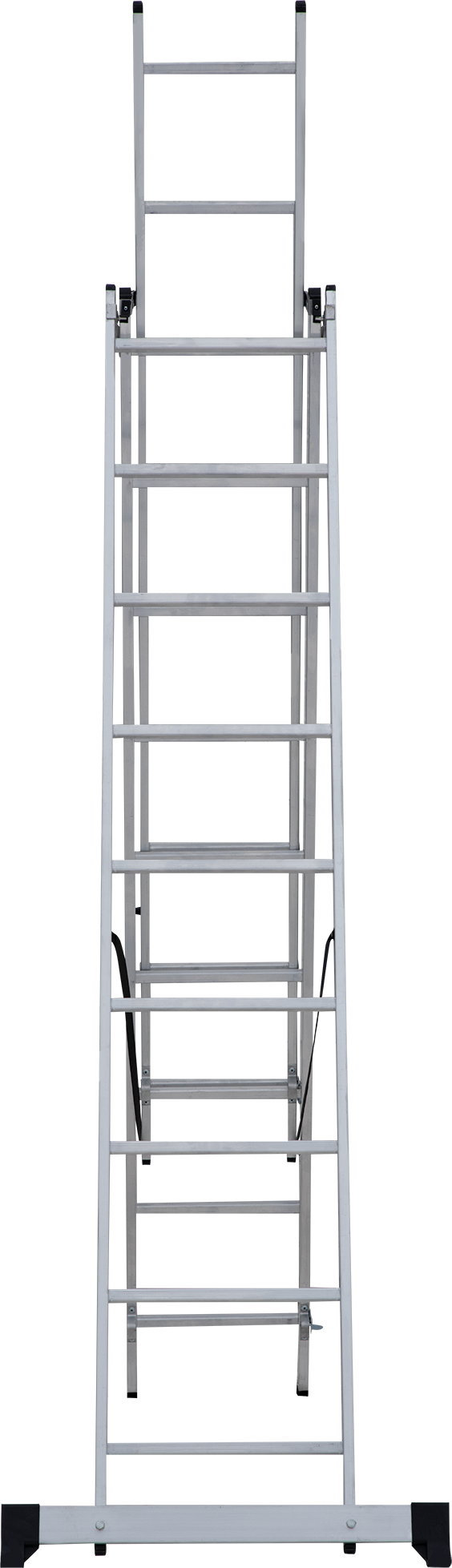

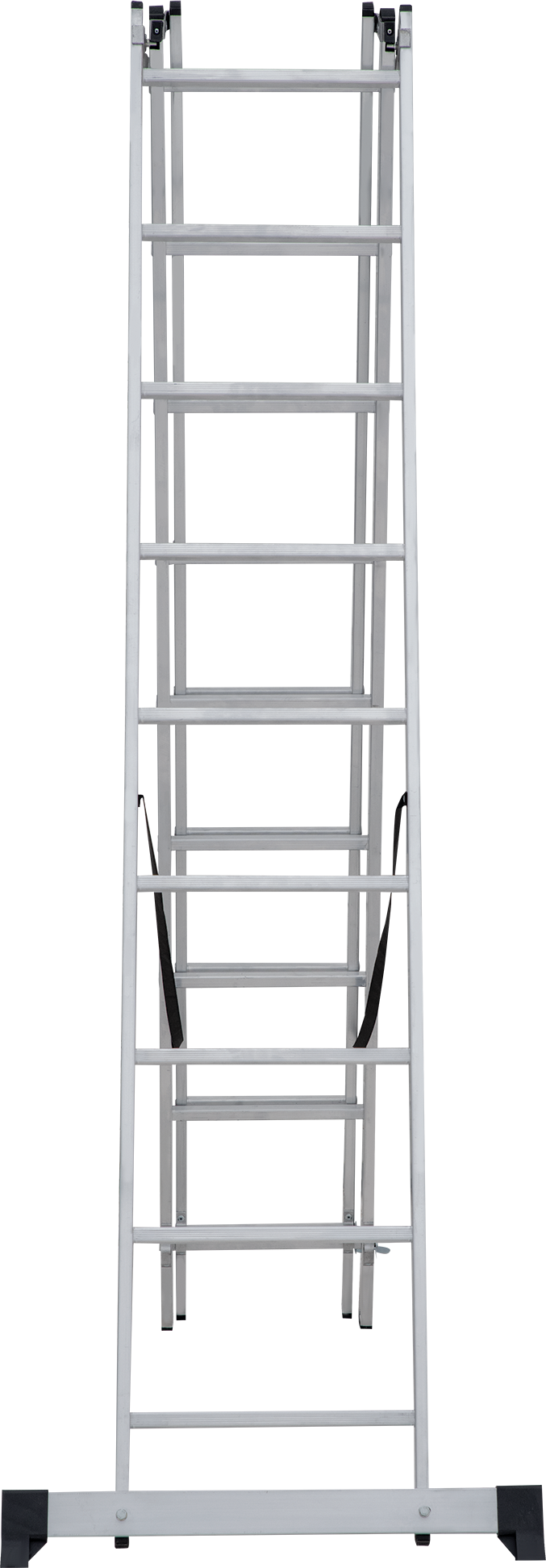

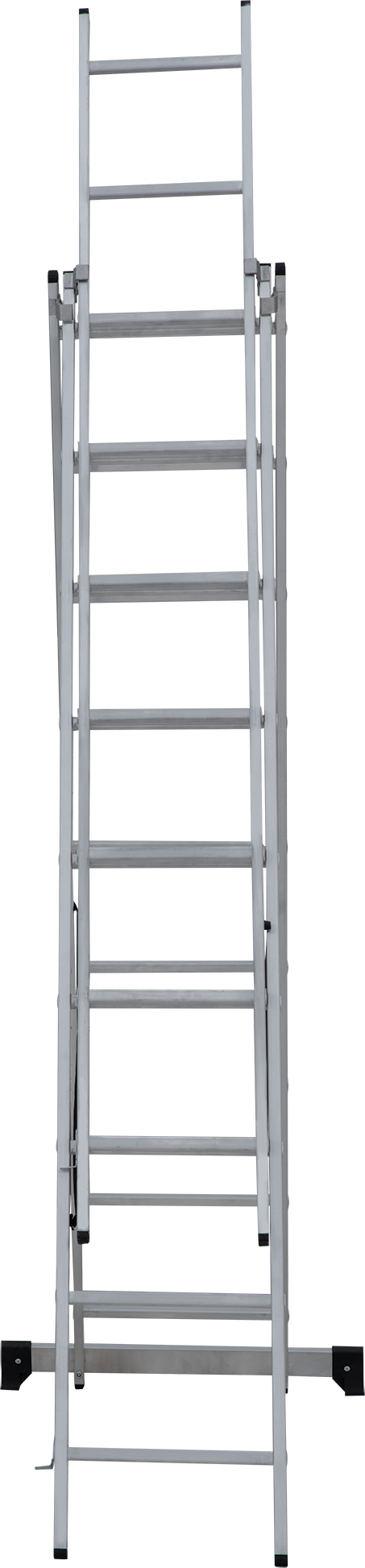

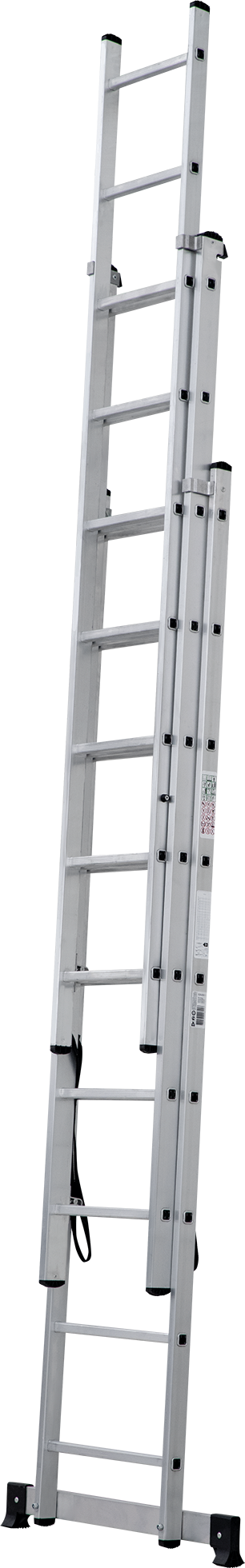

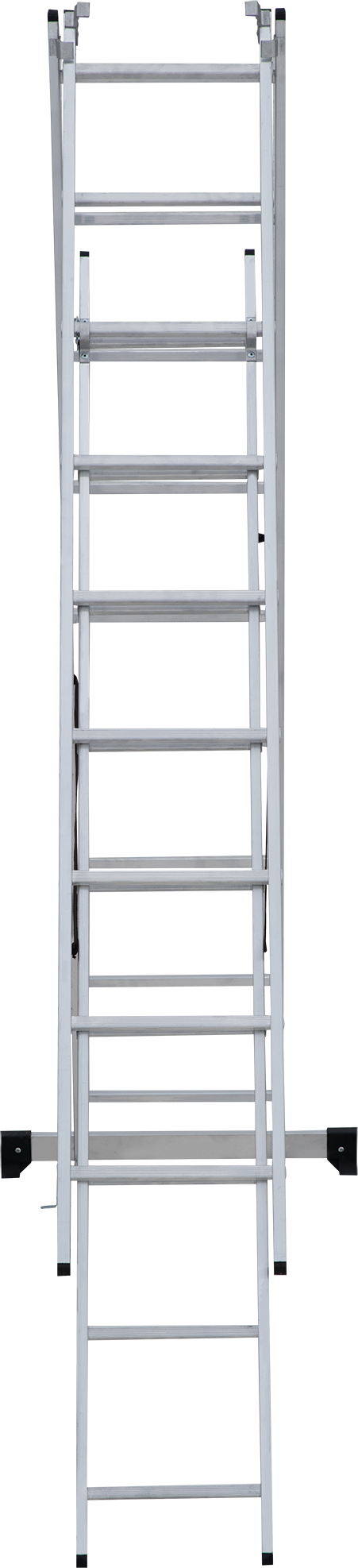

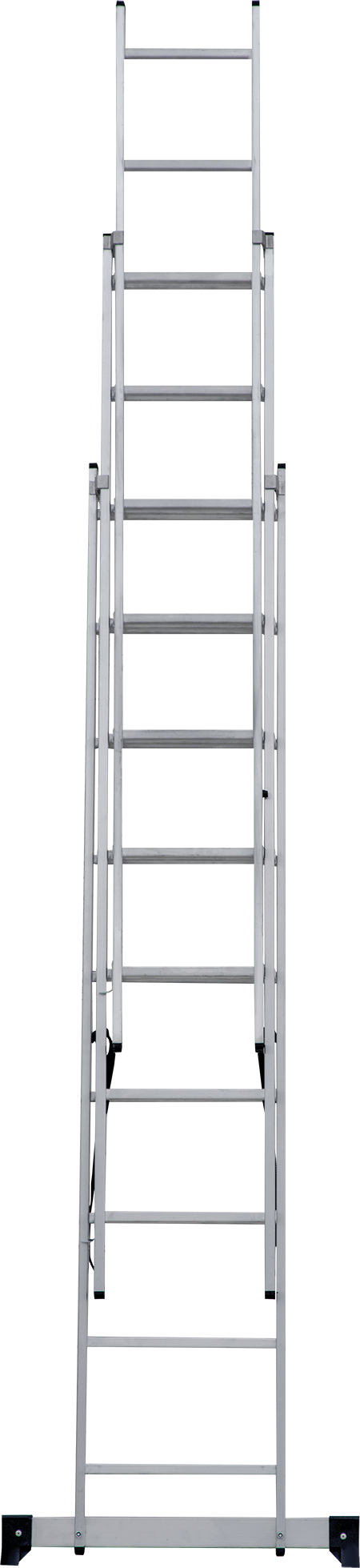

  • leaning extension rung ladder

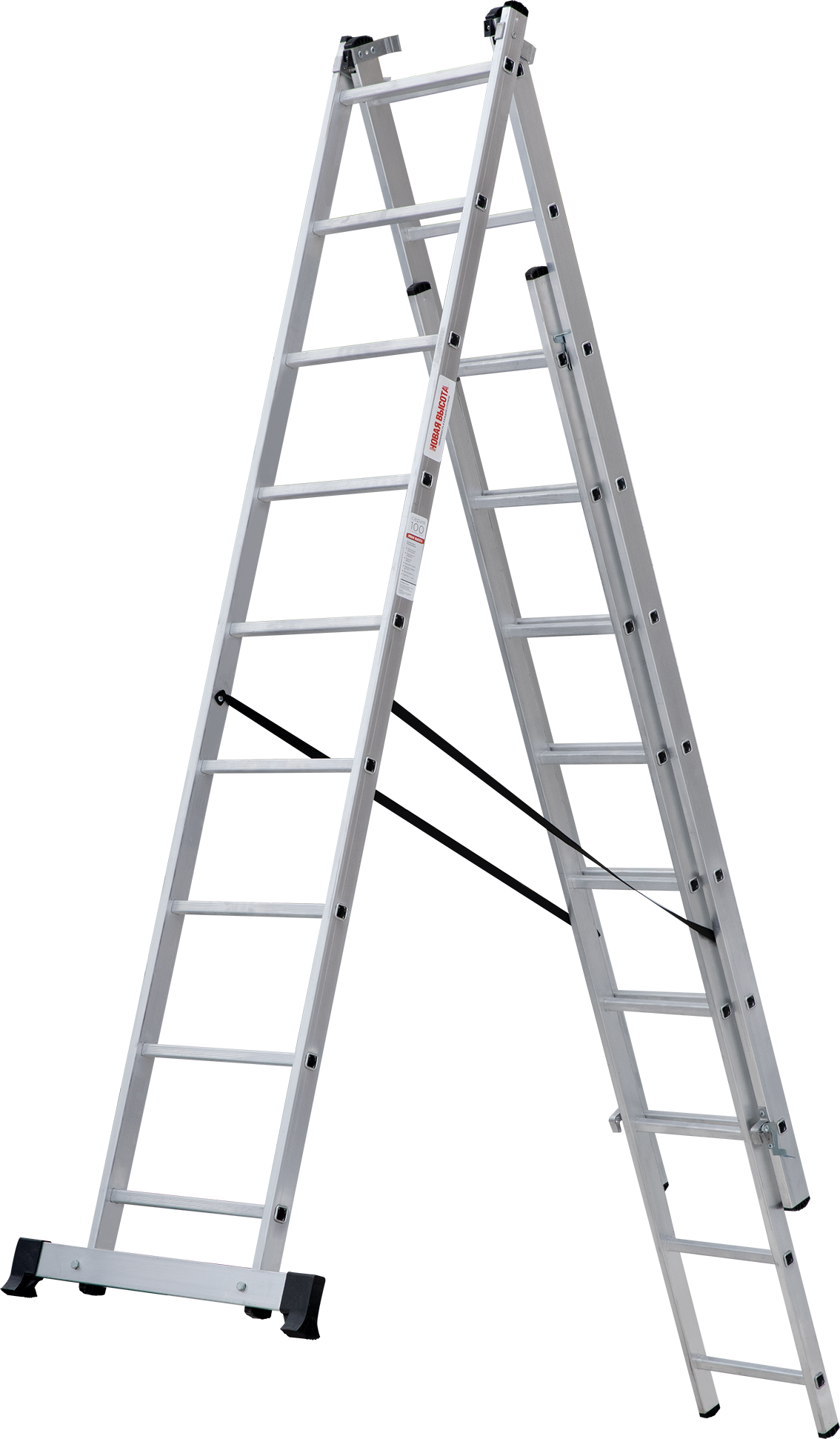

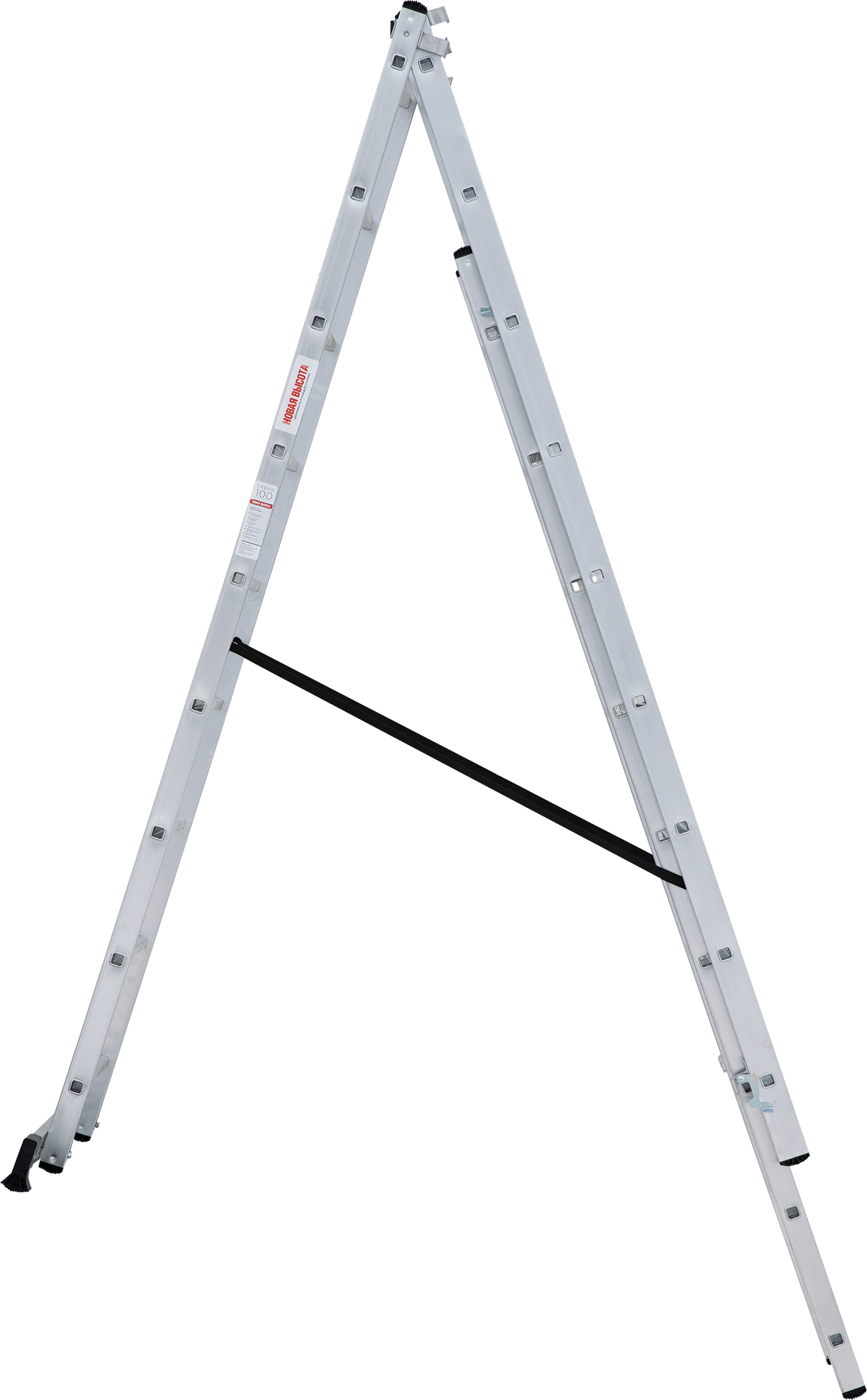

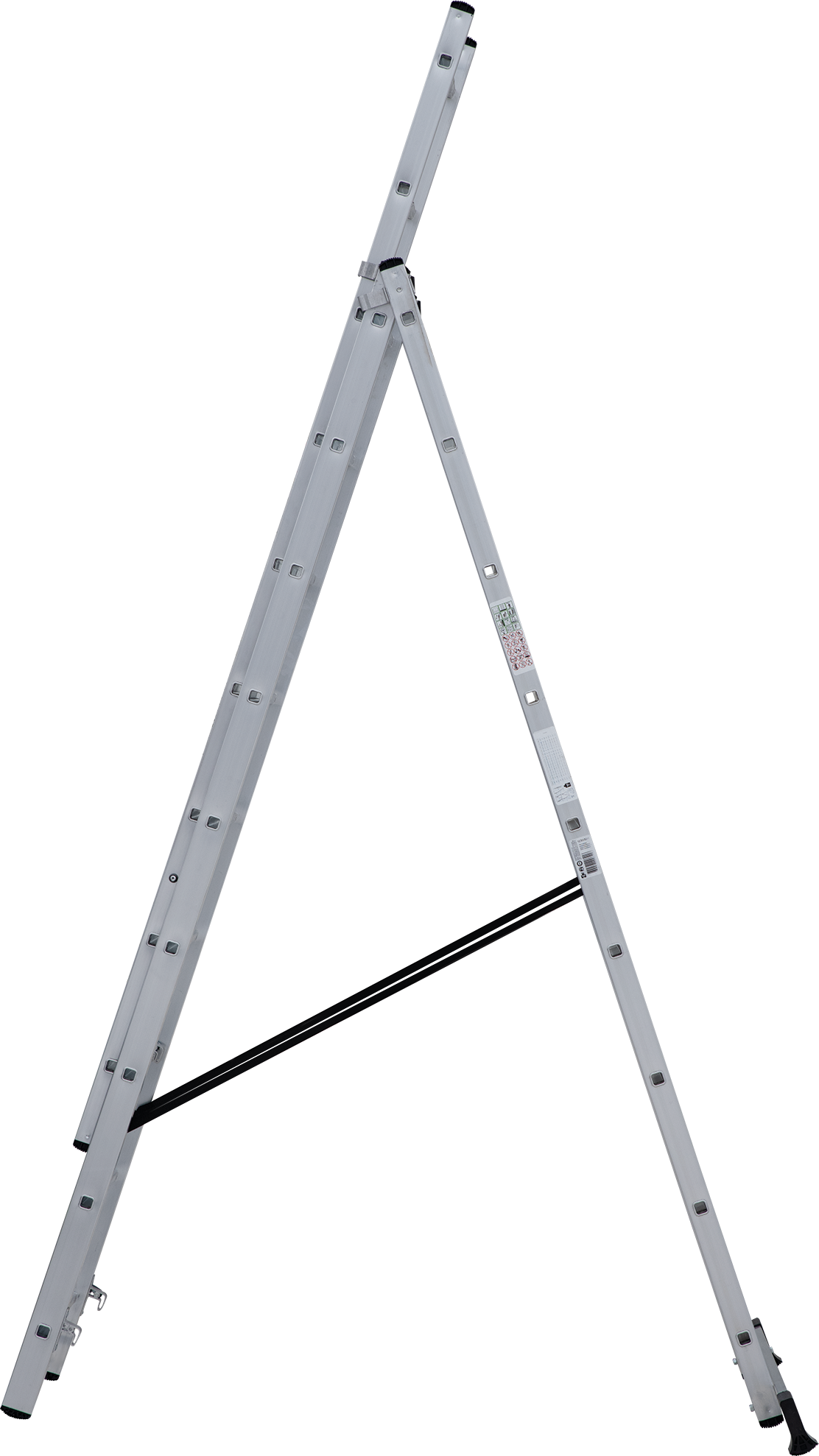

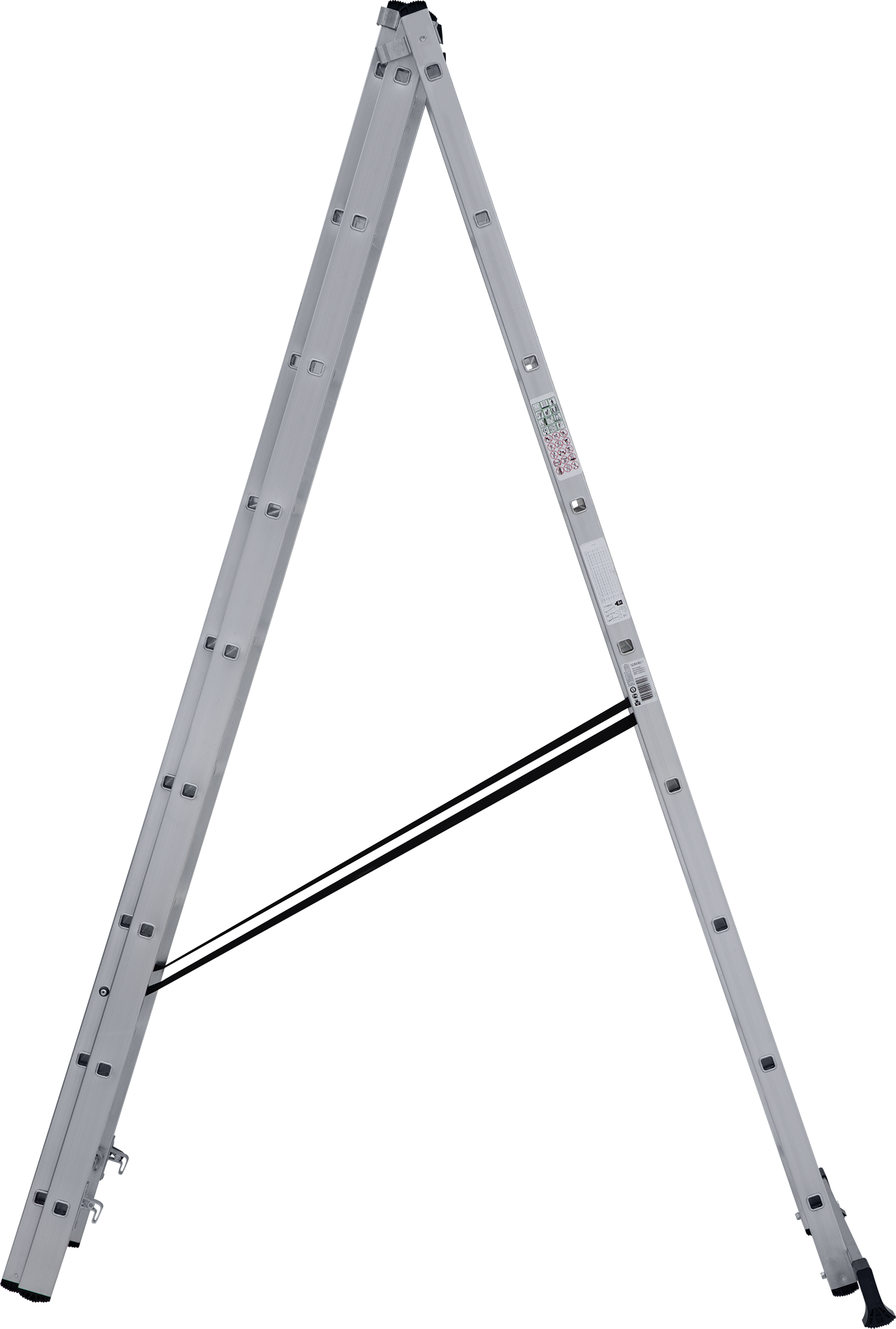

  • stepladder

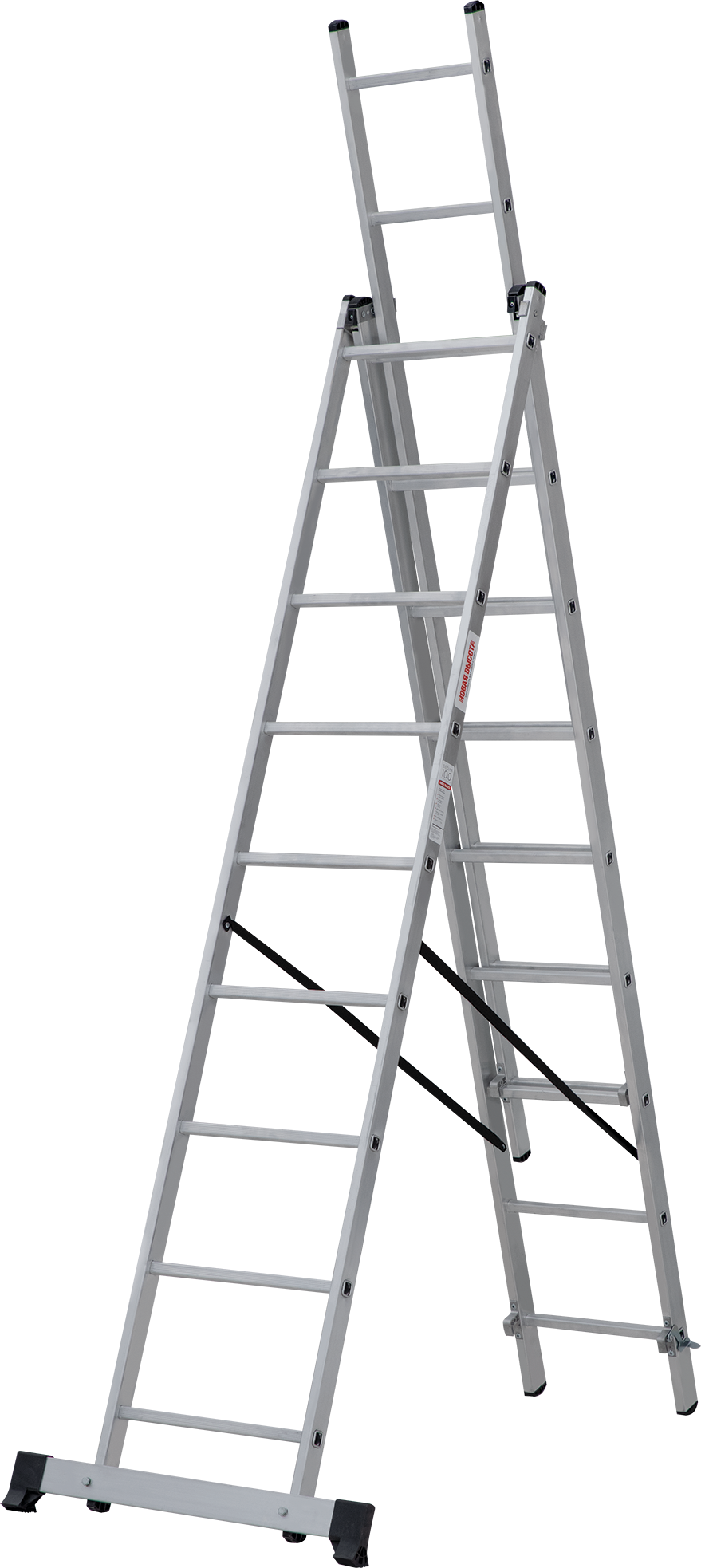

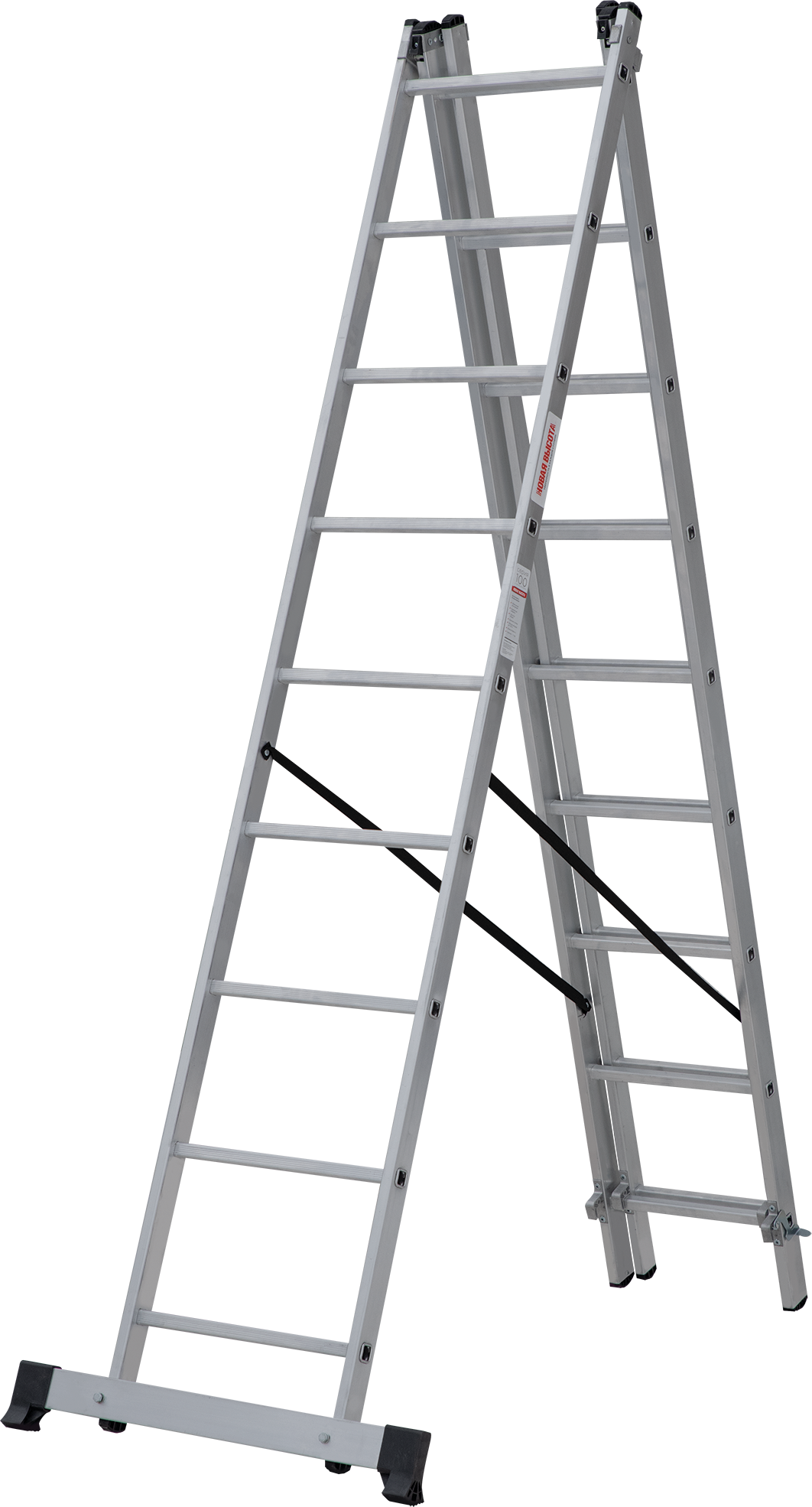

  • stepladder with an extendable section
  • can be used on stairs or steps

Technical advantages:

  • very lightweight but extremely durable and reliable
  • rungs and stiles are made from extruded aluminium profiles
  • strong riveting connects rungs and stiles, providing extra reliability and durability
  • rifled rung pitch of 260 mm for maximum safety when ascending the ladder
  • aluminium stile guides fix extendable ladder section reliably in its position for use
  • automatic locks for hooks
  • optimum stability thanks to wide cross bar
  • reliably fixed plastic end caps of stiles and cross-bar prevent risk of slipping
  • the upper section can be easilly pulled out and put up and be used separately as a single leaning rung ladder
  • can be used on steps or stairs by means of upper extendable section
Schema: Three-section aluminium rung ladder NV 1230 sku 1230309
Sku Steps A1, m A2, m A3, m B, m C, m C1, m C2, m D1, m D, m J, mm N, m M, m L, m Weight, kg
1230309 3×9 3.17 4.66 6.07 2.26 2.4 3.93 5.52 0.75 0.32 (20×50)X(23×62)X(20×50) 0.45 2.37 0.14 10.3
