Three-section aluminium rung ladder NV 1230 sku 1230317

Guarantee
1 year
Specification
Description

Positions of using:

  • leaning rung ladder

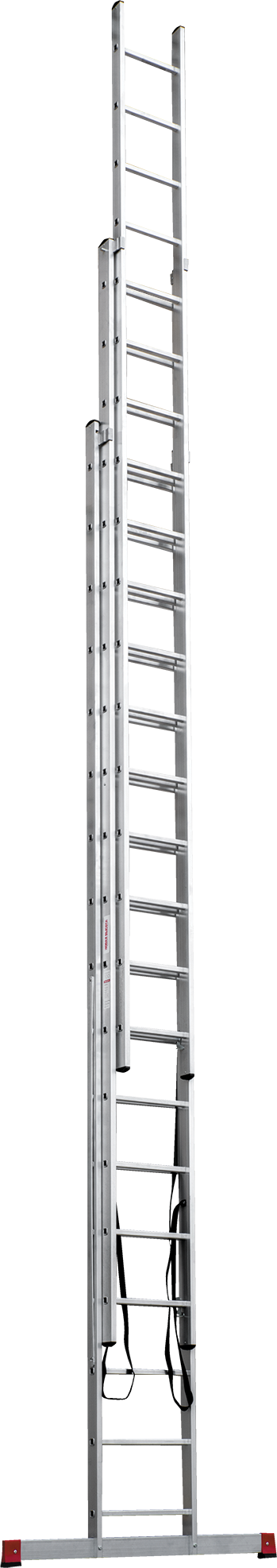

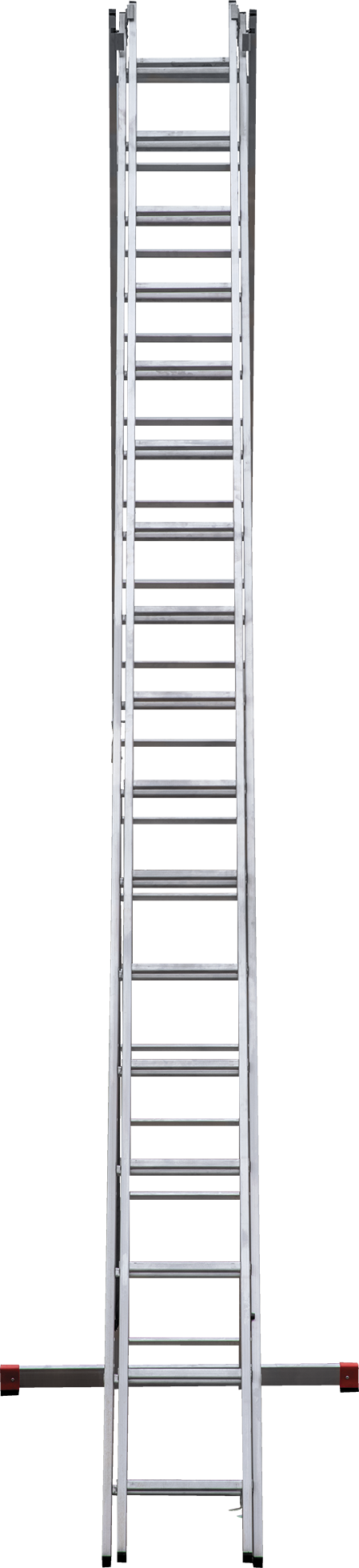

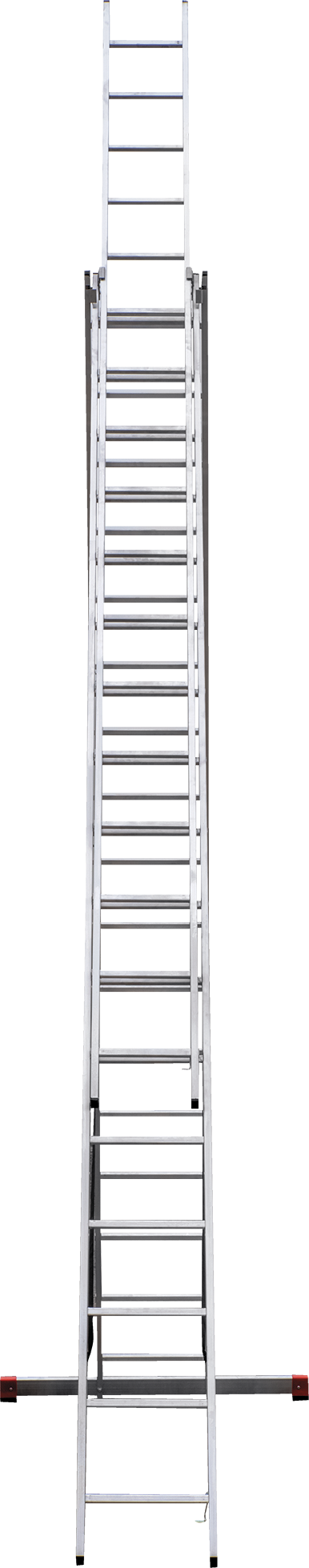

  • leaning extension rung ladder
  • stepladder

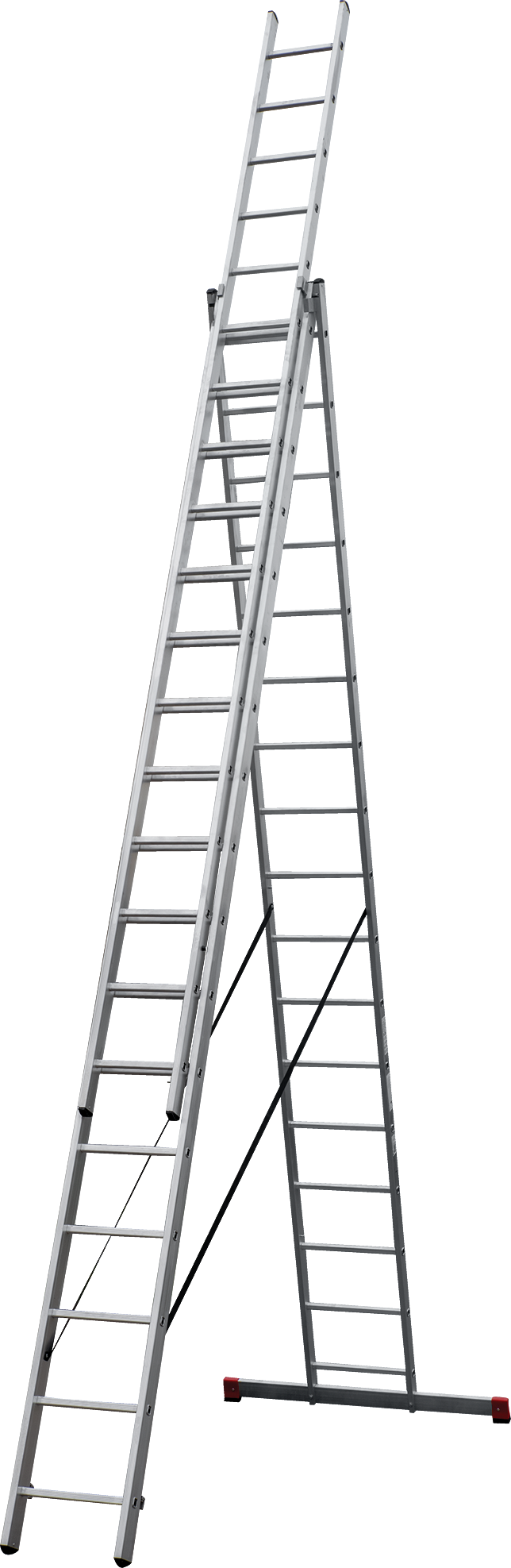

  • stepladder with an extendable section

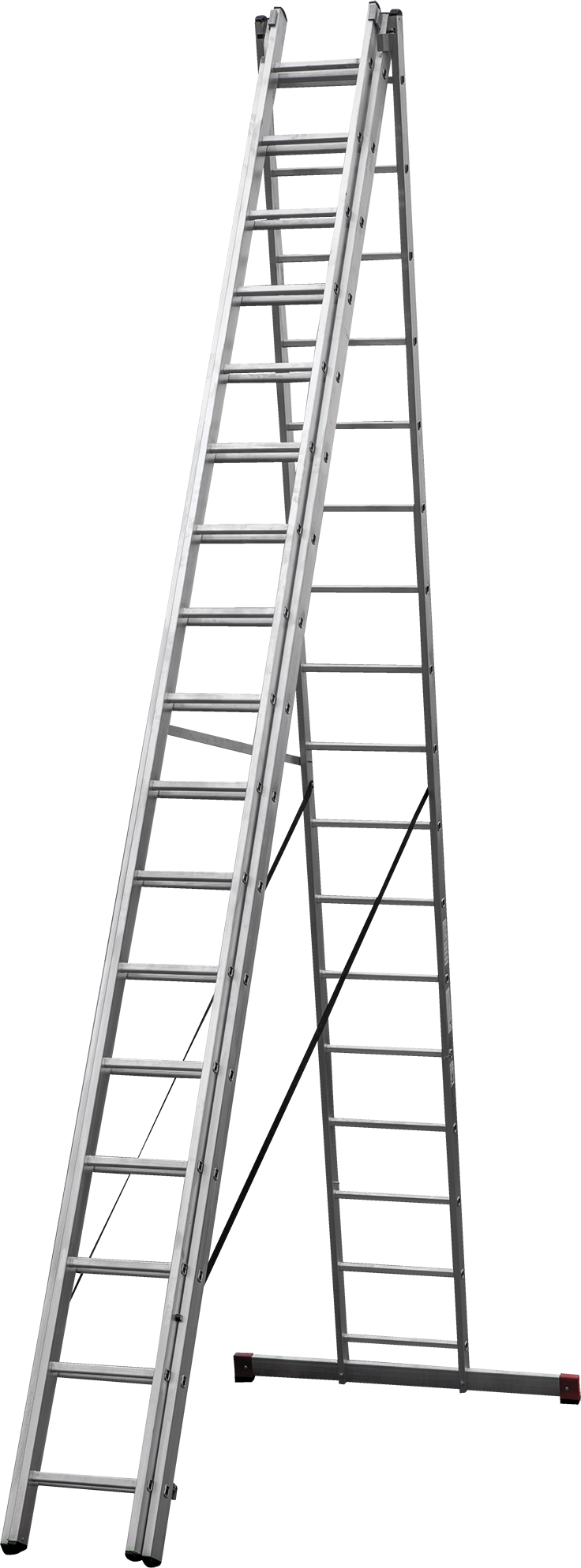

  • can be used on stairs or steps

Technical advantages:

  • very lightweight but extremely durable and reliable
  • rungs and stiles are made from extruded aluminium profiles
  • strong riveting connects rungs and stiles, providing extra reliability and durability
  • rifled rung pitch of 260 mm for maximum safety when ascending the ladder
  • aluminium stile guides fix extendable ladder section reliably in its position for use
  • automatic locks for hooks
  • optimum stability thanks to wide cross bar
  • reliably fixed plastic end caps of stiles and cross-bar prevent risk of slipping
  • the upper section can be easilly pulled out and put up and be used separately as a single leaning rung ladder
  • can be used on steps or stairs by means of upper extendable section
Schema: Three-section aluminium rung ladder NV 1230 sku 1230317
Sku Steps А1, m А2, m А3, m В, m С, m С1, m С2, m D1, m D, m J, mm N, m M, m L, m Weight, kg Buy
1230317 3×17 5.13 8.6 11.97 4.3 4.54 8.18 11.82 1.2 0.32 (23×72)X(23×85)X(23×72) 0.46 4.53 0.19 26.3
