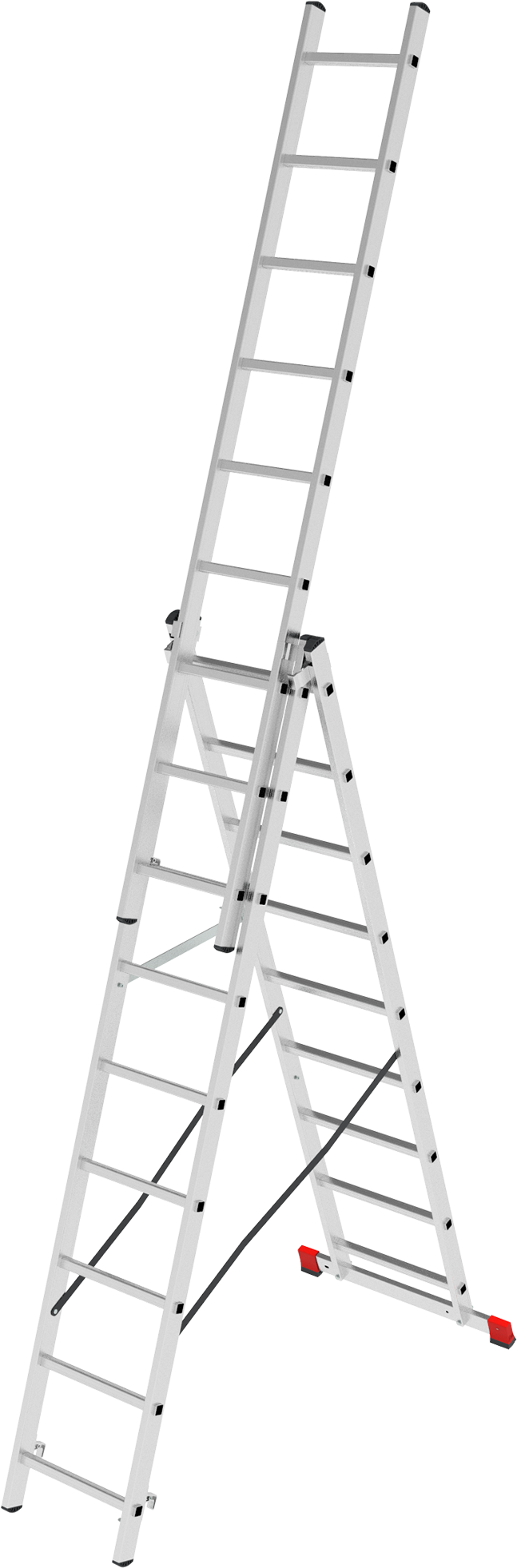

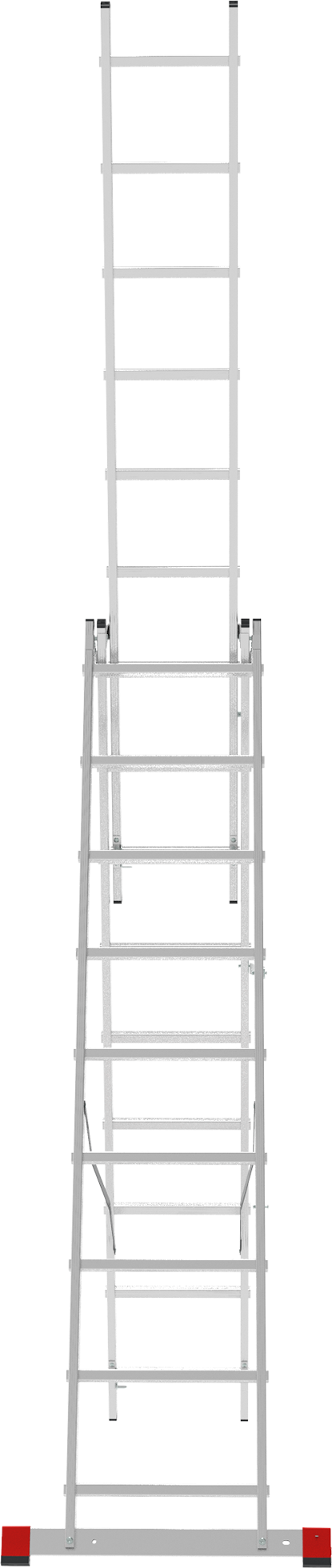

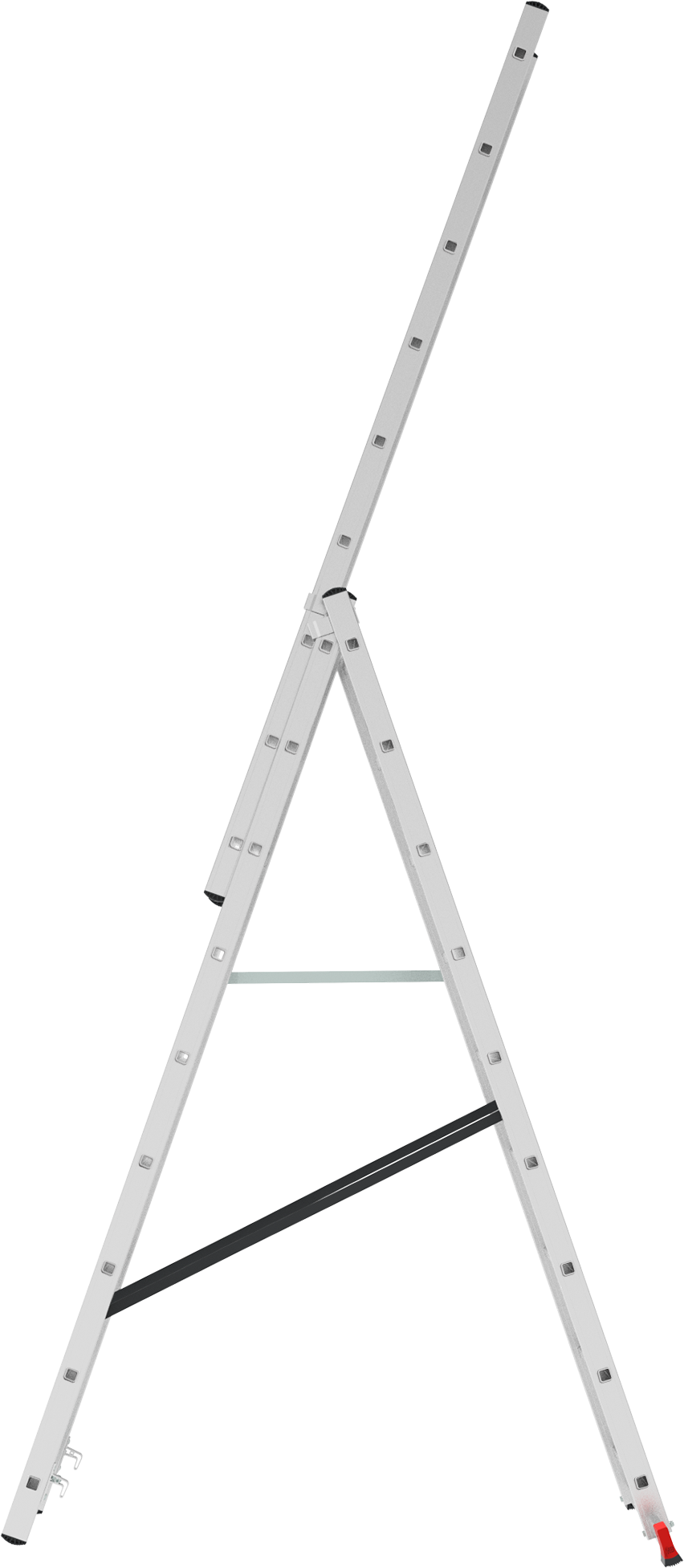

Three-section aluminium rung ladder NV 2230 sku 2230309
Guarantee
2 years
Specification
Description
Positions of using:
- leaning rung ladder
- leaning extensoion rung ladder
- stepladder
- stepladder with an extendable section
- function of using on steps or stairs
Technical advantages:
- very lightweight but extremely durable and reliable
- rungs and stiles are made from extruded profiles
- strong riveting connects rung and stiles, providing extra reliability and lasting quality
- rifled rung pitch of 260 mm for maximum safety when ascending the ladder
- aluminium stile guides fix extendable ladder section reliably in its position for use
- automatic locks for hooks
- optimum stability thanks to wide cross bar
- firmly seated in stiles and cross bar plastic end caps prevent risk of slipping
- the upper section can be easilly pulled out and put up and be used separately as a single leaning rung ladder
- function of using on steps or stairs by means of upper extendable ladder section
| Sku | А, m | А1, m | А2, m | А3, m | В, m | С, m | С1, m | С2, m | D1, m | D, m | E, m | E2, m | E3, m | K, mm | N, m | M, m | L, m | Объём, m3 | Weight, kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2230309 | 3,39 | 3,39 | 4,64 | 6,36 | 2,25 | 2,39 | 3,93 | 5,51 | 0,75 | 0,33 | 1,39 | 2,64 | 4,36 | 23×62 | 0,47 | 2,37 | 0,17 | 0,1952 | 12 |
