Three-section aluminium rung ladder NV 2230 sku 2230314

Guarantee
2 years
Specification
Description

Positions of using:

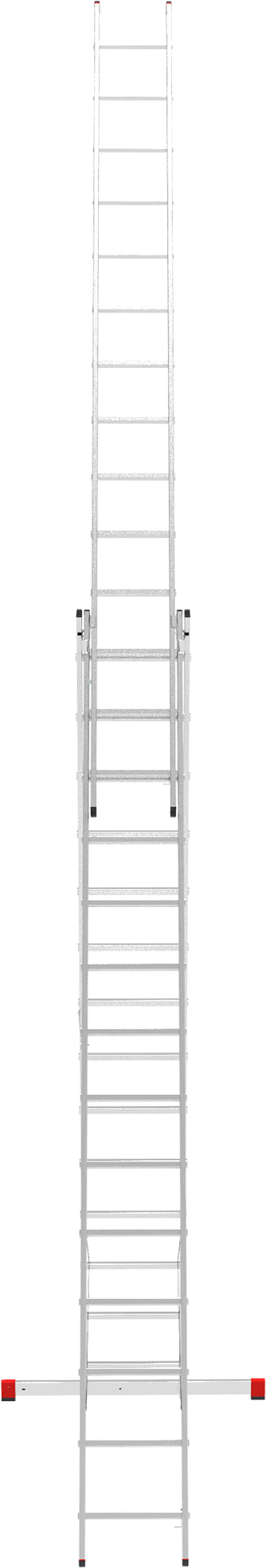

  • leaning rung ladder

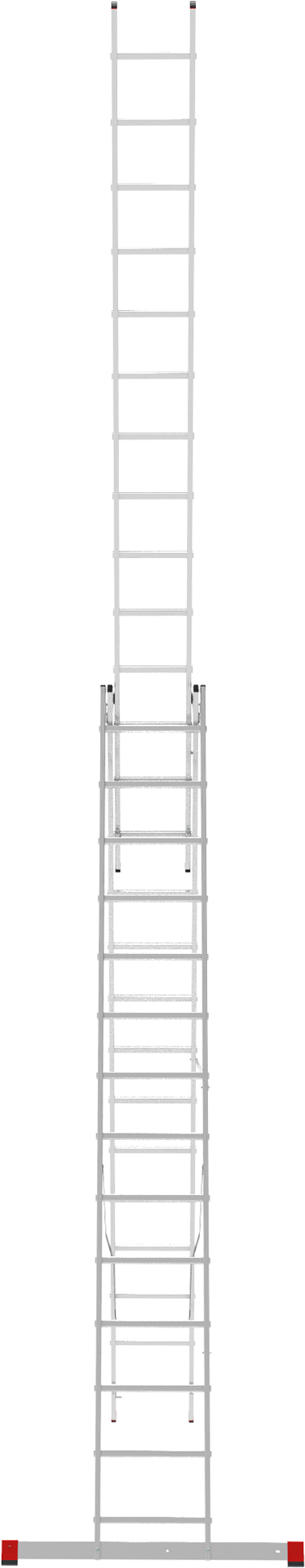

  • leaning extensoion rung ladder

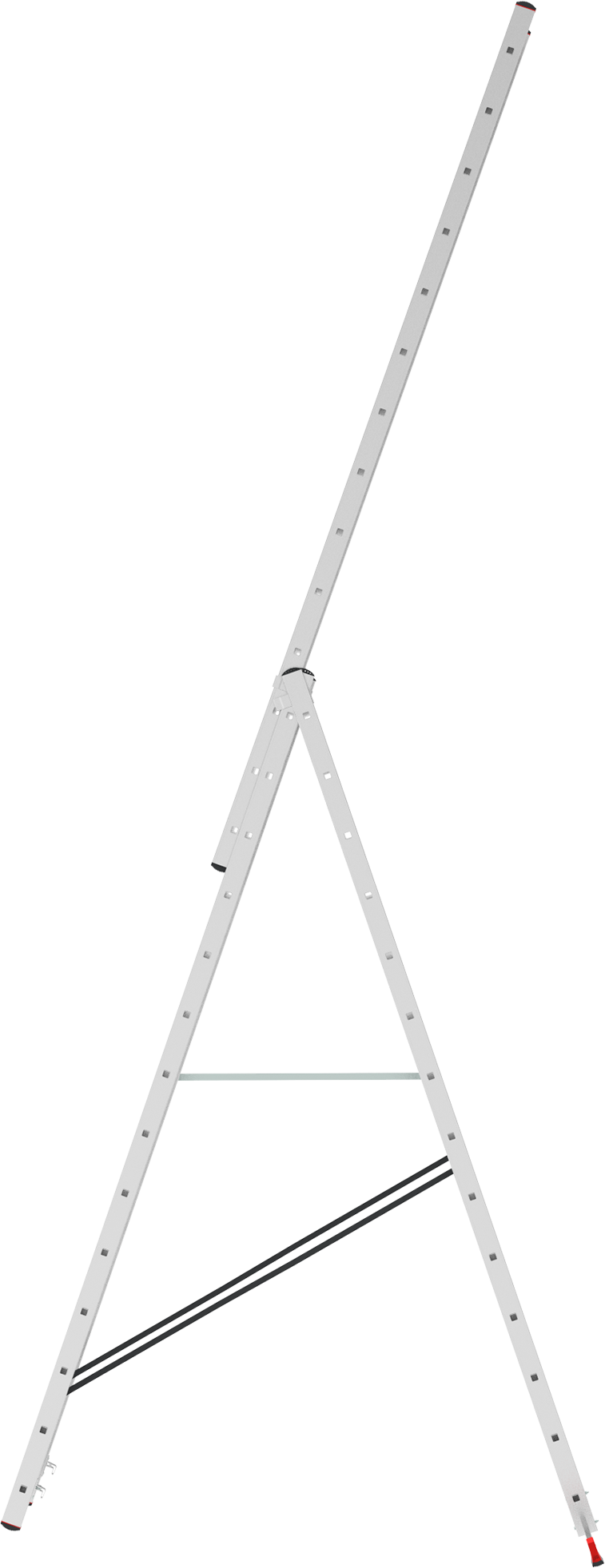

  • stepladder
  • stepladder with an extendable section
  • function of using on steps or stairs

Technical advantages:

  • very lightweight but extremely durable and reliable
  • rungs and stiles are made from extruded profiles
  • strong riveting connects rung and stiles, providing extra reliability and lasting quality
  • rifled rung pitch of 260 mm for maximum safety when ascending the ladder
  • aluminium stile guides fix extendable ladder section reliably in its position for use
  • automatic locks for hooks
  • optimum stability thanks to wide cross bar
  • firmly seated in stiles and cross bar plastic end caps prevent risk of slipping
  • the upper section can be easilly pulled out and put up and be used separately as a single leaning rung ladder
  • function of using on steps or stairs by means of upper extendable ladder section
Schema: Three-section aluminium rung ladder NV 2230 sku 2230314
Sku А, m А1, m А2, m А3, m В, m С, m С1, m С2, m D1, m D, m E, m E2, m E3, m K, mm N, m M, m L, m Объём, m3 Weight, kg
2230314 4,65 4,65 7,12 10,04 3,56 3,76 6,63 9,49 1,2 0,33 2,65 5,12 8,04 23×85 0,47 3,77 0,22 0,406 21,5
