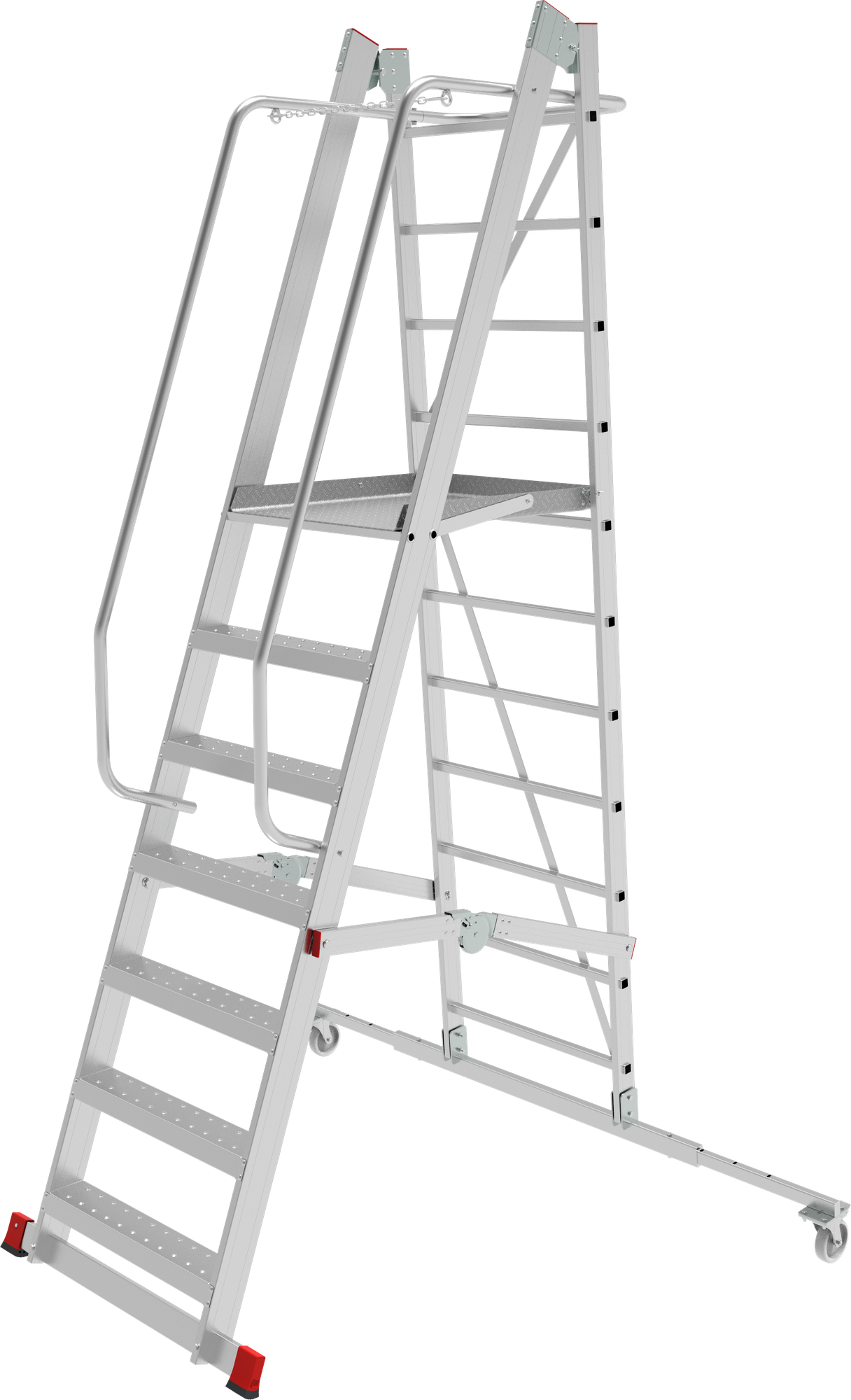

Professional mobile folding platform ladder with telescopic cross bar NV3541
Rungs
1×5—1×14
Guarantee
3 years
Specification
Description
- The mobile folding scaffold ladder with a platform one-sided is designed to create a workplace at a height of 1.38–3.92 m. Suitable for regular use in professional work.
- Ideal for working on storage racks. Can be used indoors and outdoors.
- Possesses high strength and durability with light weight (from 42 kg). Complies with GOST (Russian standard) R58752−2019.

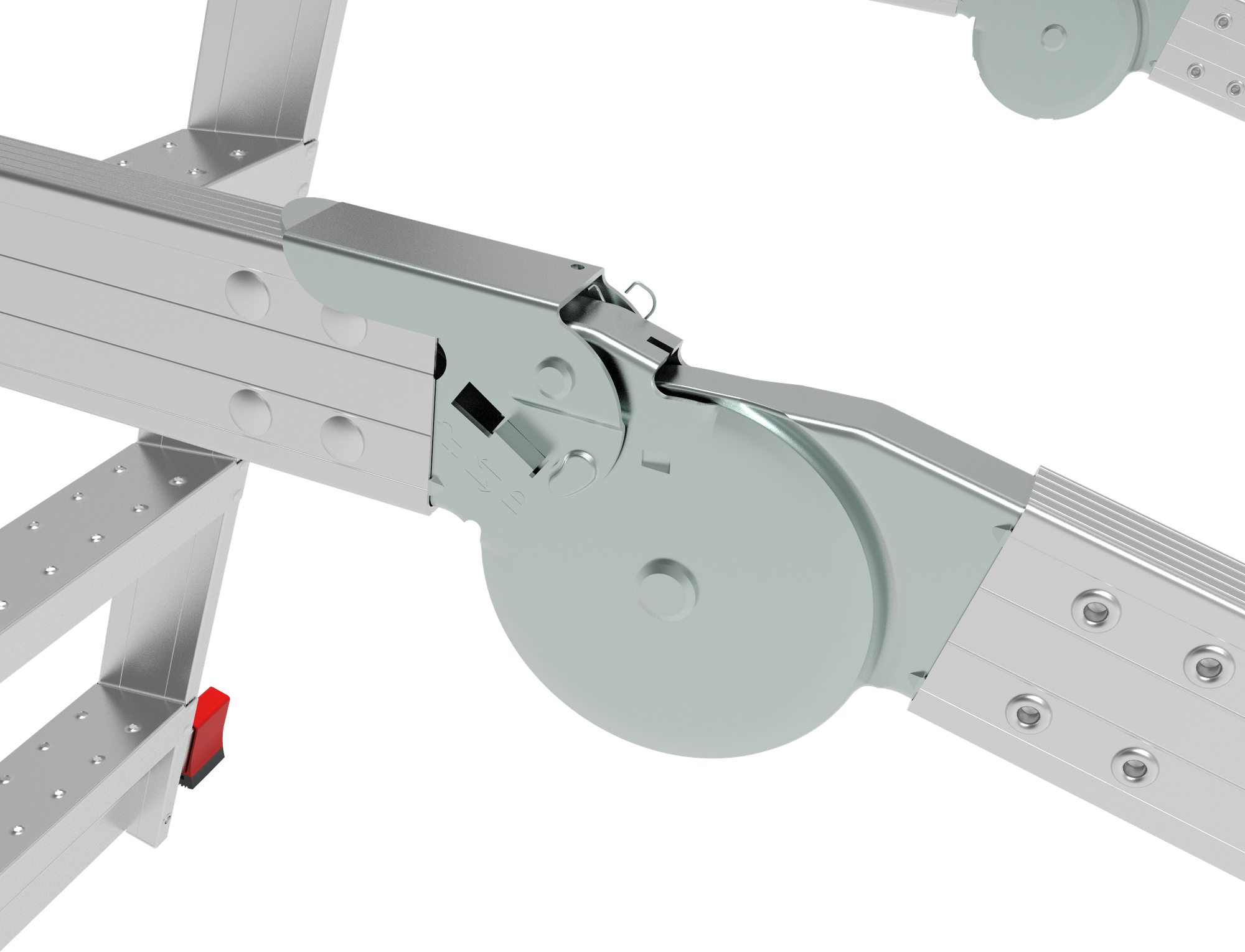

- Foldable design for easy storage and transportation. Pivot locks with automatic locking in the diagonal braces make the ladder easy to install and fold.

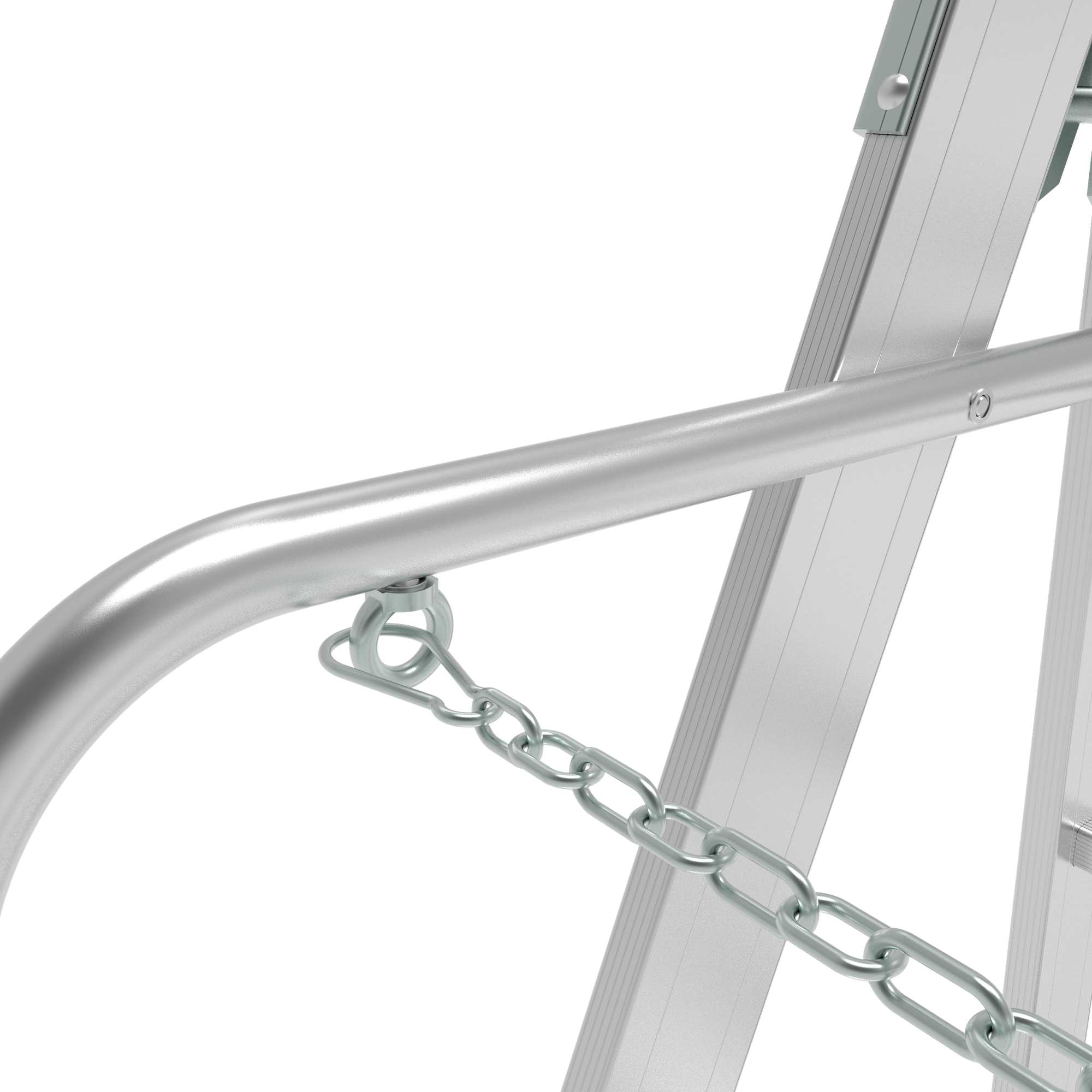

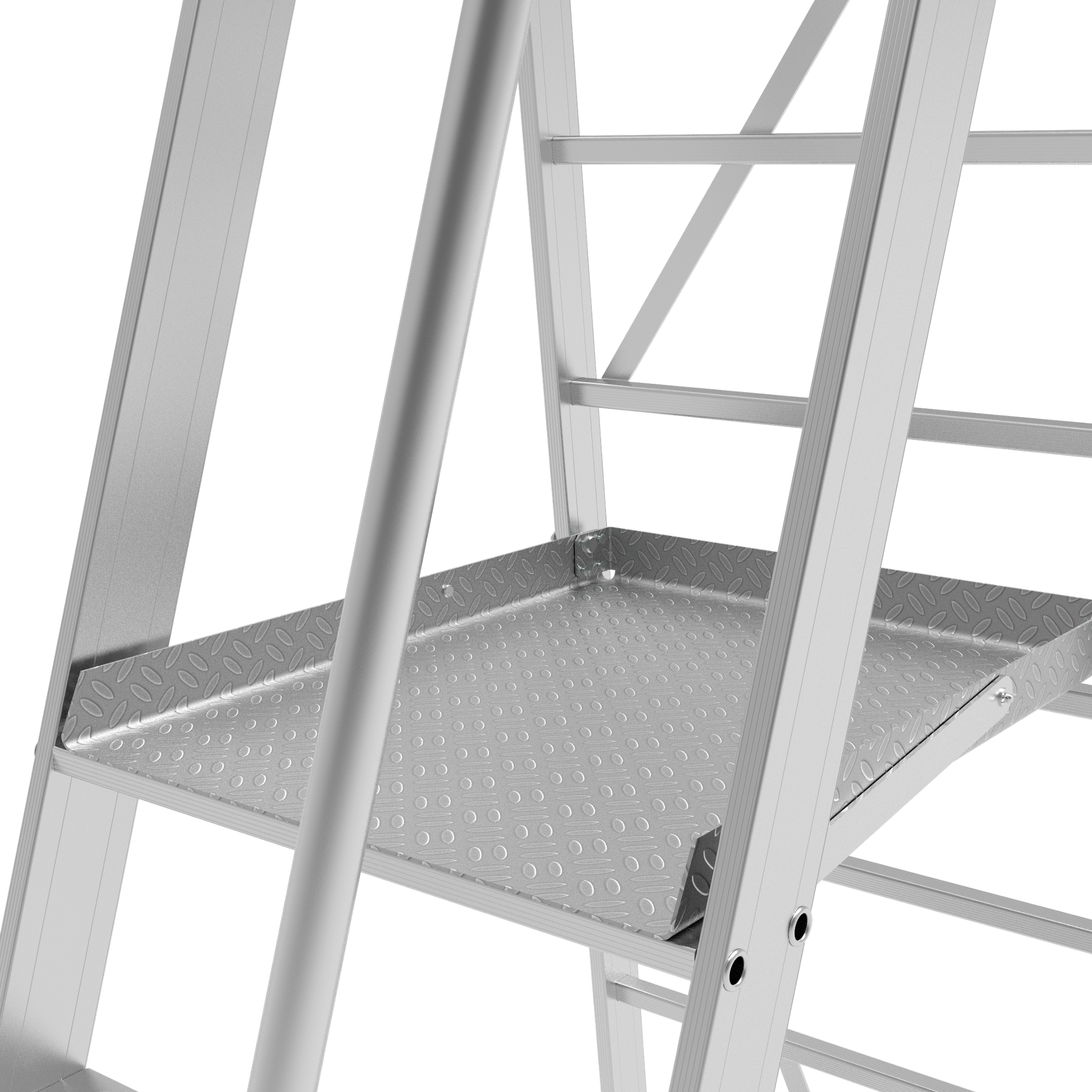

- The working platform of 730×620 mm ensures safety and convenience during prolonged work at height. Robust fence 1.1 m high on three sides of the site.

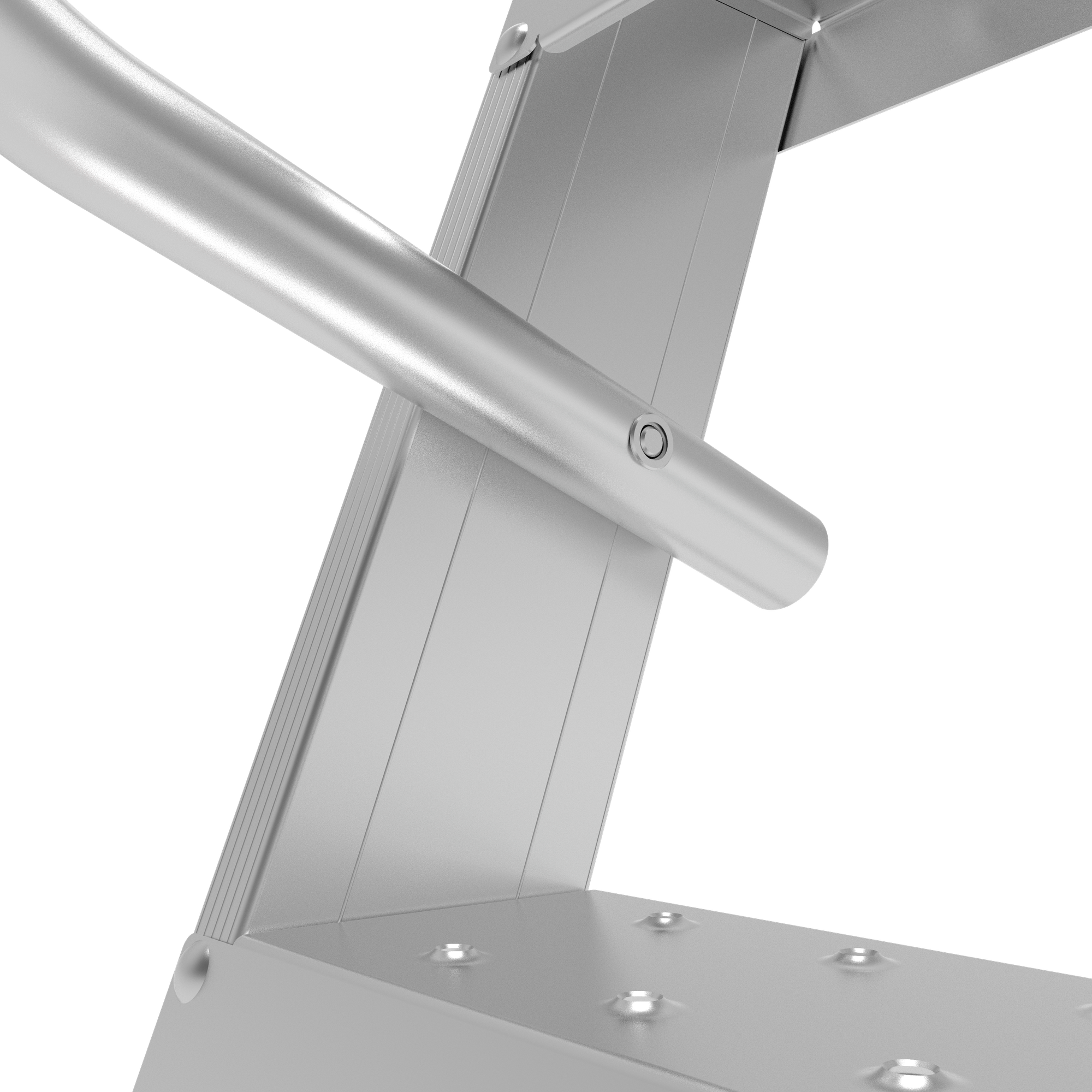

- The lift is equipped with handrails on both sides.

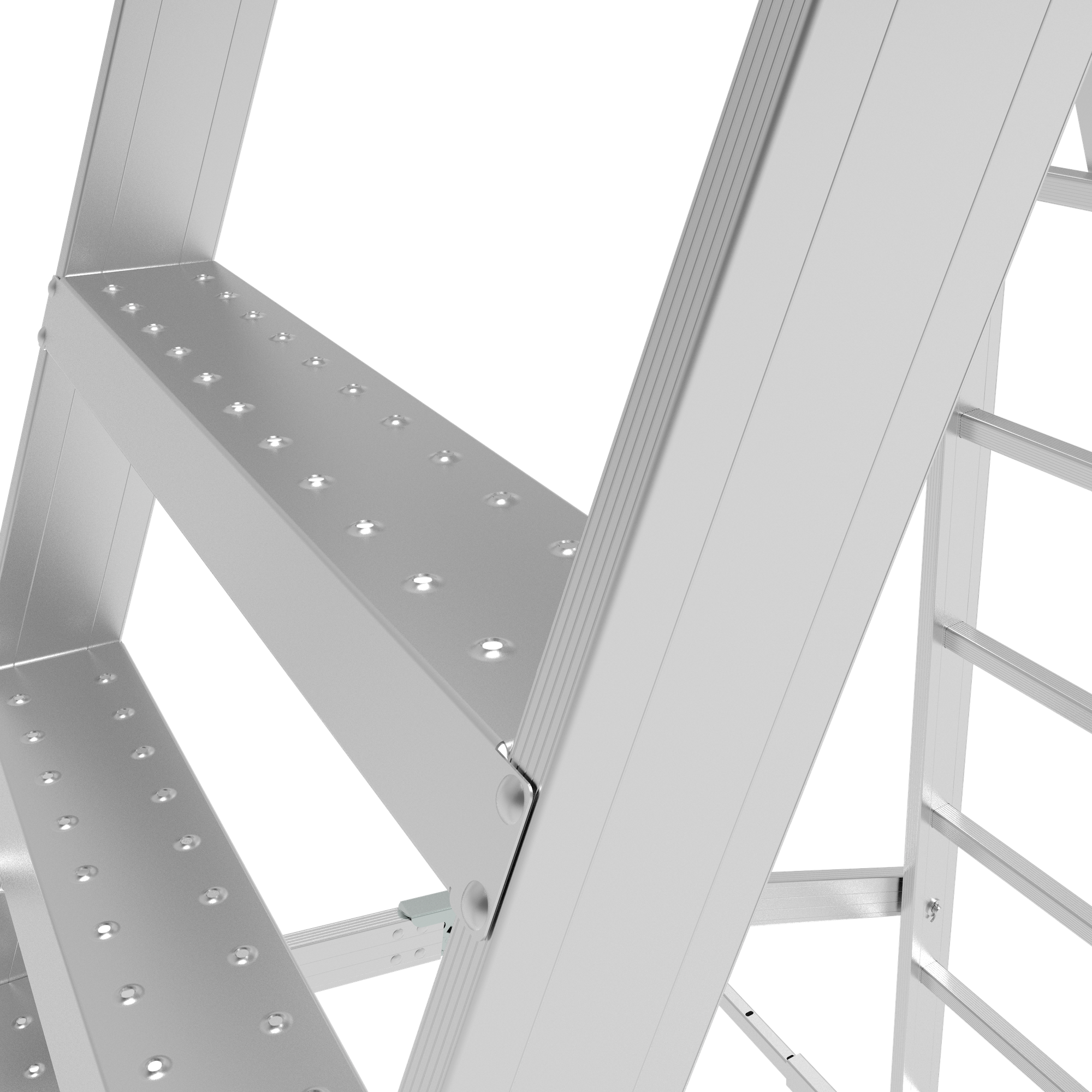

- Convenient wide steel steps with safety edge are firmly riveted to the uprights.
- The depth of the steps is 110 mm. The surface of the steps is corrugated to eliminate slipping when climbing.
- Additional diagonal struts for structural rigidity.
- Two rigid cross-beams ensure the stability of the ladder. One of the traverses is telescopic, with variable length to create the widest possible support area.

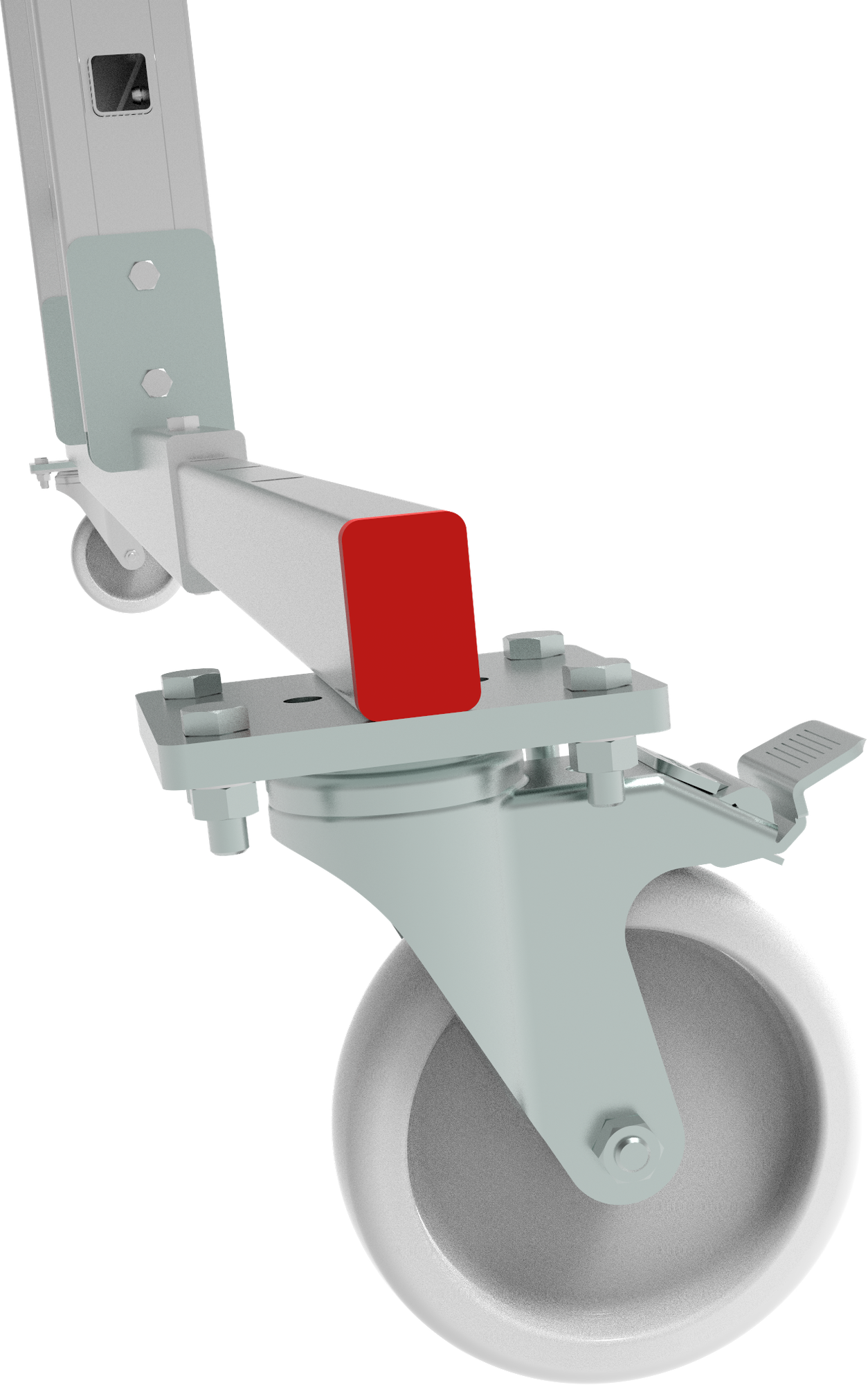

- The traverses are equipped with wheels 125×30 mm with brakes for ease of movement and quick preparation for use.
- Practicality and attention to each component guarantee comfortable and safe work at any required height.

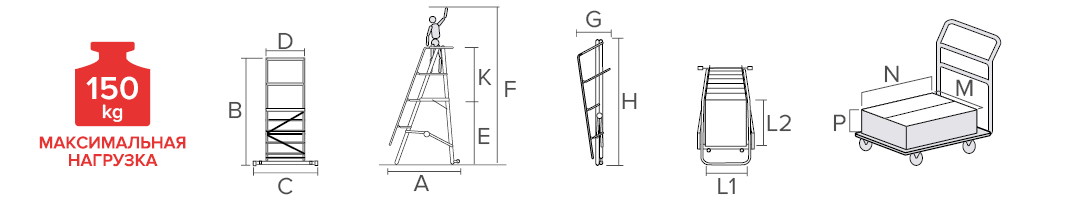

| Sku | Steps | A, m | B, m | C, m | D, m | E, m | F, m | G, m | H, m | K, m | L1, m | L2, m | M, m | N, m | P, m | Weight, kg | Цена | Buy | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3541105 | 1×5 | 1,45 | 2,69 | 1,43…2,10 | 0,73 | 1,43 | 3,43 | 0,80 | 2,82 | 1,06 | 0,63 | 0,74 | 0,77 | 2,80 | 0,25 | 42,3 | по запросу | ||
| 3541106 | 1×6 | 1,57 | 2,95 | 1,43…2,10 | 0,73 | 1,69 | 3,69 | 0,80 | 3,09 | 1,06 | 0,63 | 0,74 | 0,77 | 3,07 | 0,25 | 44,7 | по запросу | ||
| 3541107 | 1×7 | 1,68 | 3,21 | 1,43…2,10 | 0,73 | 1,95 | 3,95 | 0,80 | 3,37 | 1,06 | 0,63 | 0,74 | 0,77 | 3,34 | 0,25 | 47,6 | по запросу | ||
| 3541108 | 1×8 | 1,80 | 3,47 | 1,43…2,10 | 0,73 | 2,21 | 4,21 | 0,80 | 3,64 | 1,06 | 0,63 | 0,74 | 0,77 | 3,62 | 0,25 | 50,4 | по запросу | ||
| 3541109 | 1×9 | 1,93 | 3,75 | 1,43…2,10 | 0,73 | 2,50 | 4,50 | 0,81 | 3,94 | 1,06 | 0,63 | 0,74 | 0,77 | 3,92 | 0,25 | 55,2 | по запросу | ||
| 3541110 | 1×10 | 2,07 | 4,05 | 1,43…2,10 | 0,73 | 2,79 | 4,79 | 0,81 | 4,29 | 1,06 | 0,63 | 0,74 | 0,77 | 4,26 | 0,25 | 58,4 | по запросу | ||
| 3541111 | 1×11 | 2,20 | 4,33 | 1,43…2,10 | 0,73 | 3,07 | 5,07 | 0,81 | 4,59 | 1,06 | 0,63 | 0,74 | 0,77 | 4,56 | 0,25 | 61,4 | по запросу | ||
| 3541112 | 1×12 | 2,33 | 4,61 | 1,43…2,10 | 0,73 | 3,36 | 5,36 | 0,81 | 4,89 | 1,06 | 0,63 | 0,74 | 0,77 | 4,86 | 0,25 | 64,3 | по запросу | ||
| 3541113 | 1×13 | 2,45 | 4,90 | 1,43…2,10 | 0,73 | 3,64 | 5,64 | 0,81 | 5,19 | 1,06 | 0,63 | 0,74 | 0,77 | 5,16 | 0,25 | 67,2 | по запросу | ||
| 3541114 | 1×14 | 2,58 | 5,18 | 1,43…2,10 | 0,73 | 3,92 | 5,92 | 0,81 | 5,49 | 1,06 | 0,63 | 0,74 | 0,77 | 5,46 | 0,25 | 70,1 | по запросу |
